Prototype 914/6 Porsche VIN 914114

Home Email Me

Photos taken February 14, 2004

Sorry for the poor quality photos, the light quality was poor during the opportunity to take these photos. 914114 shown here in rough condition, but I hope you will see the underlaying beauty. I hope that better photos will be available someday. I have left the photos in large format specifically so that as much detail is available to you as possible. There is much to learn just by studying the photos.

Click on the thumbnails for larger images

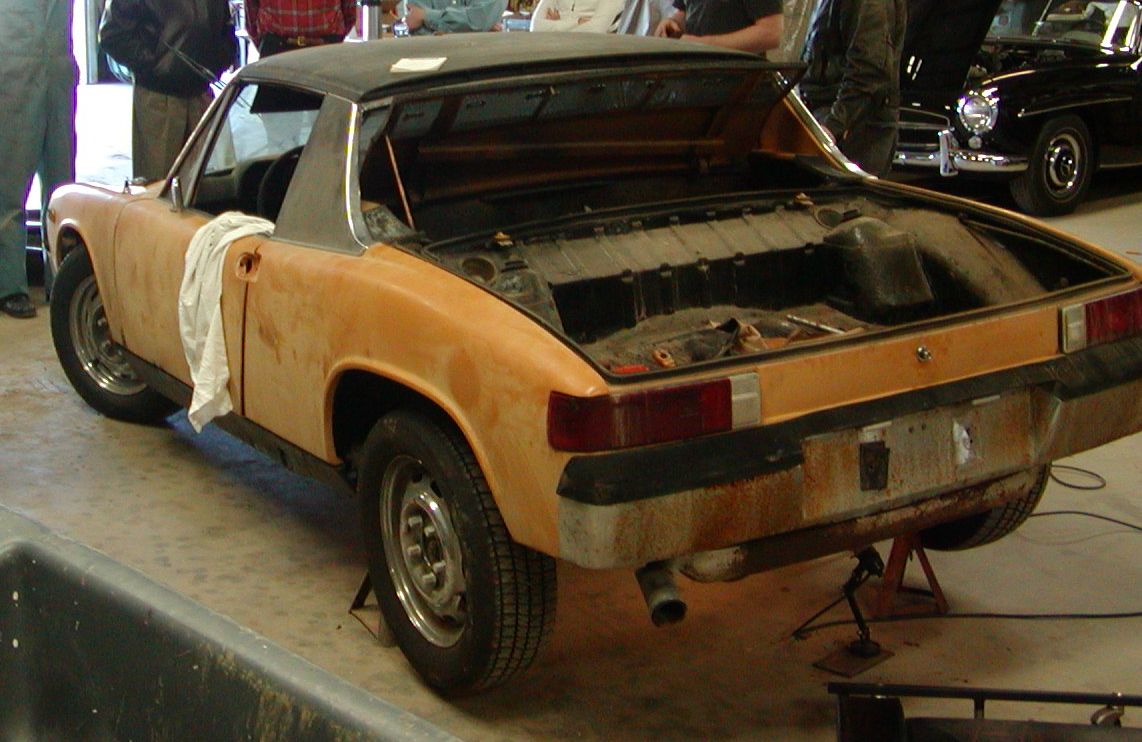

	Overall from rear

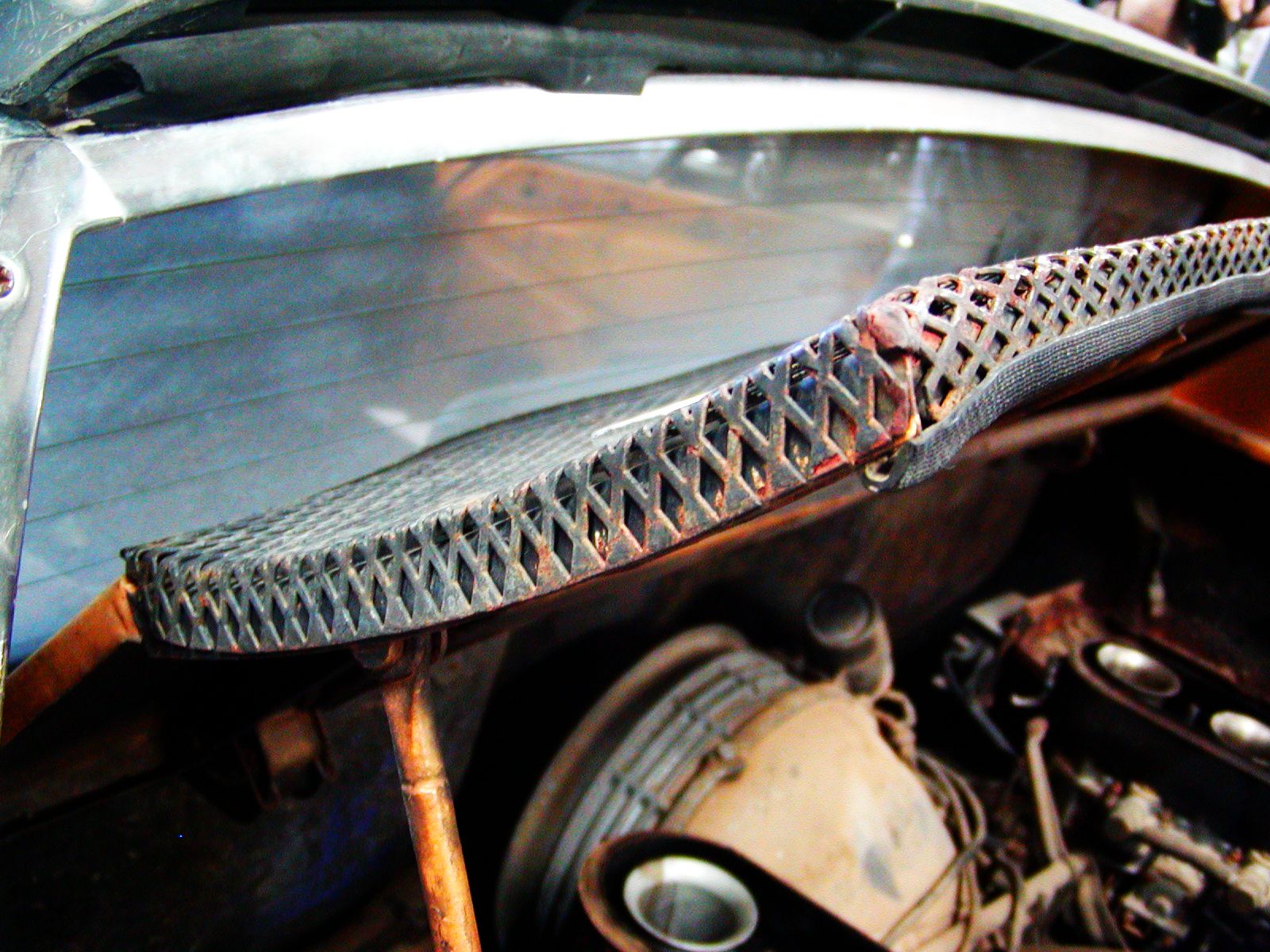

	Engine grille edge Engine grille support point
	Engine grille support rod Engine grille support pillar Engine grille spring hinge

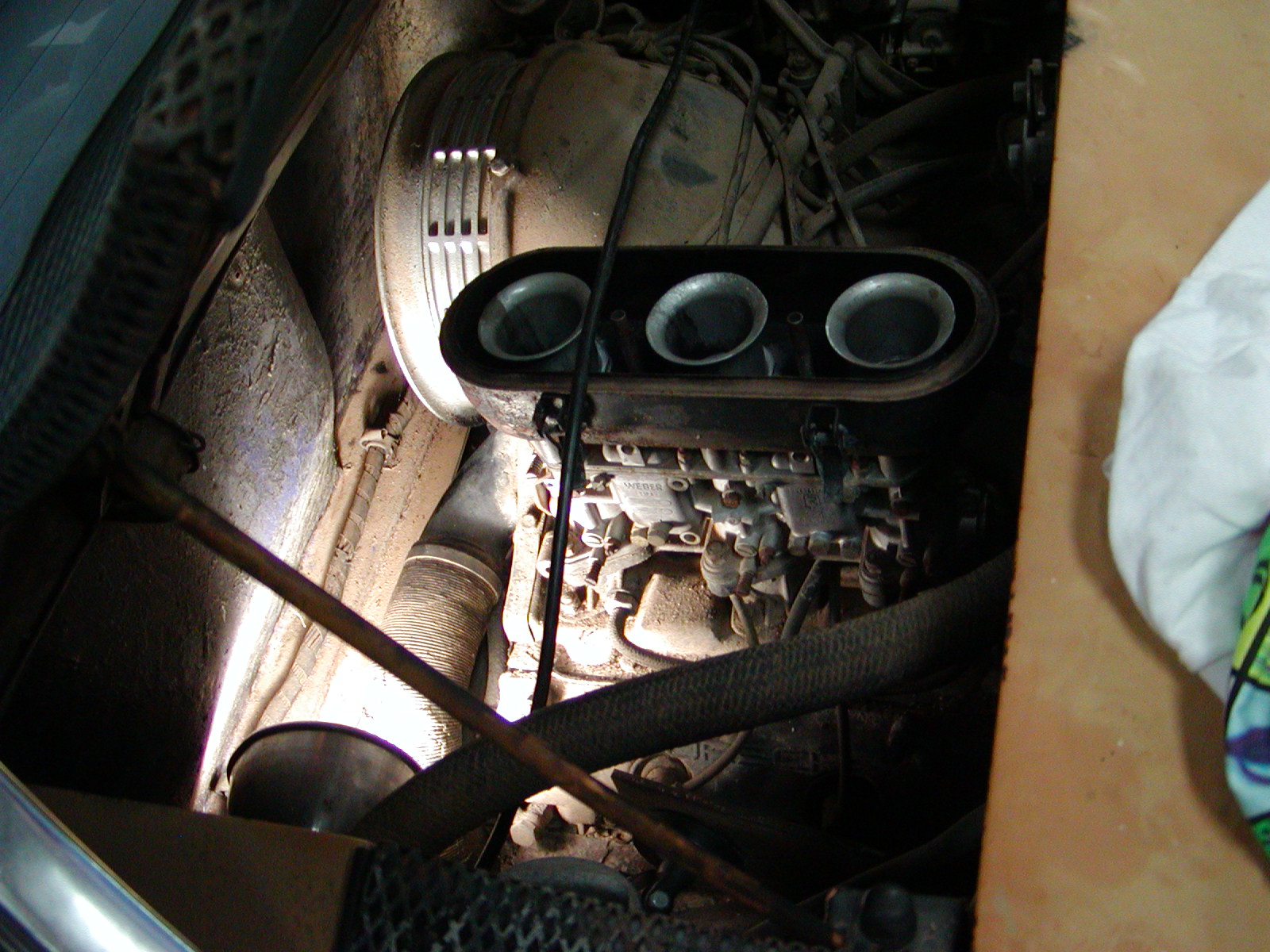

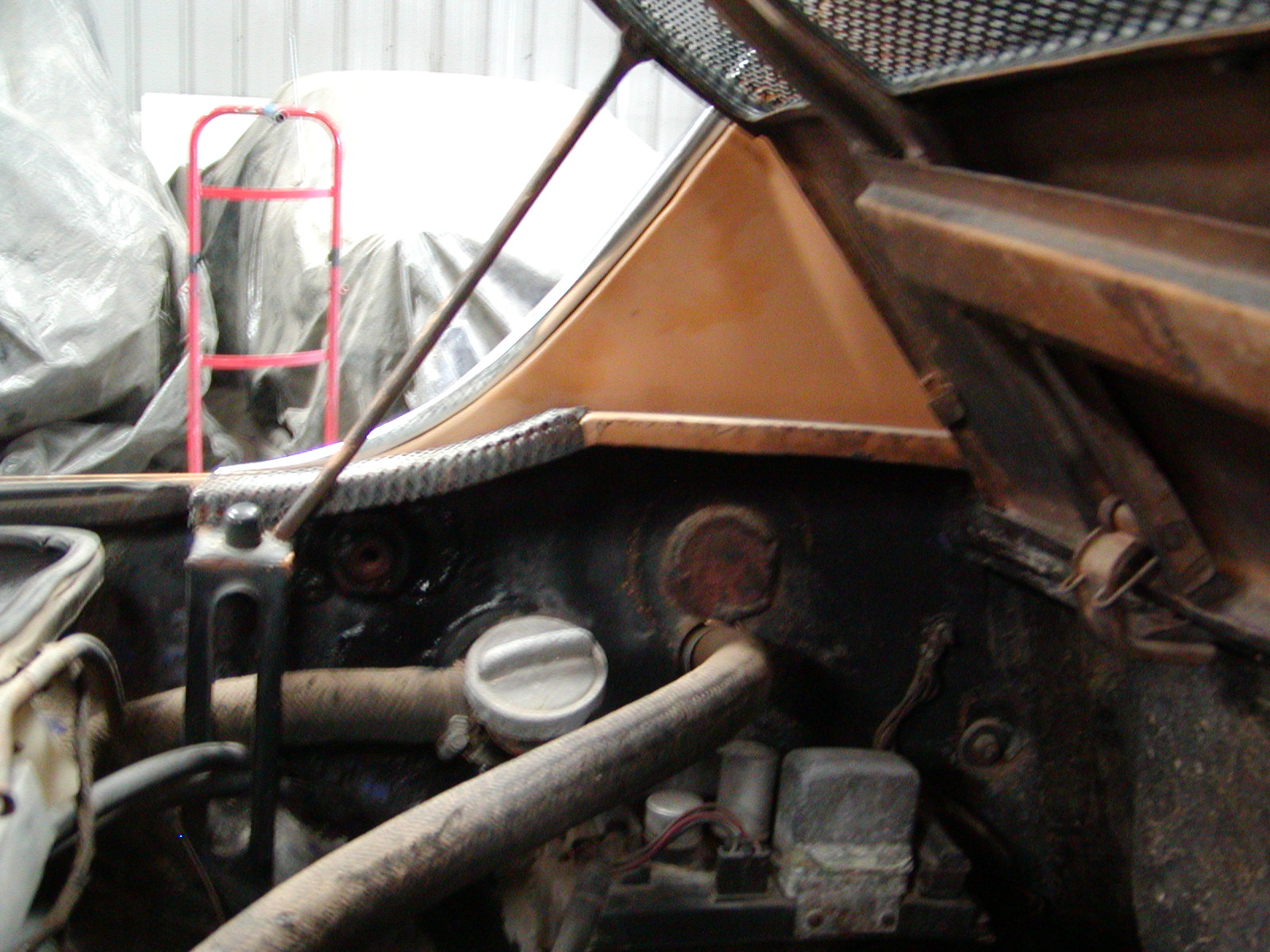

	Engine

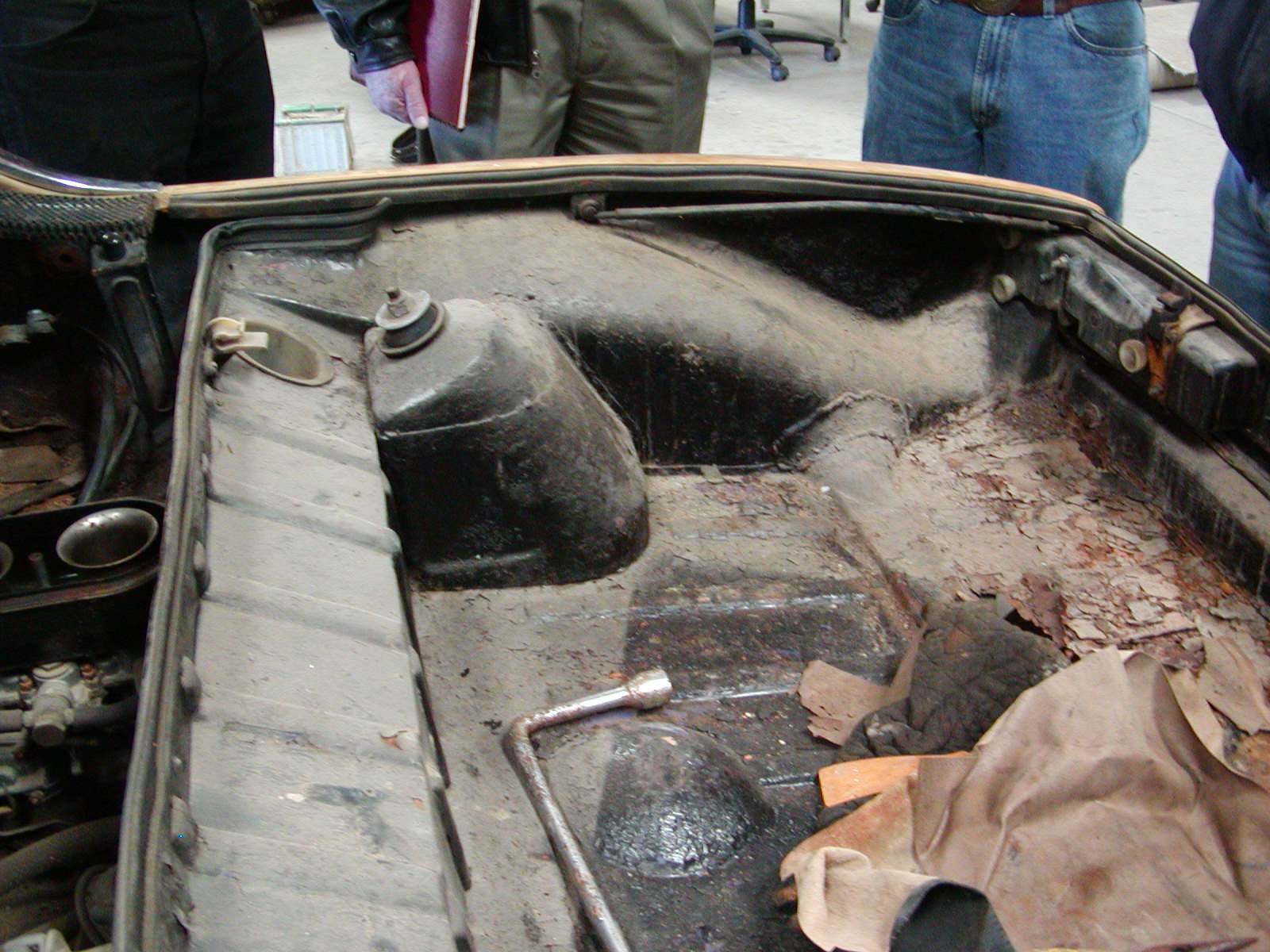

	Rear trunk overall Sportomatic bump in floor Rear trunk lid support rod

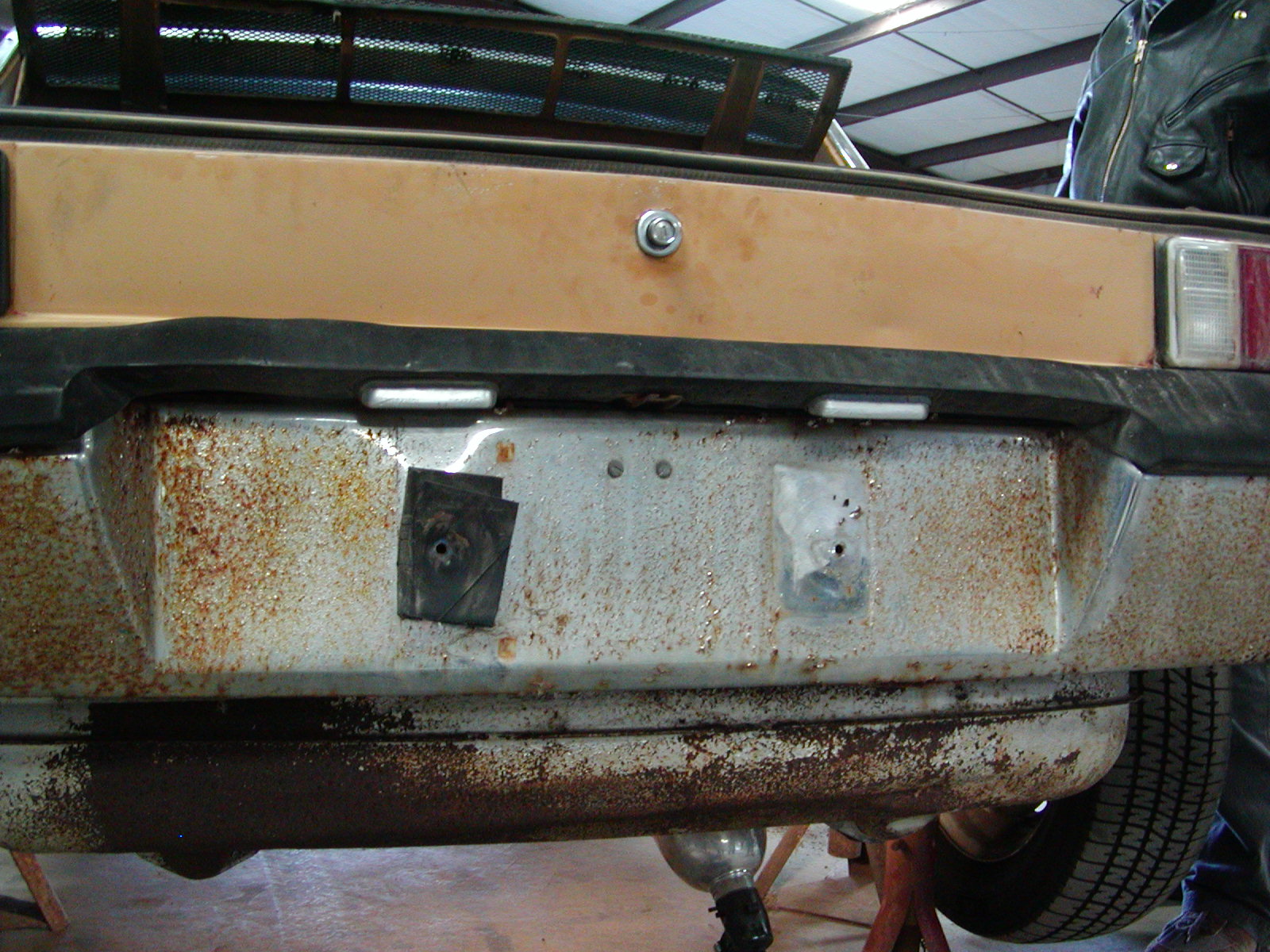

	Rear bumper License plate lights Rear trunk lock

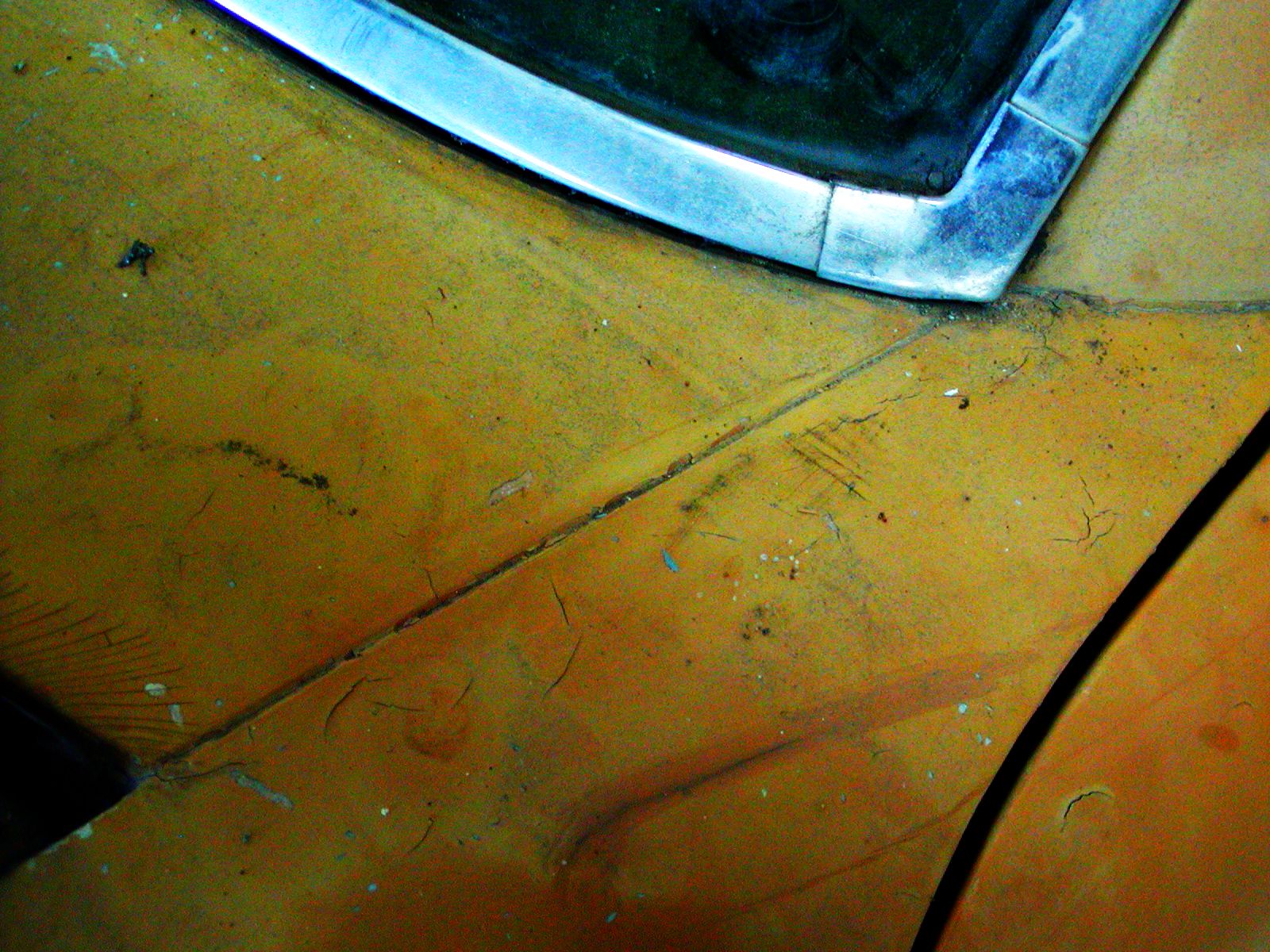

	Cowl corner seam Windshield corner trim

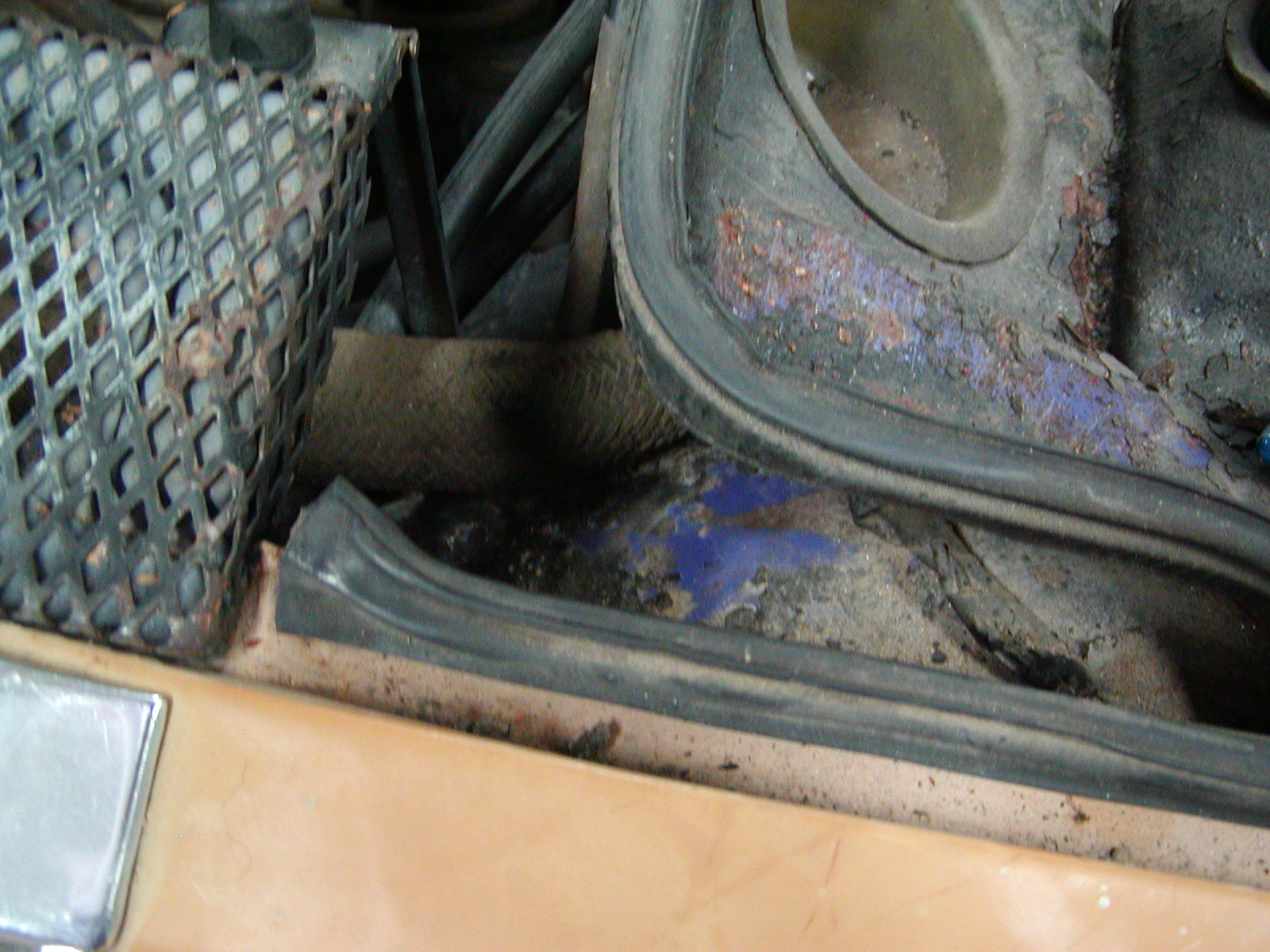

	Violet paint in engine bay

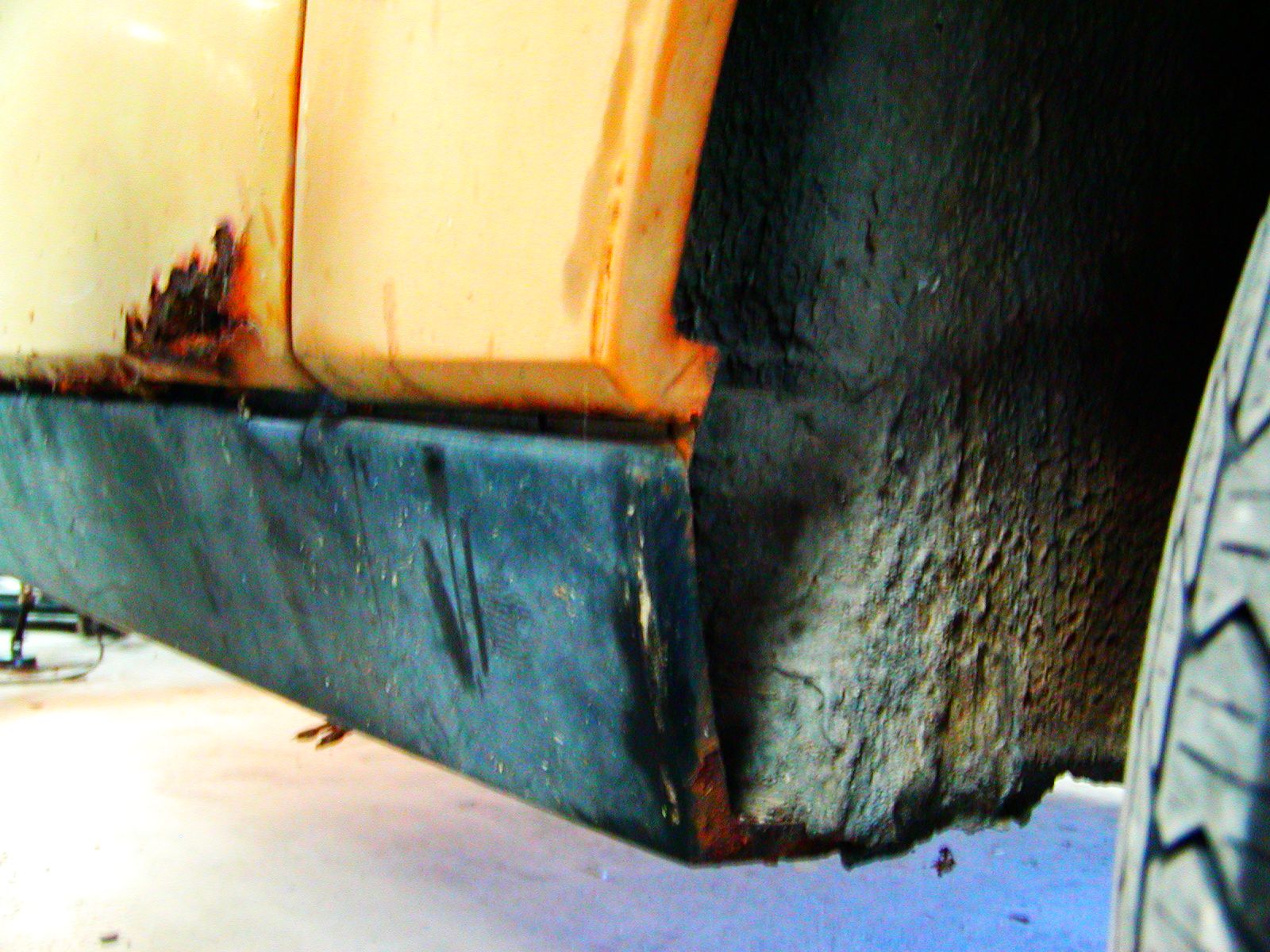

	Lower front fenderwell

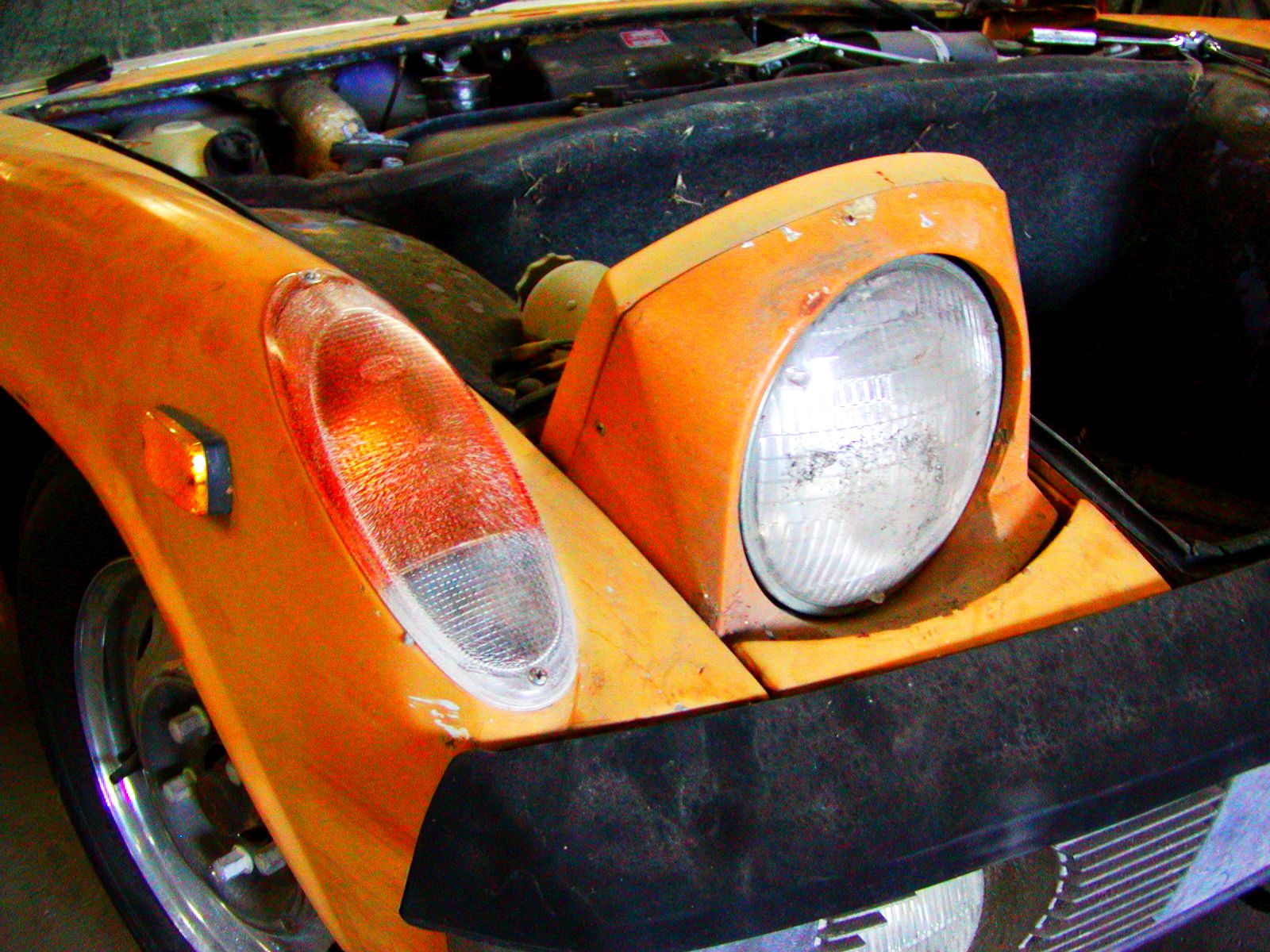

	Front right corner Turnsignal housing and lens Sidemarker light

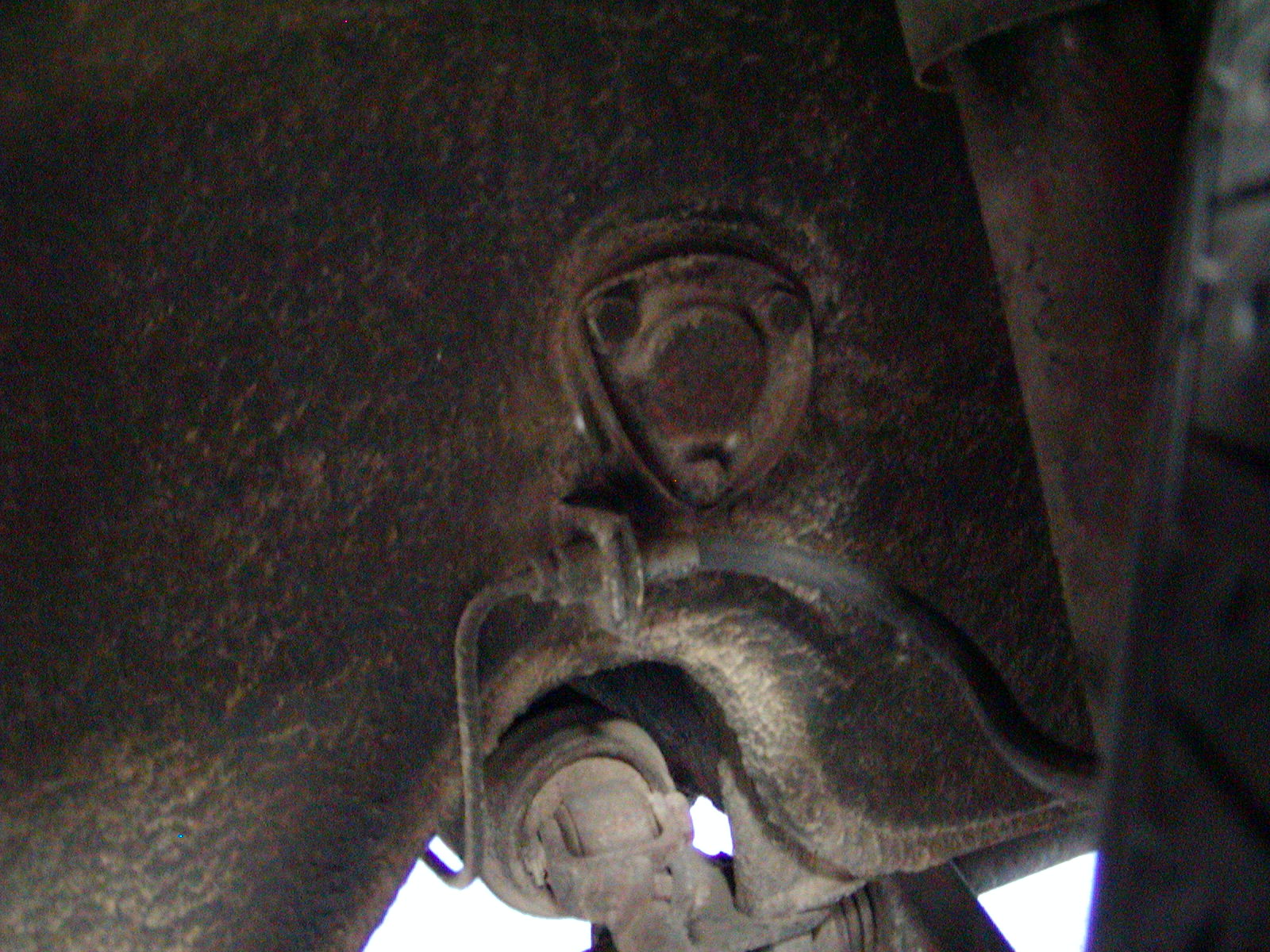

	Front sway bar mount

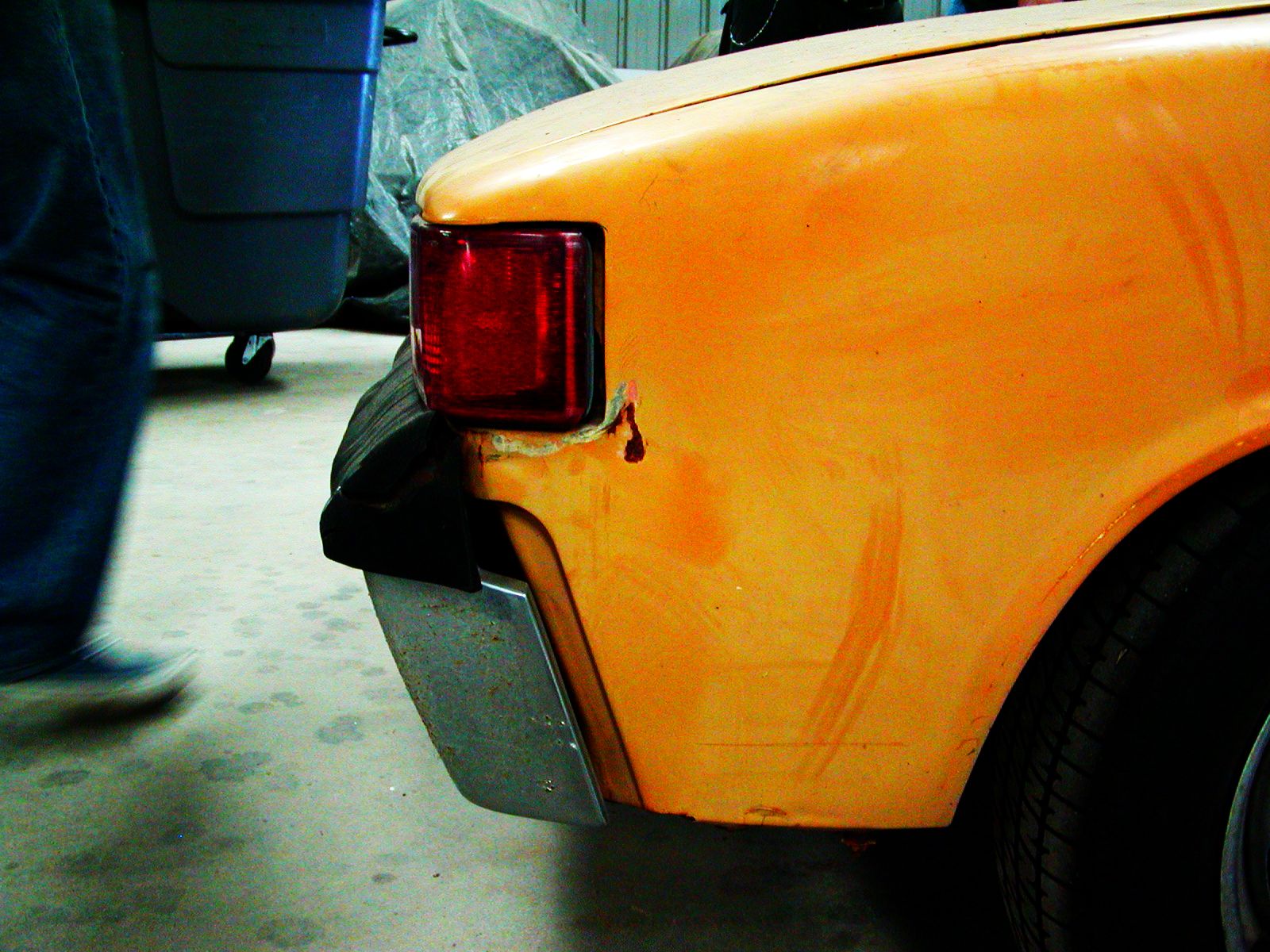

	Rear taillight corner

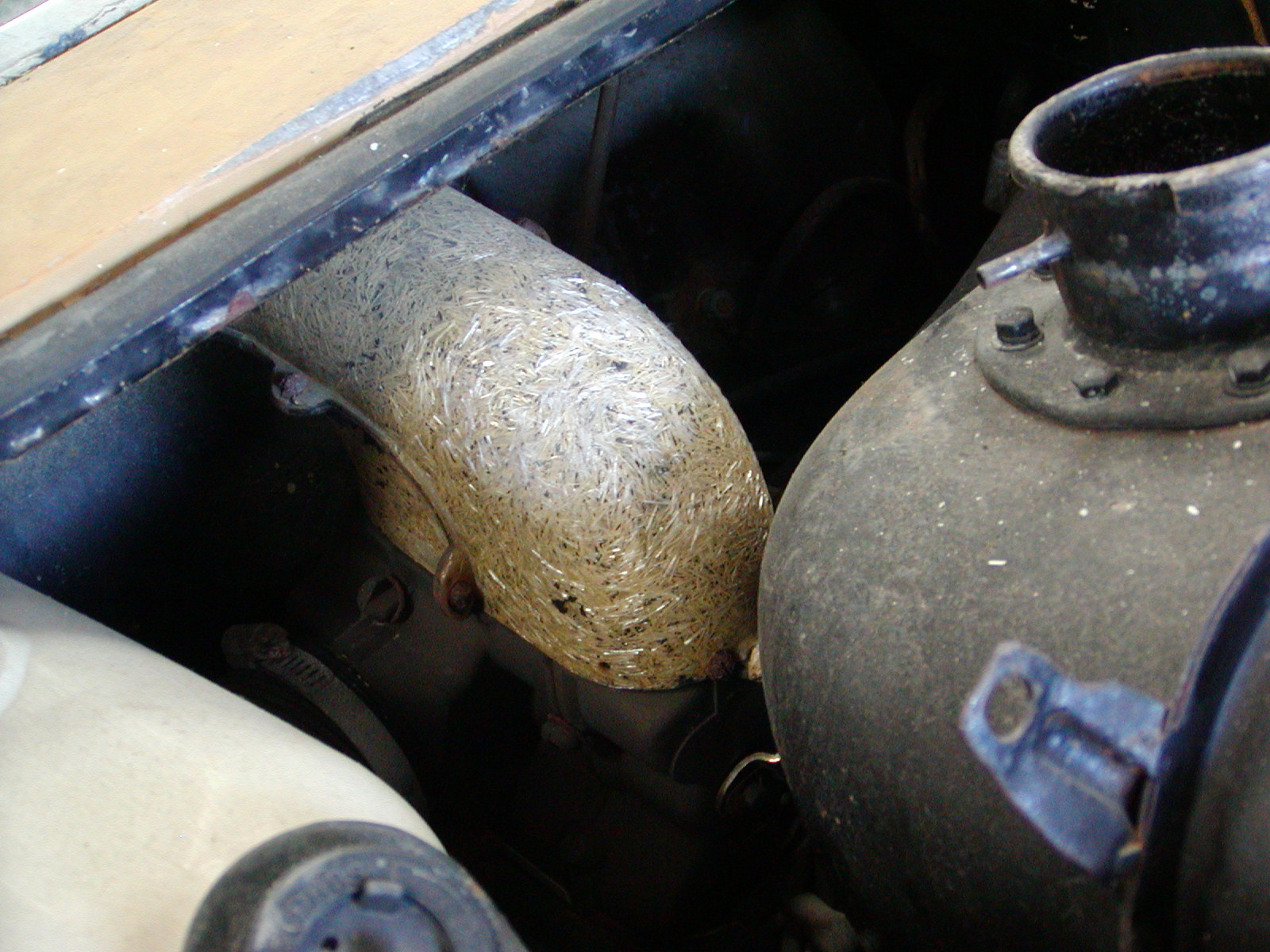

	Fresh air vent ducting
	Headlight motor knob Violet paint in front trunk

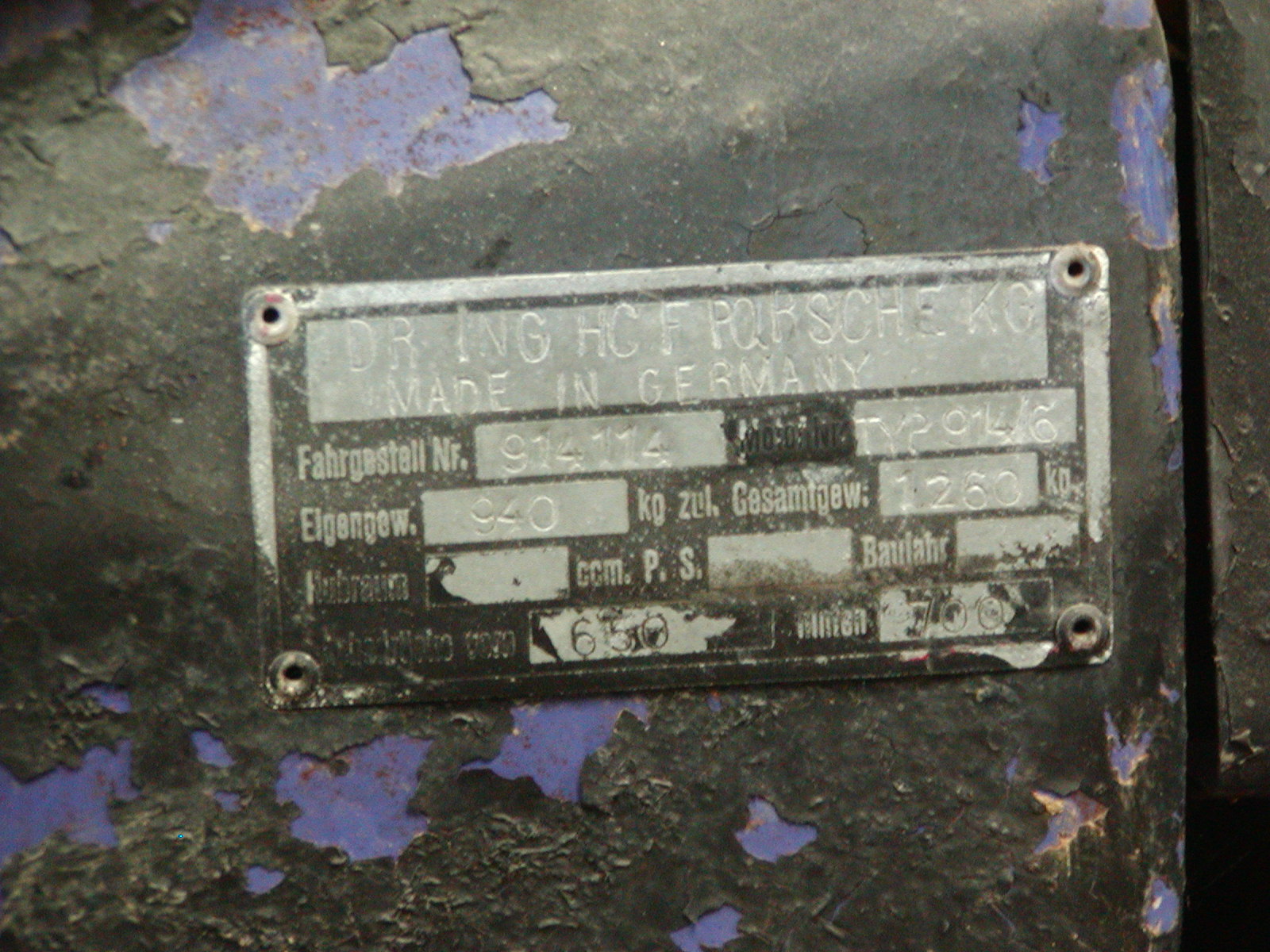

	VIN plate on headlight bucket Violet paint

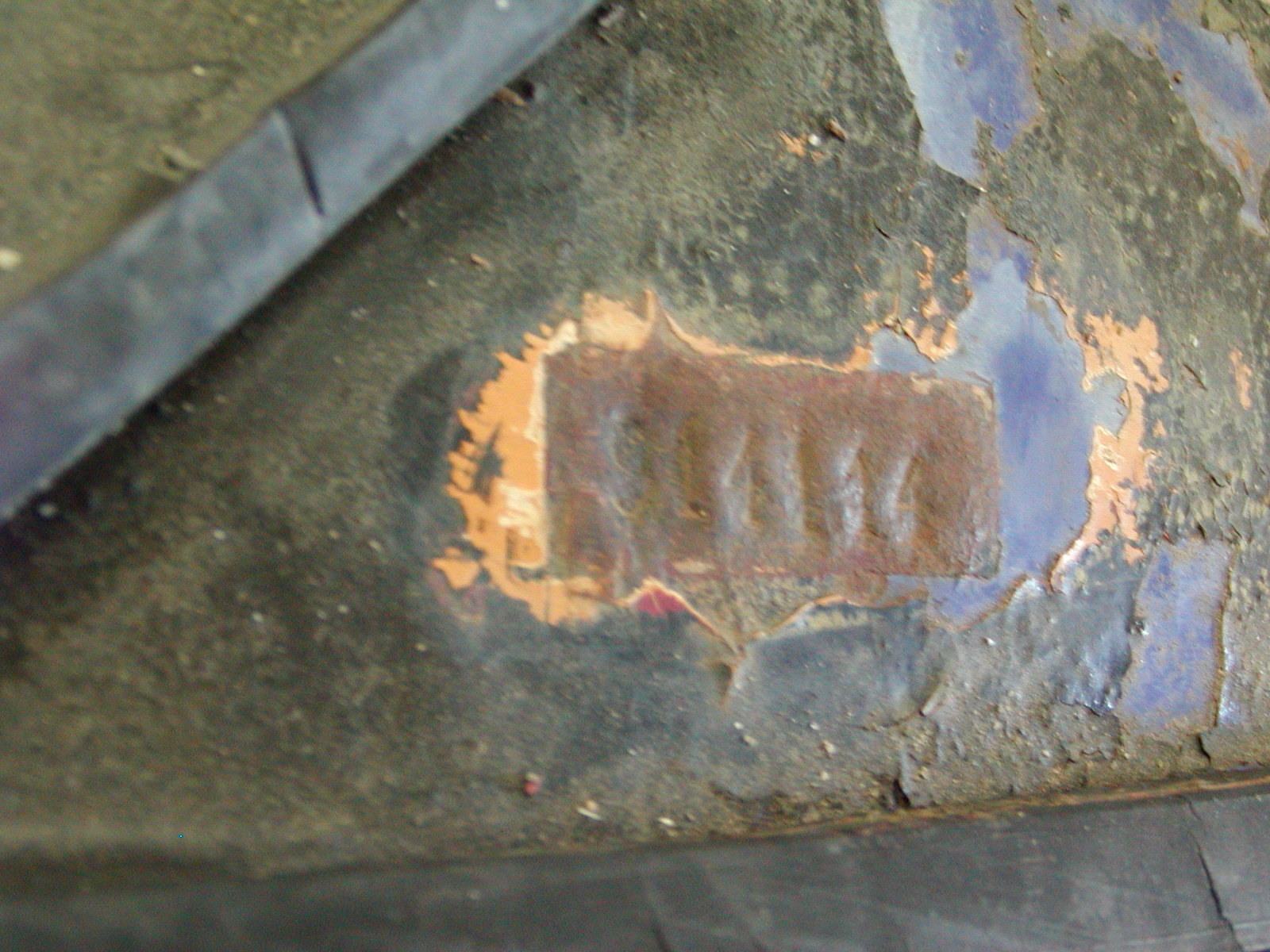

	VIN at front right fenderwell Violet paint

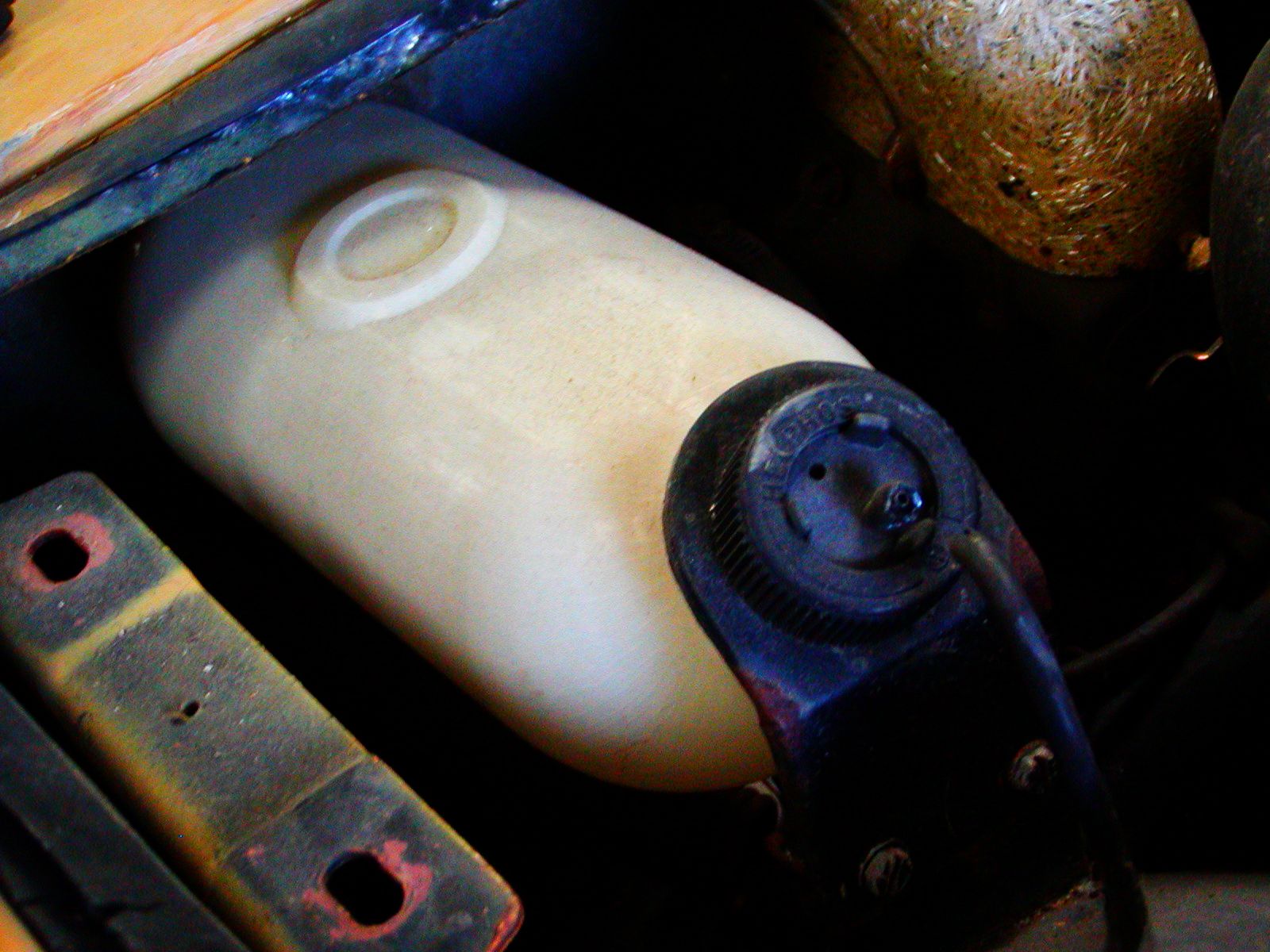

	Windshield washer reservoir

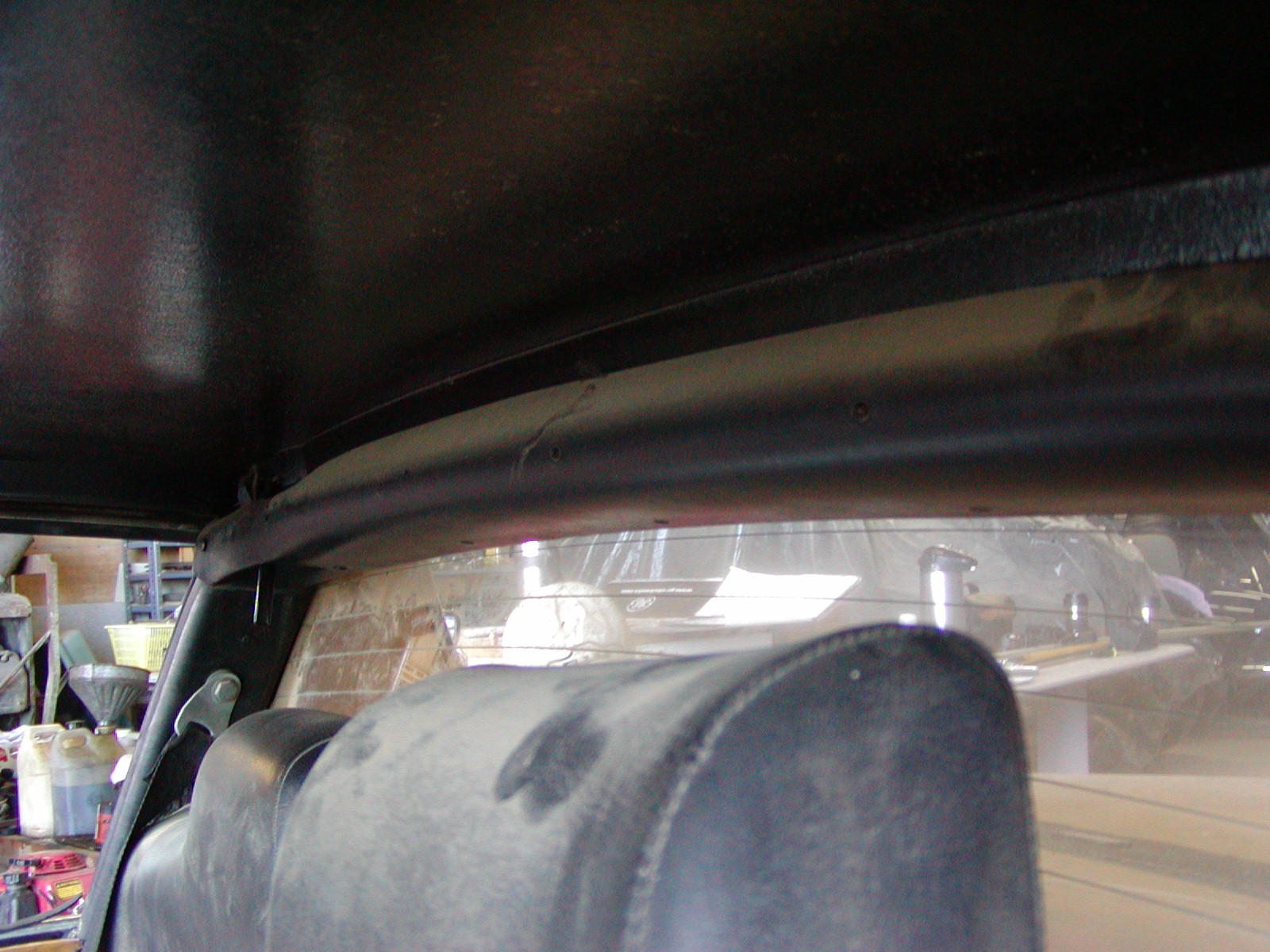

	Rear window guide Door chrome trim

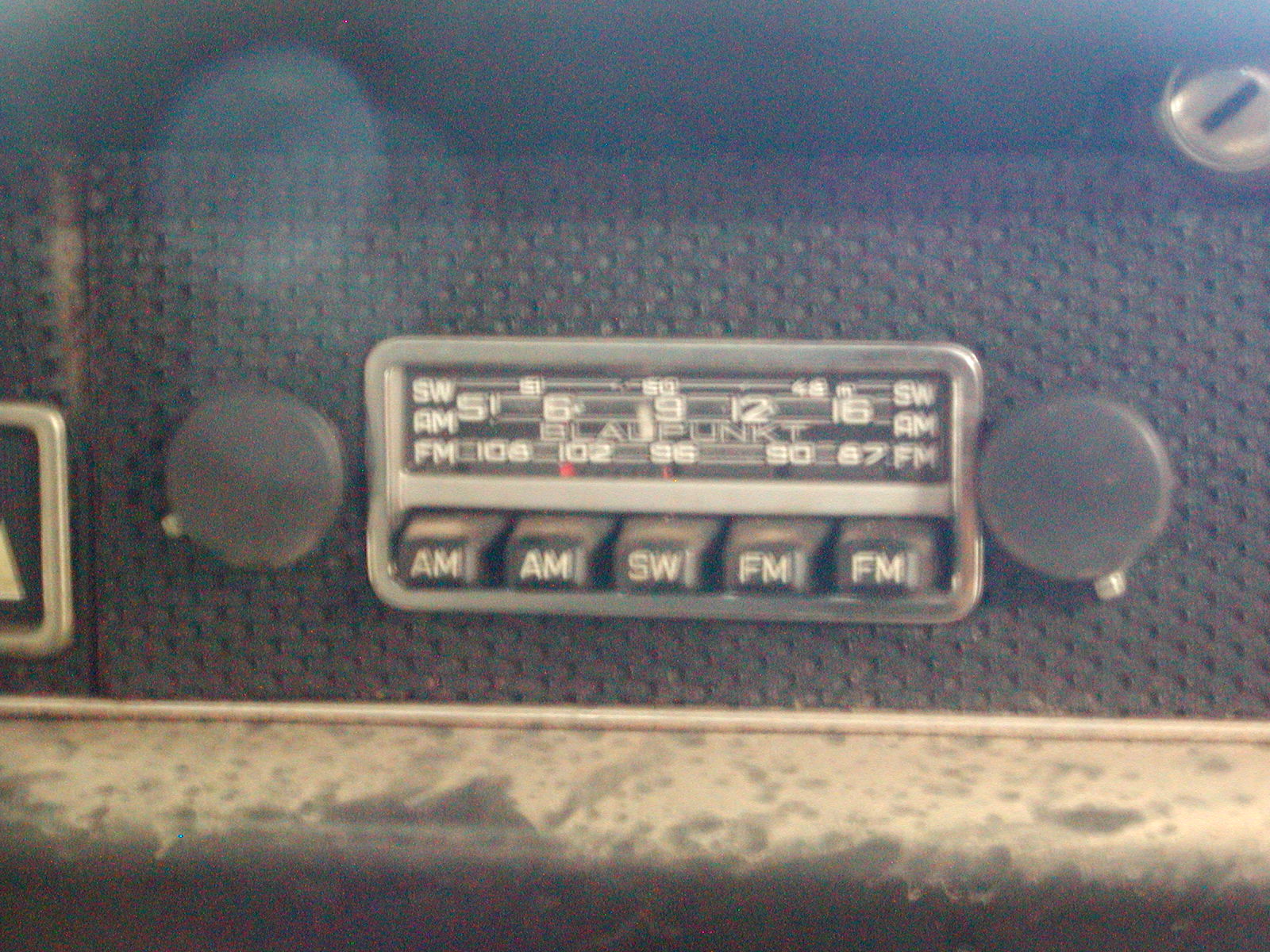

	Radio
	Interior Targa pad

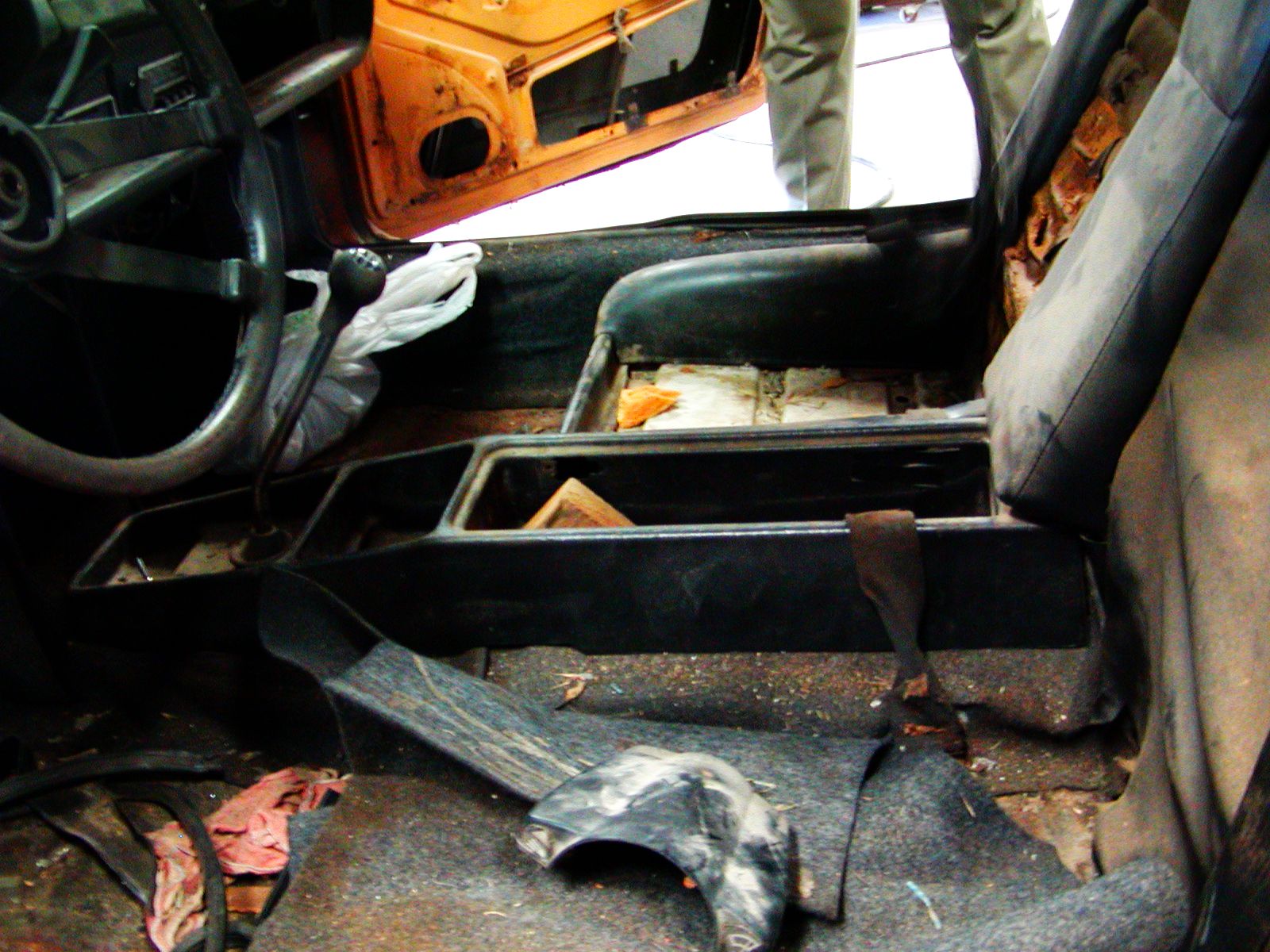

	Center console

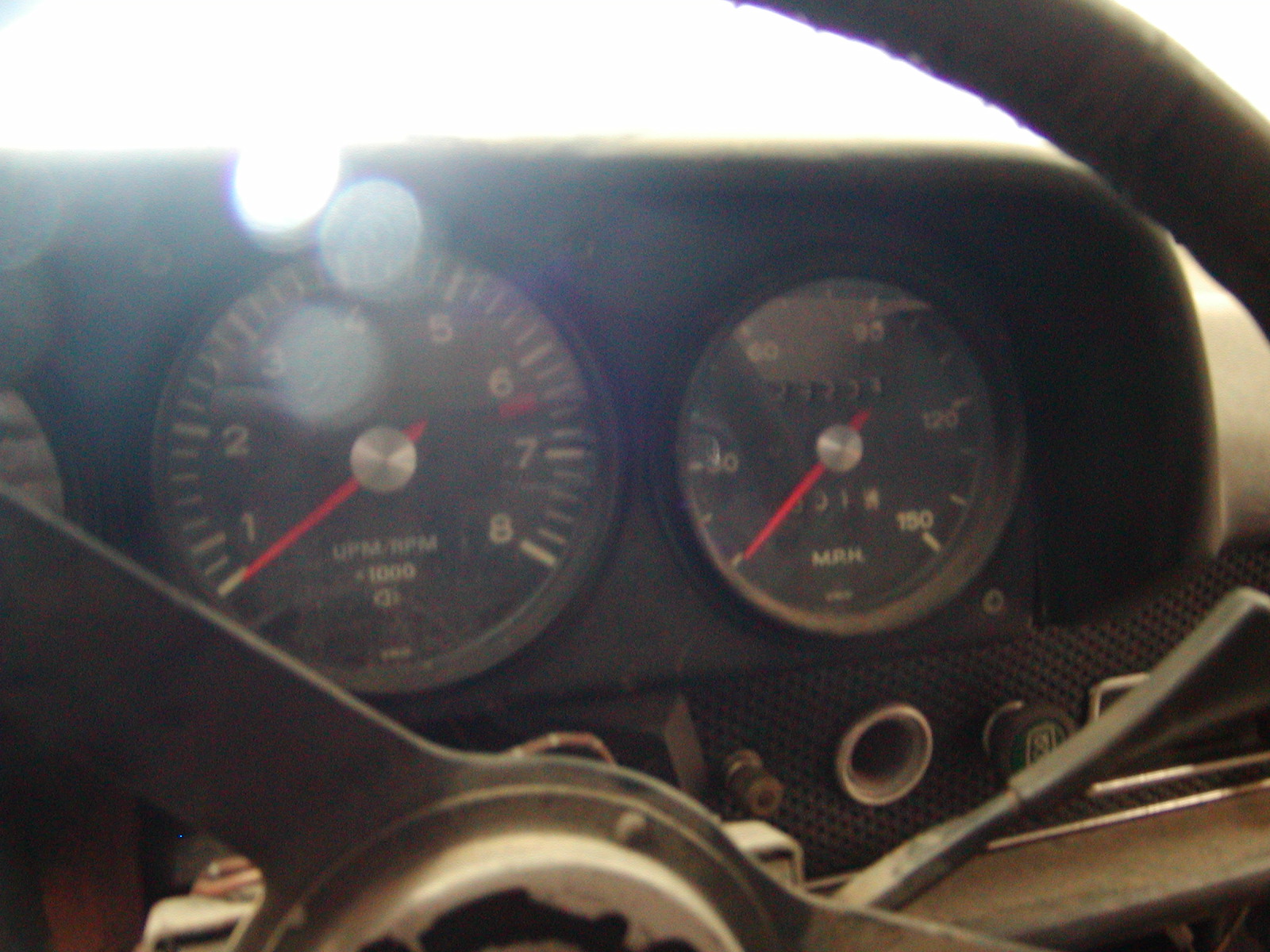

	Dash gauges

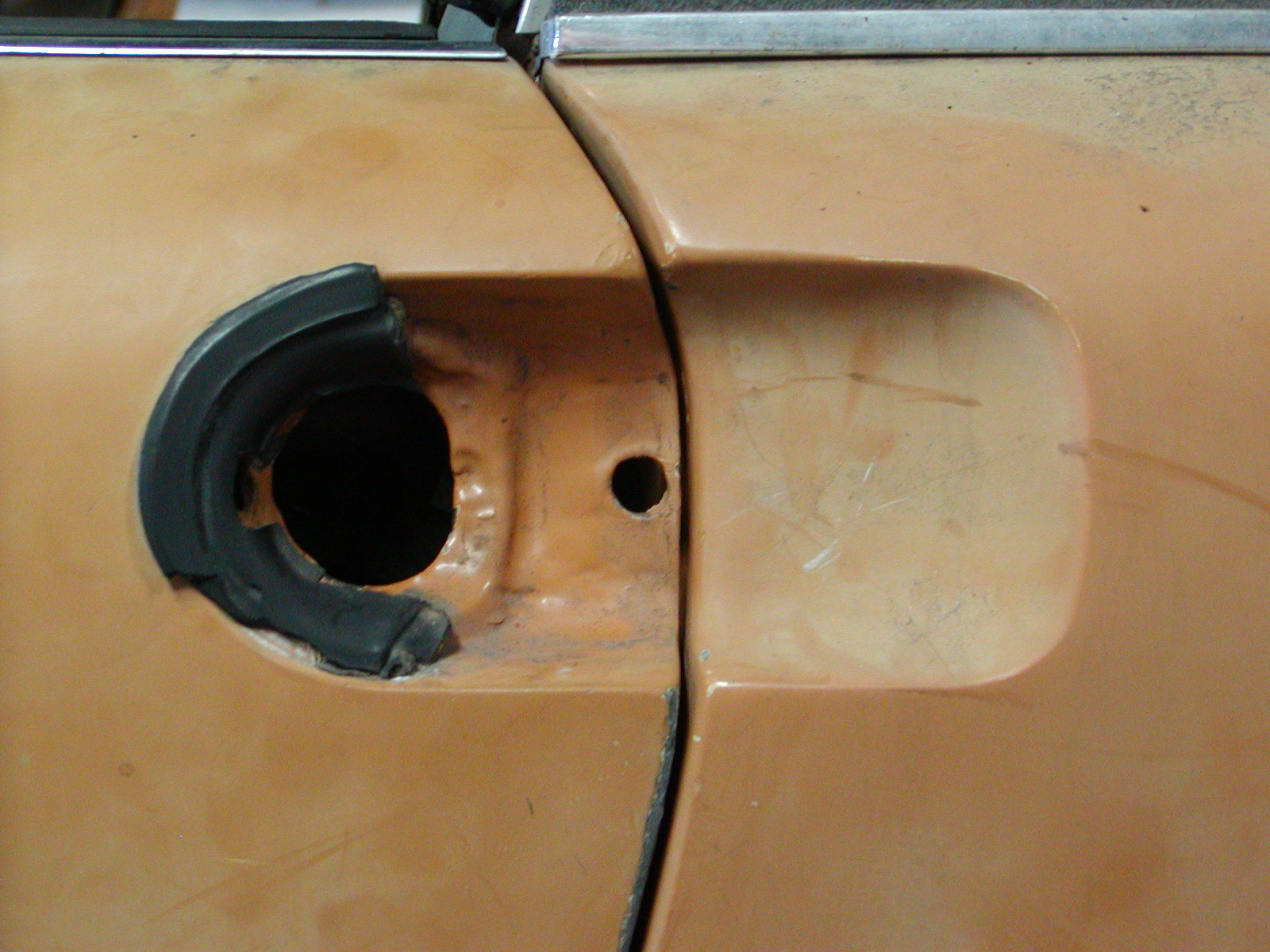

	Exterior door handle recess

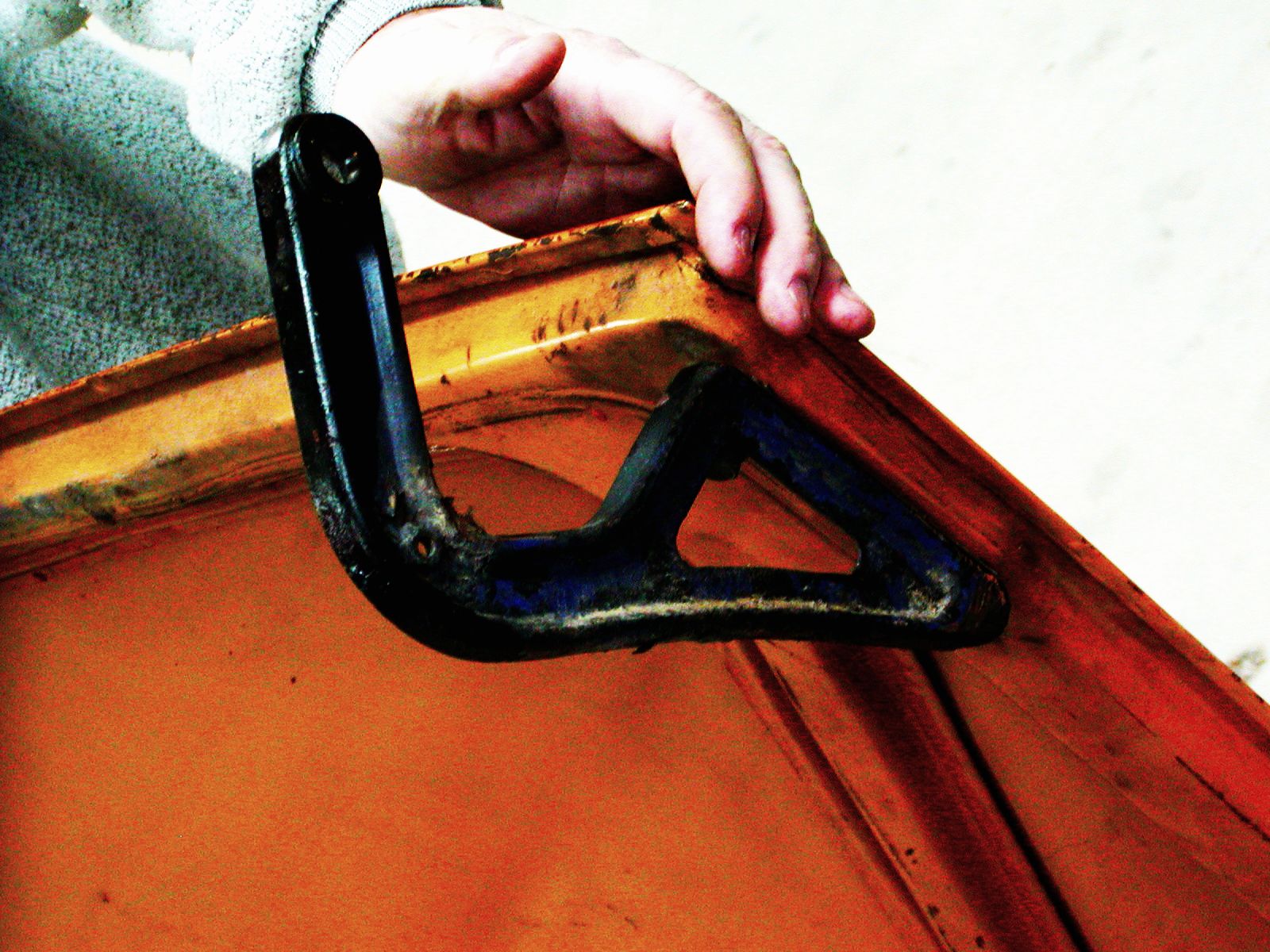

	Rear trunk lid hinge bracket Violet paint

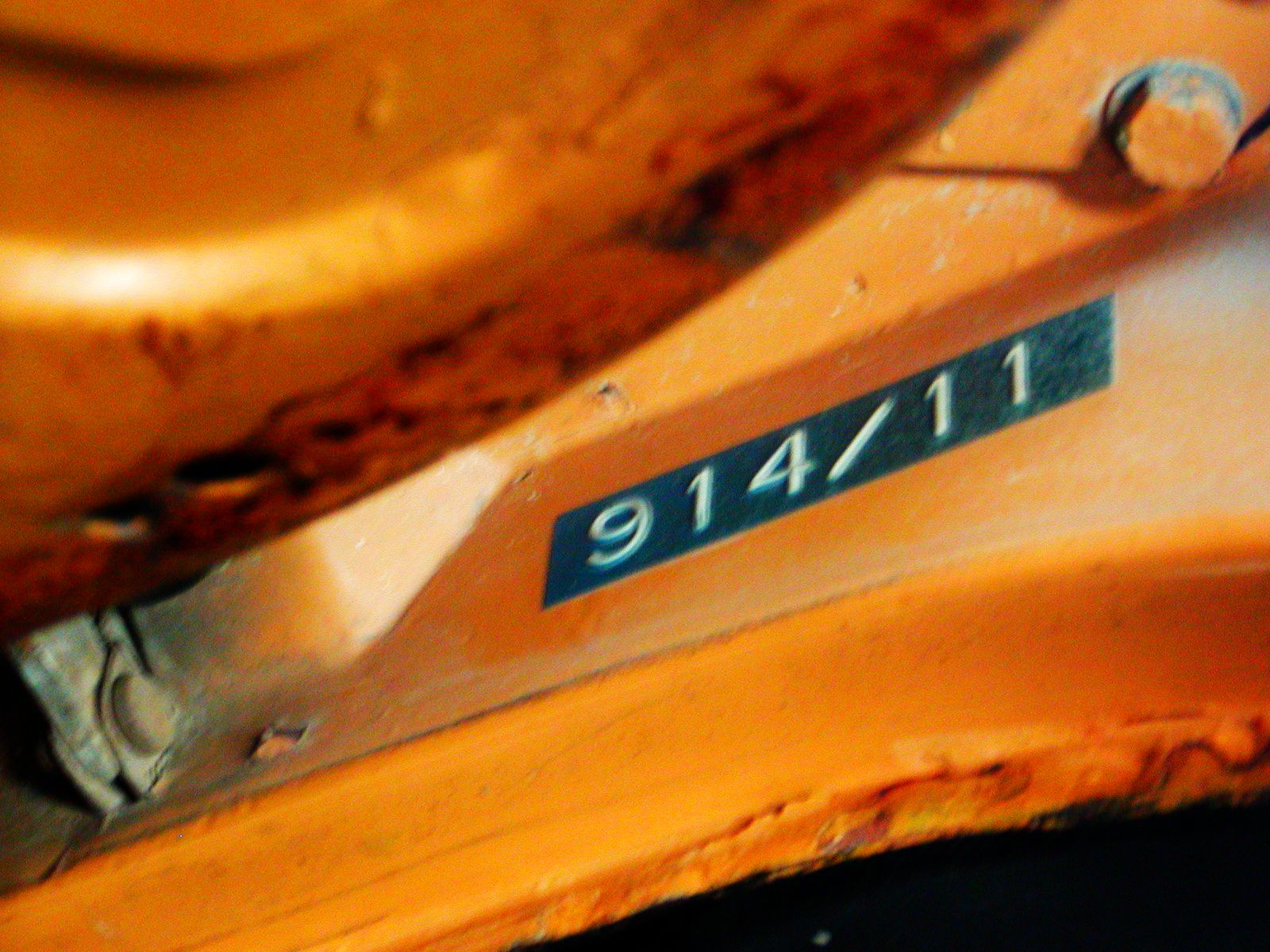

	Porsche internal number code

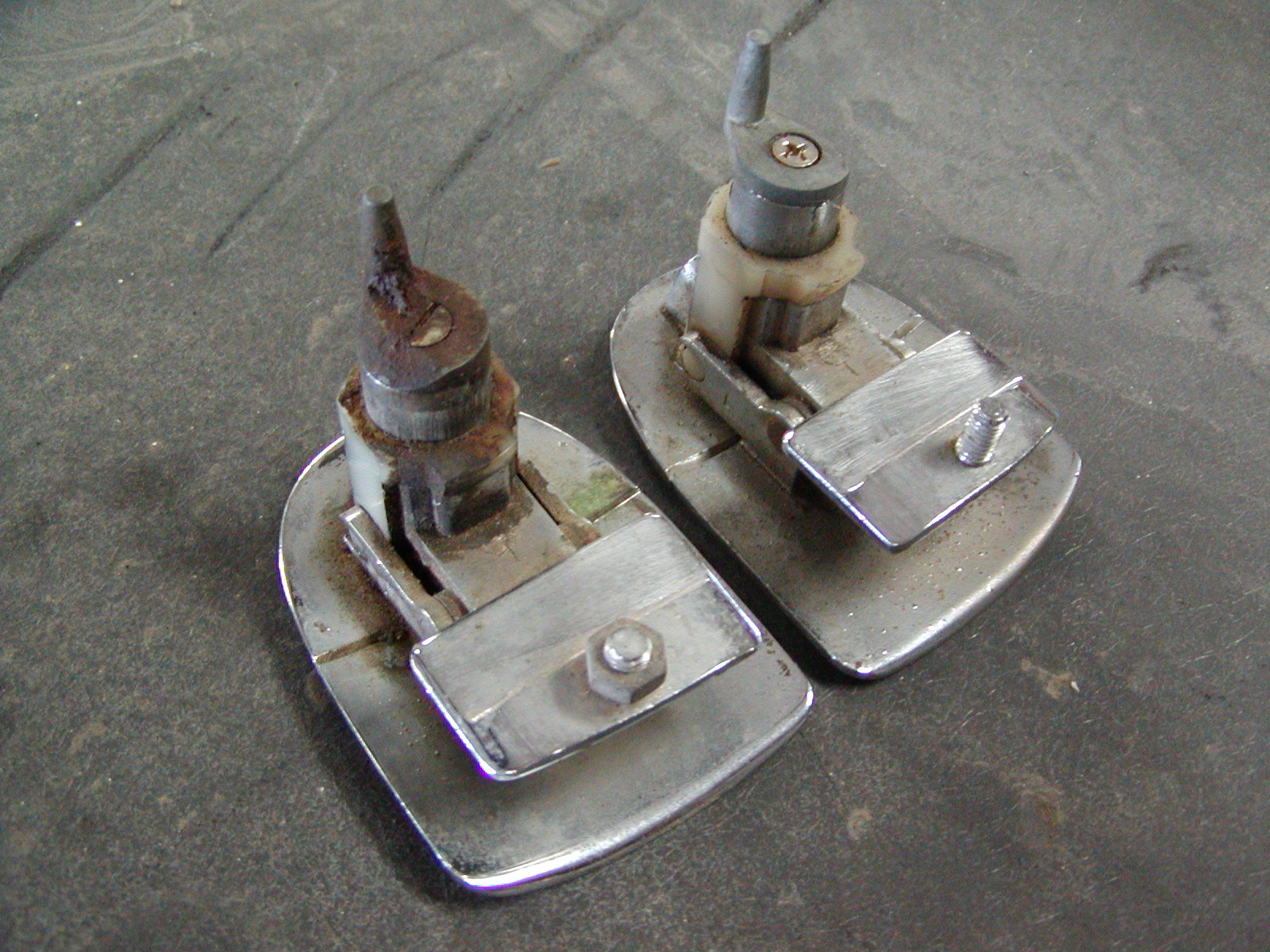

	Outside door handles

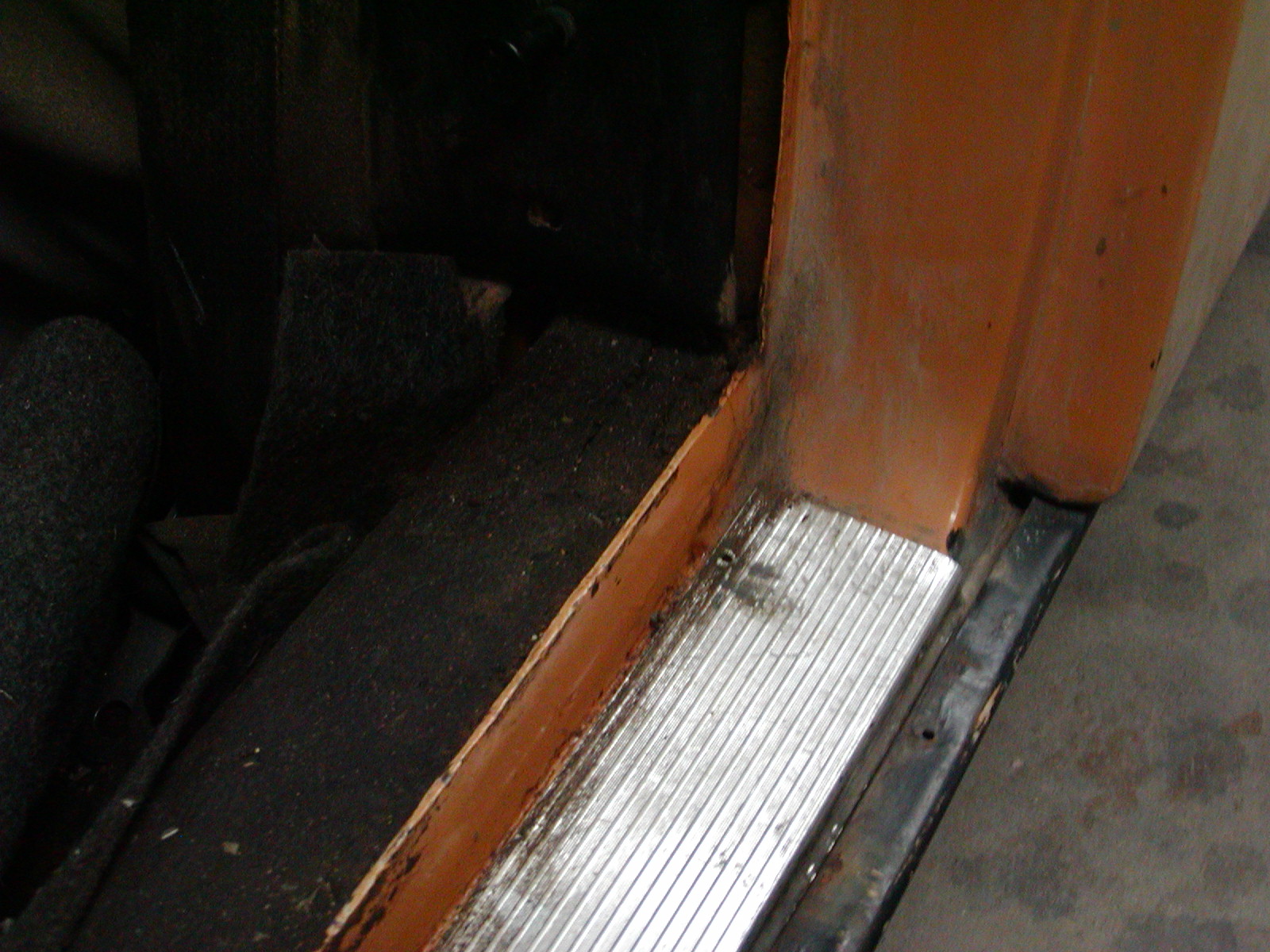

	Door sill - Front

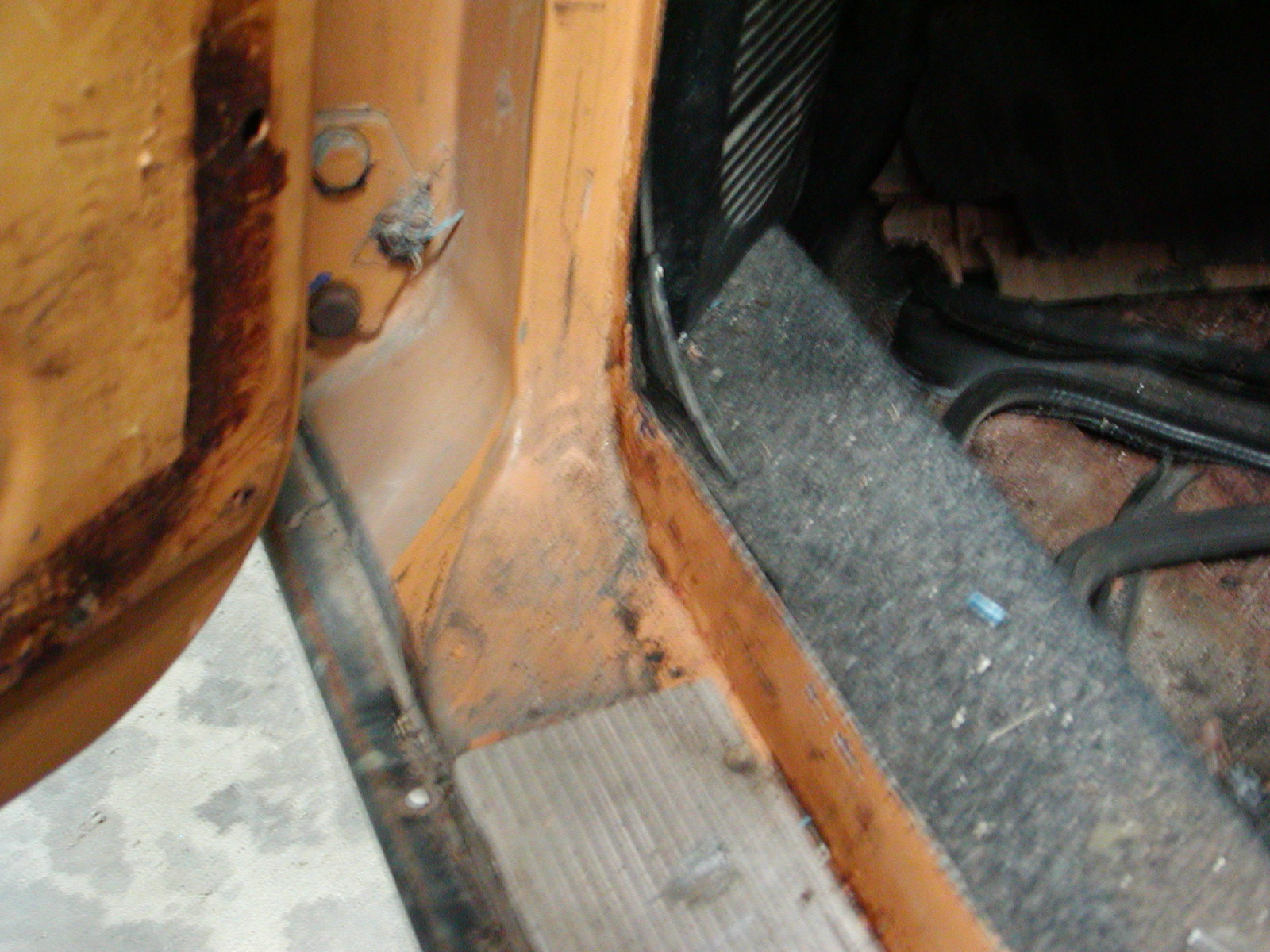

	Door sill - Rear

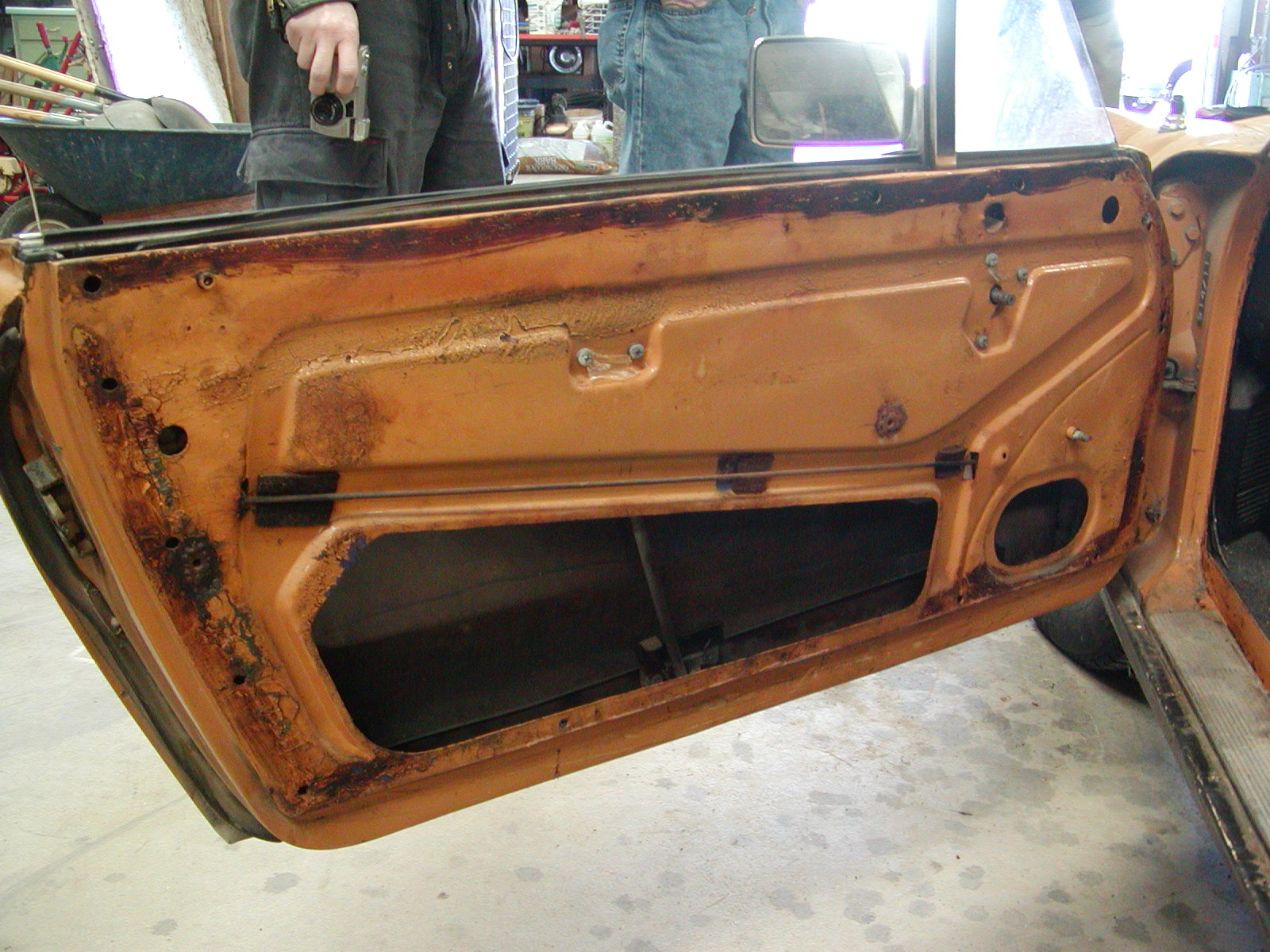

	Inside door structure

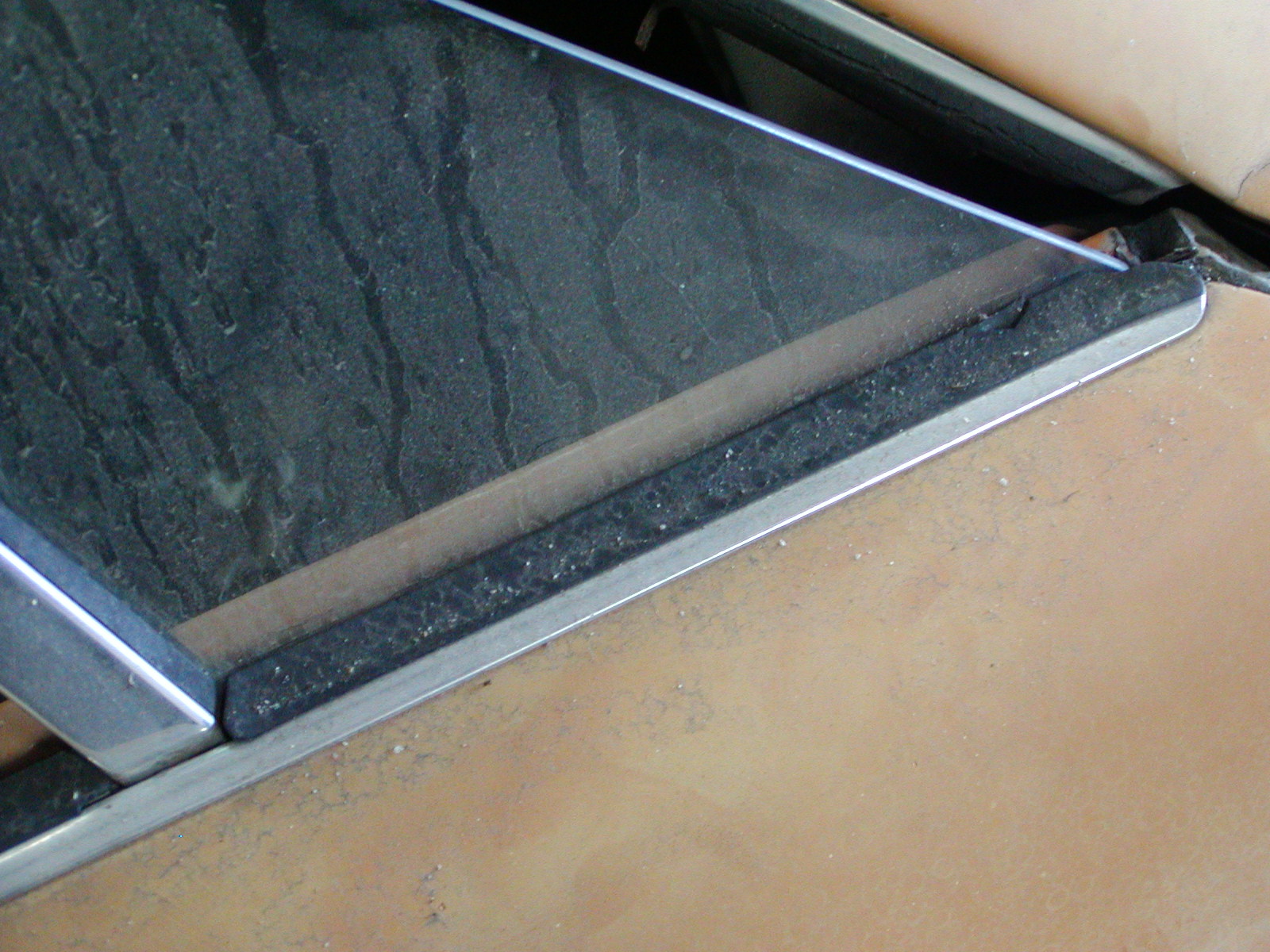

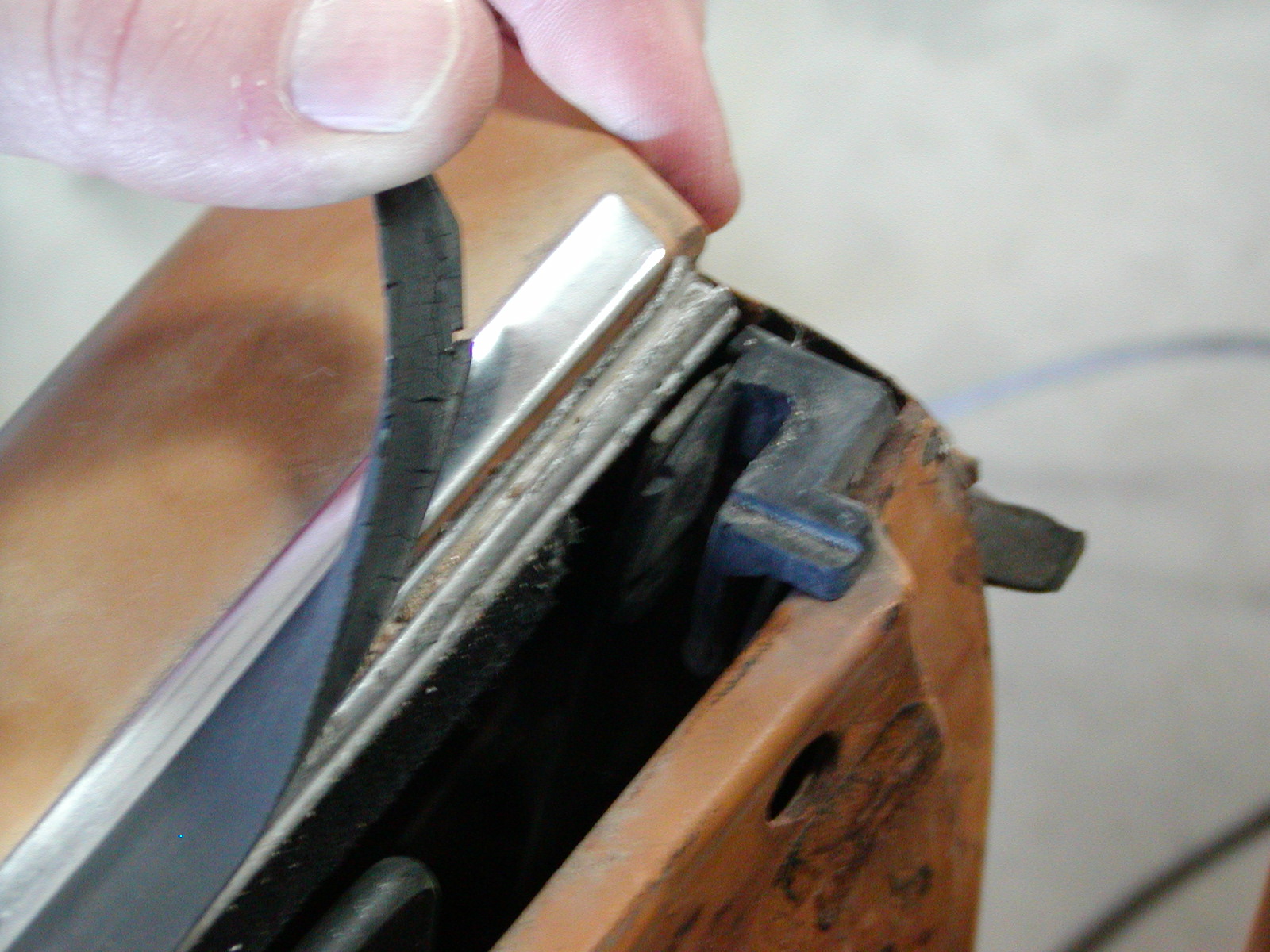

	Door top trim

What we know about 914114

* It spent many years in Southern California, a dry climate. It has deteriorated, but is restorable

* It is a prototype VW-Porsche 914 and has many pre-production features that are not on standard production 914’s

* Porsche internal project number label 914/11 at the front drivers side door jamb

* Several European market equipment features including prototype front turnsignal lenses and buckets, front driving lights, dash heater controls

* Federalized to USA DOT standards, likely at the time of importation. Laminated glass windshield, front sidemarker lights from an early Porsche 9xx car, USA rear turn signal lights lenses.

* Six cylinder engine is from a 1968 911T Porsche

* Originally a deep blue-violet exterior color, then fairly carefully repainted to a creamy yellow-orange color

* Previously damaged at the front drivers side corner and poorly repaired. Front sheet metal apron and drivers side headlight bucket pieces have been replaced with later production-style replacement pieces which do not exactly match the original sheet metalwork on the passengers side.

* Only known prototype six-cylinder 914.

What we speculate about 914114

* The Piech red flat-8 car is VIN 914111 and has internal number 914/10. 914114 has features similar to the Piech car, and not as developed as Ferrys Silver flat-8 car, which has VIN 914106. 914114 seems to have been built after the Piech 914 and before Ferrys 914.

What we want to know about 914114

* The history and circumstances of ownership of 914114

* The history of the accident causing the front end damage, who repaired it and when.

* The person or company that did the USA federalization modifications to 914114

* The date 914114 was built

* When will it be restored and available to the public again
