Factory or dealer-applied, original 914/4 Porsche plates, labels and markings are indicated below. This webpage presents the best information I have to date, but I know there are missing items and several of the photos are missing or of marginal quality. So if you have anything you can contribute, including better photos, please email them to me and I will give you credit. Original factory parts and equipment with integral lettering, symbols or markings such as part numbers, window glass markings and trim items such as the tailpanel badges, are not generally included on this list. Updates to this webpage will occur as new information is located.

Image	PLM No.	Item	Application	Location	Material and attachment
GROUP A – FRONT TRUNK

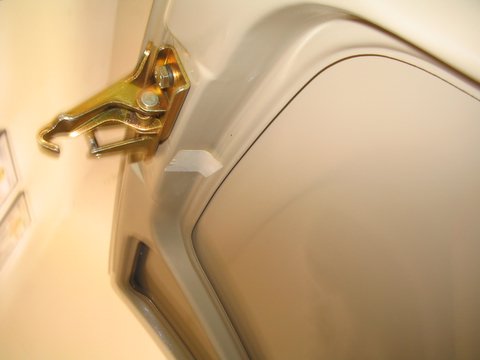

	A1A	Dealer prep label Courtesy of Steve Gaglione	1973	Front trunk lid, behind latch	Large paper label, glued to trunk lid

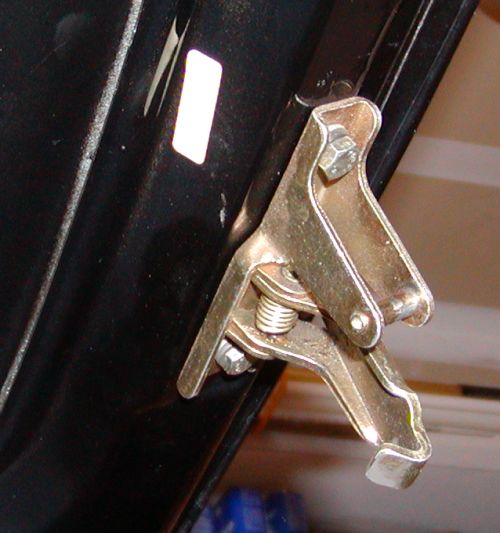

	A1B	Dealer prep label	1974	Front trunk lid, behind latch	Small paper label, glued to trunk lid

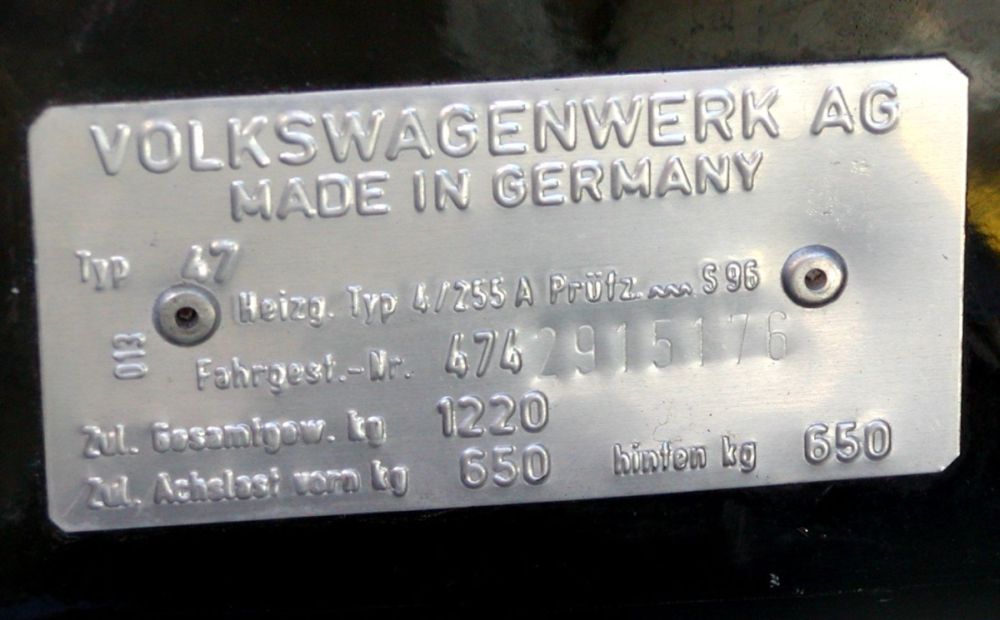

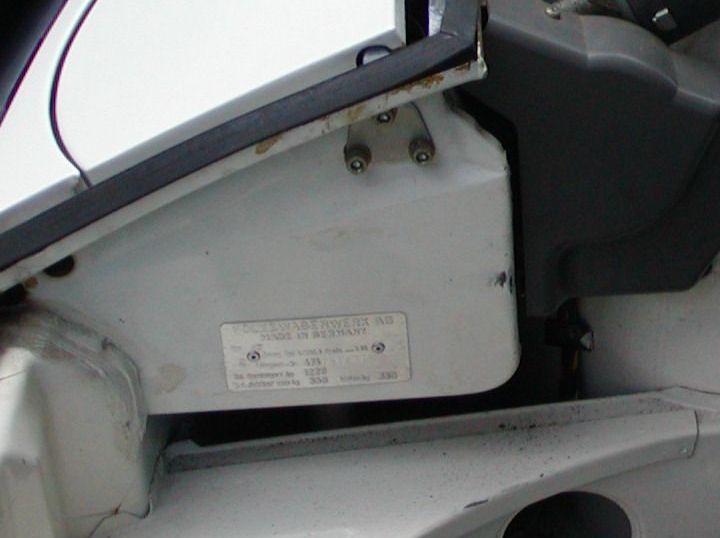

	A2	Vehicle Identification Number (VIN), payload	1970-75	Front trunk: 1970-1974: Right side headlight bucket 1975-only: Rear wall	Embossed aluminum plate, riveted to chassis

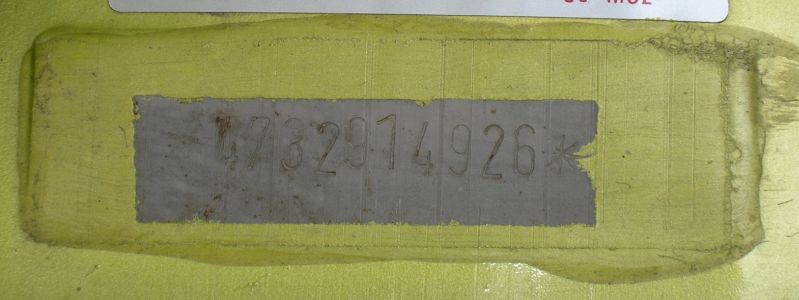

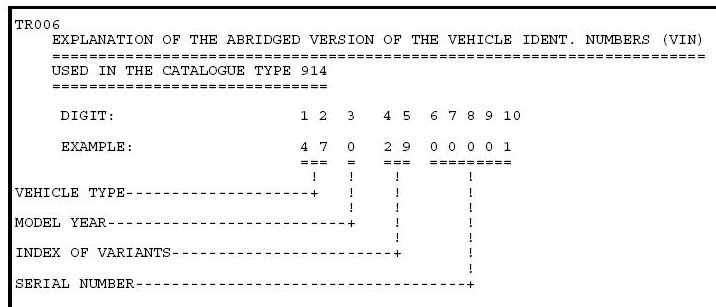

	A3	VIN VIN Decoder Courtesy of Jamie Donaldson	1970-76	Front trunk, right fenderwell	VIN number stamped onto raised bench on chassis

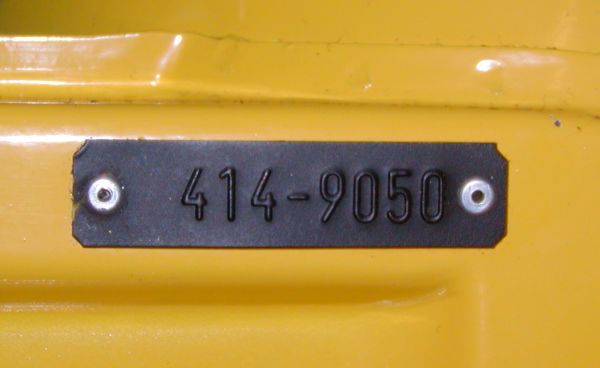

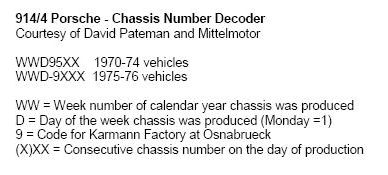

	A4	Chassis Number Chassis Number Decoder Courtesy of Tom Trudell	June 1974-1976	Front trunk, right side wheel well recess	Embossed metal plate, riveted to chassis

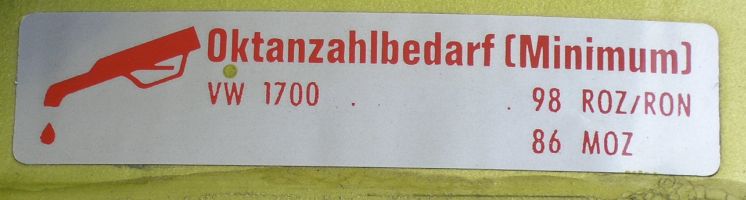

	A5A	Fuel octane requirements PN 411 000 263A Courtesy of Jamie Donaldson	1970-73 1.7L vehicles	Front trunk, right fenderwell	Foil label, glued to chassis
	A5B	Fuel octane requirements PN 113 000 263B Courtesy of David Pateman	1973-76 1.8L and 2.0L vehicles	Front trunk, right fenderwell	Foil label, glued to chassis
	A5C	Fuel octane requirements Courtesy of David Pateman	1973-76? 1.8L and 2.0L vehicles	Front trunk, right fenderwell	Foil label, glued to chassis
	A5D	Fuel octane requirements ROW vehicles	1973-76? 1.8L and 2.0L vehicles	Front trunk, right fenderwell	Foil label, glued to chassis

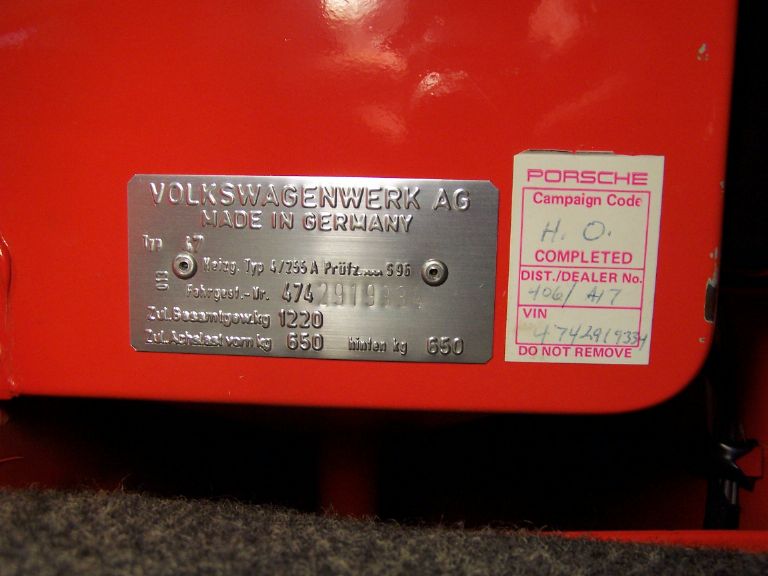

	A6A	Porsche – HO Campaign completion sticker – fuel hoses and battery cover	1970-76	Front trunk, right fenderwell next to VIN plate	Paper label, glued to chassis
	A6B	Porsche – Campaign completion sticker – fuel hoses and battery cover Courtesy of CAMP 914	1970-76	Front trunk, right fenderwell next to VIN plate	Paper label, glued to chassis

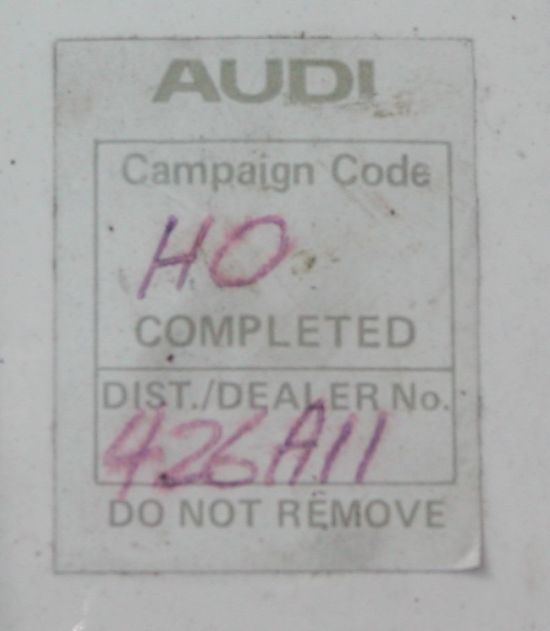

	A6C	Audi – HO Campaign completion sticker - fuel hoses and battery cover	1970-76	Front trunk, right fenderwell next to VIN plate	Paper label, glued to chassis

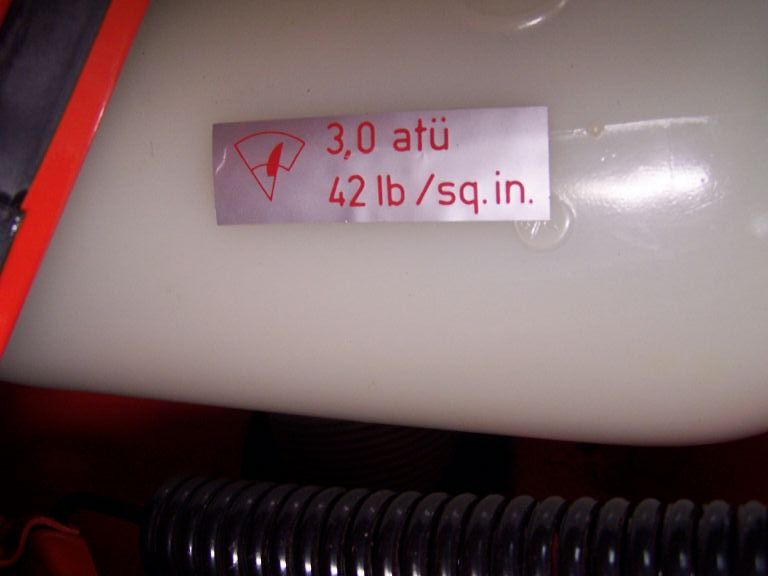

	A7	Windshield washer fluid reservoir air pressure Courtesy of CAMP 914	1970-76	Front trunk windshield washer fluid reservoir	Foil label, glued to windshield washer fluid reservoir

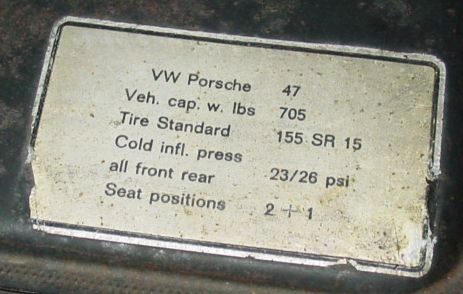

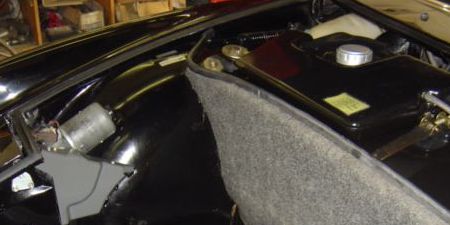

	A8A	155 SR 15 Payload, tires PN 914 006 501 10 Courtesy of Royce	1970-71 (914-4)	Front trunk, fuel expansion tank Or Engine bay lid	Foil label, glued to fuel expansion tank or engine bay lid

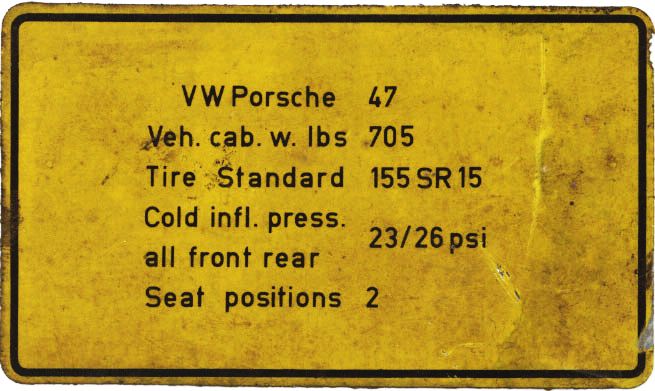

	A8B	155 SR 15 Payload, tires PN 914 006 501 11	1972-73 (914-4)	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank

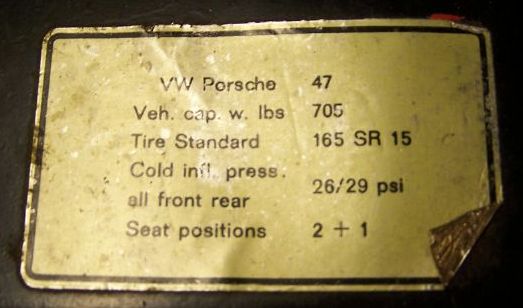

	A8C	165 SR 15 Payload, tires PN 914 06 504 10 Courtesy of CAMP 914	1972-73 (914-1.7)	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank

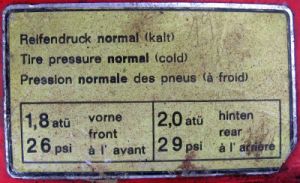

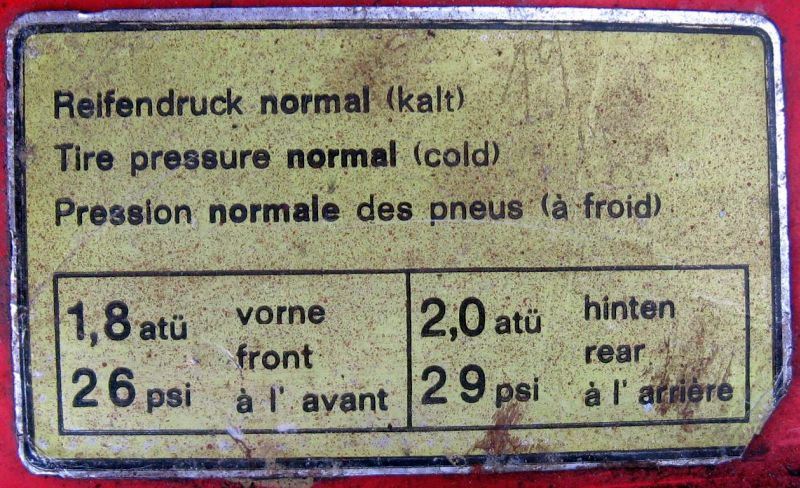

	A8E1	European market PN 901 006 505 00 Courtesy of John Beever	1970-76 (914-4, 1.7, 1.8, 2.0)	Front trunk, passenger fenderwell	Foil label, passenger fender well

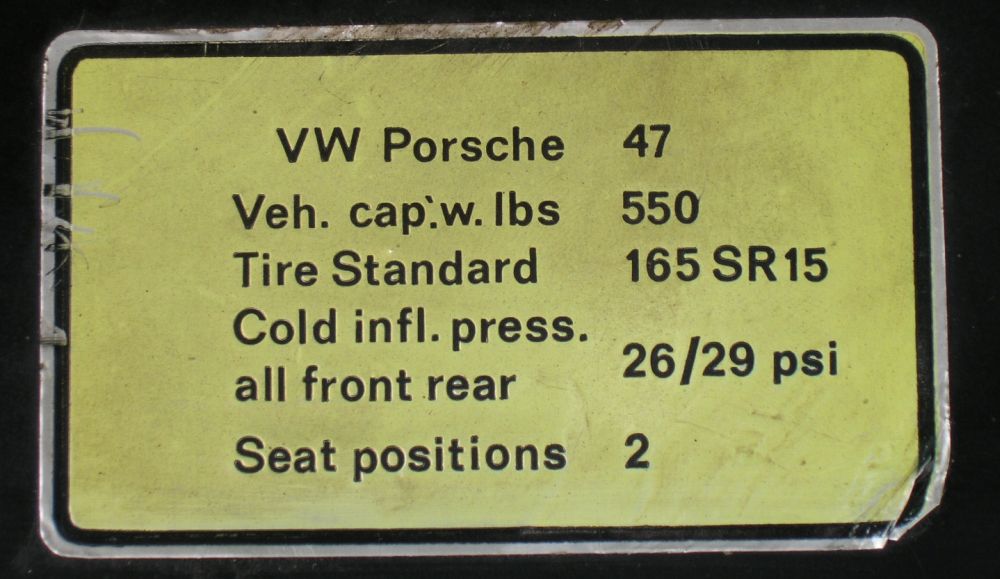

	A8E	165 SR 15 Payload, tires PN 914 006 505 10 Courtesy of Jamie Donaldson	1973-74 (1.7, 2.0)	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank
	A8G	165 SR 15 Payload, tires PN 914 006 505 11	1975 (1.8L)	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank

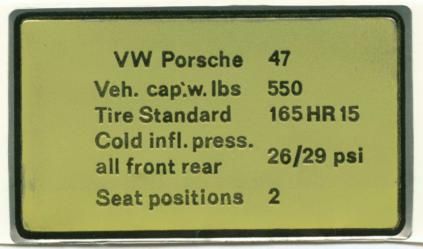

	A8D	165 HR 15 Payload, tires PN 914 006 506 00 Courtesy of David Pateman	1973-74 (1.7, 1.8, 2.0)	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank

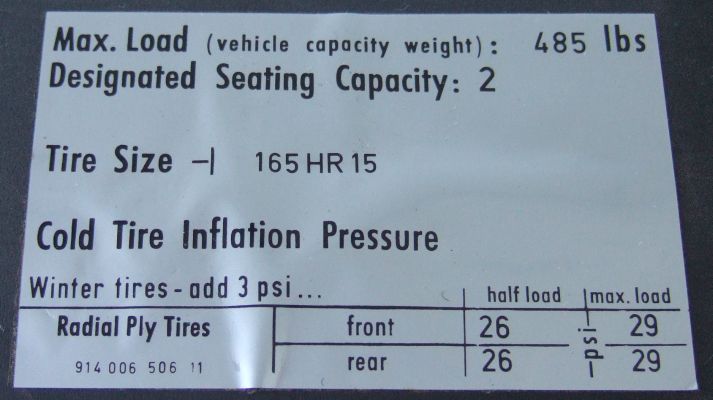

	A8F	165 HR 15 Payload, tires PN 914 006 506 11 Courtesy of Tod Worden	1975-76 (2.0L)	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank

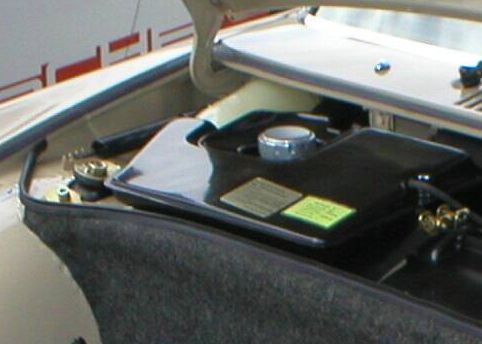

	A9	VPC Air conditioning maintenance data Courtesy of Steve Gaglione	1973	Front trunk, fuel expansion tank	Foil label, glued to fuel expansion tank

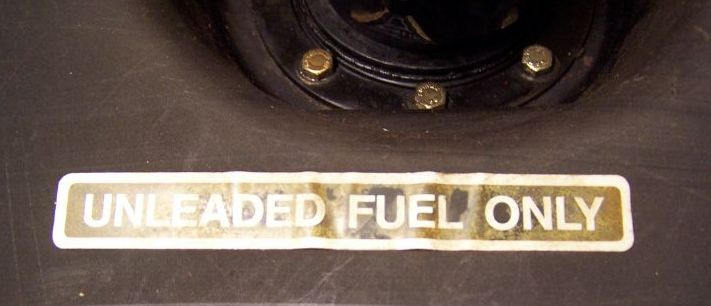

	A10	"Unleaded Fuel Only" Courtesy of CAMP 914	1975-76	Front Trunk, fuel expansion tank, near fuel tank filler port	Clear plastic label, glued to fuel expansion tank

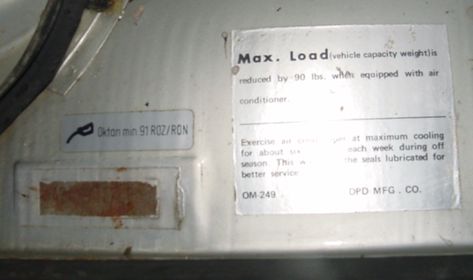

	A11	DPD Air conditioning maintenance data	1970-76		Foil label, glued to right inner wheel well top
GROUP B – LEFT DOOR JAMB

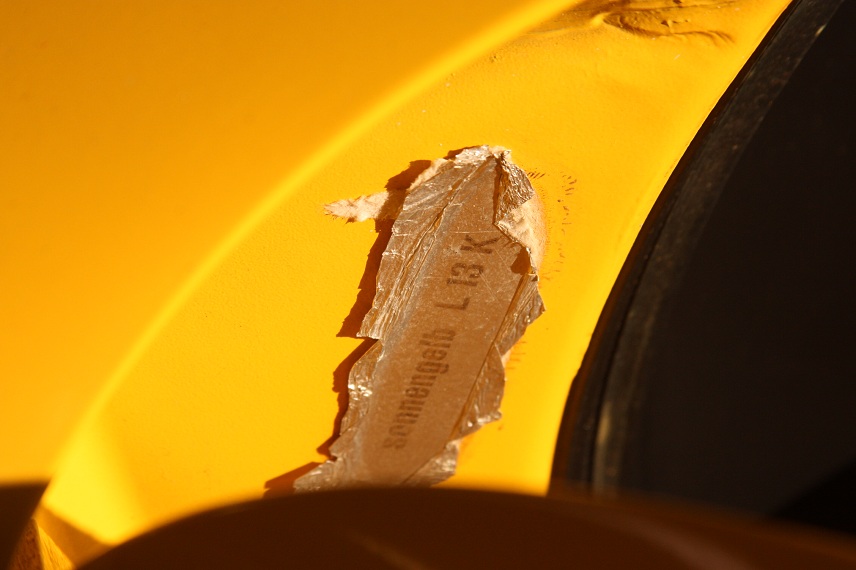

	B1A	Paint code L13K Sunflower Yellow Courtesy of Tom Trudell	Late 1973-76	Left door jamb, front	Foil label, glued to chassis

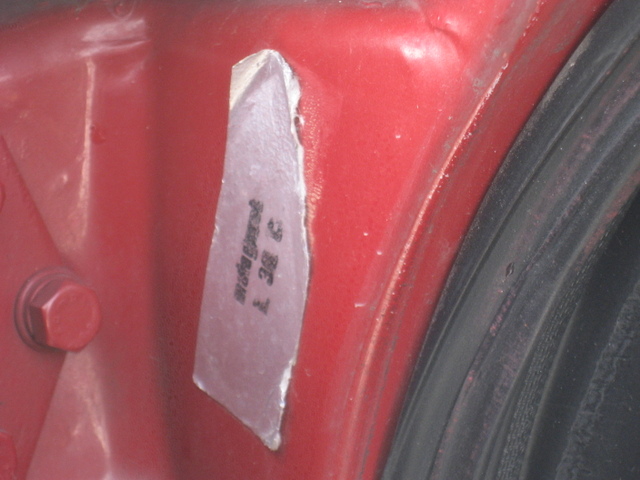

	B1A1	Paint code L30G	Late 1973-76	Left door jamb, front	Foil label, glued to chassis
	B1A2	Paint code L50C Laguna Blue	Late 1973-76	Left door jamb, front	Foil label, glued to chassis

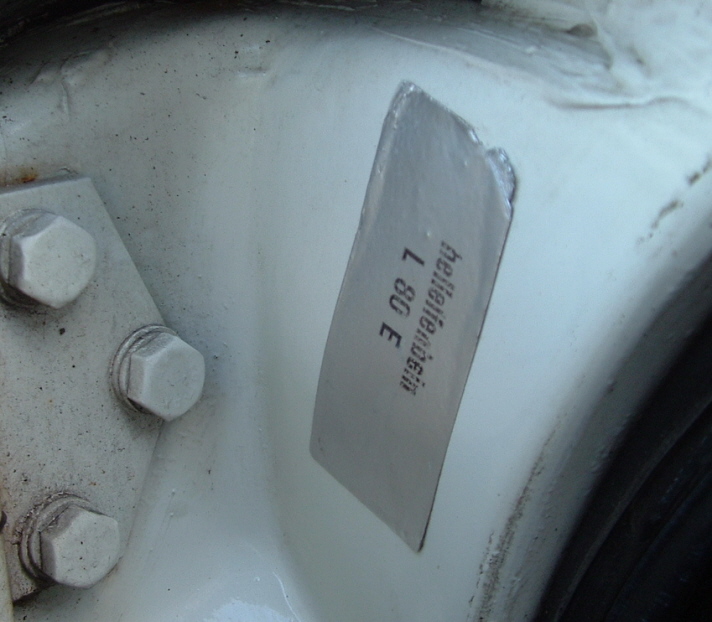

	B1B	Paint code L80E Light Ivory Courtesy of Jeff H	Late 1973-76	Left door jamb, front	Foil label, glued to chassis

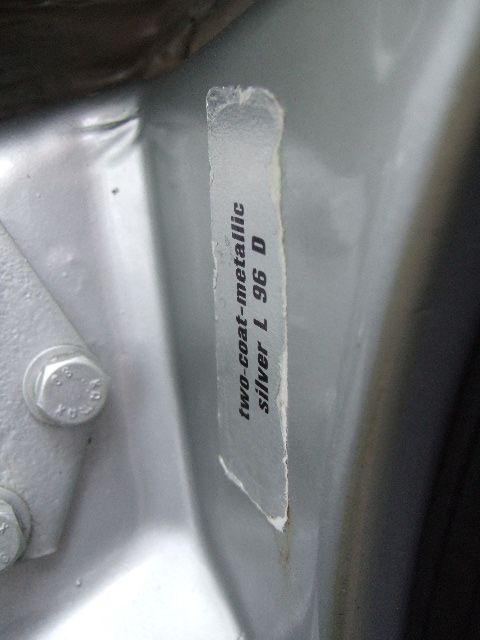

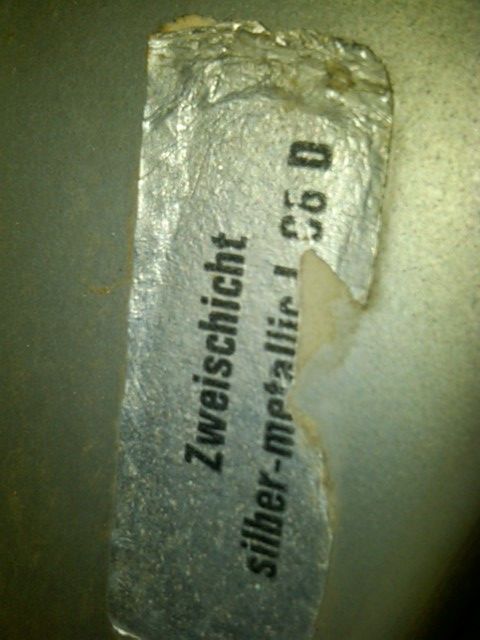

	B1C B1C1	Paint code L96D Silver Metallic Courtesy of Tod Worden	Late 1973-76	Left door jamb, front	Foil label, glued to chassis

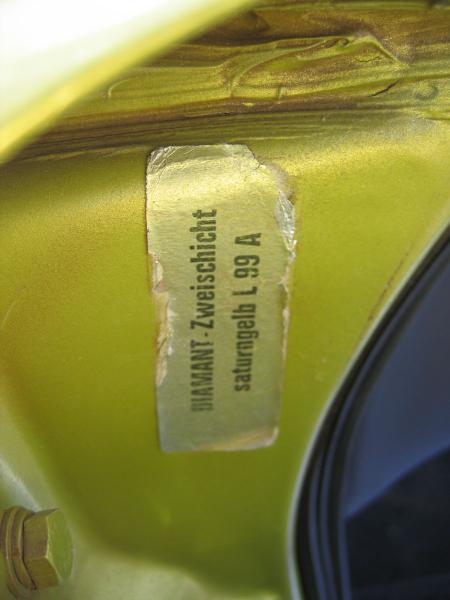

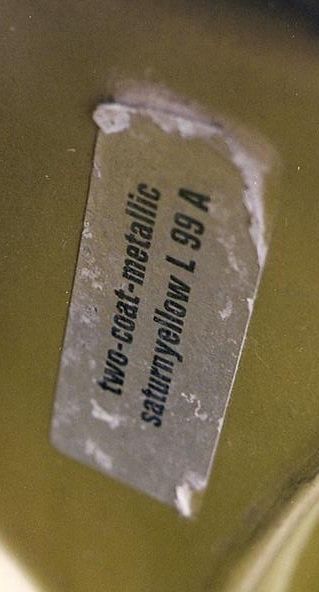

	B1D B1D1	Paint code L99A This code is for Delphi Green Metallic not Saturn Yellow	Earliest known VIN 4732914765	Left door jamb, front	Foil label, glued to chassis

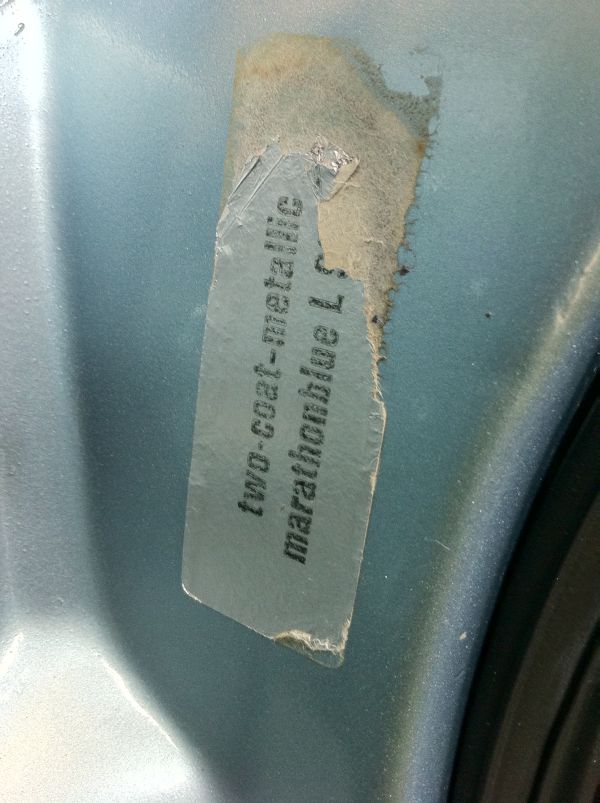

	B1E B1E1	Paint code L96M Marathon Blue Metallic	Late 1973-76	Left door jamb, front	Foil label, glued to chassis
	B1F	Two Coat Enamel Paint Metallic paints	1975(?)-76	Left door jamb, front	Foil label, glued to chassis

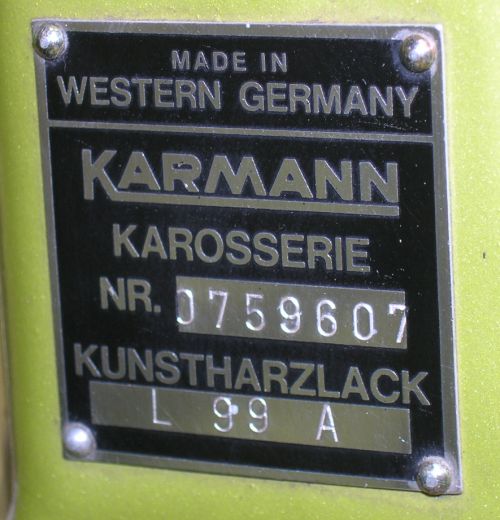

	B2	Chassis number, paint number Chassis Number Decoder PN PCG 701 105 00 Courtesy of Jamie Donaldson	1970-76	Left door jamb, front	Numbers embossed into aluminum plate, riveted to chassis

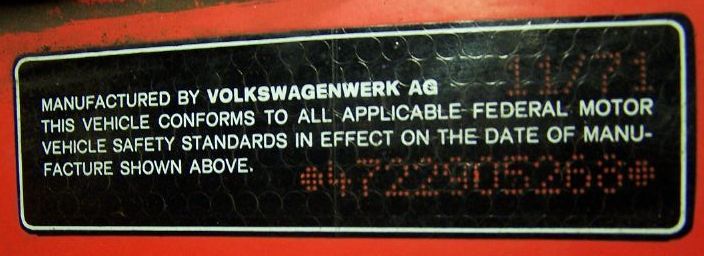

	B3A	Black, Safety compliance, VIN, production date Courtesy of CAMP 914	1970 thru Dec 1971	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

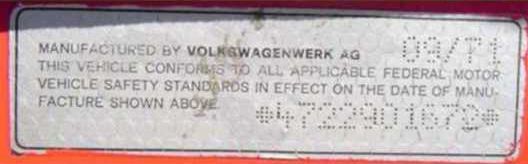

	B3B	Silver, Safety compliance, VIN, production date	1970 thru Dec 1971	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

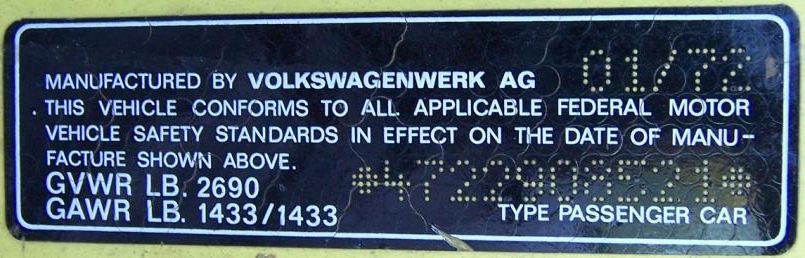

	B3B1	Black, Safety compliance, VIN, production date, vehicle weights	Jan 1972 thru 1973	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

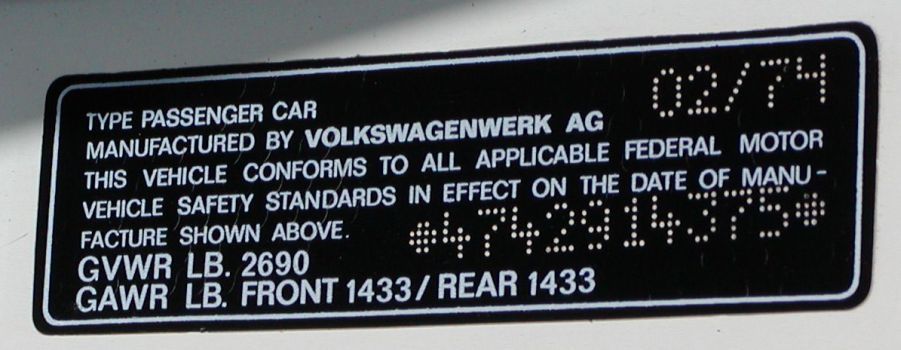

	B3C	Black, Safety compliance, VIN, production date, vehicle weights	5/1973-75	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

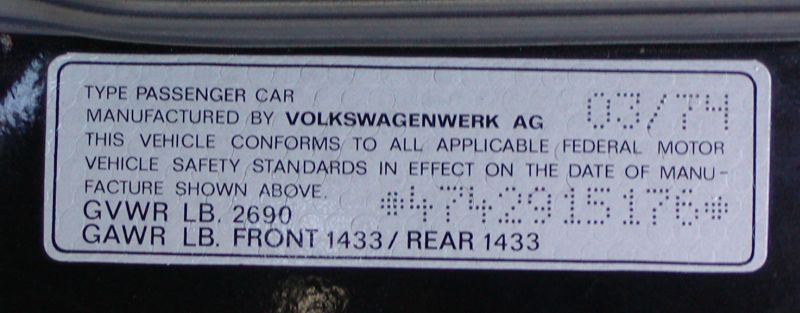

	B3D	Silver, Safety compliance, VIN, production date, vehicle weights	5/1973-75	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

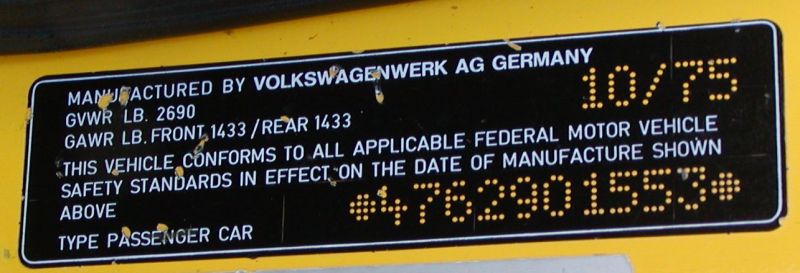

	B3E	Black, Safety compliance, VIN, production date, vehicle weights Courtesy of Tom Trudell	1976	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

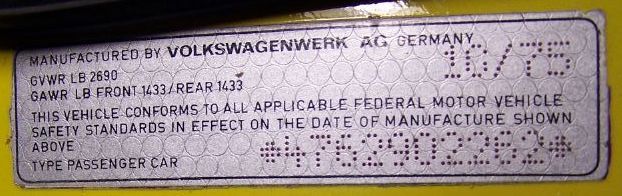

	B3F	Silver, Safety compliance, VIN, production date, vehicle weights Courtesy of CAMP 914	1976	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis

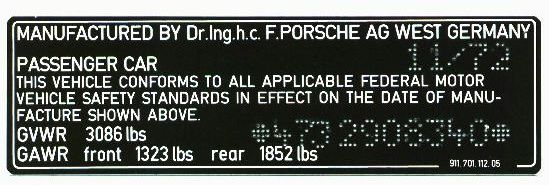

	B3G	Replacement 1 - Safety compliance, VIN, production date. 911 vehicle weights because its a 911 label with 914 data	1970-76	Left door jamb, rear	Plastic label, perforated VIN and production date, glued to chassis
	B3H	Replacement 2 - Safety compliance, VIN, production date	1970-76	Left door jamb, rear	Plastic label, printed data, glued to chassis
	B3I	Japan	1970-76?	Left door jamb, rear	Plastic label, printed data, glued to chassis

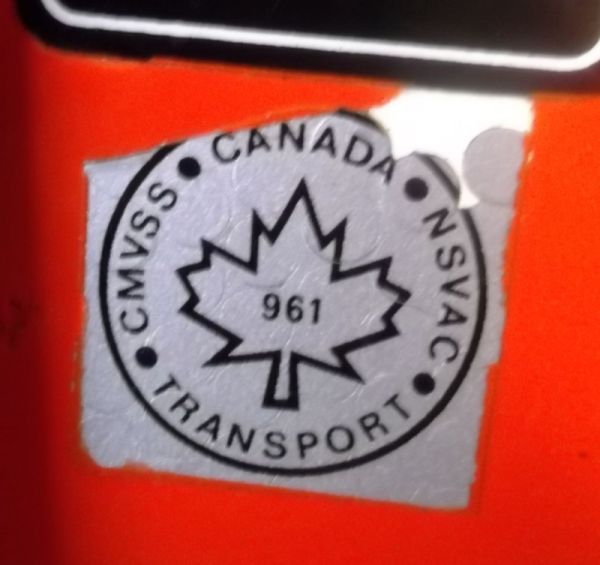

	B3J	Canada-market 914s: Canadian Motor Vehicle Safety Standard label	1972-76?	Left door jamb, rear	Plastic label, printed data, glued to chassis

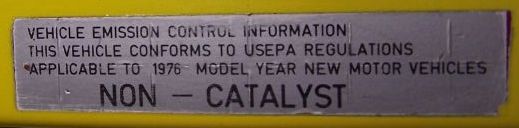

	B4A	Emission compliance data Non-Catalyst Courtesy of CAMP 914	1976 (49-state)	Left door jamb, rear	Plastic label, glued to chassis

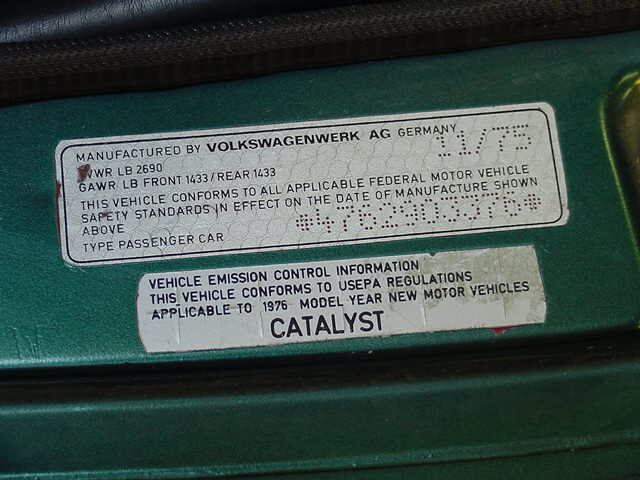

	B4B	Emission compliance data Catalyst Courtesy of Mike Rose	1976 (California)	Left door jamb, rear	Plastic label, glued to chassis
	B5	Tires Front 26 Rear 31 Courtesy of Andy Schmidt	1970	Left door jamb, rear	Plastic label, glued to chassis
	B6	NOTICE - 30KMI Catalytic Converter Replacement for 1976 CA-only	1976	Right door jamb, rear	Paper label, glued to chassis
GROUP C – CABIN & WINDOWS

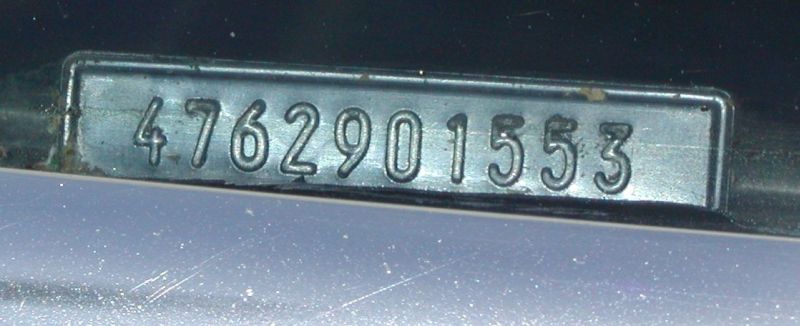

	C1	VIN VIN Decoder	1970-76	Front left windshield inside A-pillar post	Embossed aluminum plate, riveted to chassis

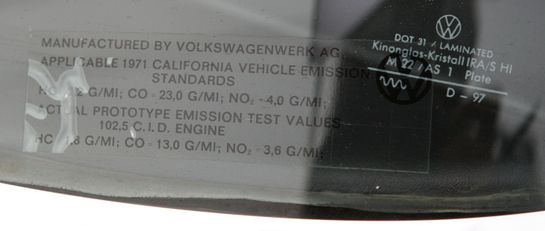

	C2A	California Vehicle Emission Standards and vehicle compliance	1971 1.7L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield
	C2B	California Vehicle Emission Standards and vehicle compliance	1972 1.7L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield

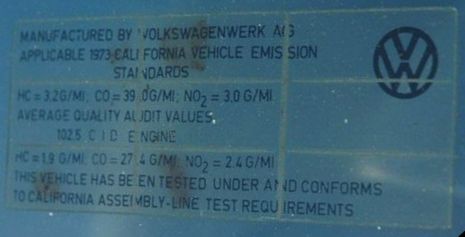

	C2C	California Vehicle Emission Standards and vehicle compliance	1973 1.7L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield

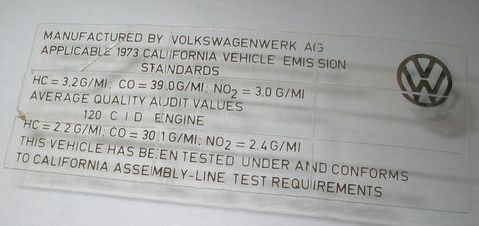

	C2D	California Vehicle Emission Standards and vehicle compliance Courtesy of Steve Gaglione	1973 2.0L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield
	C2E	California Vehicle Emission Standards and vehicle compliance	1974 1.8L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield
	C2F	California Vehicle Emission Standards and vehicle compliance	1974 2.0L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield
	C2G	California Vehicle Emission Standards and vehicle compliance	1975 1.8L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield
	C2H	California Vehicle Emission Standards and vehicle compliance	1975 2.0L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield
	C2I	California Vehicle Emission Standards and vehicle compliance	1976 2.0L vehicles (California)	Front left windshield, inside bottom corner	Clear plastic label, glued inside windshield

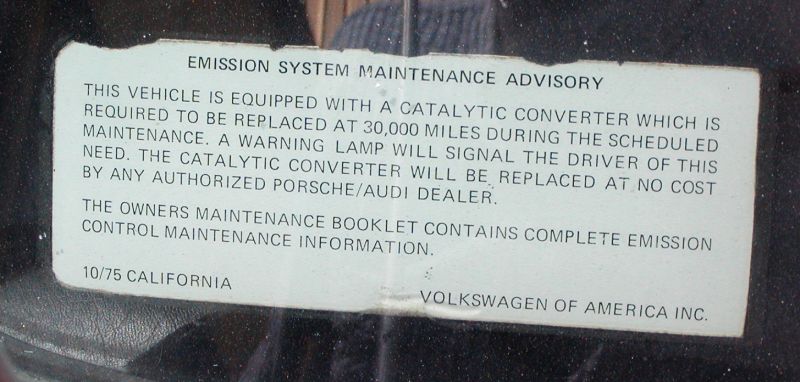

	C3	Emission System Maintenance Advisory	1976 (California)	Front right windshield, inside bottom corner	Opaque plastic label, glued inside windshield

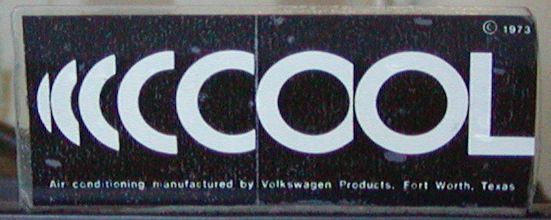

	C4	“COOL” VPC Air conditioning label Courtesy of Tom Trudell	1973-76	Rear window	Opaque plastic label, glued to window
	C5	“Unleaded Fuel Only”	1975-76	Fuel gauge	Clear plastic label, glued to gauge face

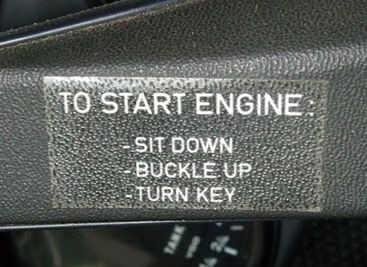

	C6	“To Start Engine”	1974-75	Front Targa top pad or hornpad	Clear plastic label, glued to pad

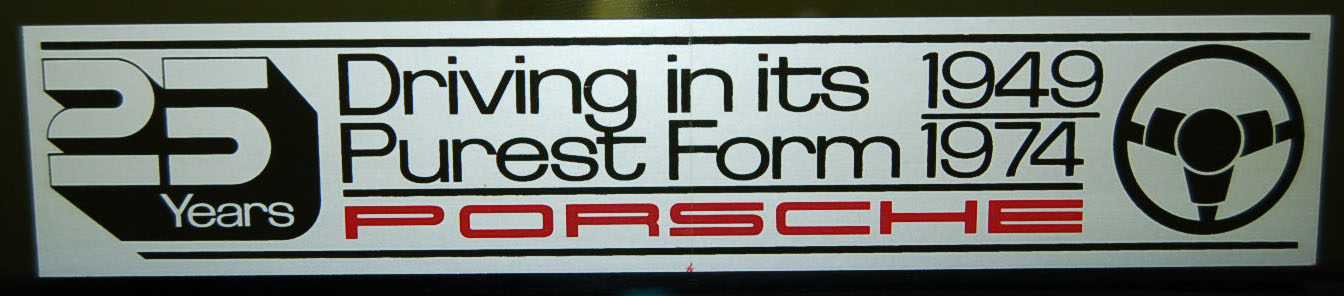

	C7	25 Year Anniversary of Porsche PN 701 020 00 Courtesy of Tom Bliznik	1974	Rear window	Opaque plastic label, glued to window

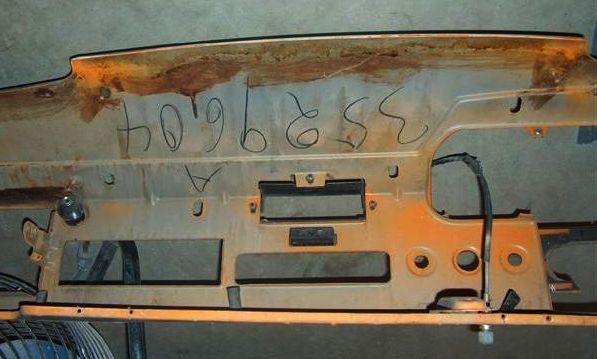

	C8	Chassis Number Courtesy of Lou Rachwitz	1974	Dashboard	Handwritten on under surface of dashboard frame
	C9	“DPD Air Conditioned” Courtesy of Ford Phillips	1970-76	Rear window	Decal glued to window

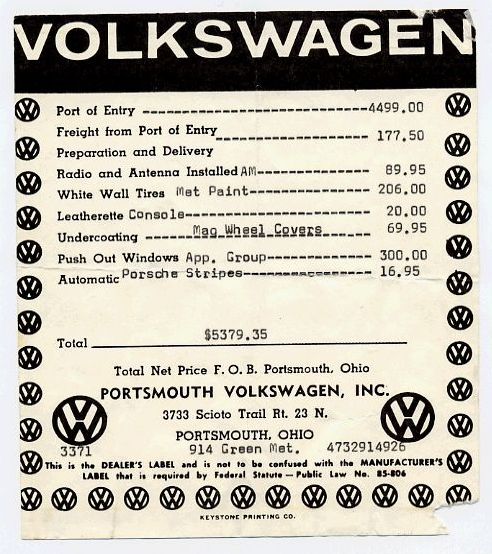

	C10	Dealer window label	1973	Glass	Dealer window label

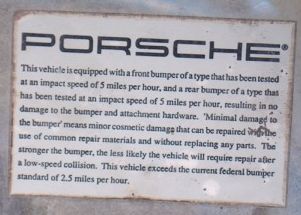

	C11	5 MPH Bumpers Courtesy of Barry Fuller	1975	Rear Window	Glued to rightside rear window

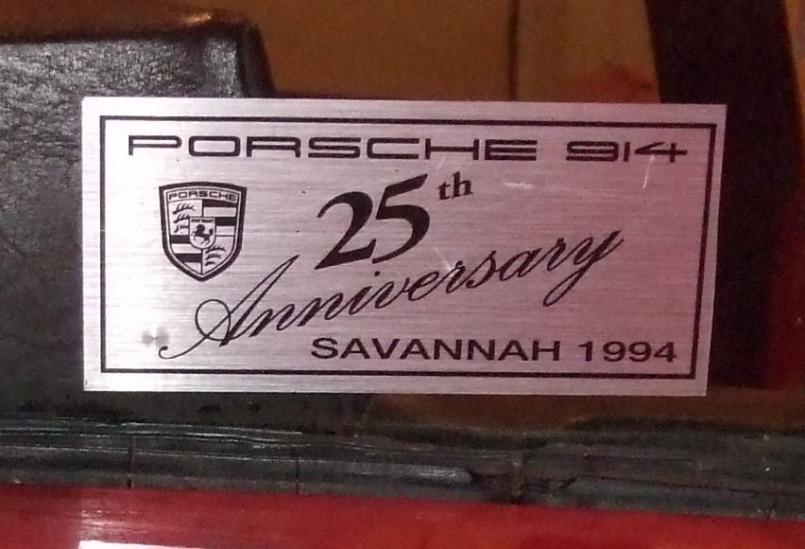

	C12	25th Anniversary Savannah 1994	1994	Rear Window	Adhesive label
GROUP D - ENGINE BAY

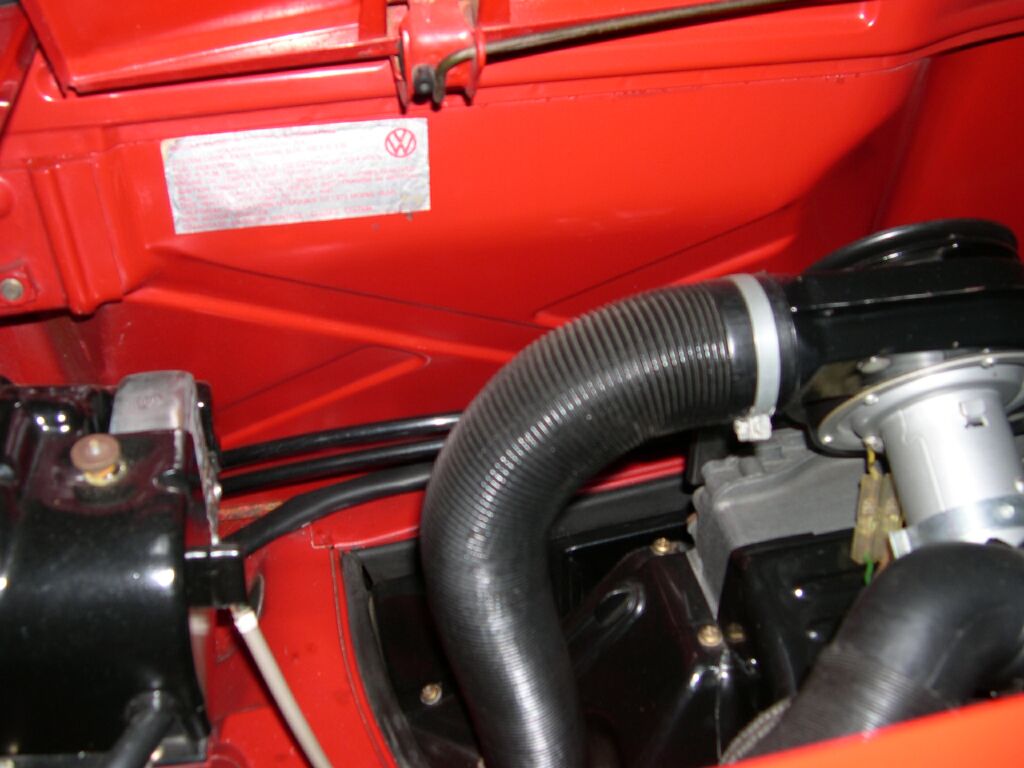

	D0.3	VW Exhaust Emission Control W-FA code engine	1971 1.7L vehicles	Engine bay lid	Foil label glued to engine bay lid
	D0.2	Vehicle Emission Control Information W-HA code engine	1971 1.7L vehicles (California)	Engine bay, left front firewall	Foil label glued to chassis

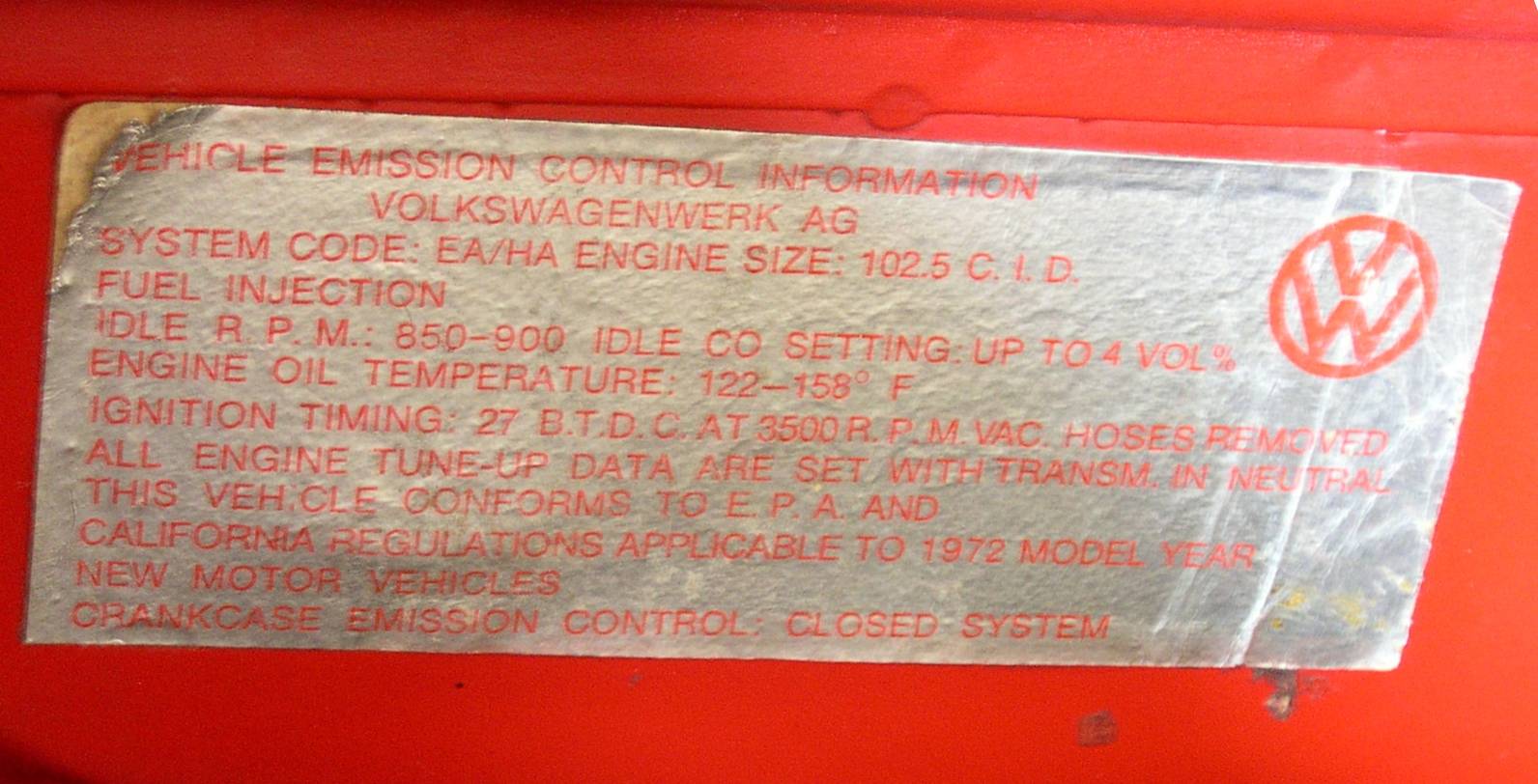

	D0.1	Vehicle Emission Control Information - Courtesy of Pat Garvey EA-HA code engine	1972 1.7L vehicles (California)	Engine bay, left front firewall	Foil label glued to chassis

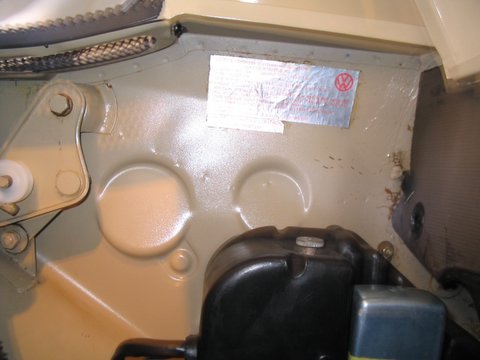

	D1A	Vehicle Emission Control Information EA code engine	1973 1.7L vehicles (49-state)	Engine bay, left side wall	Foil label glued to chassis

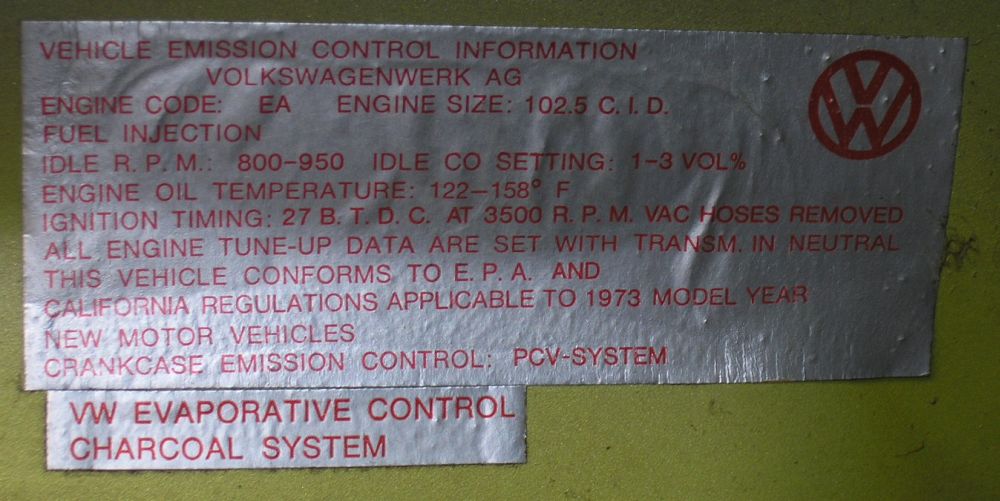

	D1B	Vehicle Emission Control Information – Courtesy of Jamie Donaldson EA code engine	1973 1.7L vehicles (California)	Engine bay, left side wall	Foil label glued to chassis

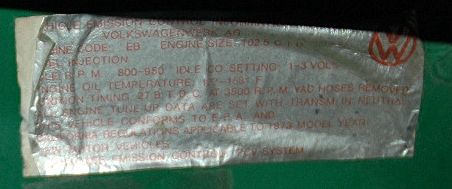

	D1C	Vehicle Emission Control Information EB code engine	1973 1.7L vehicles (California)	Engine bay, left side wall	Foil label glued to chassis

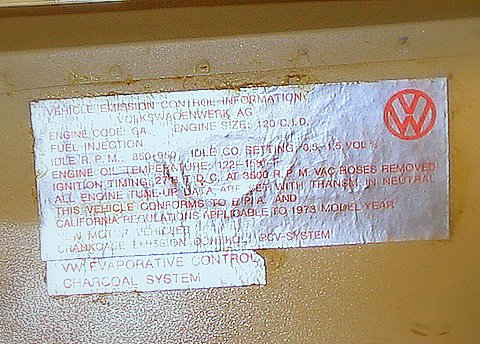

	D1D	Vehicle Emission Control Information – Courtesy of Steve Gaglione	1973 2.0L vehicles (California)	Engine bay, left side wall	Foil label glued to chassis

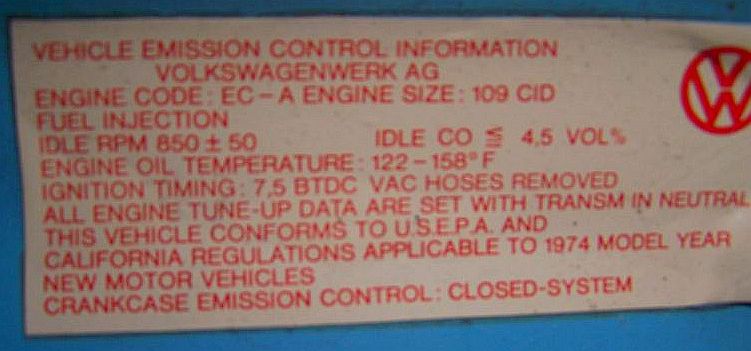

	D1E	Vehicle Emission Control Information	1974 1.8L vehicles EC-A engine (California)	Engine bay, left side wall	Gloss paper label glued to chassis

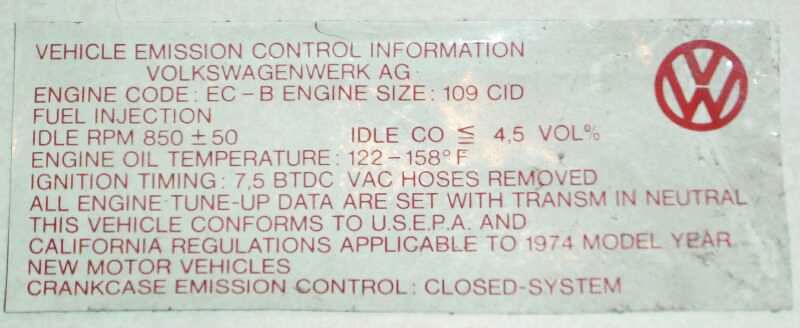

	D1E1	Vehicle Emission Control Information	1974 1.8L vehicles EC-B engine (California)	Engine bay, left side wall	Gloss paper label glued to chassis

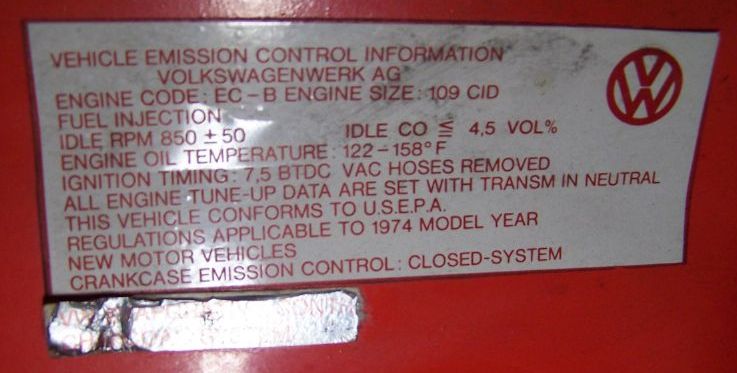

	D1F	Vehicle Emission Control Information Courtesy of CAMP 914	1974 1.8L vehicles EC-B engine (49-state)	Engine bay, left side wall	Gloss paper label glued to chassis

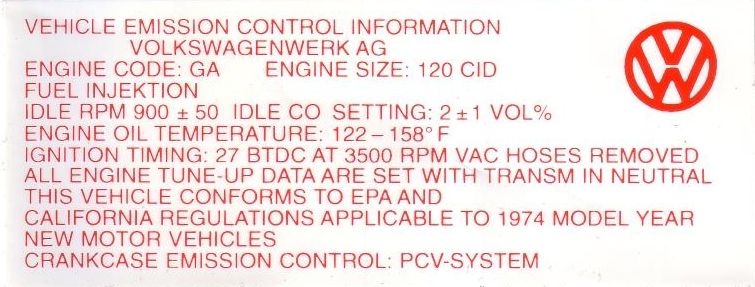

	D1G	Vehicle Emission Control Information	1974 2.0L vehicles (California)	Engine bay, left side wall	Gloss paper label glued to chassis

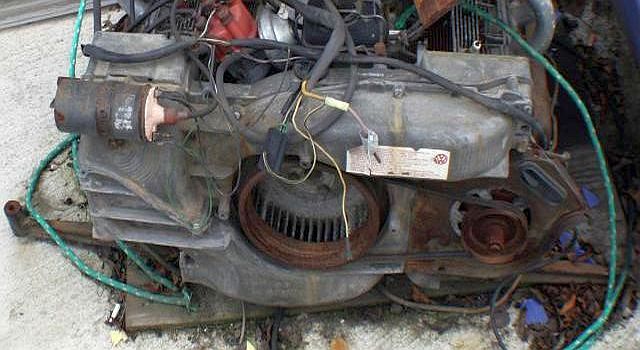

	D1H	Vehicle Control Information	1975 1.8L vehicles EC engine (49-state)	Engine bay, left side fan housing	Gloss paper label glued to fan housing

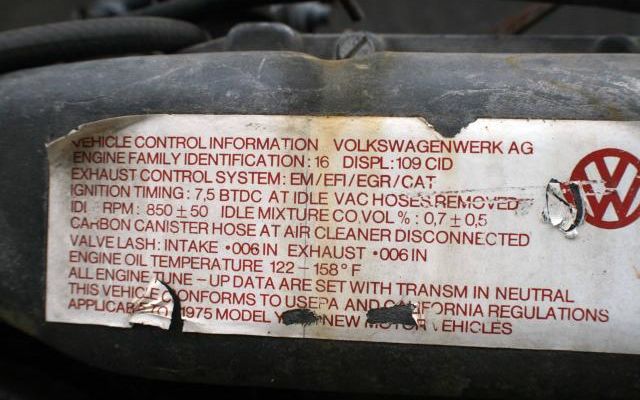

	D1I	Vehicle Control Information	1975 1.8L vehicles EC engine (California)	Engine bay, left side fan housing	Gloss paper label glued to fan housing
	D1J	Vehicle Emission Control Information	1975 2.0L vehicles (49-state)	Engine bay, left side fan housing	Gloss paper label glued to fan housing
	D1L	Vehicle Emission Control Information	1975 2.0L vehicles (California)	Engine bay, left side fan housing	Gloss paper label glued to fan housing

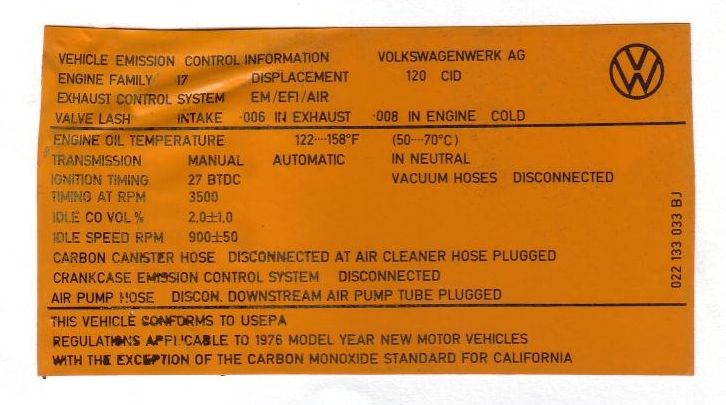

	D1N	Vehicle Emission Control Information PN 022 133 033 BJ Courtesy of Barry Fuller	1976 2.0L vehicles (49-state)	Engine bay, left side wall	Gloss paper label glued to chassis

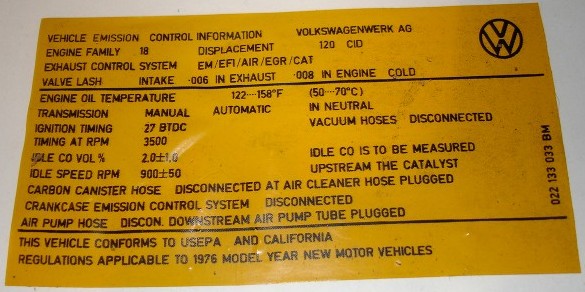

	D1O	Vehicle Emission Control Information PN 022 133 033 BM Courtesy of Wayne Cowie	1976 2.0L vehicles (California)	Engine bay, left side wall	Gloss paper label glued to chassis

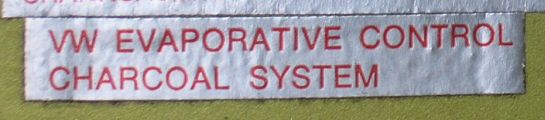

	D2	“VW Evaporative Control Charcoal System” Courtesy of Jamie Donaldson	1970-76	Engine bay, left side wall	Gloss paper label glued to chassis
	D3	9F Recall campaign compliance – Seat adjustment mechanism replacement Courtesy of Royce	914 vehicles built before August 25, 1970	Engine bay, left side wall	Green paint dot on chassis
	D4	9H Recall campaign compliance – Retorque two steering gear bolts Courtesy of Royce	914 vehicles built before March 26, 1970	Engine bay, left side wall, and steering gear bolt heads	Yellow paint dot on chassis and bolt heads
	D5	9J Recall campaign compliance – Secure fuel lines and battery+ cable from abrasion, repaint battery tray and install battery cover and strap	914 vehicles built before October 14, 1970	Engine bay, left side wall	Blue paint dot on chassis

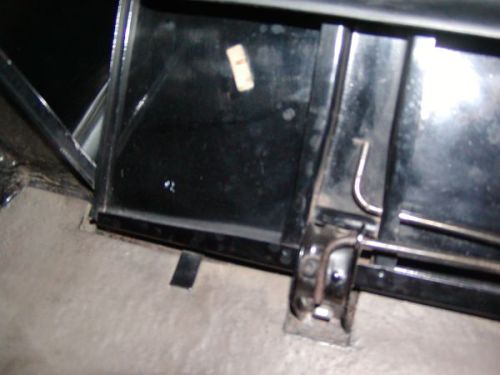

	D6	Dealer prep label	1974	Inner engine lid, left side	Paper label glued to engine lid

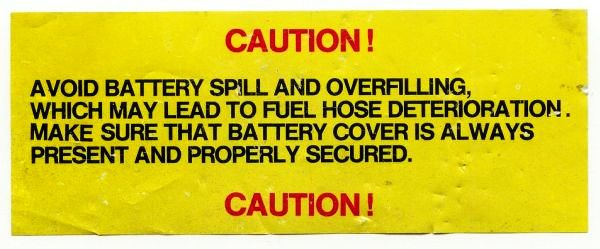

	D7	HO Recall campaign compliance – Warnings, fuel hoses and battery cover PN 100 915 005	1970-76	HO Recall campaign battery cover	Plastic label, glued to battery cover

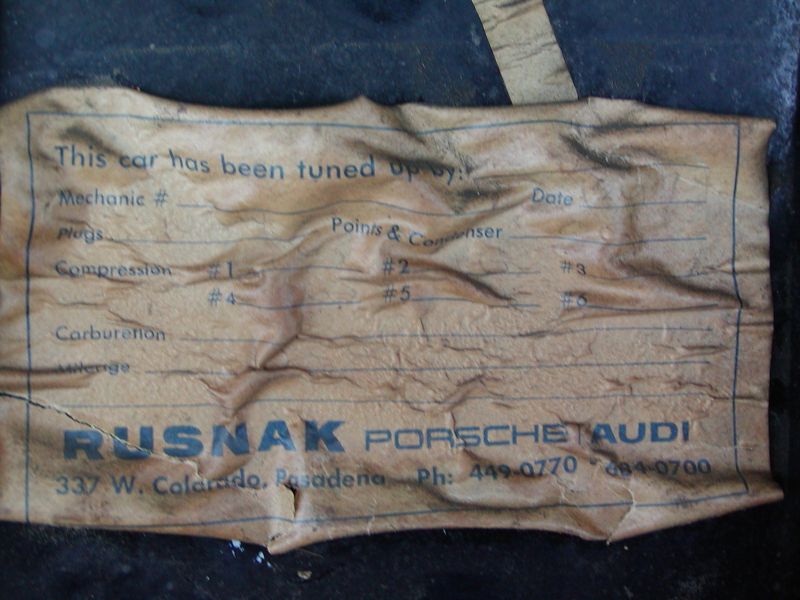

	D8	Dealer service label Rusnak Porsche-Audi, Pasadena, CA	1974-76	Engine bay surfaces	Paper label glued to engine bay surfaces

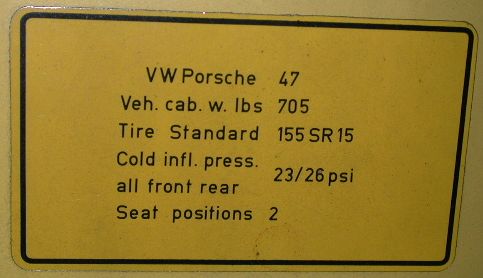

	D9	155 SR 15 Payload, tires	1970	Engine lid or engine bay front bulkhead – Left side	Foil label, glued to surface
GROUP E – ENGINE & TRANSAXLE

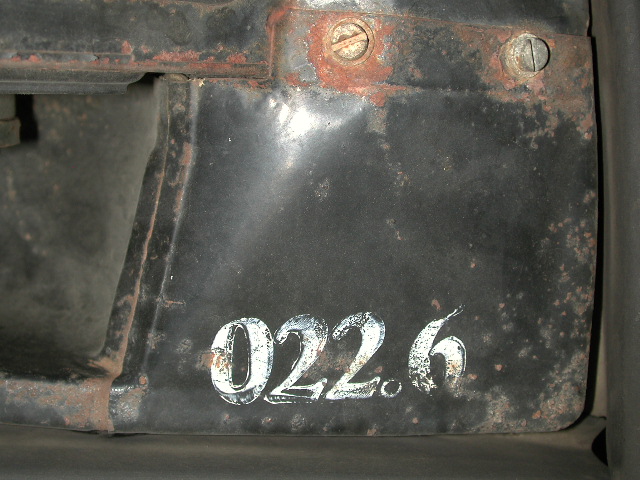

	E1.1 E1.3	"022.6" and "EA311” over “M553" W code engine	1970 1.7L	Engine, front left corner	Painted number code on engine cooling shroud

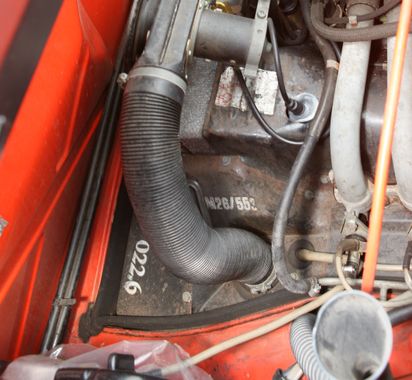

	E1.2	"022.6" and "M26/553" W code engine	1971 1.7L	Engine, front left corner	Painted number code on engine cooling shroud
	E1R	"EA349" over "621"	???	Engine, front left corner	Painted number code on engine cooling shroud

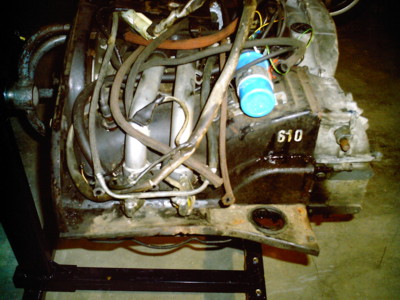

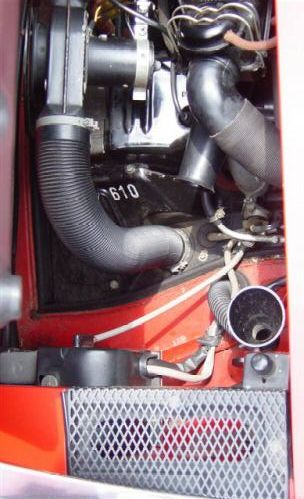

	E1A E1B	"610" EA code engine 49-state	1972-73 1.7L	Engine, front left and right corners	Painted number code on engine cooling shroud

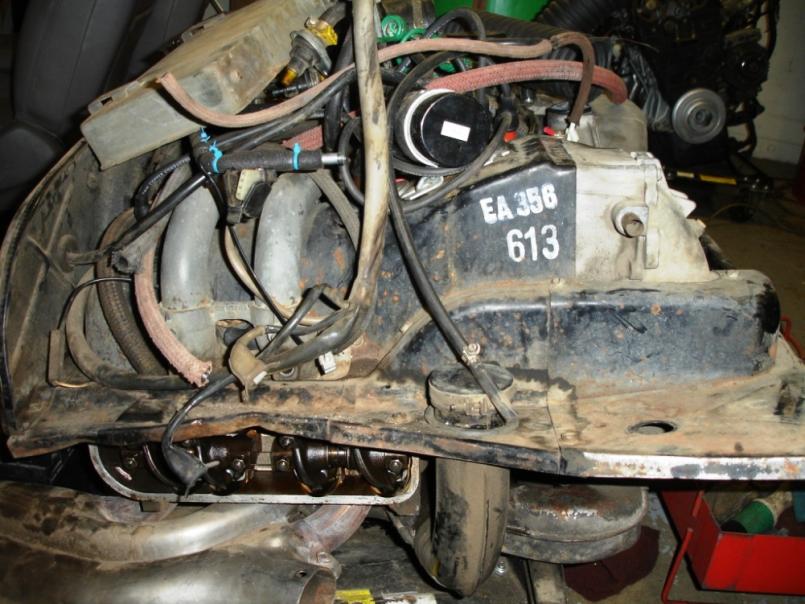

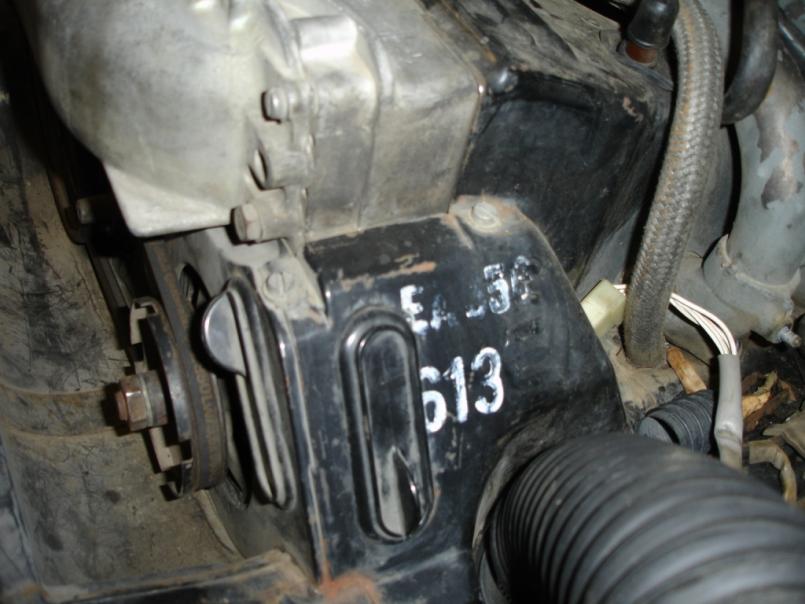

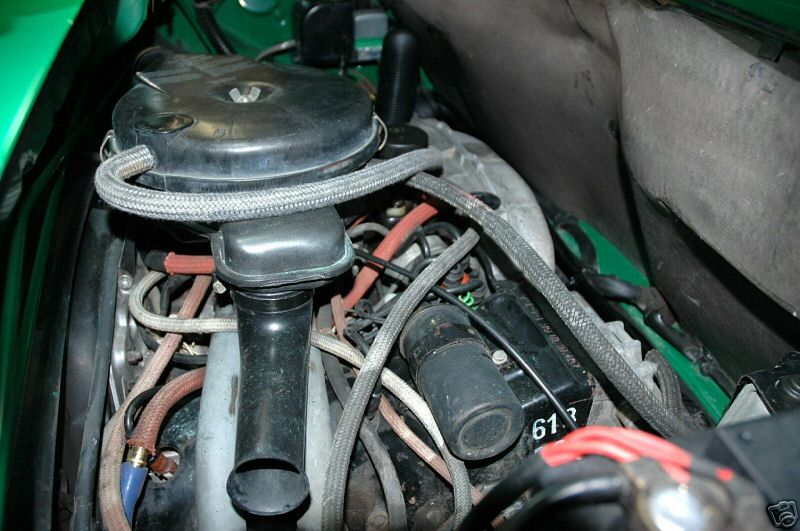

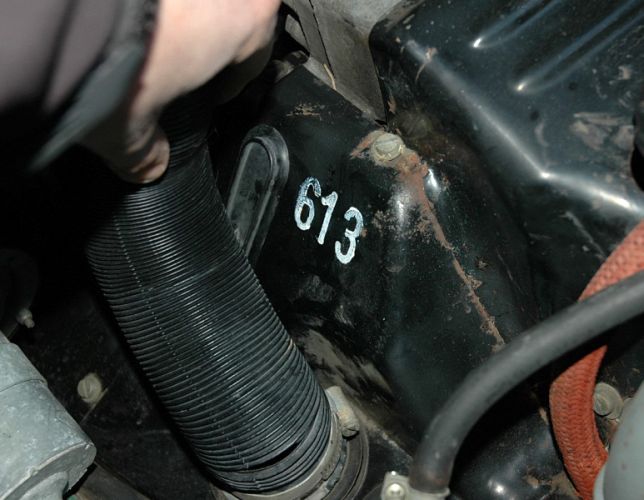

	E1B1 E1B2 E1B3 E1B4	“613” and "EA356 over 613" EB code engine California Courtesy of Mike Miller	1973 1.7L	Engine, front left and right corners	Painted number code on engine cooling shroud

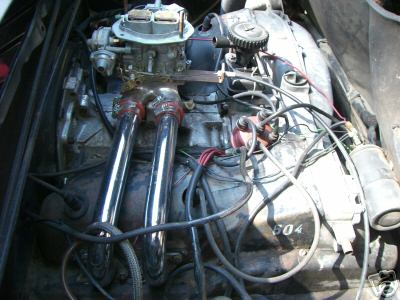

	E1H1	"604"	1974 1.8L	Engine, front right corner	Painted number code on engine cooling shroud

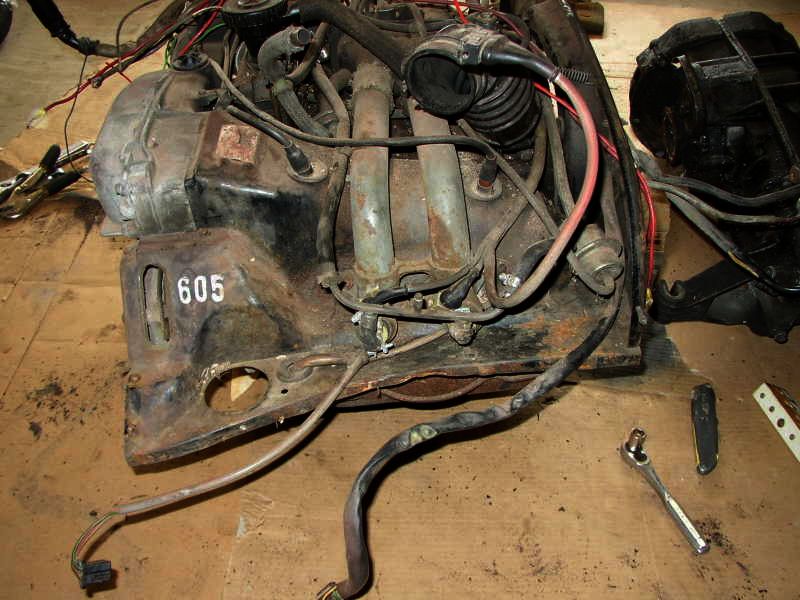

	E1H	"605" EC–B code engine California and 49-state	1974 1.8L	Engine, front left corner	Painted number code on engine cooling shroud

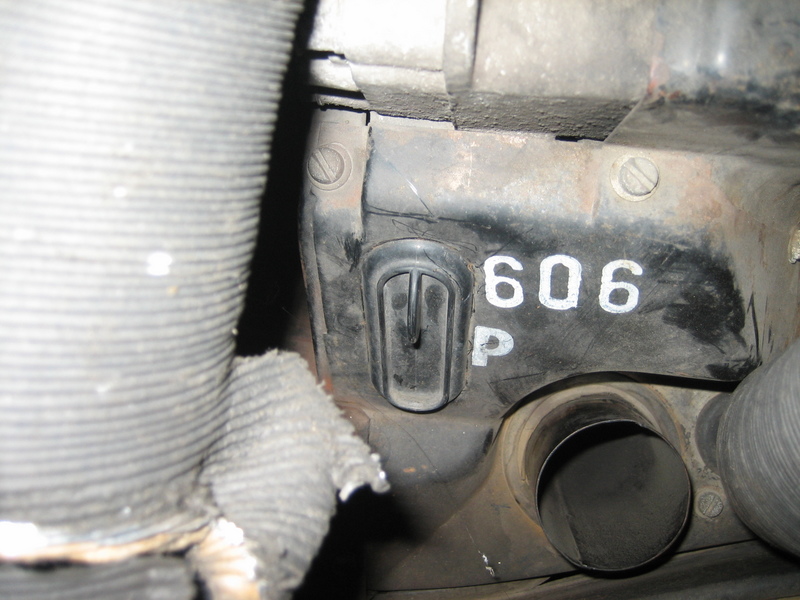

	E1G	“606 over P” EC–A code engine California Courtesy of CAMP 914	1974 1.8L	Engine, front left corner	Painted number code on engine cooling shroud
	E1C1	“620” GB code engine ROW	1973-74 2.0L	Engine, front left corner	Painted number code on engine cooling shroud

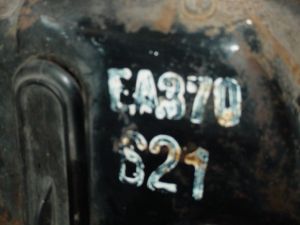

	E1E	“EA370 over 621” GA code engine 49-state Courtesy of Premier Auto Sales, Barbourville, KY	1973-74 2.0L	Engine, front left corner	Painted number code on engine cooling shroud

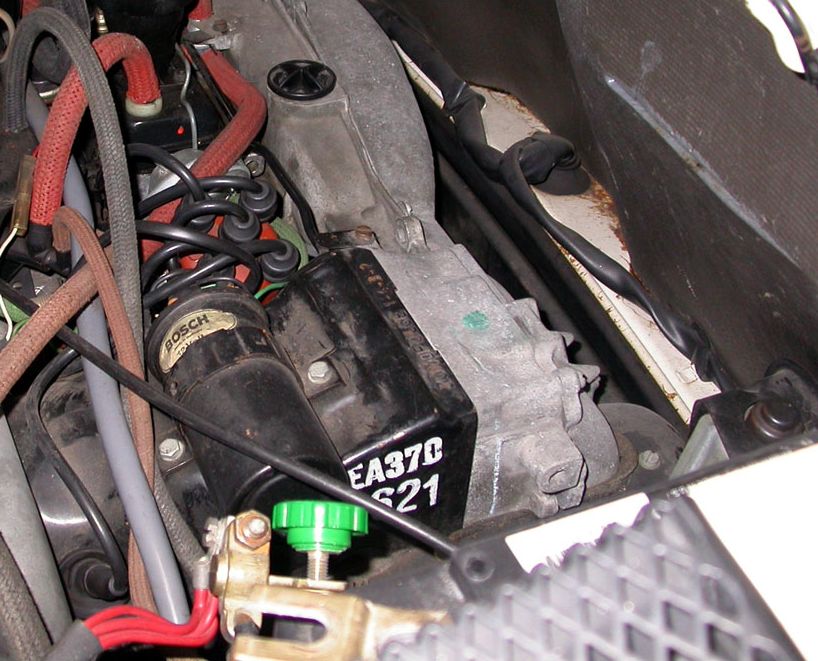

	E1F	“EA370 over 621” GA code engine 49-state	1973-74 2.0L	Engine, front right corner	Painted number code on engine cooling shroud

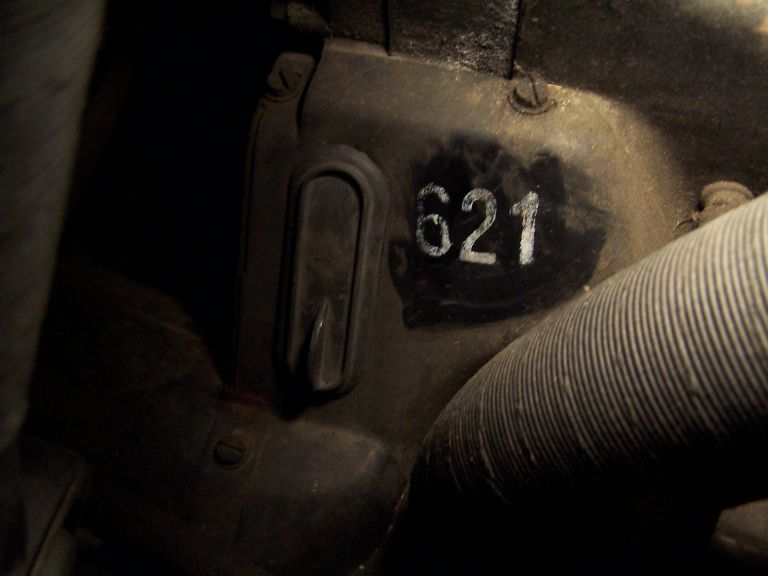

	E1C	“621” GA code engine California Courtesy of CAMP 914	1973-74 2.0L	Engine, front left corner	Painted number code on engine cooling shroud

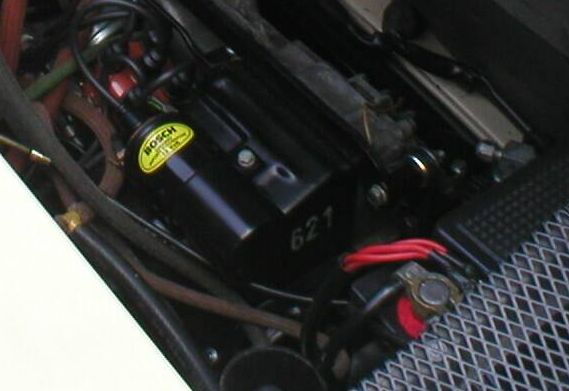

	E1D	“621” GA code engine California Courtesy of Steve Gaglione	1973-74 2.0L	Engine, front right corner	Painted number code on engine cooling shroud

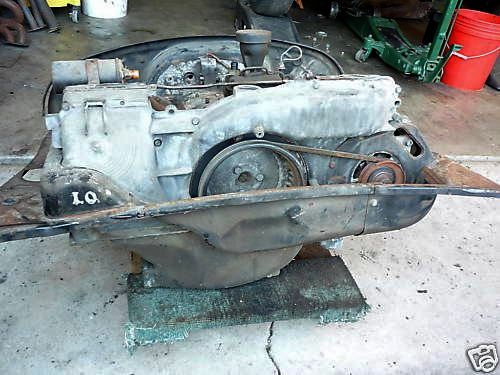

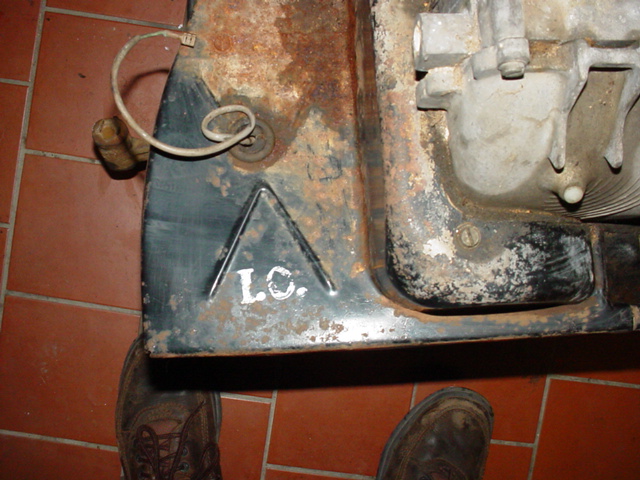

	E1Q E1Q1	“I.O." (In Order) EB and GA code engines California and 49-state Courtesy of Premier Auto Sales, Barbourville, KY	1973-74	Engine, front right corner	Painted number code on engine cooling shroud
	E1I	“918” EC code engine 49-state Courtesy of Steve Gaglione	1975 1.8L	Engine, front left corner	Painted number code on engine cooling shroud
	E1J	Three digit number? EC code engine California	1975 1.8L	Engine, front left corner	Painted number code on engine cooling shroud

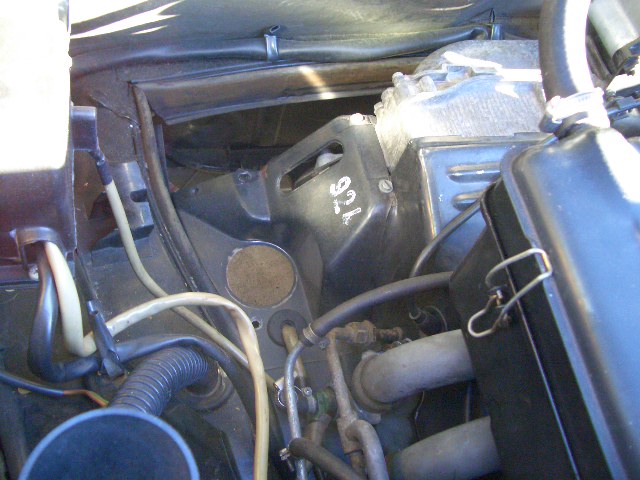

	E1P	"924" GC code engine California Courtesy of Jens Vegelpohl	1975-76 2.0L	Engine, front left corner	Painted number code on engine cooling shroud

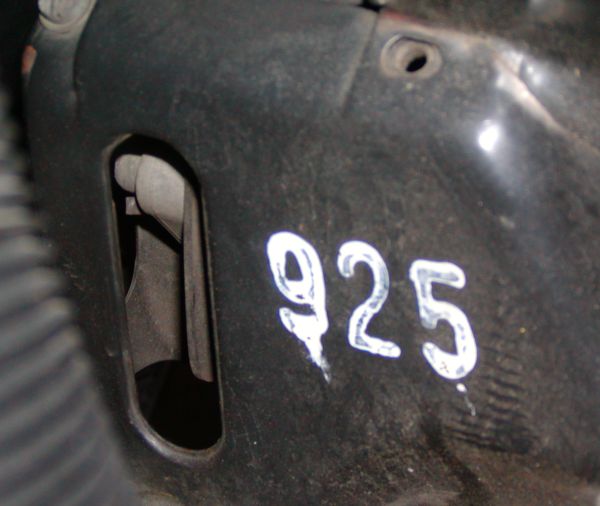

	E1O	“925” GC code engine 49-state Courtesy of Tom Trudell	1975-76 2.0L	Engine, front left corner	Painted number code on engine cooling shroud

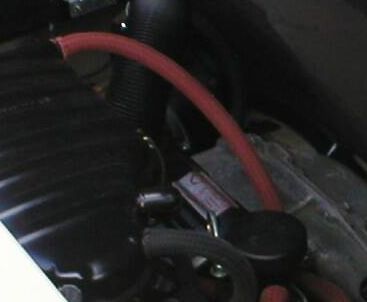

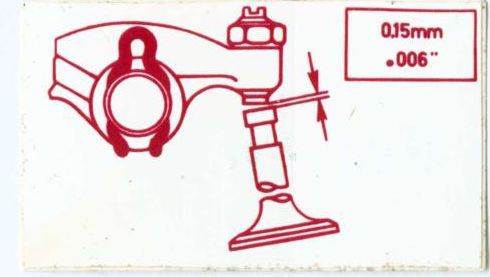

	E2A	Valve adjustment specifications PN 022 100 175 Courtesy of David Pateman	1970-1976 1.7L-1.8L vehicles	Engine, front left corner	Foil label, glued to fan shroud

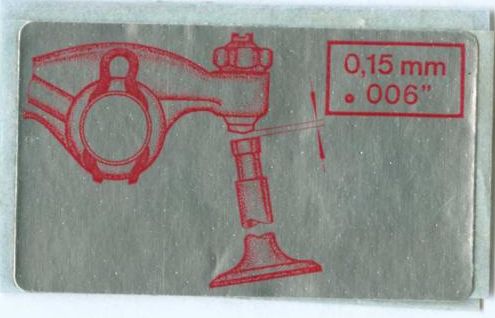

	E2B	Valve adjustment specifications PN 022 100 175 Courtesy of David Pateman	1970-1976 1.7L-1.8L vehicles	Engine, front left corner	Foil label, glued to fan shroud

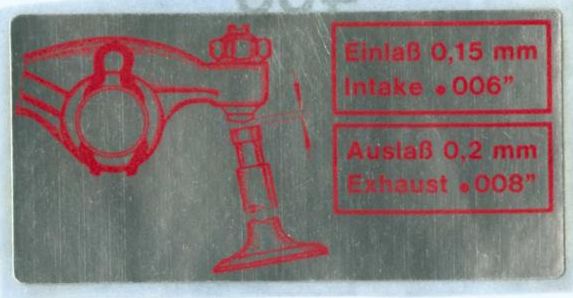

	E2C	Valve adjustment specifications PN 039 100 175 Courtesy of David Pateman	1973-1974 2.0L vehicles	Engine, front left corner	Foil label, glued to fan shroud

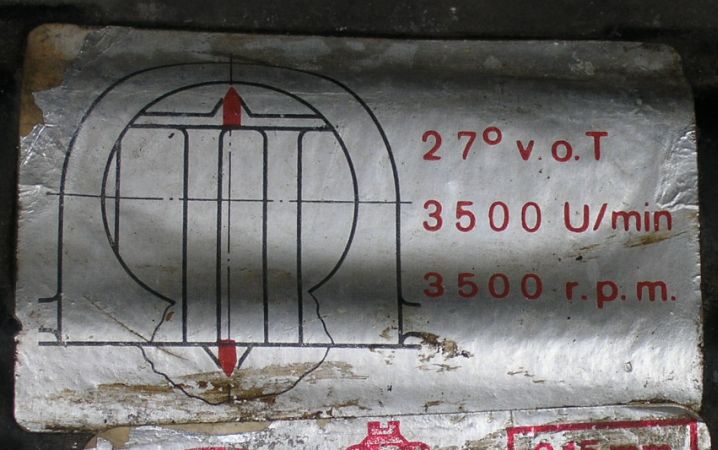

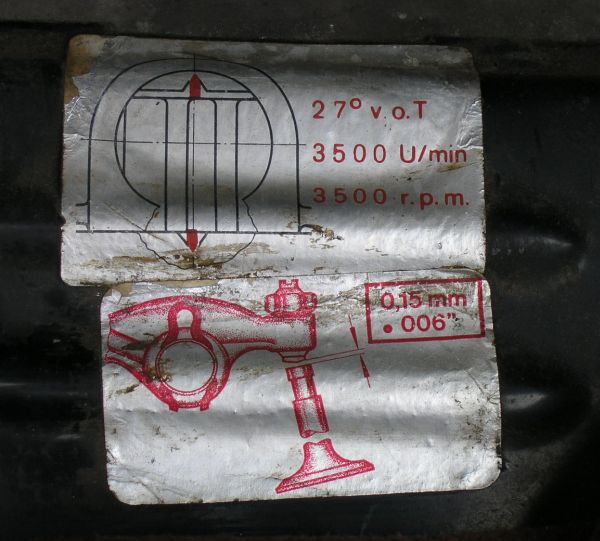

	E3A	Ignition timing specifications Courtesy of Jamie Donaldson	1970-73 1.7L vehicles	Engine, front left corner	Foil label, glued to fan shroud

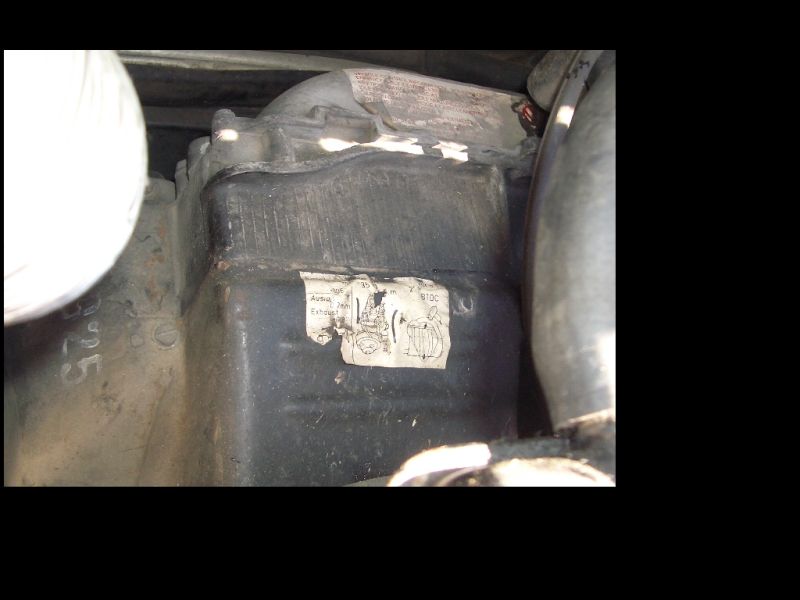

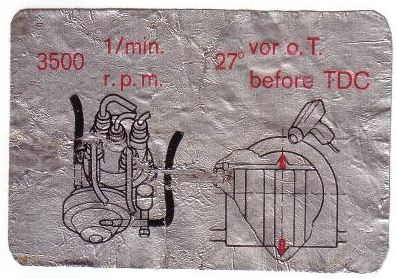

	E3B	Ignition timing specifications PN 022 100 173	1974 2.0L vehicles	Engine, front left corner	Foil label, glued to fan shroud

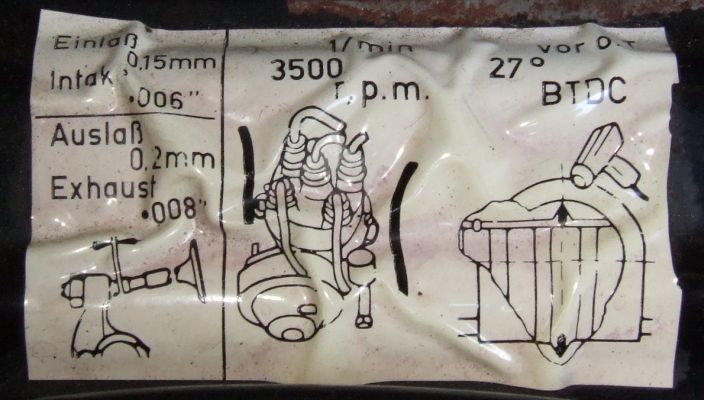

	E3C	Ignition timing and valve adjustment specifications Courtesy of Tod Worden	1975-76 2.0L vehicles	Engine, front left corner	Foil label, glued to fan shroud
	E3D	Ignition timing and valve adjustment specifications	1974-75 1.8L vehicles	Engine, front left corner	Foil label, glued to fan shroud
	E3E	Ignition timing and valve adjustment specifications	1974-75 2.0L vehicles	Engine, front left corner	Foil label, glued to fan shroud

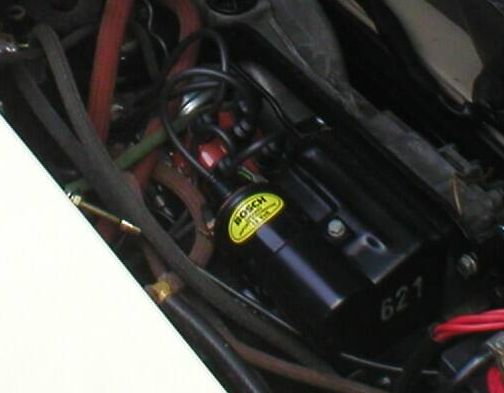

	E4	Ignition coil Courtesy of Steve Gaglione	1970-76	Ignition coil	Paper label glued to coil

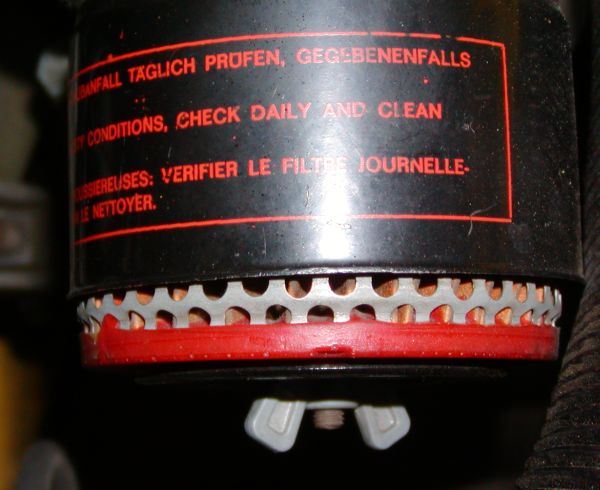

	E5	Smog control air pump maintenance Courtesy of Tom Trudell	1975-76	Smog pump housing	Silkscreened label onto air pump housing

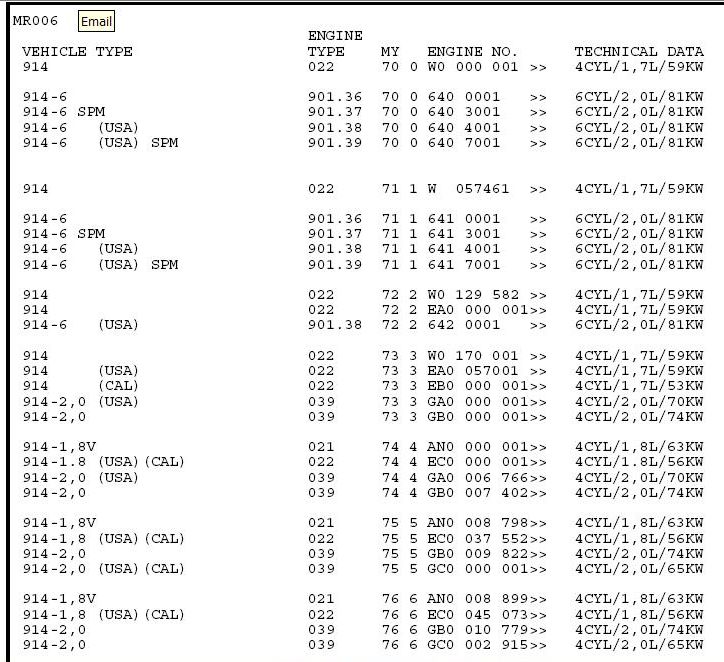

	E6A	1.7L Engine Serial Number EA code, EB code Engine SN Decoder	1970-73	Top right rear of engine case	Serial number stamped onto engine case
	E6B	1.8L Engine Serial Number EC code Engine SN Decoder	1974-76	Top right rear of engine case	Serial number stamped onto engine case
	E6C	2.0L Engine Serial Number GA code Engine SN Decoder	1973-76	Top left front of engine case, near base of oil filler	Serial number stamped onto engine case

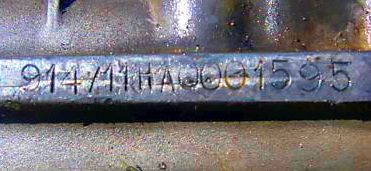

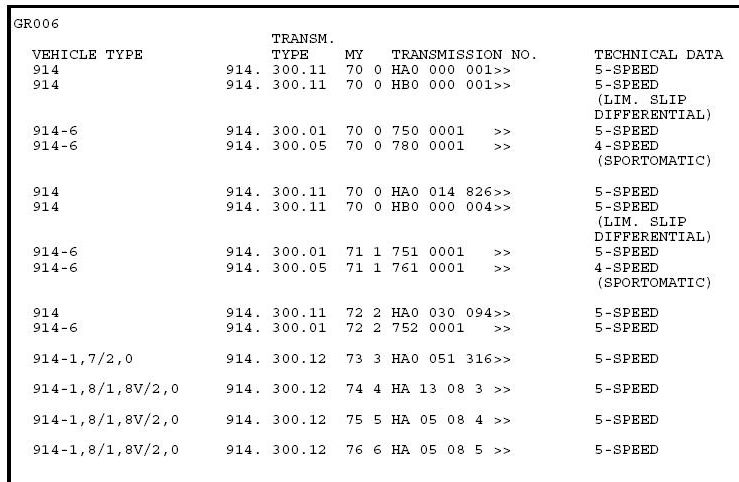

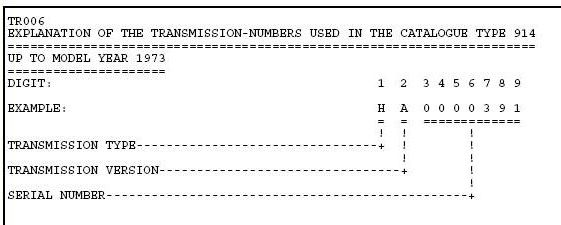

	E7A	Transaxle Serial Number (9-digit) Transaxle SN Decoder Transaxle Types	1970-73	Bottom center rib of transaxle case	Serial number stamped onto transaxle case

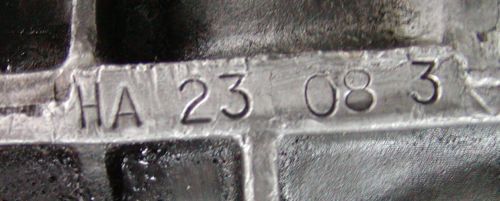

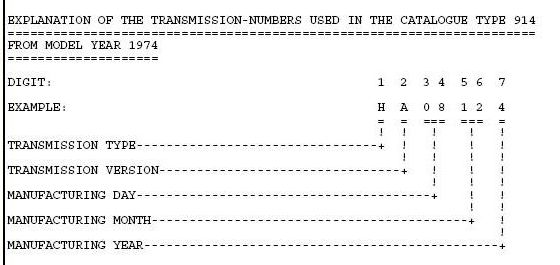

	E7B	Transaxle Serial Number (7-digit, Non-LSD) Transaxle SN Decoder Transaxle Types	1974-76	Bottom center rib of transaxle case	Serial number stamped onto transaxle case

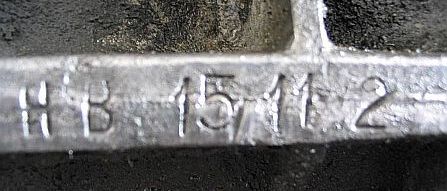

	E7C	Transaxle Serial Number, LSD (7-digit, LSD) Transaxle SN Decoder Transaxle Types	1974-76	Bottom center rib of transaxle case	Serial number stamped onto transaxle case
GROUP F – REAR TRUNK

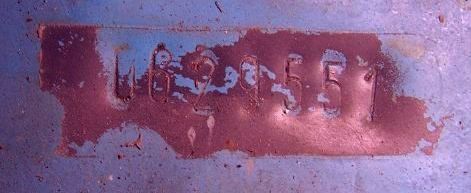

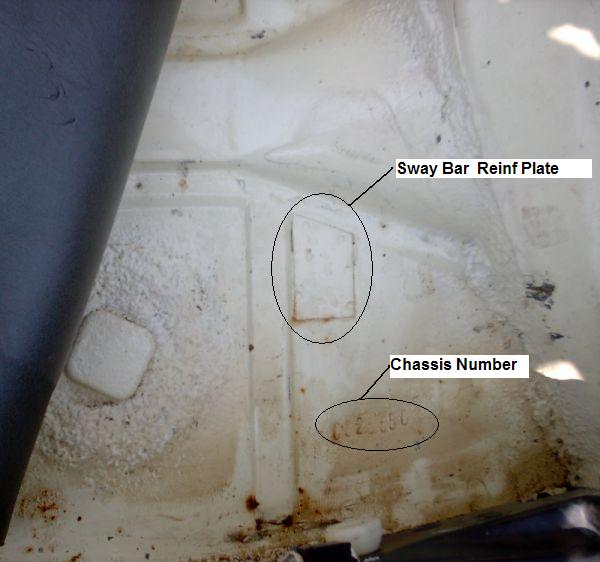

	F1	Chassis Number Chassis Number Decoder Courtesy of CAMP 914	1970-75	Rear trunk floor, lower right corner	Chassis number stamped onto chassis

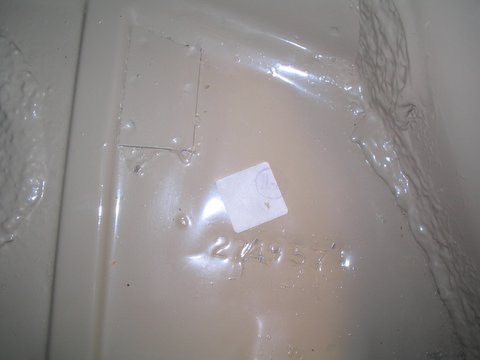

	F2A	Dealer prep label Courtesy of Steve Gaglione	1973	Rear trunk floor, near chassis number	Large paper label, glued to trunk floor

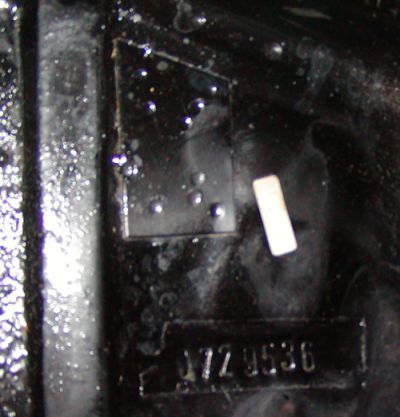

	F2B	Dealer prep label	1974	Rear trunk floor, near chassis number	Small paper label, glued to trunk floor

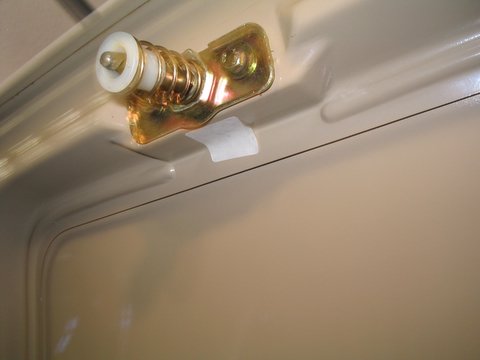

	F3A	Dealer prep label Courtesy of Steve Gaglione	1973	Rear trunk lid, behind latch	Large paper label, glued to trunk lid

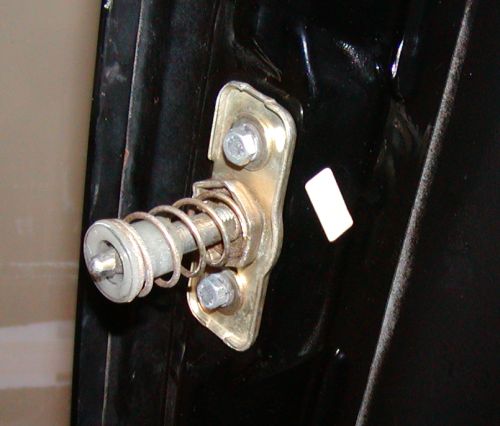

	F3B	Dealer prep label	1974	Rear trunk lid, behind latch	Small paper label, glued to trunk lid
GROUP G - WHEELS

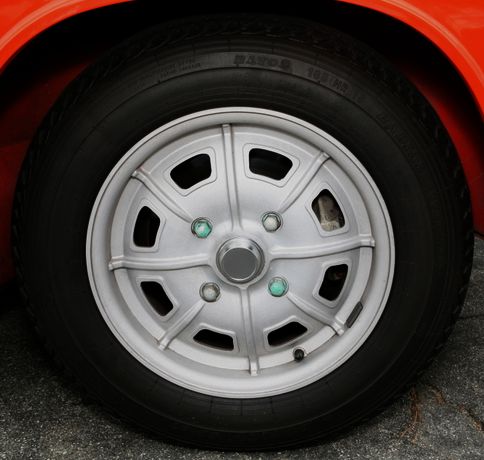

	G1	BO Recall campaign compliance - Correct part number and dimensions, replace incorrect wheels	2.0L vehicles built before December 8 1972, with forged alloy wheels	Forged alloy wheels	Green paint dot on correct rims

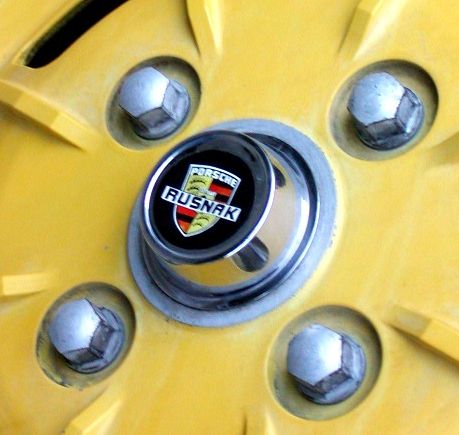

	G2	Dealer wheel cap logo Rusnak Porsche-Audi, Pasadena, CA	1973-74	Wheel center caps	Plastic label with dealer logo glued to wheel center caps
