Porsche 914/4 Specialized Tools - Miscellaneous
Click on the thumbnail photos below for
larger images
Photos and information shown below are from:
the factory Porsche 914 repair manual,
the 1998 Porsche Specialized Tools catalog,
Clymers and Haynes manuals and a
few other sources.
Some of the tools you need to fabricate.
Available tools may be obtained directly through
Porsche dealers or elsewhere
and tools with an ‘X’ in the catalog page order number may be available at
Baum Tools Unlimited.
|
Category |
Tool ID |
Description |
Tool Purpose |
Image |
Catalog Page |
Tool in Use |
|
Engine |
3054 |

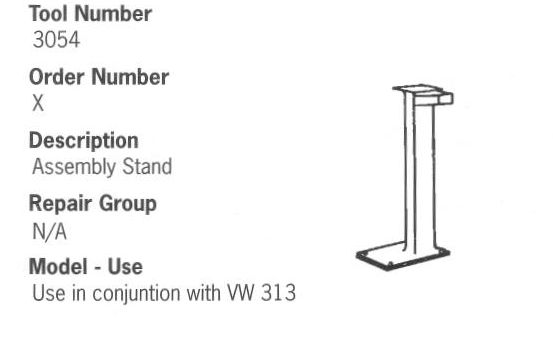

Engine/transaxle stand
support base (floor stand) |
Use with VW 313 and P 201
to support engines/transaxles during assembly |
|
|
|
|
Electrical |
Bosch EFAW 192 |

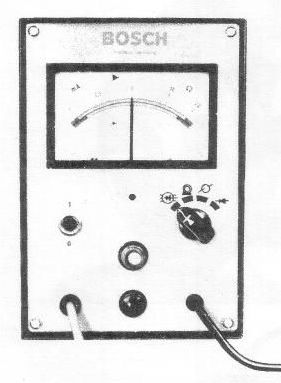

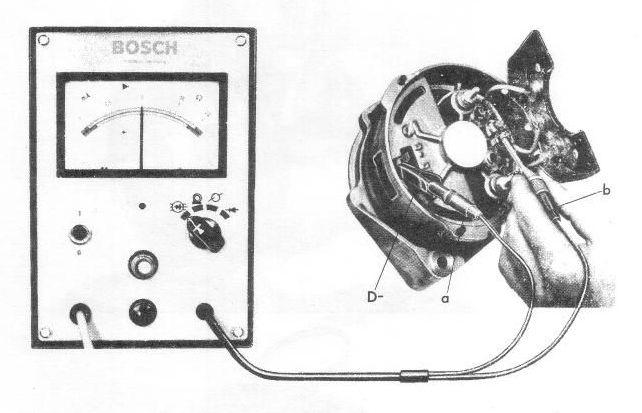

Alternator tester |
Tests alternator
functions |
|
NLA |
|
|
Fuel Injection |
Bosch EFAW 193 |
D-Jetronic
fuel injection system tester, with adapter |
Tests D-Jet fuel
injection system functions |
|
NLA |
|
|
Fuel Injection |
Bosch EFAW 238 |
D-Jetronic
fuel injection system tester, no adapter |
Tests D-Jet fuel
injection system functions |
|
NLA |
|
|
Engine |

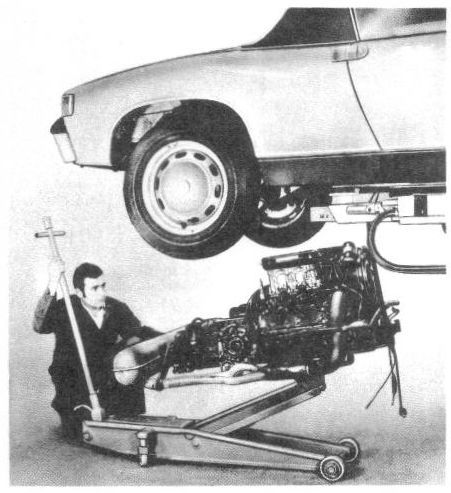

US Tool 612/3 |

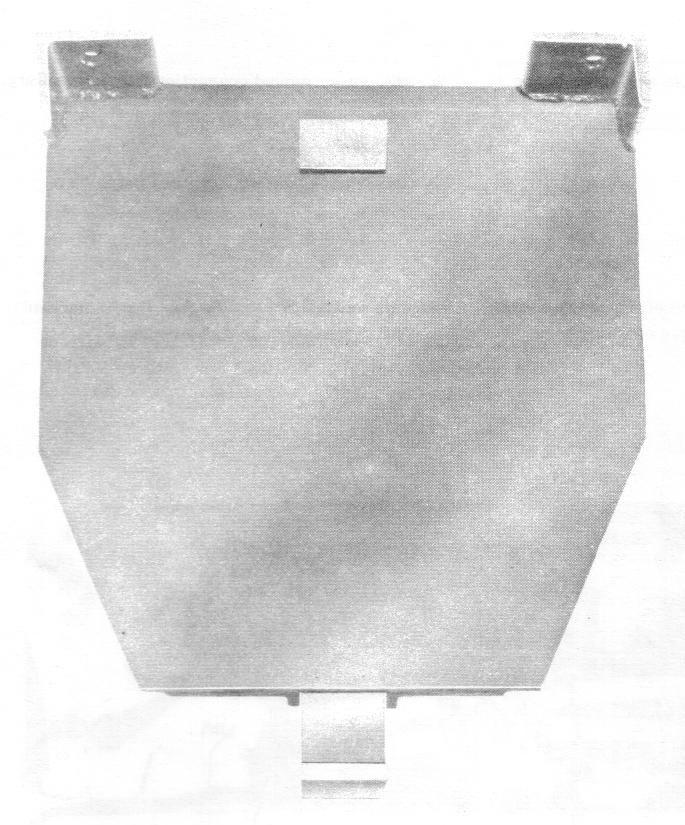

Engine adapter plate |
Installs and removes drivetrain with US Tool 612/4. (I know that’s a 914/6 drivetrain
in the photo, but its similar) |
|
NLA |
|
|
Engine |

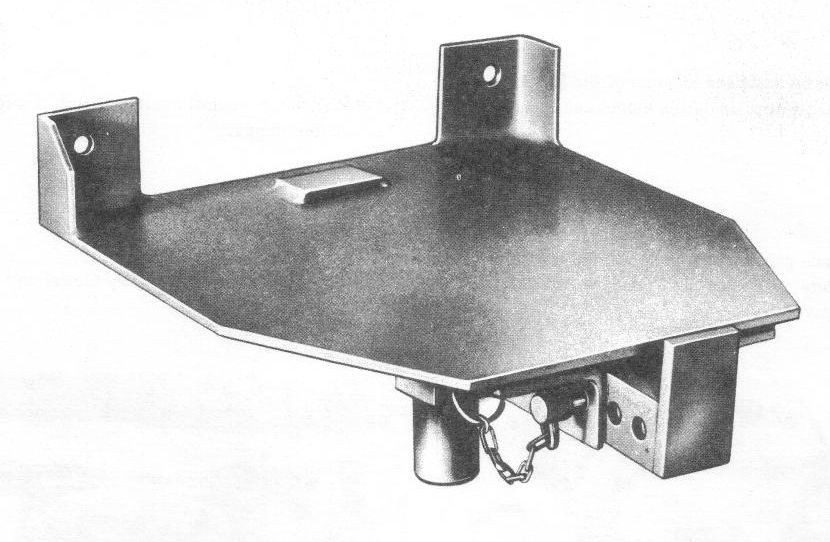

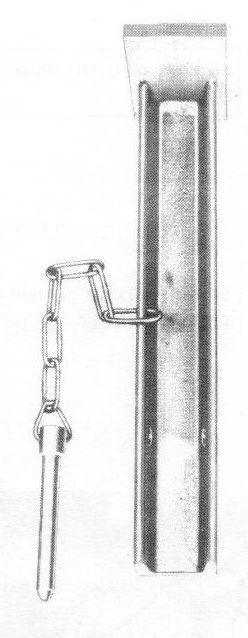

US Tool 612/4 |
Transaxle support |
Installs and removes drivetrain with US Tool 612/3. (I know that’s a 914/6 drivetrain
in the photo, but its similar) |
|
NLA |
|
|
Engine |

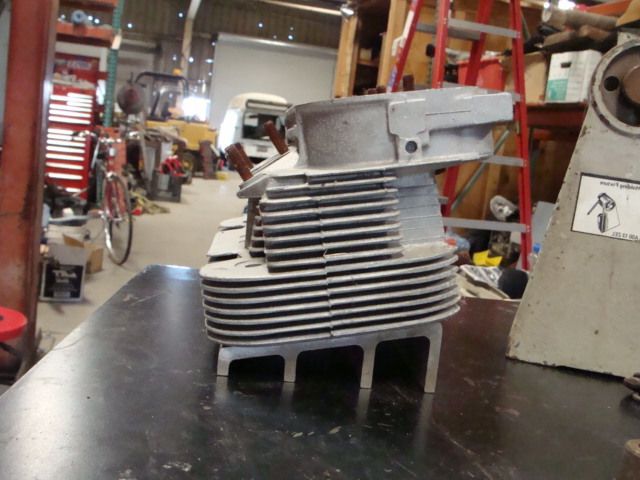

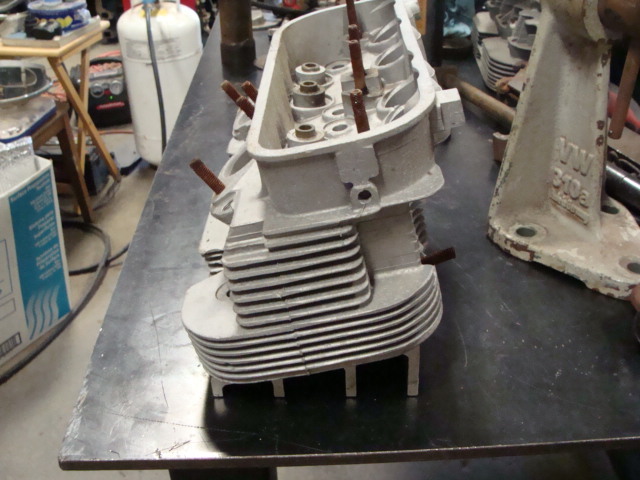

US Tool US4401A |

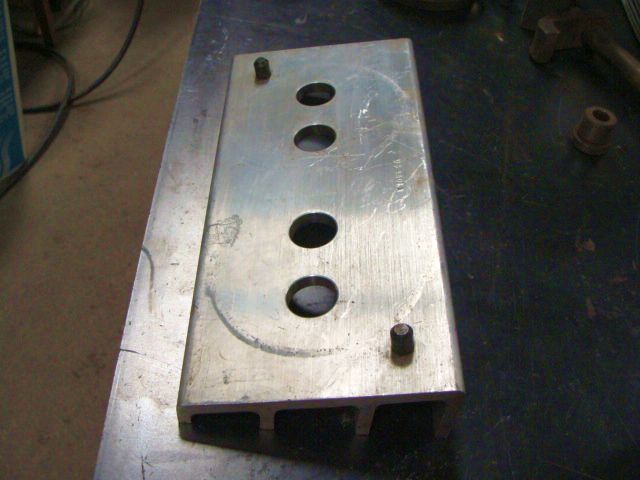

Valve Guide Replacement Inclined Support |
Installs and removes valve guides with US Tool 4401A. |
|
NLA |
|
|
Engine |
US Tool 4404a |

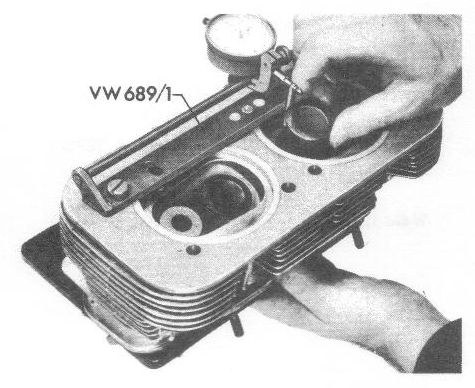

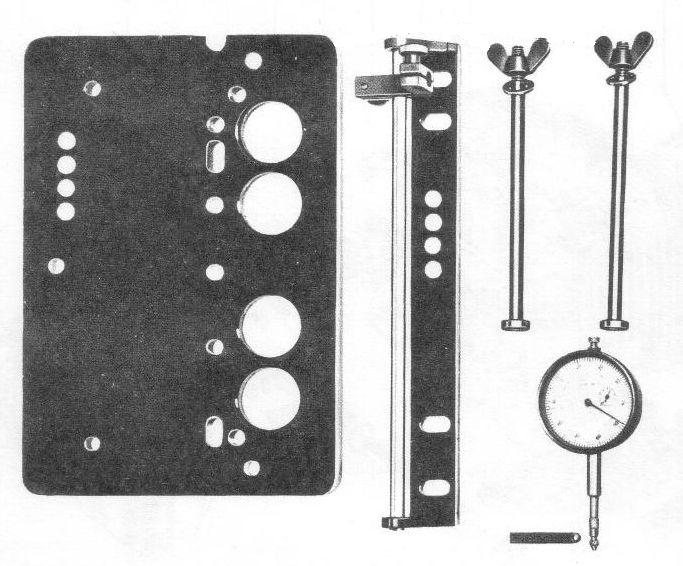

Valve guide wear tool |
Measures valve guide wear. (See also P 206) |
|
|
|
|
Brakes |

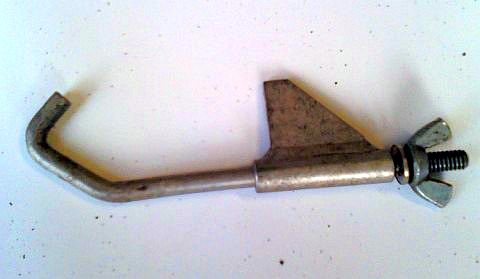

US Tool 8001 |

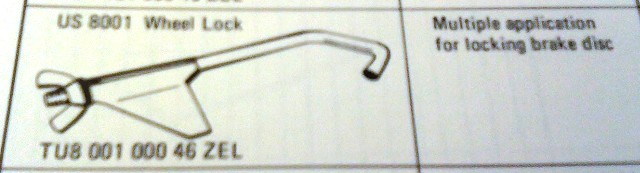

Disc brake clamp. Courtesy of Ray Mital |
Clamps disc brake rotor to keep from rotating. |
|
|
|
|
Suspension |

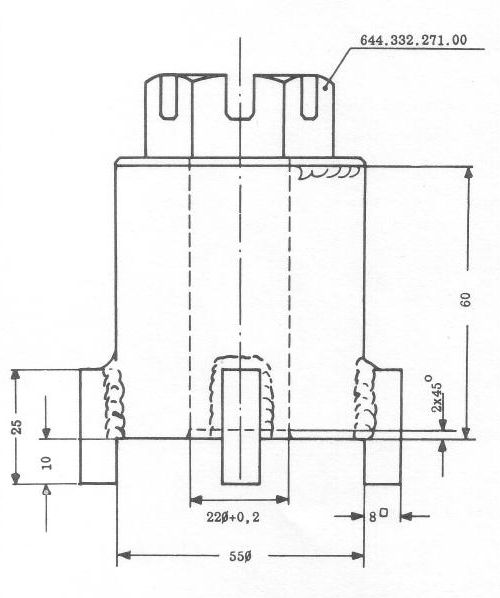

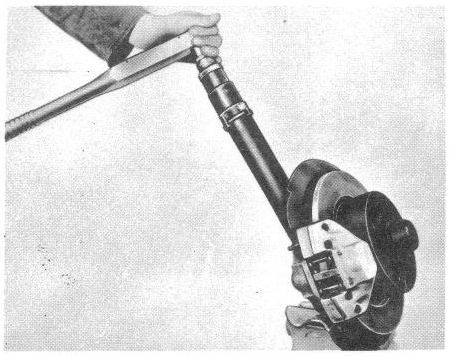

US Tool 8002 |
Front shock absorber
retention nut tool. Can be locally made. |
Installs and removes
front shock absorber special retention nut |
|
|
|
|
Suspension |
Bilstein ??? |
Front shock absorber
retention nut tool |
Installs and removes
front shock absorber special retention nut |
|
|
|
|
Electrical |
M 1 (My ID #) |

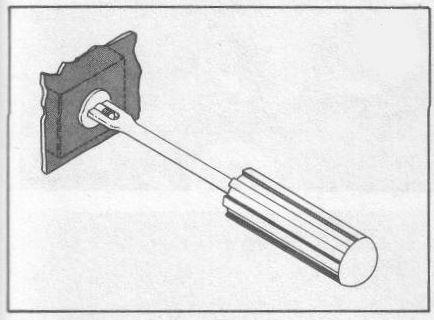

Dashboard switch bezel
tool |
Installs and removes dash
switch bezels (See also Tool VW 674/1) |
|
|
|
|
Fuel Injection |
M 2 (My ID #) |

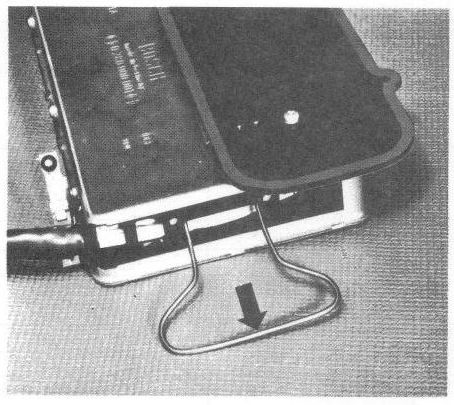

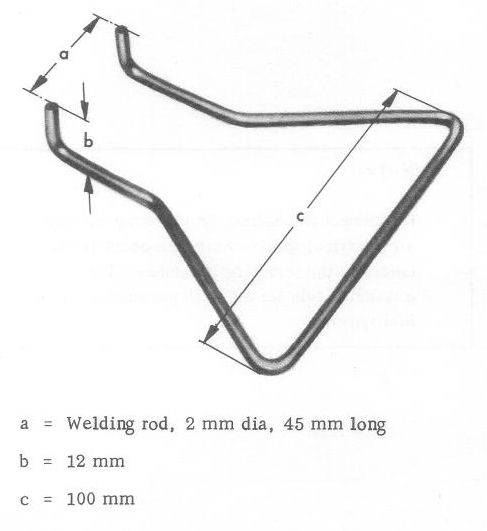

D-Jet wiring harness ECU
connector removal handle Locally made |
Removes early D-Jet fuel
injection wiring harness connector from ECU (later connectors had integral
handle) |
|
|
|
|
Electrical |
M 3 (My ID #) |

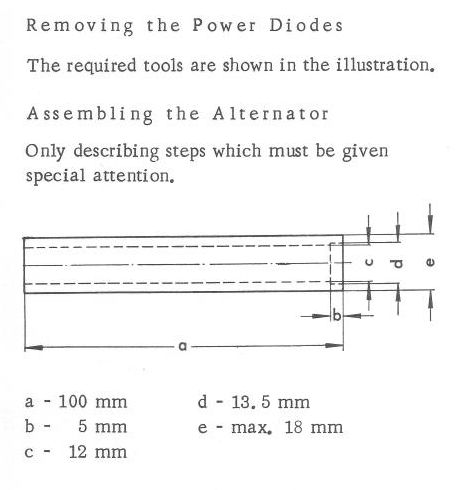

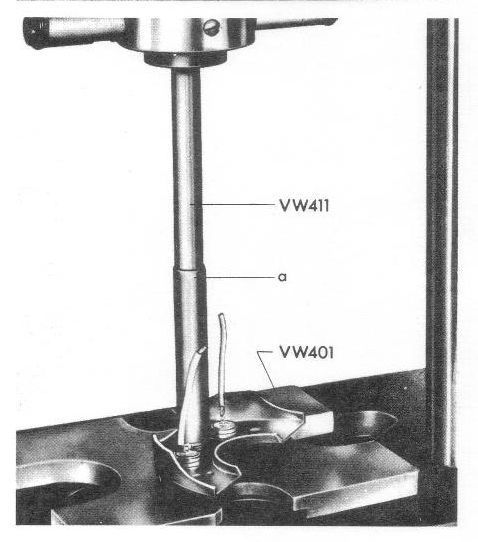

Alternator diode removal
tool Locally made |
Removes alternator diodes
from alternator plate (Tool ‘a’ in photo) |
|
|
|
|
Engine |
M 4 (My ID #) |

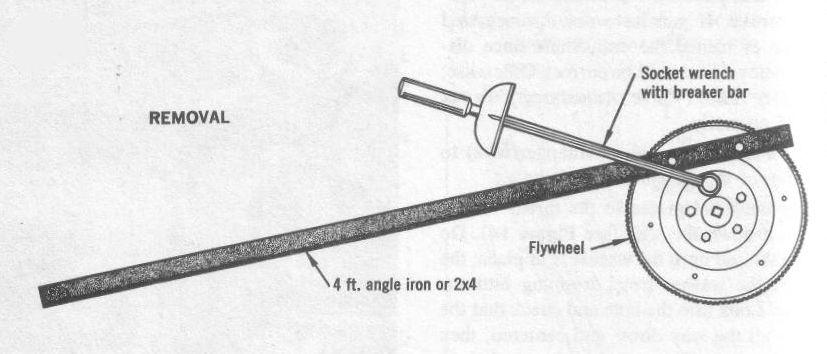

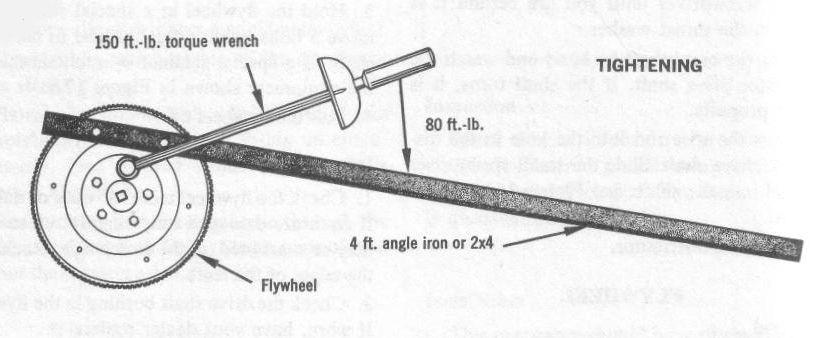

Flywheel lever Locally made |
Removes or installs
flywheel bolts (high torque) |
|
|
|
|
Chassis |
M 5 (My ID #) |

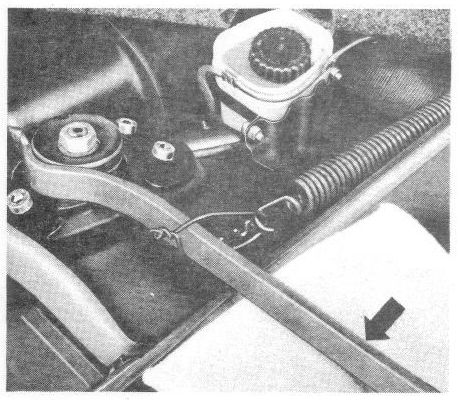

Front trunk lid spring
adjustment lever Locally made |
Adjusts front trunk lid
springs |
|
|
|
|
Chassis |
M 6 (My ID #) |

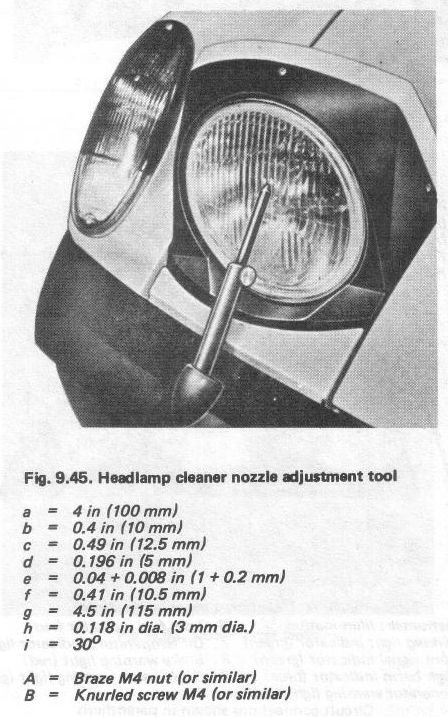

Headlight washer aiming
tool Locally made |
Aims headlight washer
nozzle |
|
|
|
|
Fuel Injection |
M 7 (My ID #) |

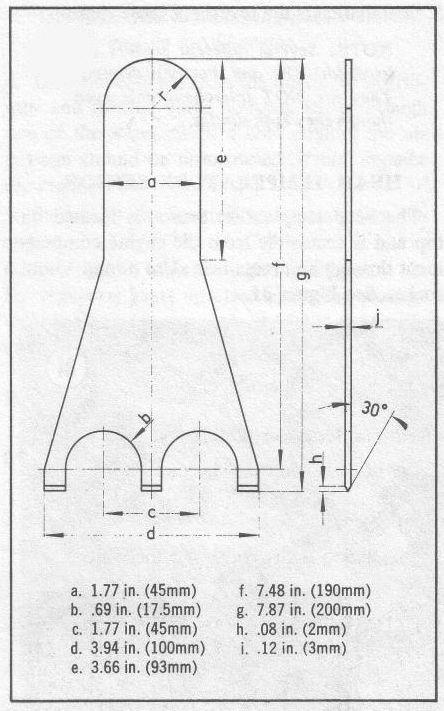

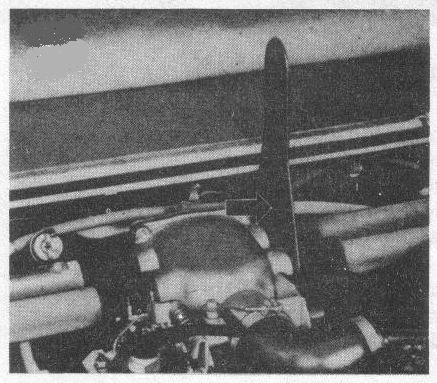

Intake manifold hose
removal tool Locally made |
Removes 2 intake manifold
hoses simultaneously! From the Clymers manual for 914s but it looks like it is designed
for VW Type 3 cars. A useless tool. |
|
|
|
|
Transaxle |
M 8 (My ID #) |

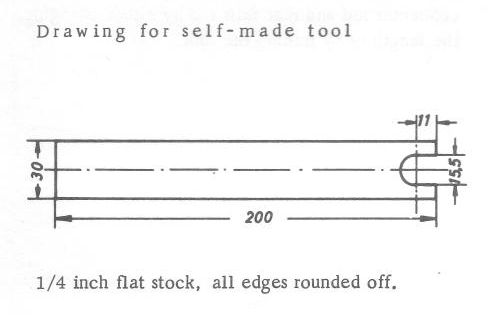

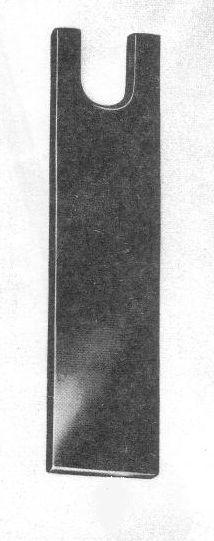

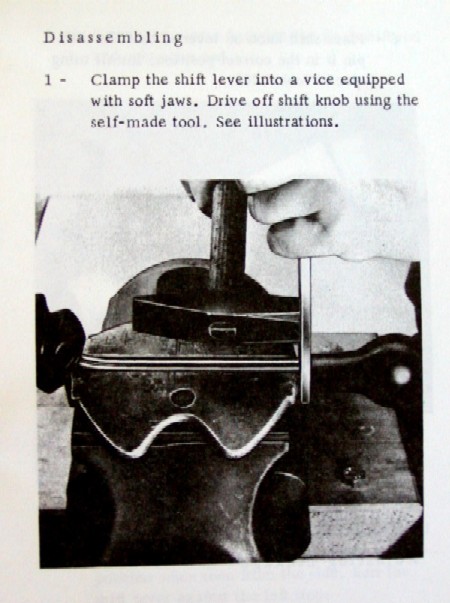

Shift lever knob removal
tool Locally made |
Removes shift lever knob |
|
|
|
|
Transaxle |
M 9 (My ID #) |

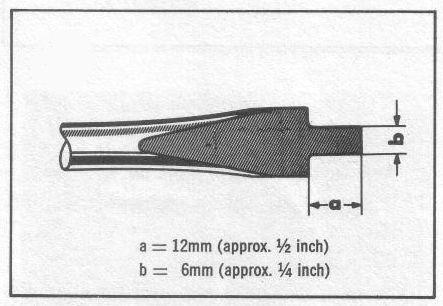

Shift lever spring
installation tool Locally made |
Installs and removes
shift lever centering springs |
|
|
|
|
Wheels |
M 10 (My ID #) |
Wheel cap tool (Buy on eBay) |
Mandrels for installing/removing
wheel caps |
|
|
|
|
Transaxle |
M 11 (My ID #) |
8mm 12 pt CV tool (AKA tri-square) |
Removes and installs constant
velocity joint bolts |
|
|
|
|
Transaxle |
M 12 (My ID #) |
17mm hex wrench |
Removes and installs
transaxle drain plugs |
|
|
|
|
Clutch |
M 13 (My ID #) |
Clutch alignment tool |
Aligns clutch disk with
pressure plate during clutch assembly |
|
|
|
|
Transaxle |
M 14 (My ID #) |
17mm V-box wrench |
Holds 17mm nut inside
engine bay while removing transaxle |
|
|
|
|
Transaxle |
M 15 (My ID #) |
Synchro removal tool |
Removes synchro rings from dog-teeth gears |
|
|
|
|
Chassis |
M 16 (My ID #) |

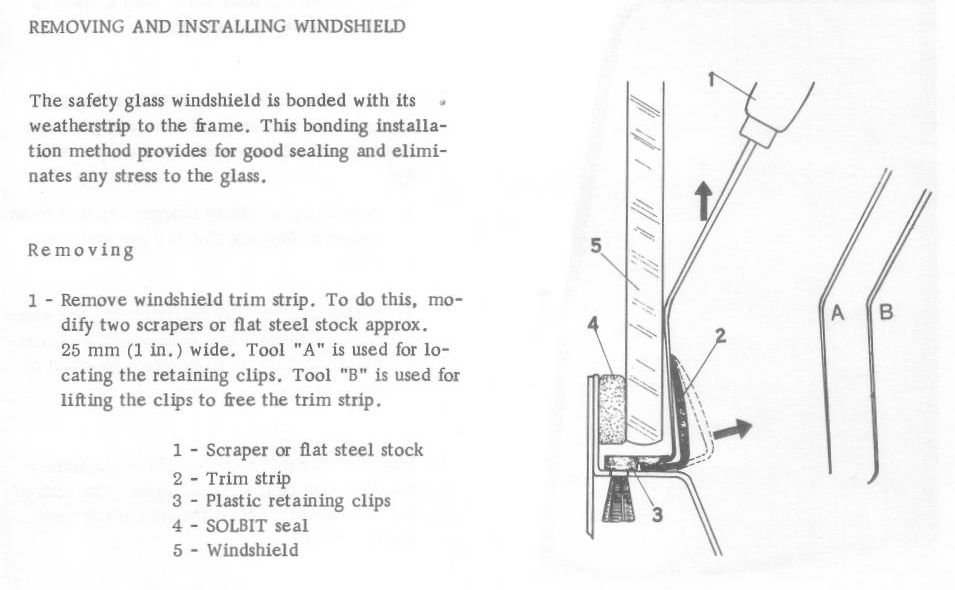

Windshield installation tool Locally made |
Releases windshield trim clips |
|
|
|
|
Chassis |
M 17 (My ID #) |
Windshield installation tool Locally made |

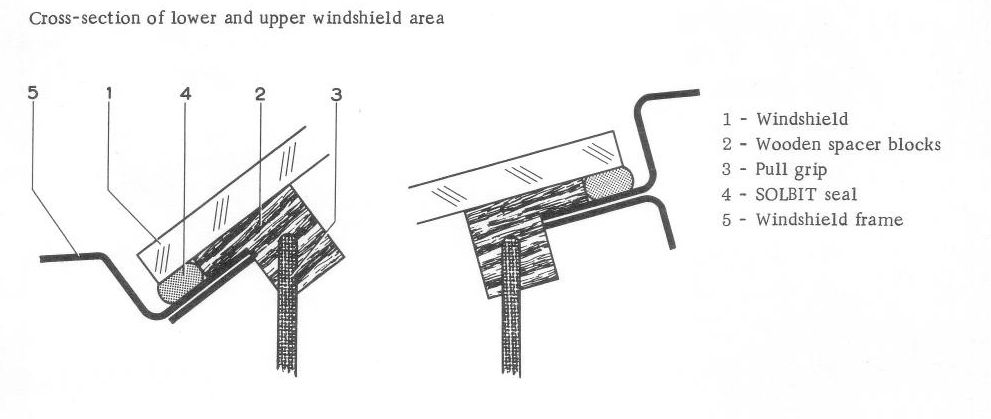

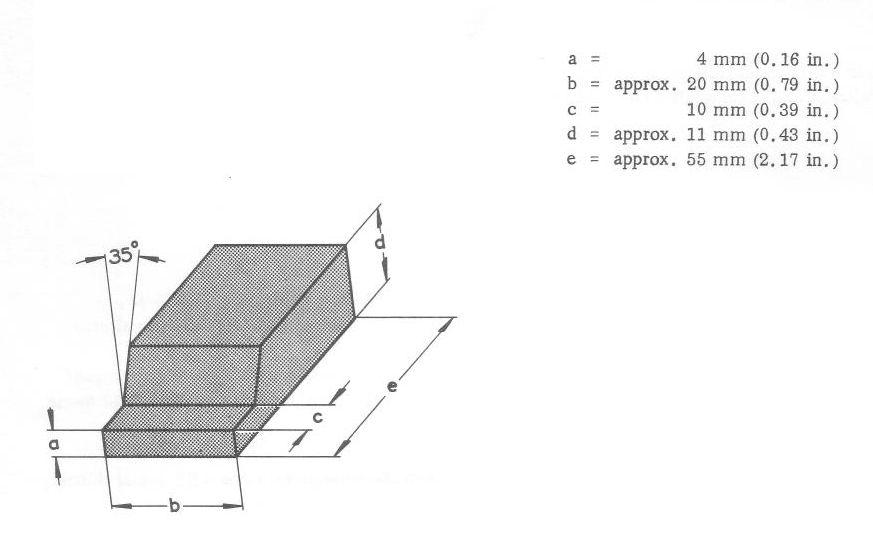

Ensures proper location and spacing between windshield glass, sealant and frame |
|
|
|
|
Chassis |
M 18 (My ID #) |

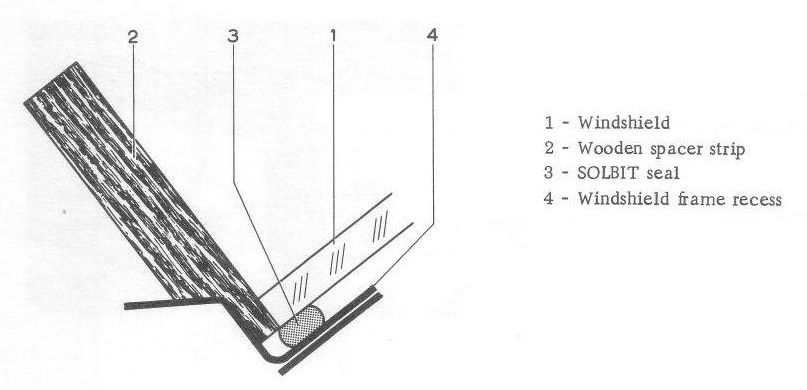

Windshield installation tool Locally made |
Ensures proper location and spacing between windshield glass, sealant and frame |
|
|
|
|
27 Tools |
|
|
|
|
|
|
