Porsche 914/4 Specialized Tools - Porsche
Click on the thumbnail photos below for
larger images
There are many additional tools for the
Porsche 914/6 cars and Sportomatic transaxles
which are not included here because they do not apply to the Porsche 914/4.
Photos and information shown below are from:
the factory Porsche 914 repair manual,
the 1998 Porsche Specialized Tools catalog,
Clymers and Haynes manuals and a
few other sources.
Some of the tools are no longer available
(NLA).
Available tools may be obtained directly through
Porsche dealers
and tools with an ‘X’ in the catalog page order number may be available at
Baum Tools Unlimited.
|
Category |
Tool ID |
Description |
Tool Purpose |
Image |
Catalog Page |
Tool in Use |
|
Engine |

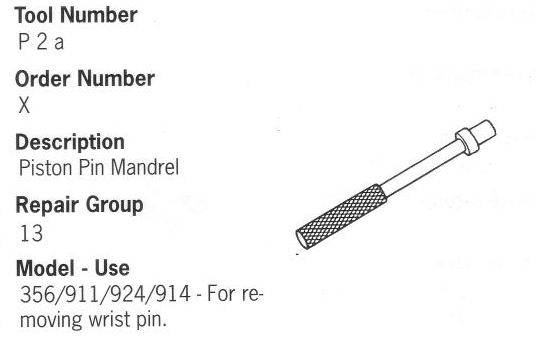

P 2a |
Piston pin mandrel |
Removes piston wrist pins (See also Tool VW 207c) |
|
|
|
|

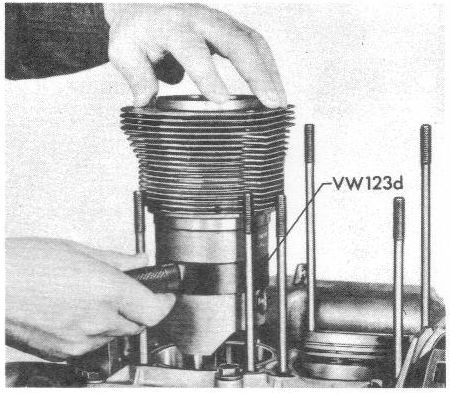

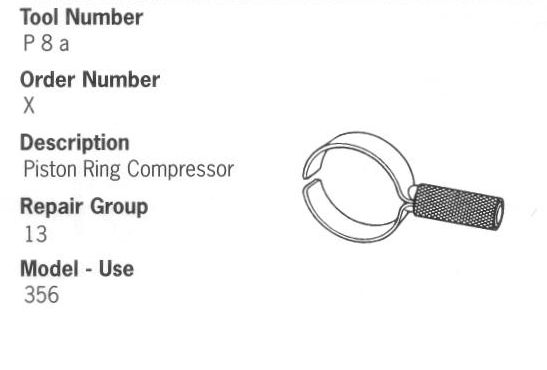

Engine |

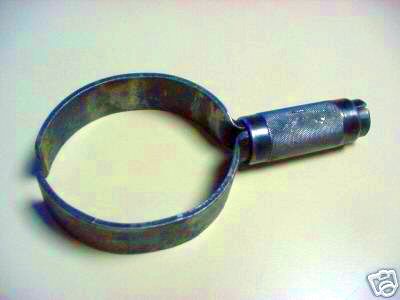

P 8a |
Piston ring compressor |
Compresses piston rings
for installation (See also Tool VW 123d) |
|
|
|
|

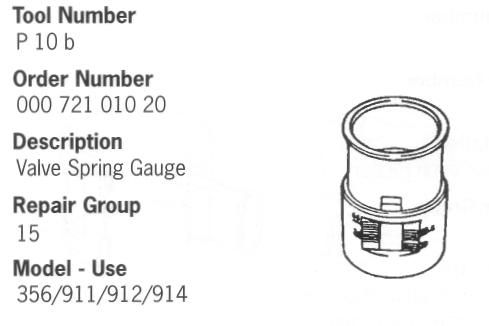

Engine |
P 10b |
Valve spring gauge |
(914/6-only tool?) |
|
|
|
|
Brakes |

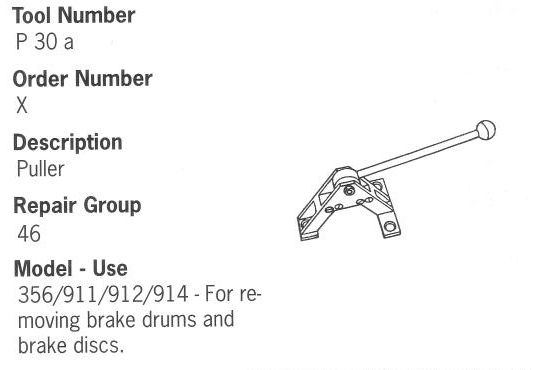

P 30a |
Puller |
Removes brake discs |
|
|
|
|

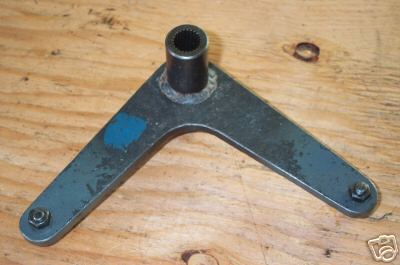

Transaxle |

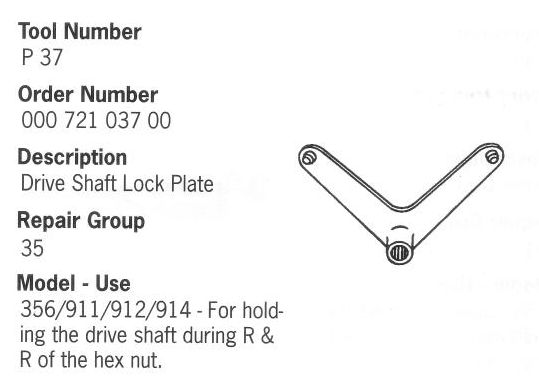

P 37 |
Drive shaft lock plate |
Holds transaxle input shaft
while removing hex nut |
|
|
|
|
Transaxle |

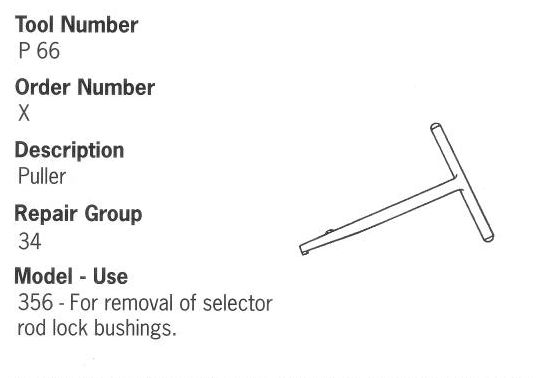

P 66a |
Puller |
Removes bushings |
|
|
|
|

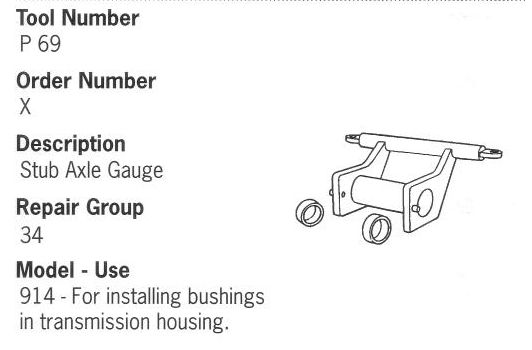

Transaxle |
P 69 |
Stub axle gauge |
Installs bushings in
transaxle housing |
|
|
|
|
Engine |
P 74 |
Flat blade driver |
Installs and removes wide slotted oil pressure relief valve cover |
|
Baum Tools |
|
|
Brakes |

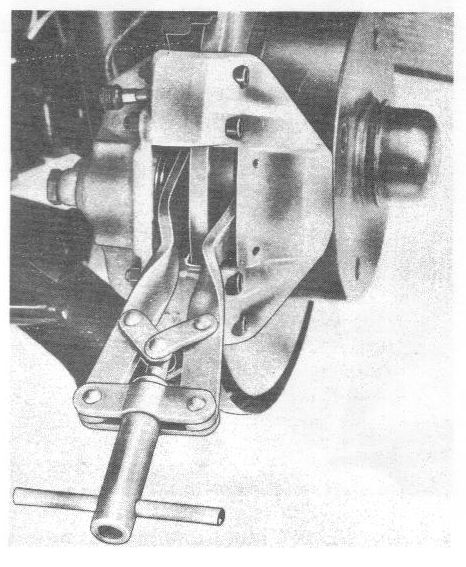

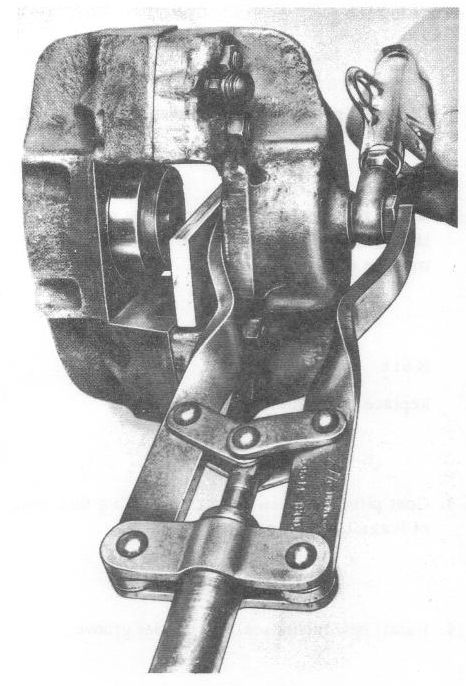

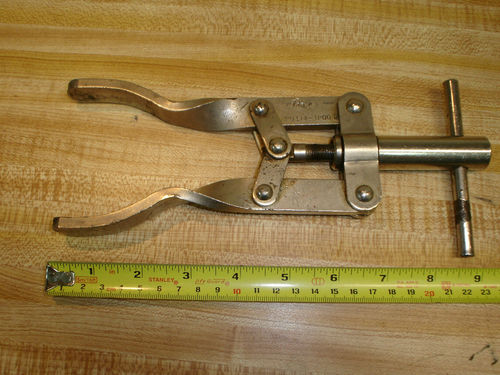

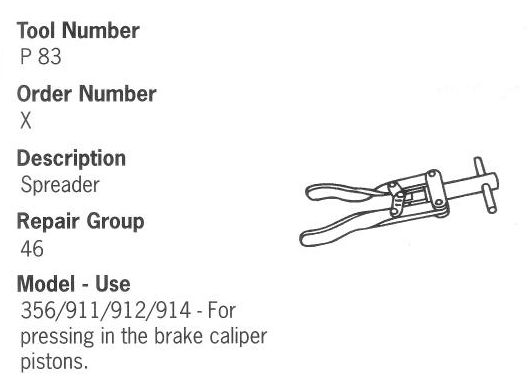

P 83 |
Spreader |
Retracts brake caliper pistons |
|
|
|
|

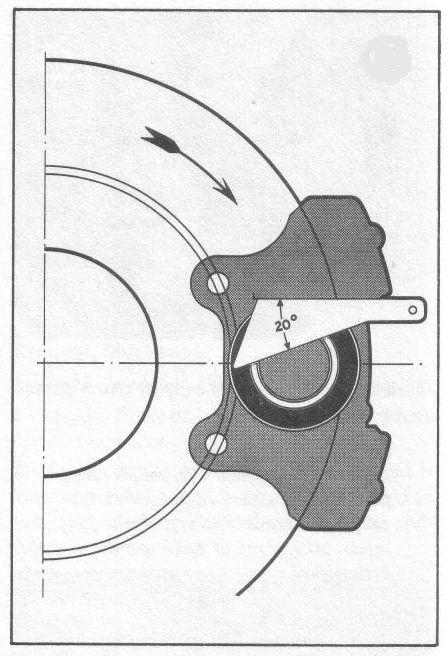

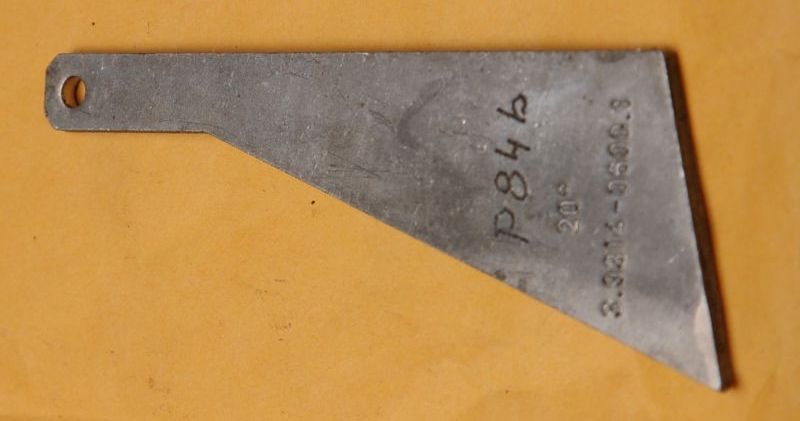

Brakes |

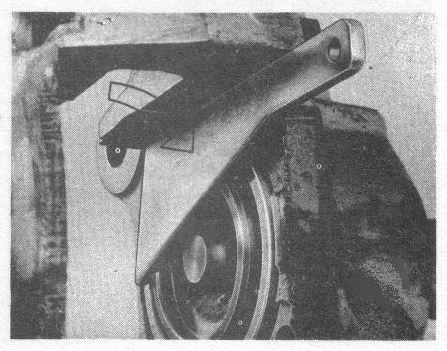

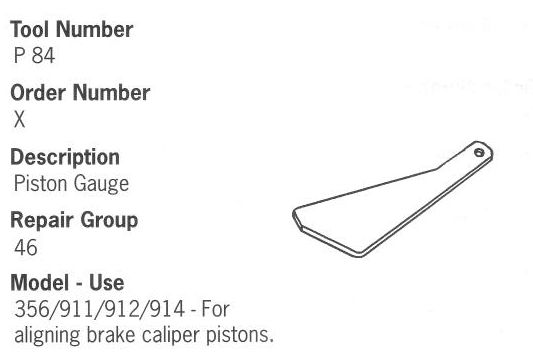

P 84 |
Piston gauge |
Rear brake piston venting
clearance gauge |
|
|
|
|
Brakes |

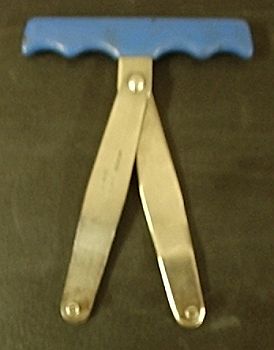

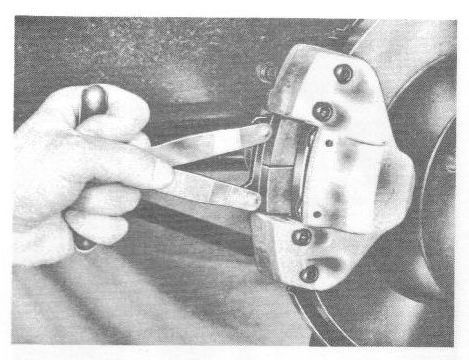

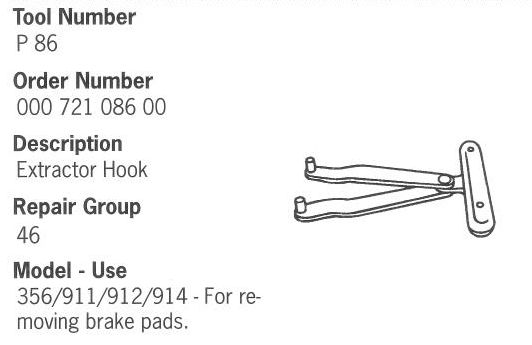

P 86 |
Extractor hook |
Removes brake pads |
|
|
|
|

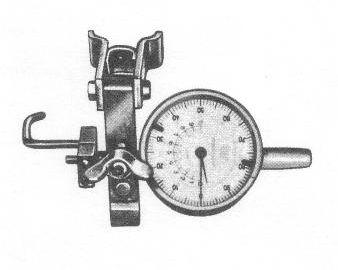

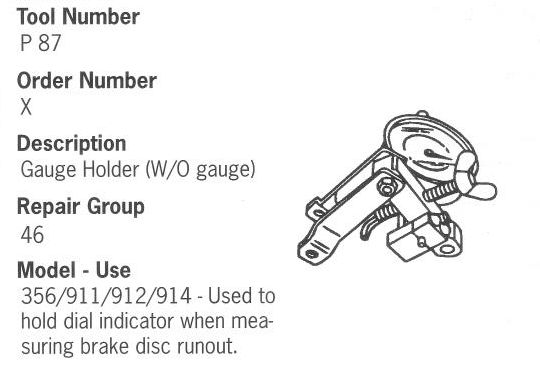

Brakes |

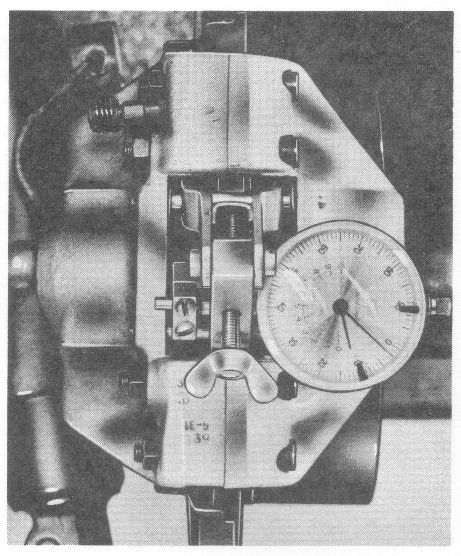

P 87 |
Dial gauge holder (Mount only, no gauge) |
With dial gauge, measures
brake disc run-out |
|
|
|
|

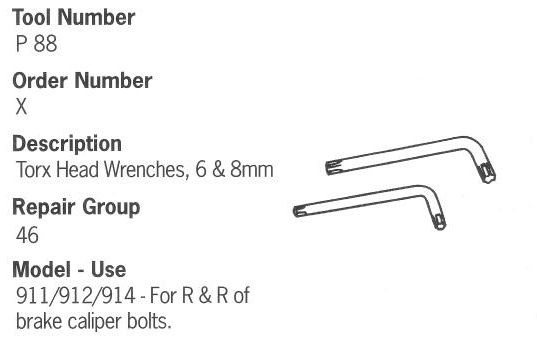

Brakes |
P 88 |
Torx head wrenches 6mm, 8mm |
Removes and reinstalls brake
caliper bolts (Is this for 914/6?) |
|
|
|
|

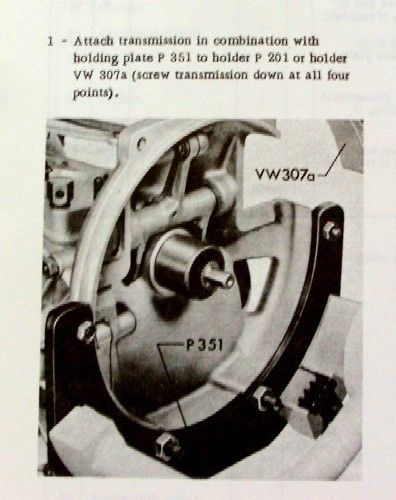

Engine |

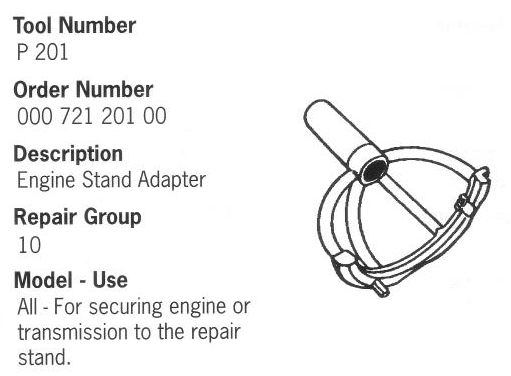

P 201 |
Engine bench mount |
Heavy-duty engine or transaxle mount (Use with VW 313) |
|
|
|
|
Engine |

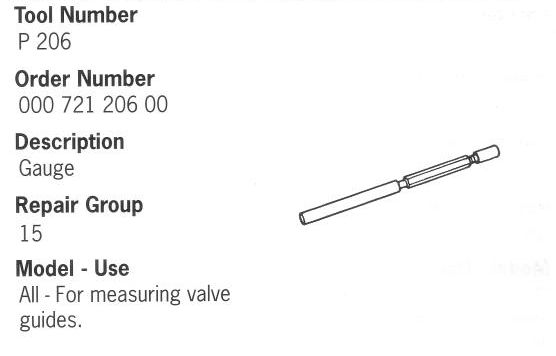

P 206 |
Valve guide gauge |
Measures valve guides |
|
|
|
|
Engine |

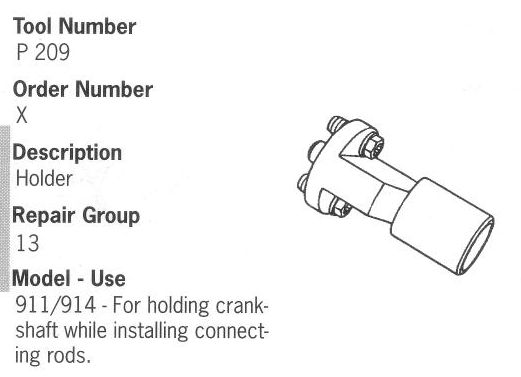

P 209 |
Holder |
Holds crankshaft while installing connecting rods (Is this for 914/6?) |
|
|
|
|
Engine |

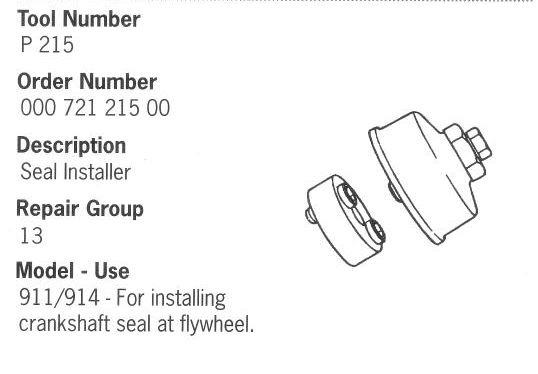

P 215 |
Crankshaft oil seal installer (Rear) |
Installs crankshaft oil
seal at flywheel (See also Tool VW 191) |
|
|
|
|
Transaxle |

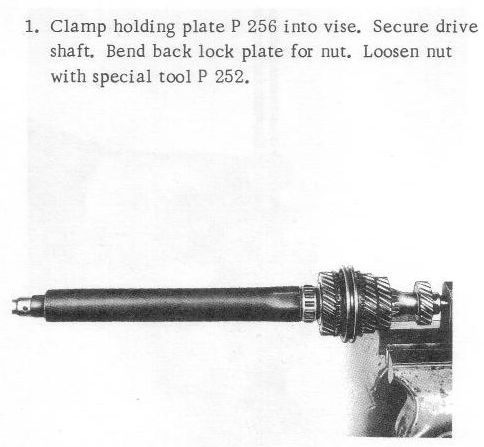

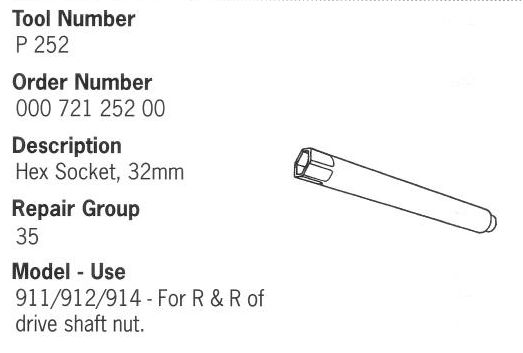

P 252 |
Hex socket, 32mm |
Assembles gear stack on
drive shaft |
|
|
|
|

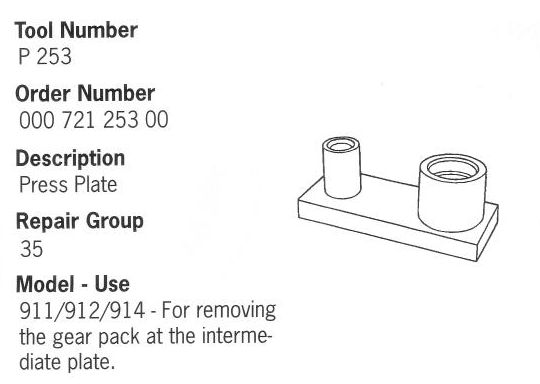

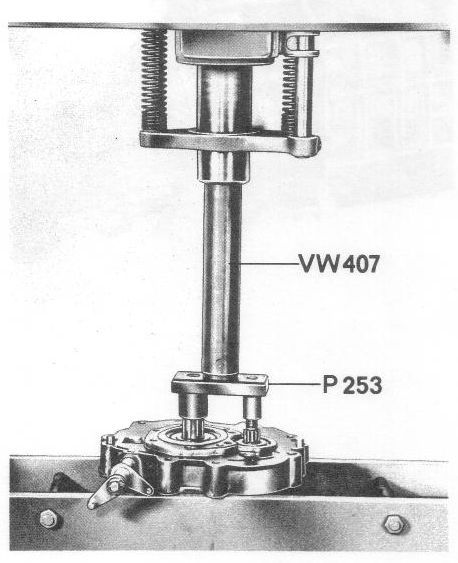

Transaxle |
P 253 |
Press plate |
Removes gear stack at
intermediate plate (See also Tool P 353) |
|
|
|
|

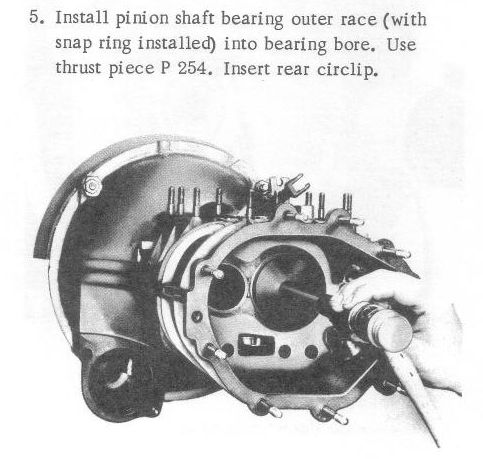

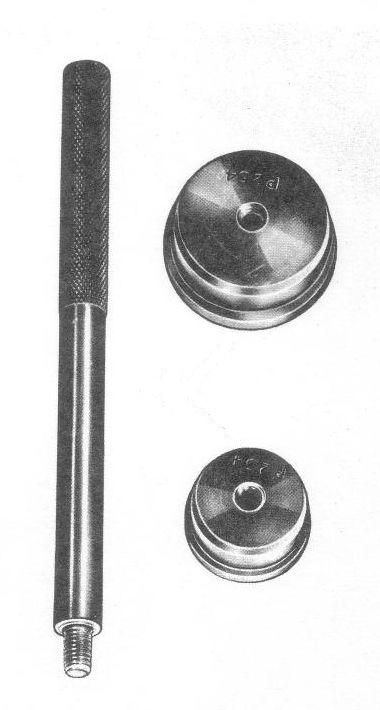

Transaxle |

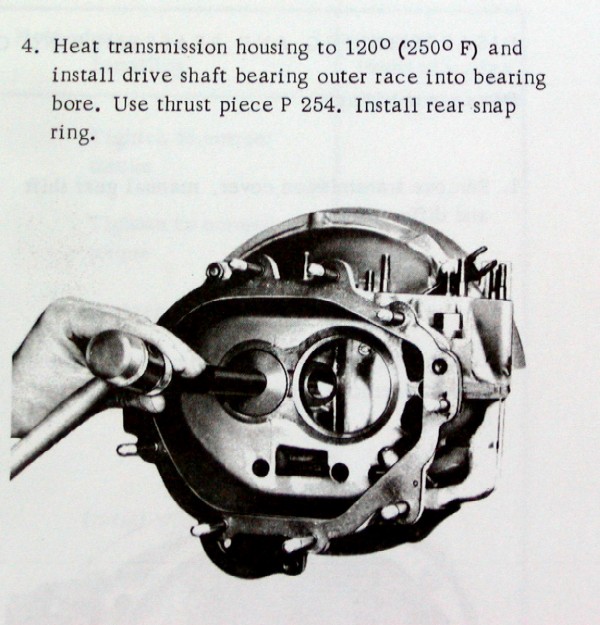

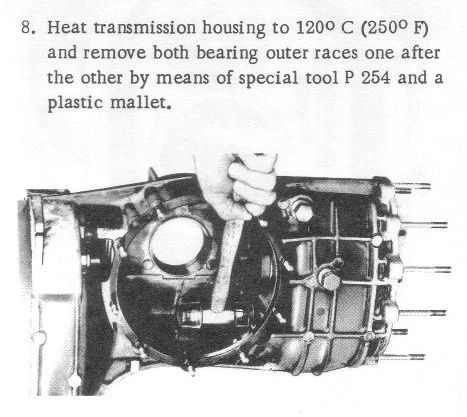

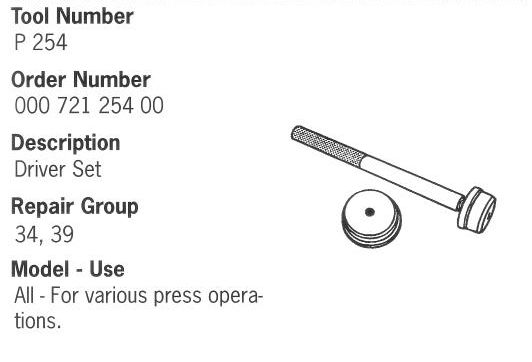

P 254 |
Driver thrust pieces (3 parts) |
For installing transaxle
bearings |
|
|
|
|
Transaxle |

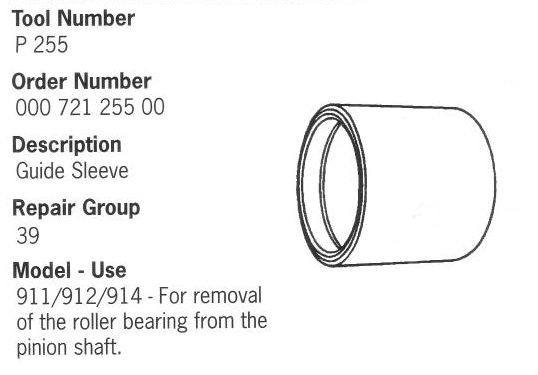

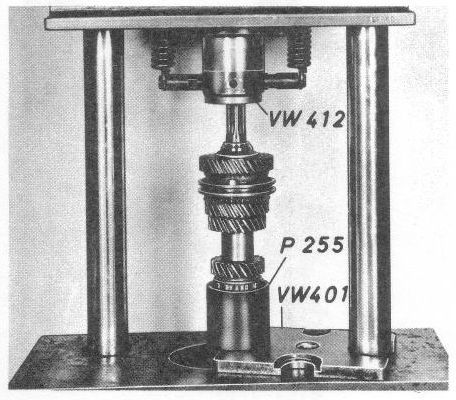

P 255 |
Guide sleeve |
Removes roller bearing
from pinion shaft |
|
|
|
|

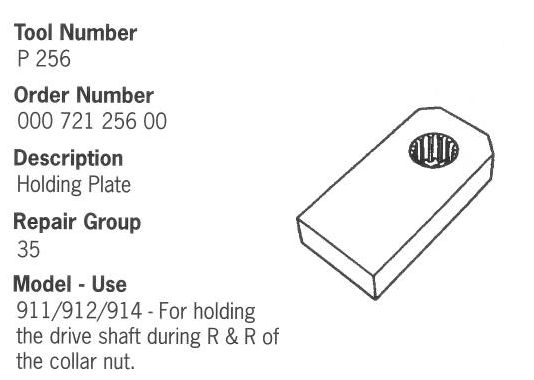

Transaxle |
P 256 |
Holding plate |
Holds drive shaft for
removal and installation of collar nut |
|
|
|
|

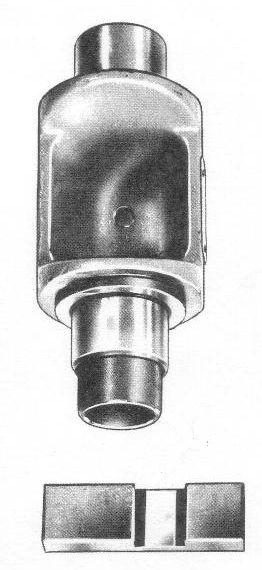

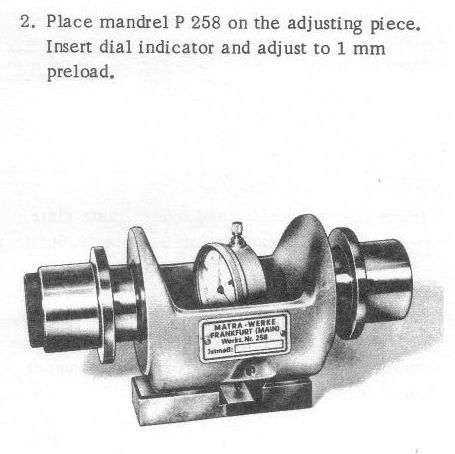

Transaxle |

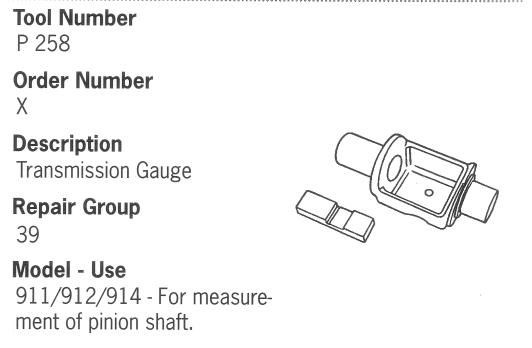

P 258 |
Transaxle gauge (with
adjusting piece) |
Measures pinion
shaft |
|
|
|
|

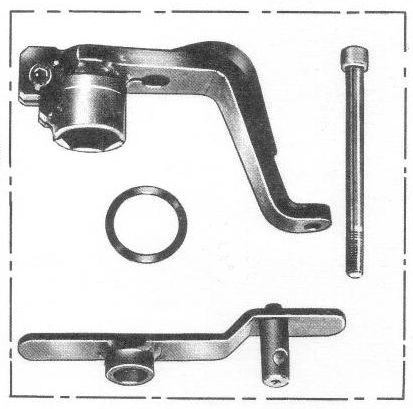

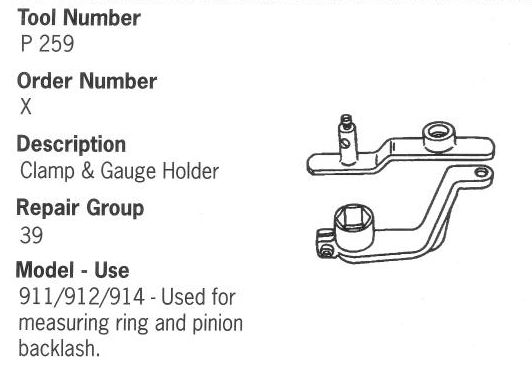

Transaxle |

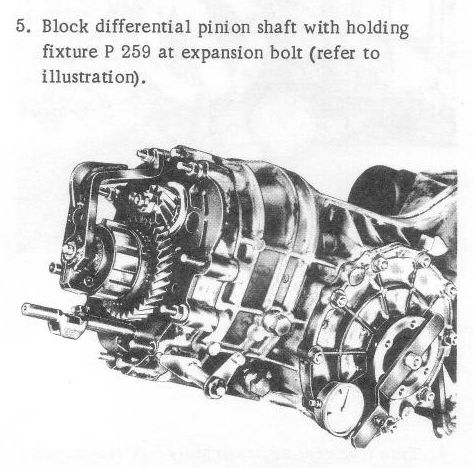

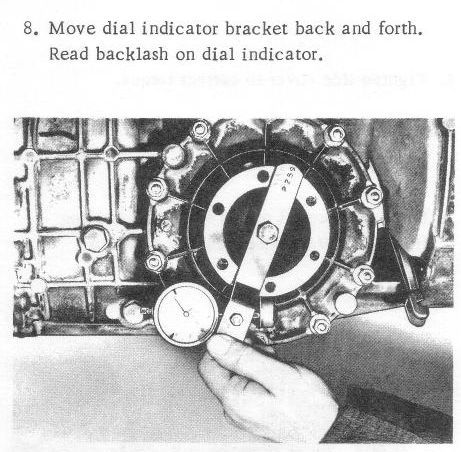

P 259 |
Clamp & gauge holder |
Measures ring and pinion
backlash |
|
|
|
|

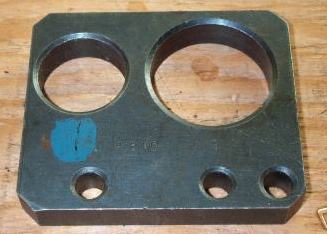

Transaxle |

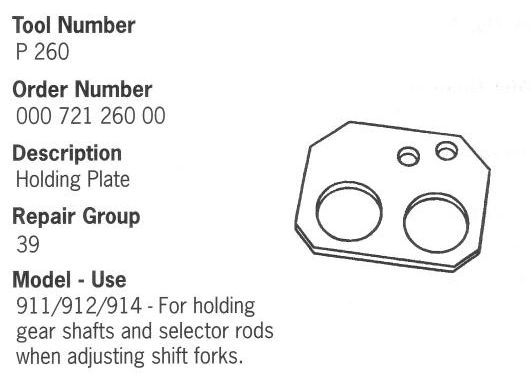

P 260 |
Holding plate (shift rod holder) |
Holds gear shafts and
selector rods when adjusting shift forks |
|
|
|
|

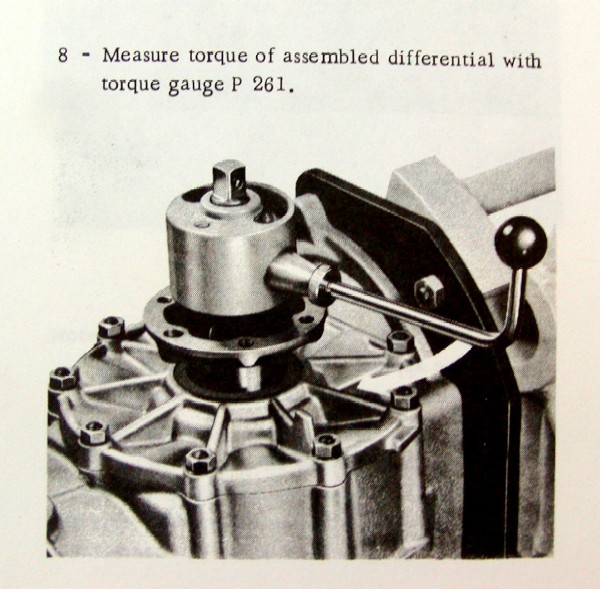

Transaxle |
P 261 |
Torque gauge |
Measures torque of
assembled differential |
|
Baum Tools VW 1061 |
|
|

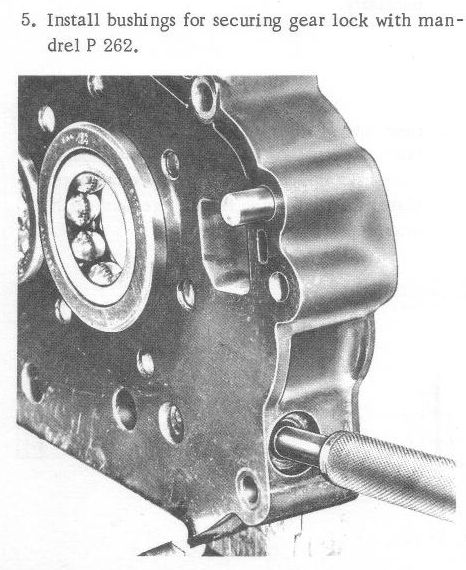

Transaxle |

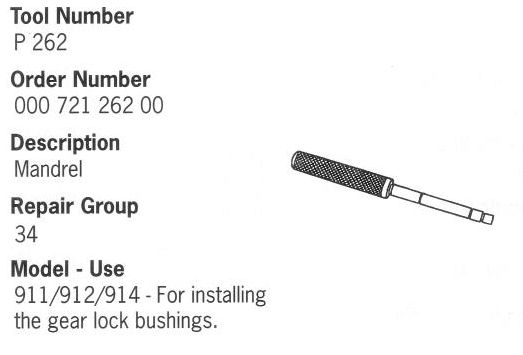

P 262 |
Mandrel |
Installs gear lock
bushings |
|
|
|
|

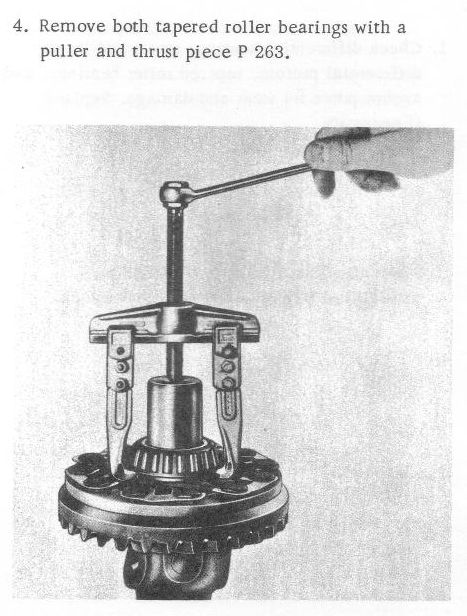

Transaxle |

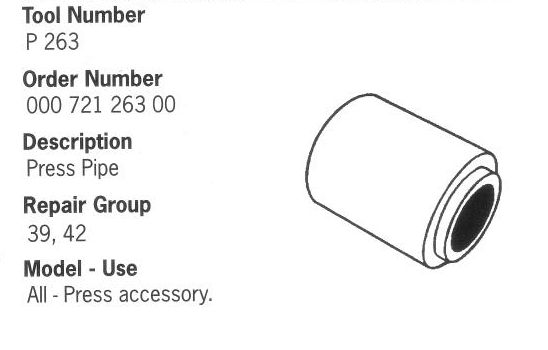

P 263 |
Thrust piece |
Removes differential
bearings |
|
|
|
|

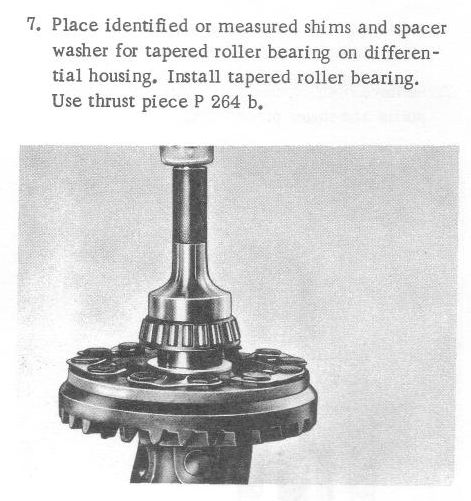

Transaxle |

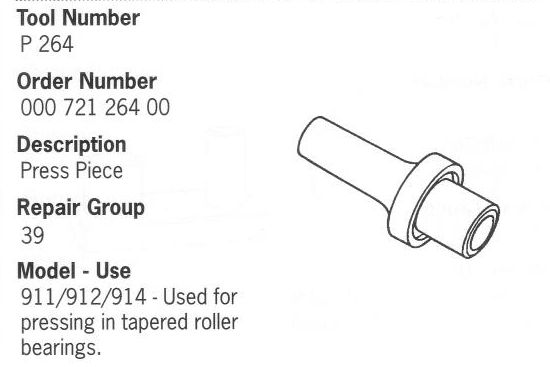

P 264 |
Thrust piece (Same as P 264b?) |
Installs tapered roller
bearings onto differential |
|
|
|
|

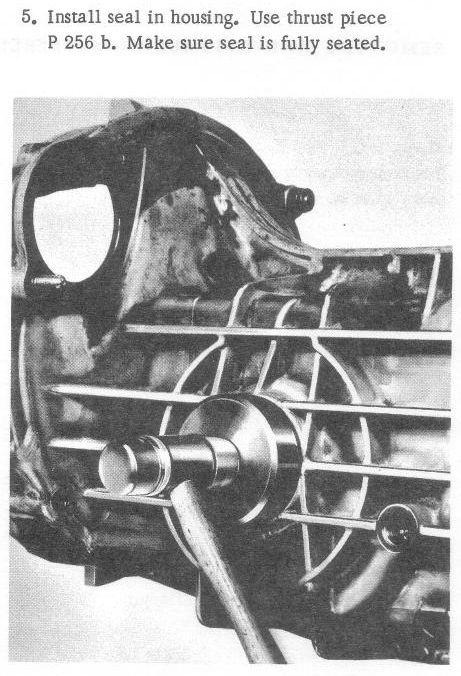

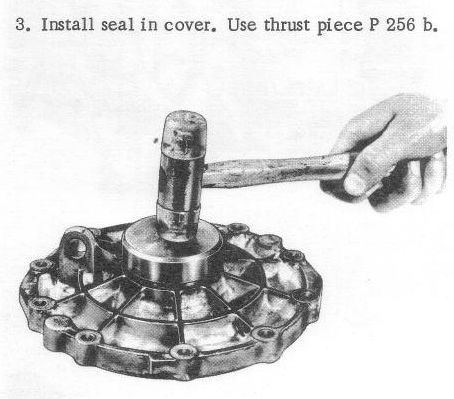

Transaxle |

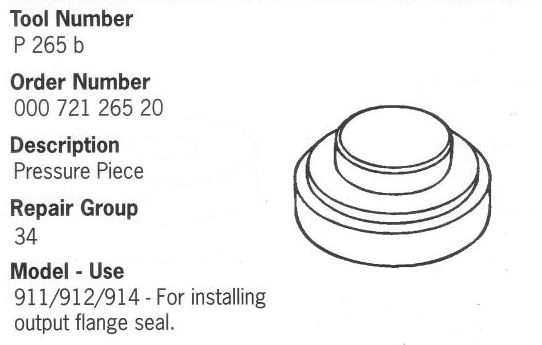

P 265b |
Pressure piece |
Installs output flange
seal |
|
|
|
|

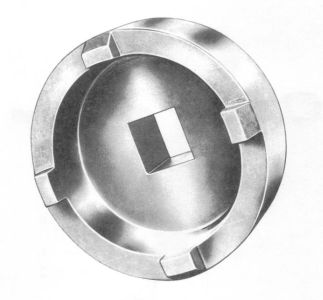

Suspension |

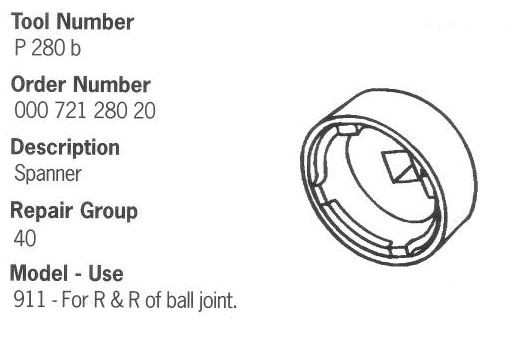

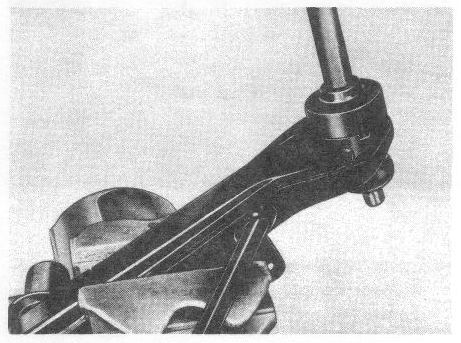

P 280b |
4-point socket (spanner) |
Installs and removes ball
joint nuts |
|
|
|
|

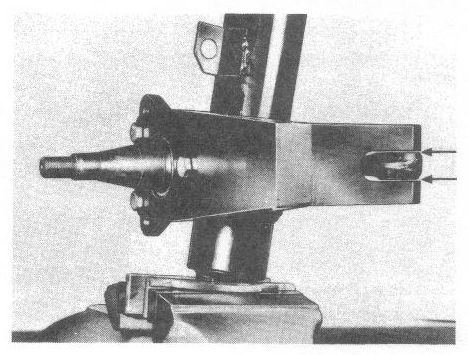

Steering |

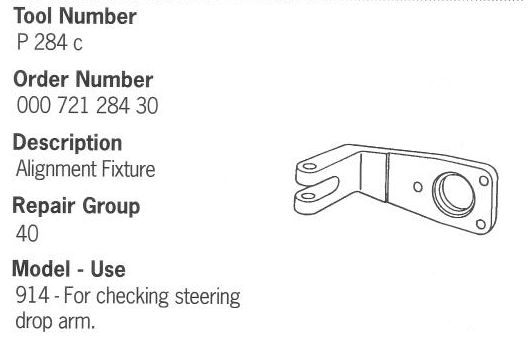

P 284c |
Alignment fixture |
Verifies steering arm
dimensional tolerances |
|
|
|
|

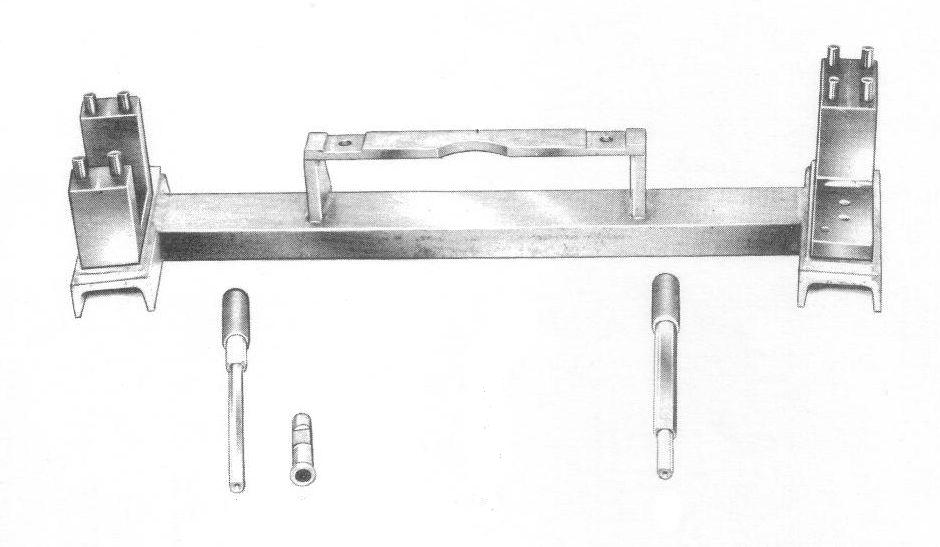

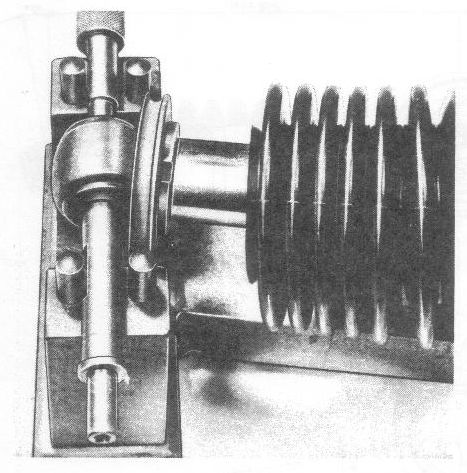

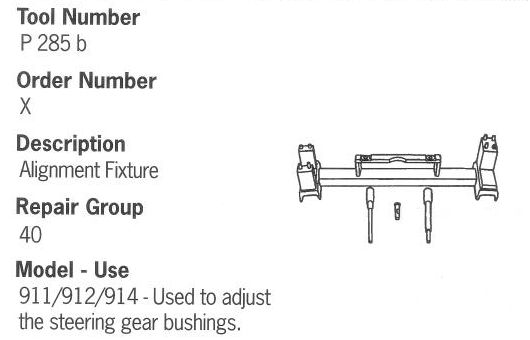

Steering |

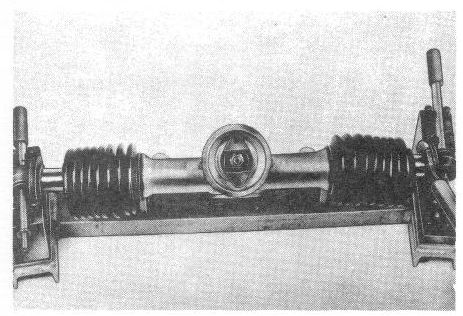

P 285b |
Alignment fixture |
Adjusts steering gear
bushings |
|
|
|
|

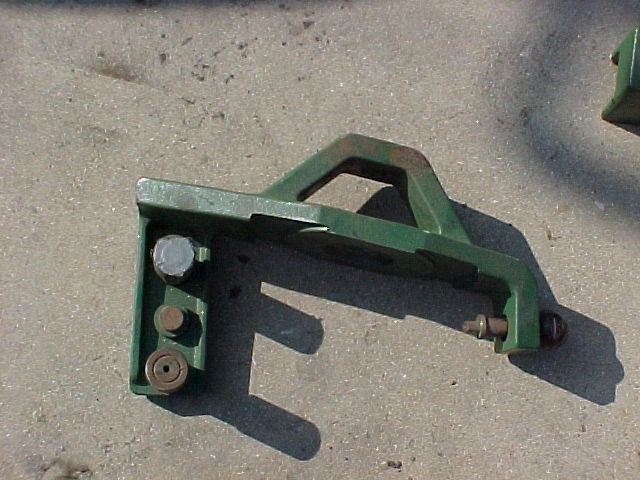

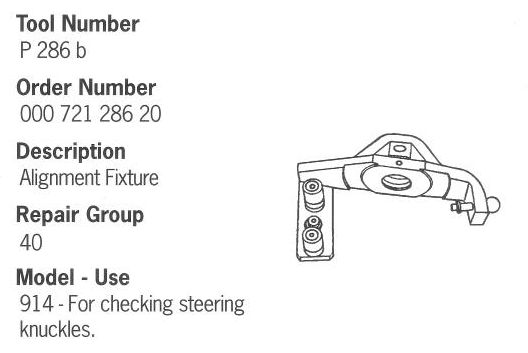

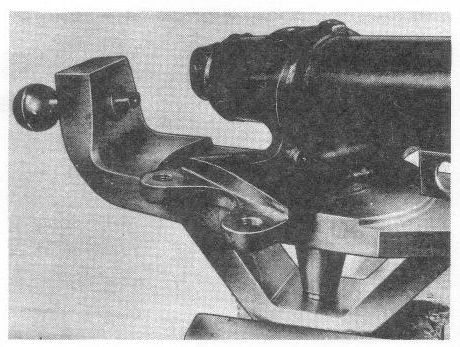

Suspension |

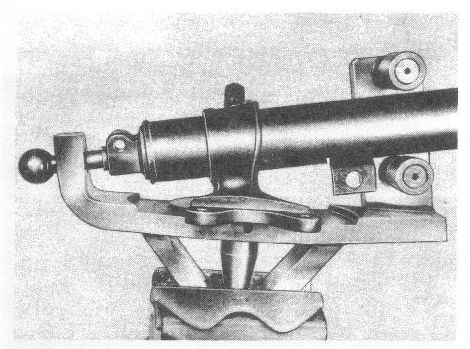

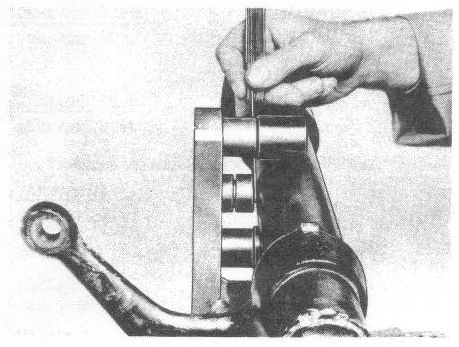

P 286b |
Alignment fixture |
Verifies front wheel
strut dimensional tolerances |
|
|
|
|
Suspension |

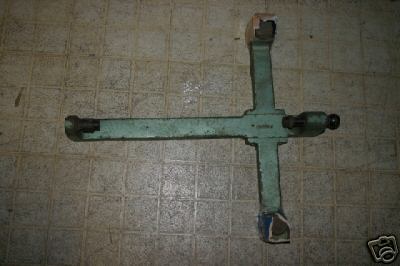

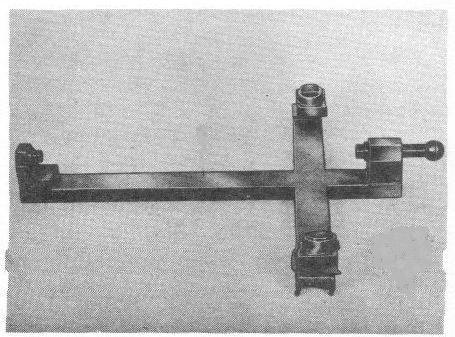

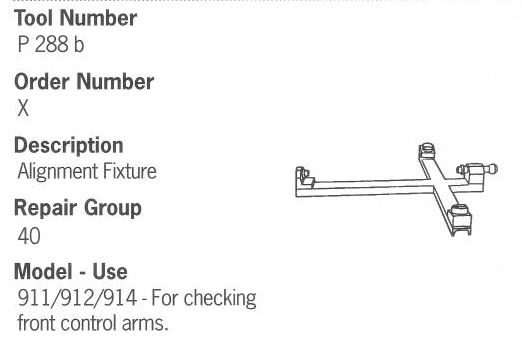

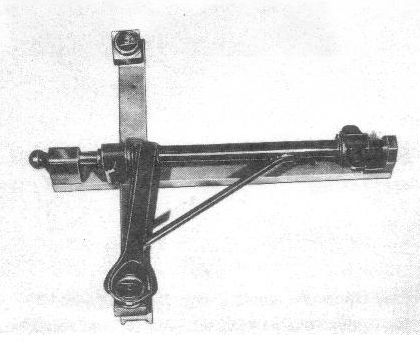

P 288b |
Alignment fixture |
Verifies front control
arm dimensional tolerances |
|
|
|
|

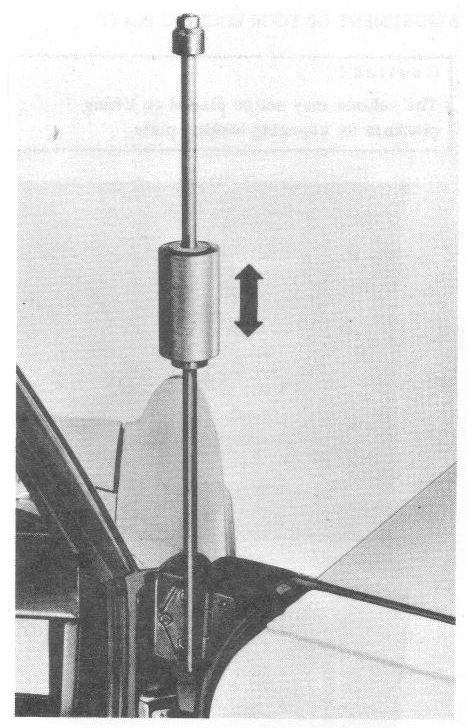

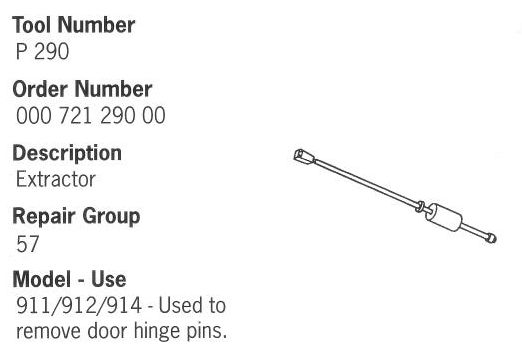

Chassis |
P 290 |
Extractor |
Used with P290b, removes
side door hinge pins |
|
|
|
|

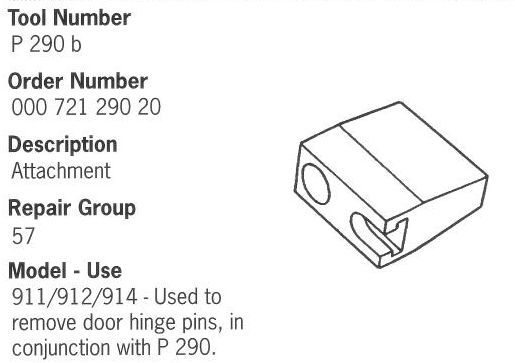

Chassis |
P 290b |
Attachment |
Used with P290, removes
side door hinge pins |
|
|
|
|

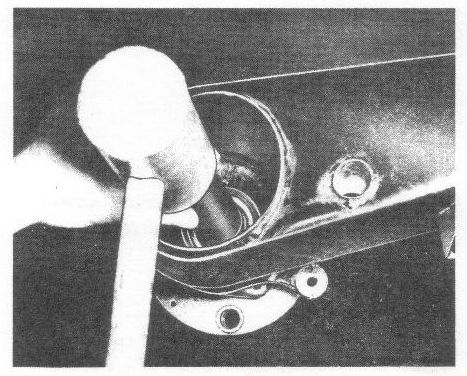

Suspension |
P 297a |
Removing mandrel |
Removes rear wheel
bearing |
|
NLA |
|
|

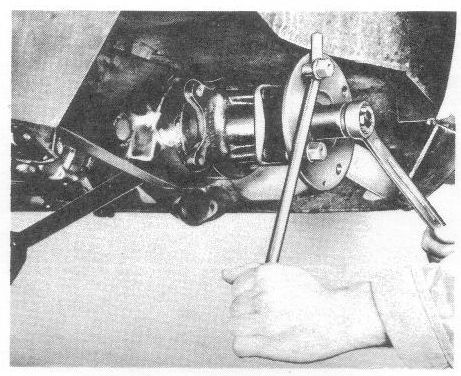

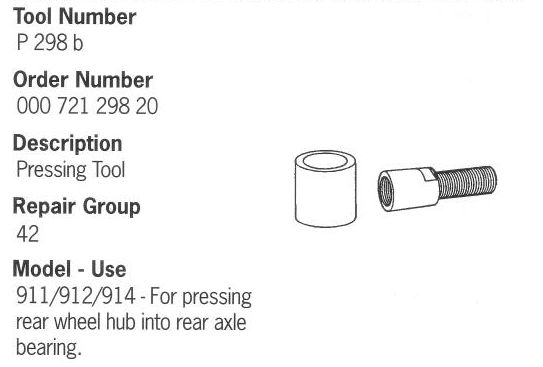

Suspension |

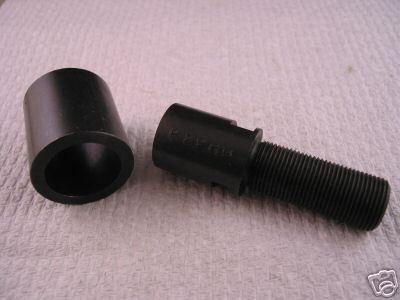

P 298b |
Pressing tool |
Installs rear wheel hub
into rear axle bearing |
|
|
|
|

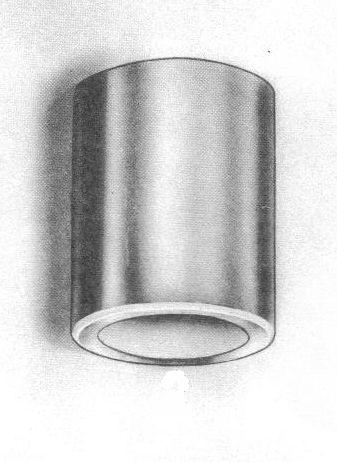

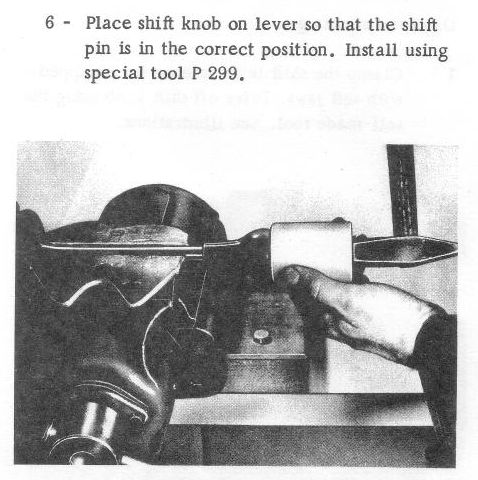

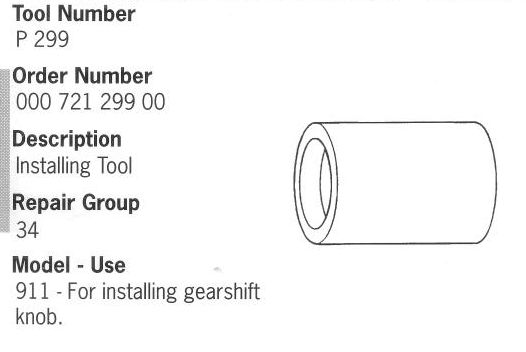

Transaxle |
P 299 |
Installing tool |
Installs gear shift knob
onto shift lever |
|
|
|
|

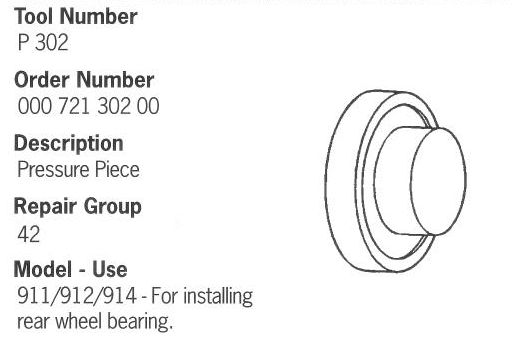

Suspension |

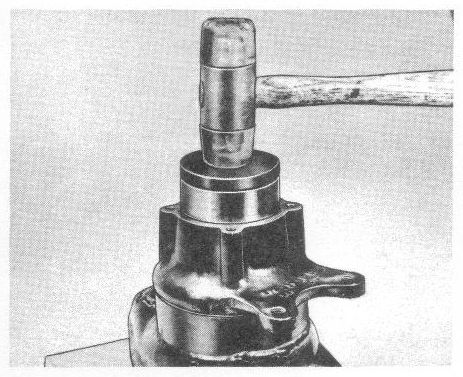

P 302 |
Pressure piece |
Installs rear wheel
bearing |
|
|
|
|

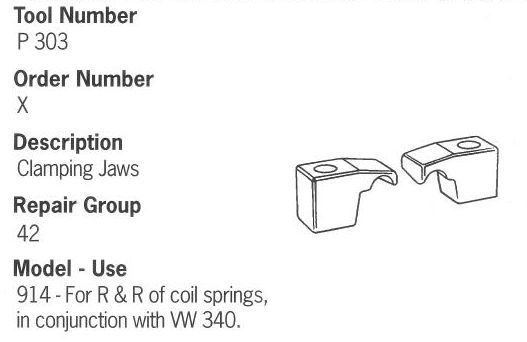

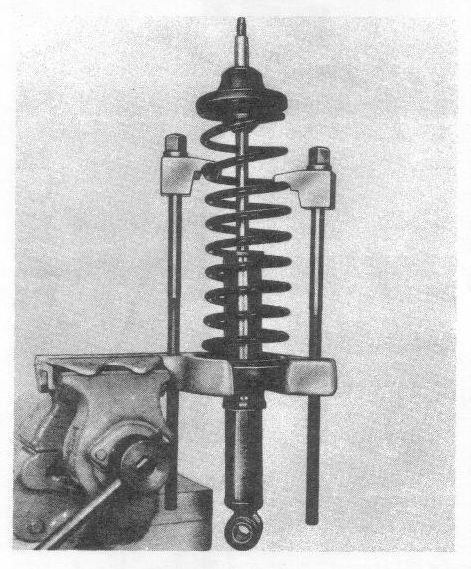

Suspension |
P 303 |
Clamping jaws |
Used with VW 340 - for
removing and installing coil springs onto rear struts |
|
|
|
|

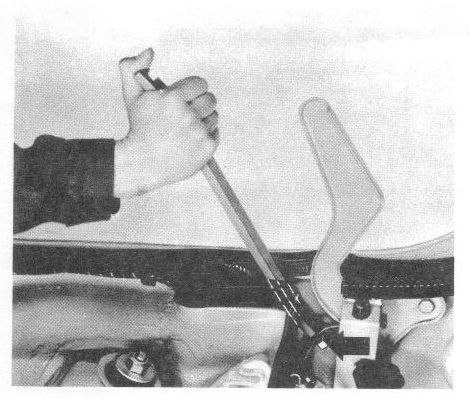

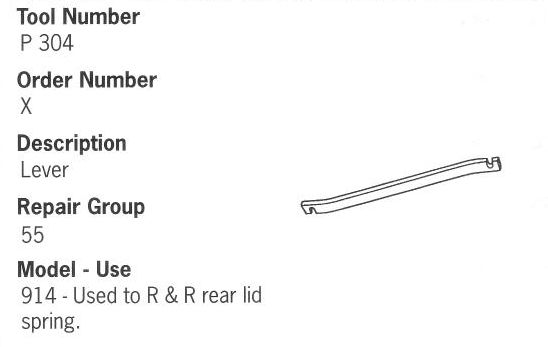

Chassis |

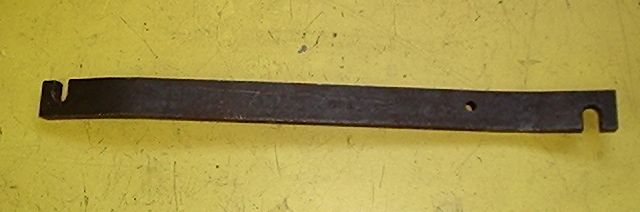

P 304 |
Lever |
Installs and removes rear
trunk lid torsion bars. Photo courtesy of Mark Heard |
|
|
|
|

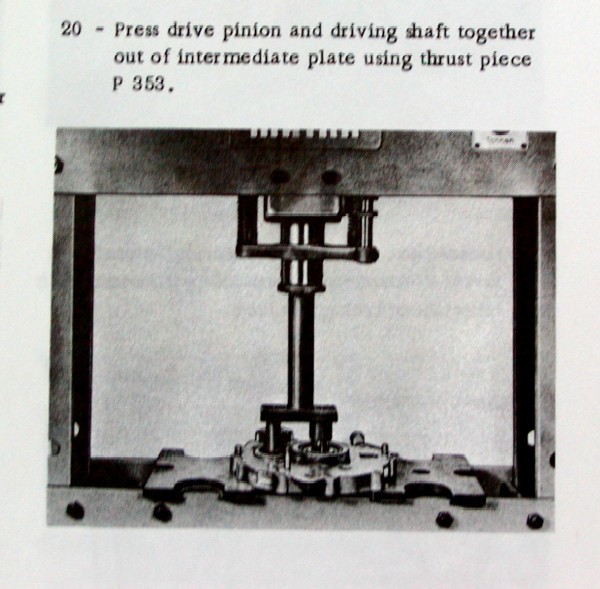

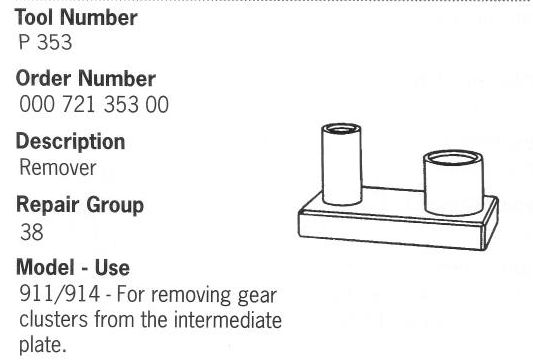

Transaxle |
P 353 |
Remover |
Removes gear
clusters from intermediate plate (See also Tool P 253) |
|
|
|
|

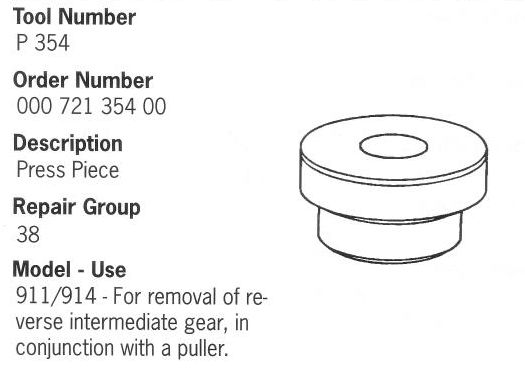

Transaxle |

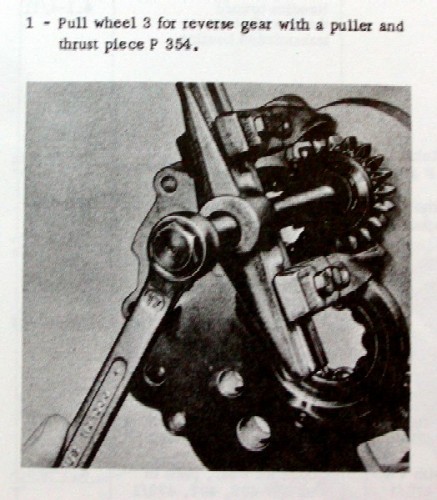

P 354 |
Press piece |
With a puller, removes
reverse intermediate gear |
|
|
|
|
Transaxle |

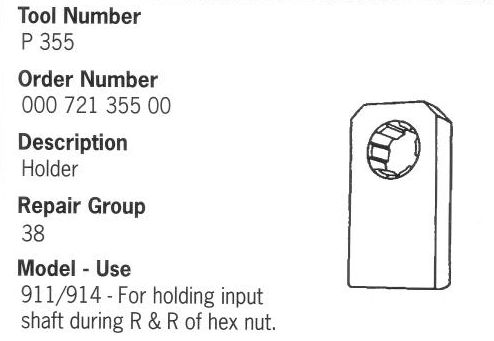

P 355 |
Holding plate |
Holds input shaft for
removing and installing hex nut |
|
|
|
|

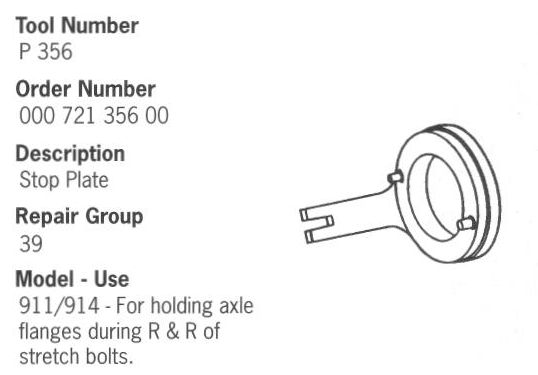

Transaxle |

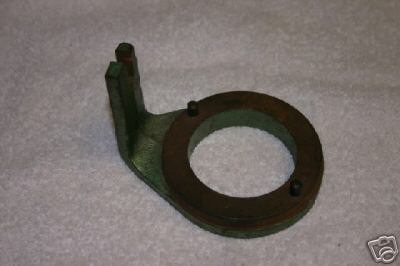

P 356 |
Stop plate |
Holds axle flanges during
removal and installation of stretch bolts |
|
|
|
|

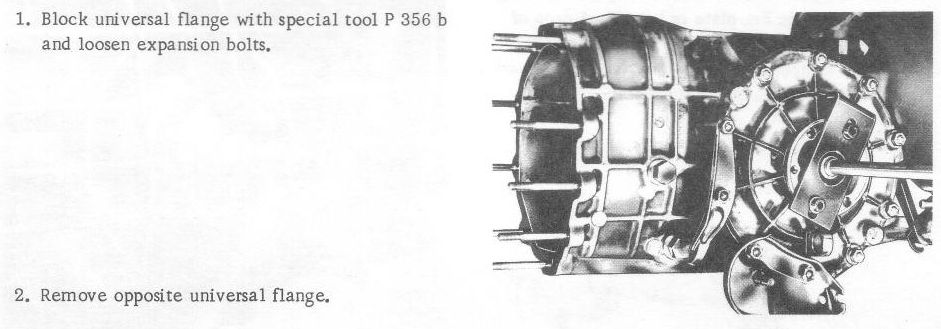

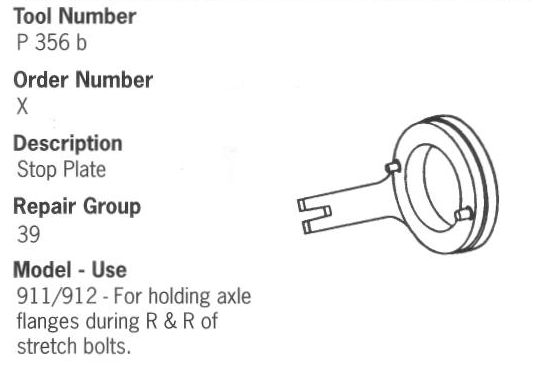

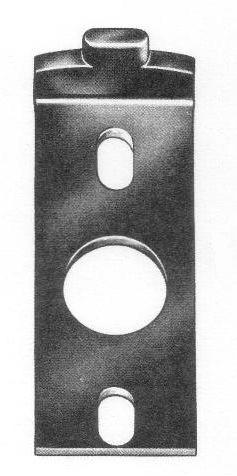

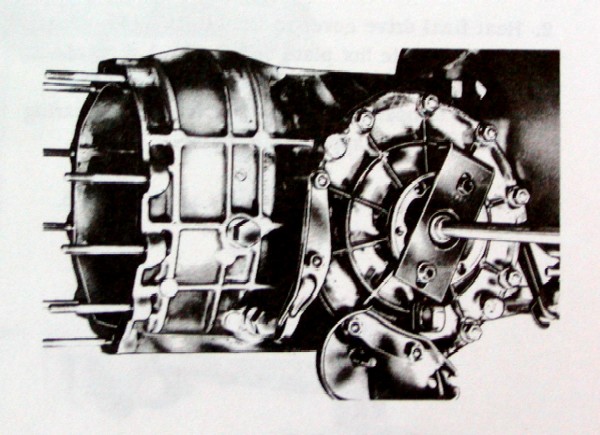

Transaxle |
P 356b |
Stop plate |
Holds axle flanges during
removal and installation of stretch bolts |
|
|
|
|

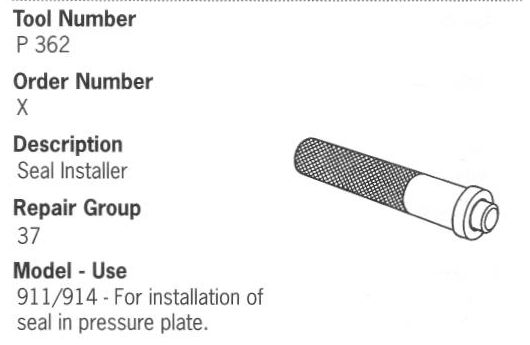

Steering |

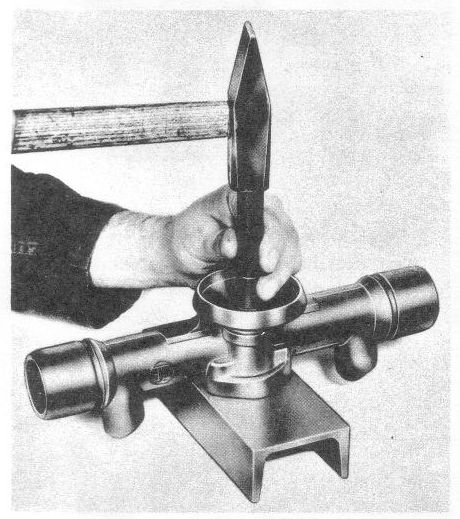

P 362 |
Seal installer |
Installs seal in pressure
plate (steering rack) |
|
|
|
|

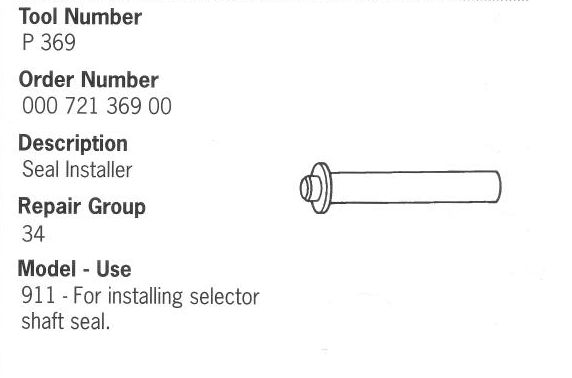

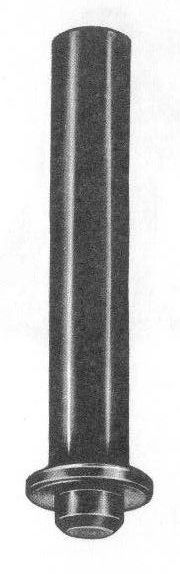

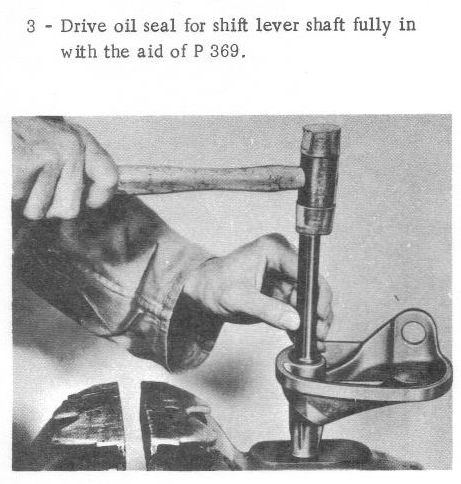

Transaxle |
P 369 |
Seal installer |
Installs oil seal at
selector shaft |
|
|
|
|

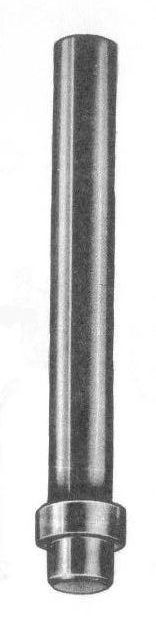

Transaxle |

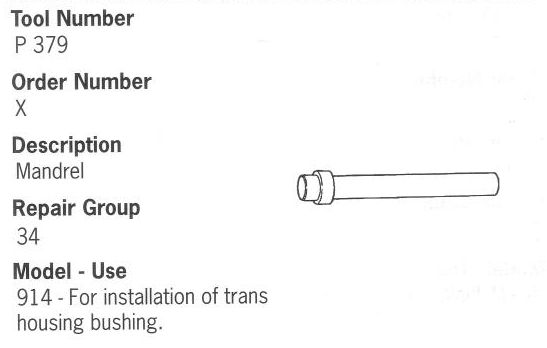

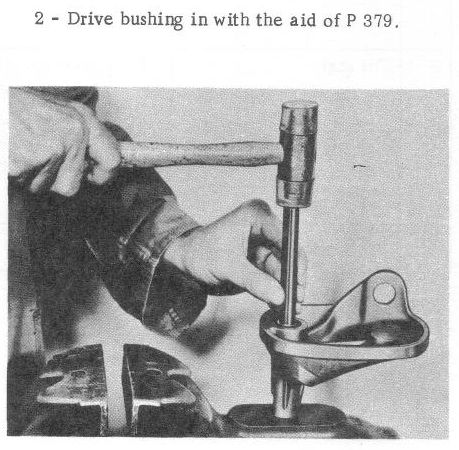

P 379 |
Mandrel |
Installs shift console
bushing |
|
|
|
|
Chassis |

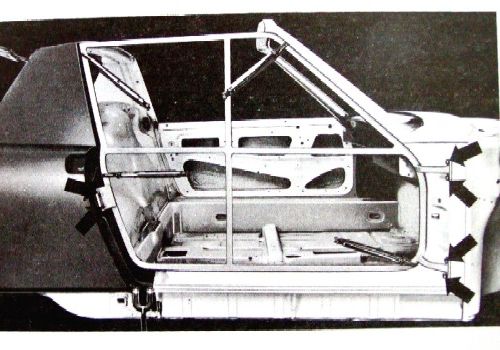

P 860 |
Door frame template -
Right |
Aligns door frame chassis
parts during assembly |
|
NLA |
|
|
Chassis |

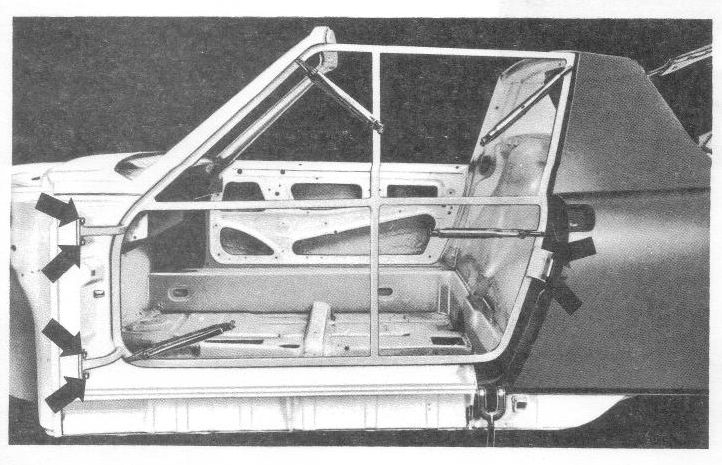

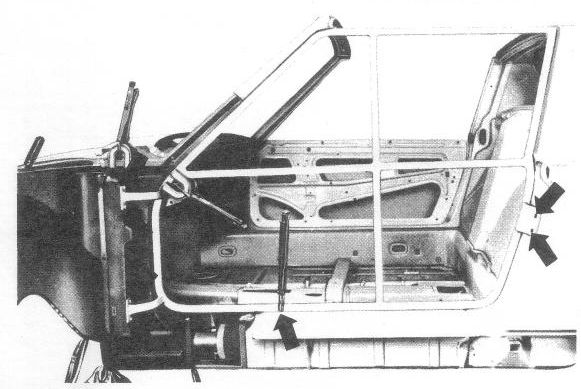

P 861 |
Door frame template -
Left |
Aligns door frame chassis
parts during assembly |
|
NLA |
|
|
Chassis |

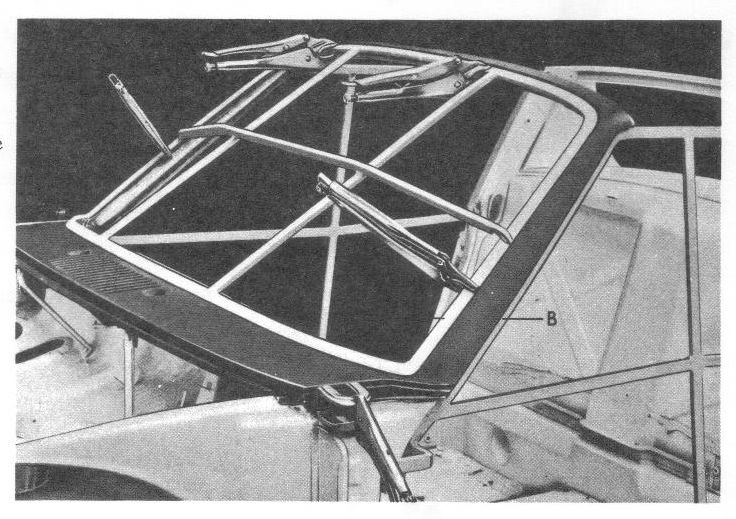

P 862 |
Windshield template |
Aligns windshield frame chassis
parts during assembly |
|
NLA |
|
|

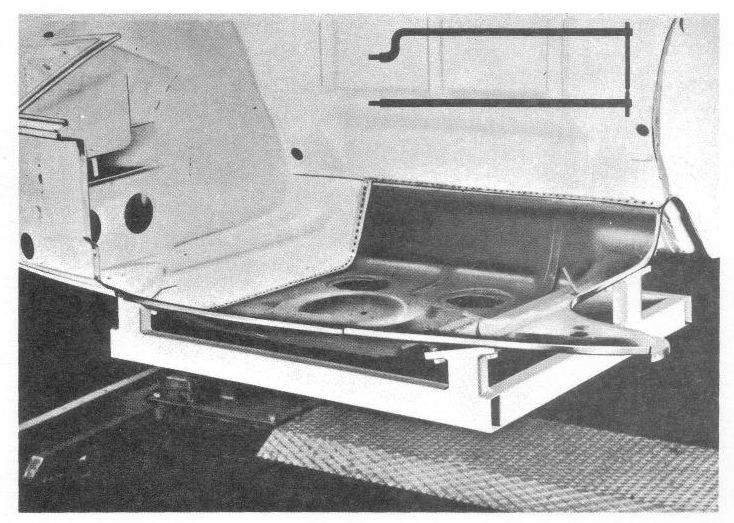

Chassis |

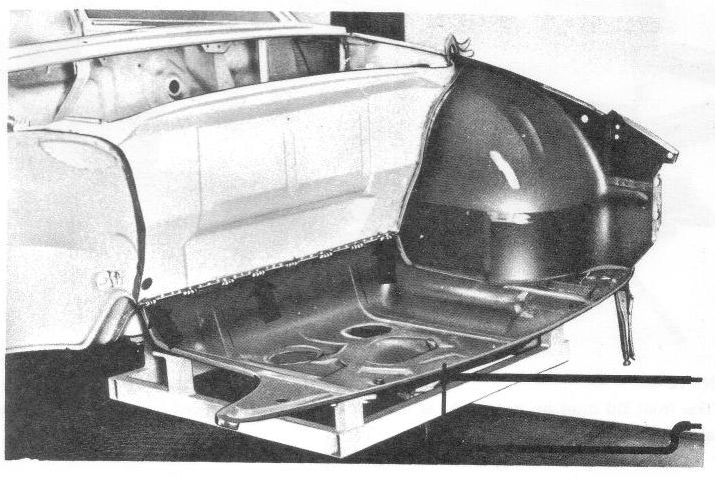

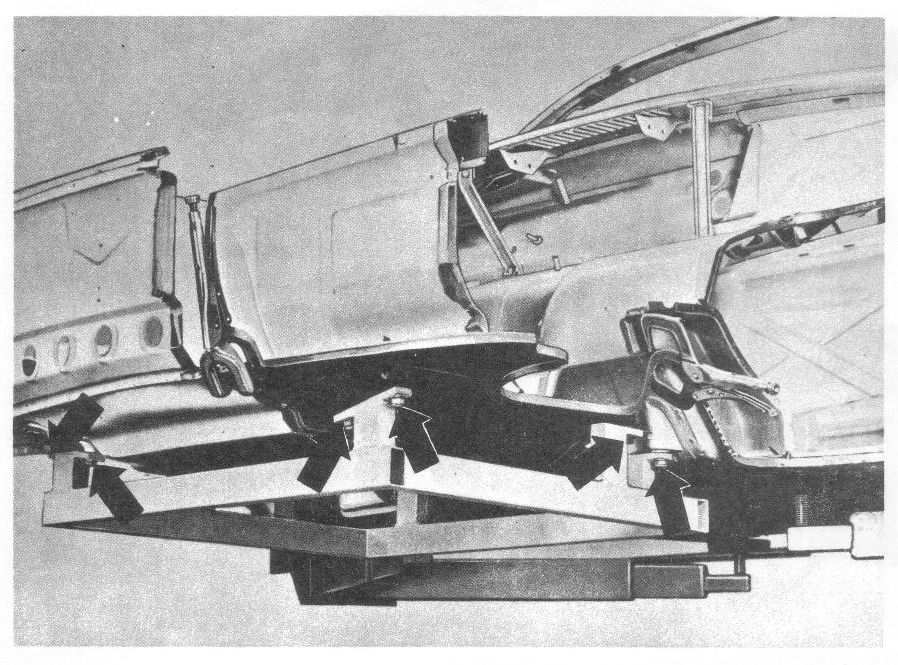

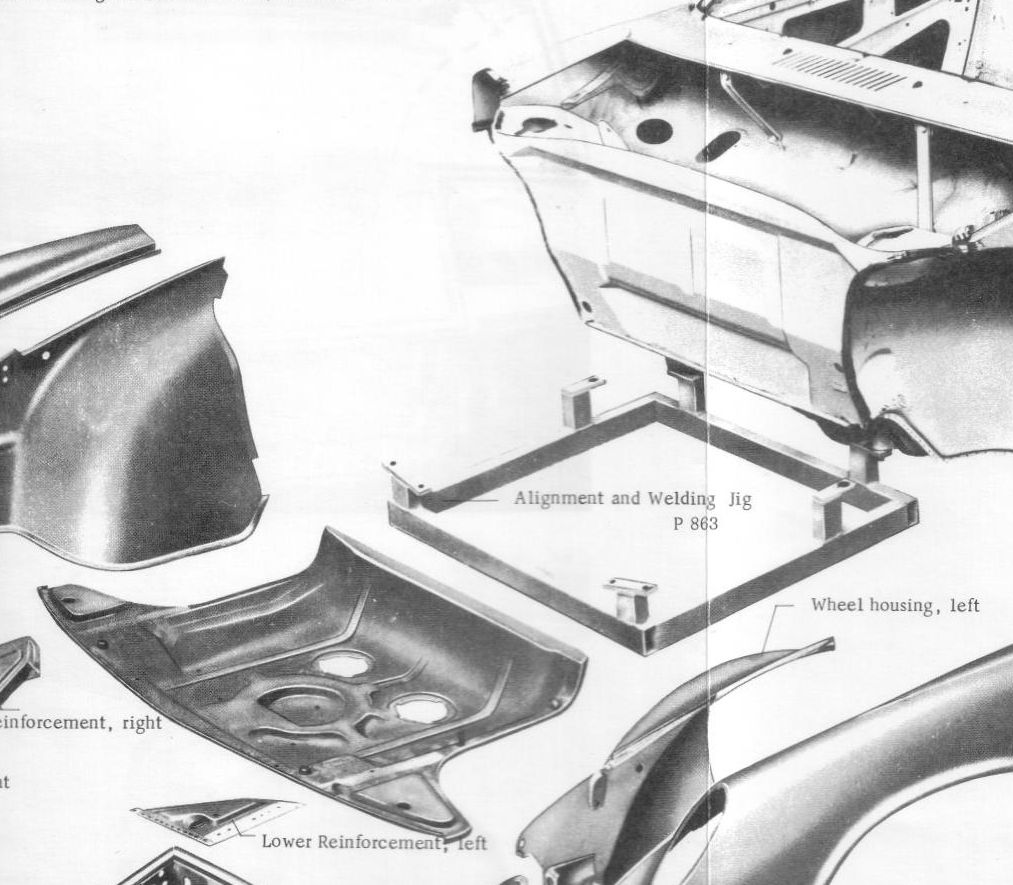

P 863 |
Front chassis template |
Aligns front chassis
parts during assembly |
|
NLA |
|
|
Engine |
P 9222-1 |
Slotted cylinder head temp sensor socket |
Installs and removes cylinder head temp sensor |
|
Baum Tools |
|
|
56 Tools |
|
|
|
|
|
|
