Porsche 914/4 Specialized Tools - Volkswagen
Click on the thumbnail photos below for
larger images
Photos and information shown below are from:
the factory Porsche 914 repair manual,
the 1998 Porsche Specialized Tools catalog,
Clymers and Haynes manuals and a
few other sources.
Some of the tools are no longer available
(NLA).
Available tools may be obtained directly through
Porsche dealers
and tools with an ‘X’ in the catalog page order number may be available at
Baum Tools Unlimited.
|
Category |
Tool ID |
Description |
Tool Purpose |
Image |
Catalog Page |
Tool in Use |
|

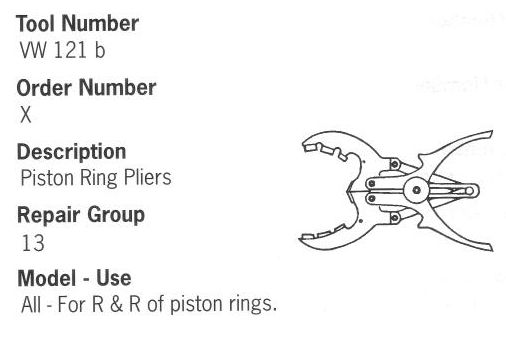

Engine |
VW 121b |
Piston ring pliers |
Installs and removes
piston rings |
|
|
|
|

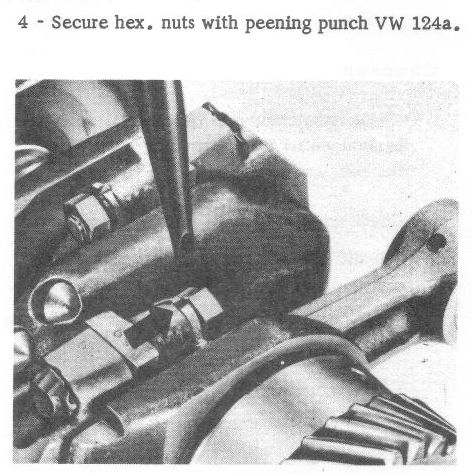

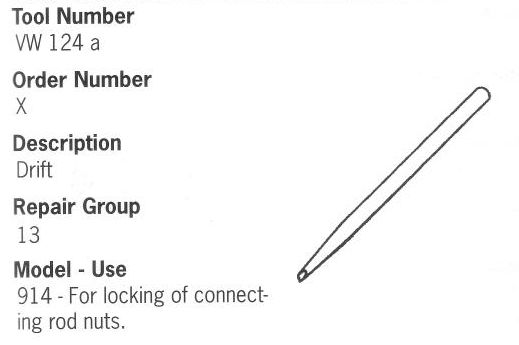

Engine |
VW 124a |
Drift |
Locks connecting rod nuts |
|
|
|
|

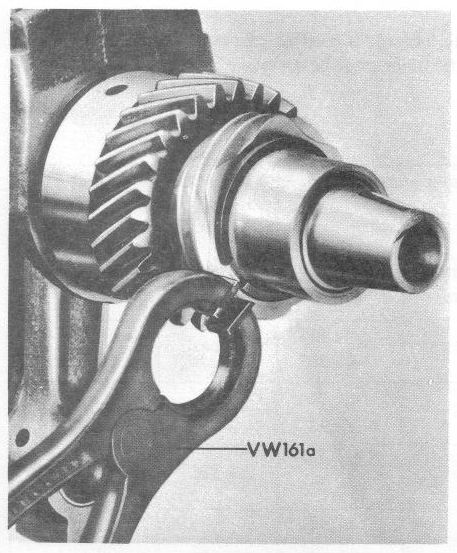

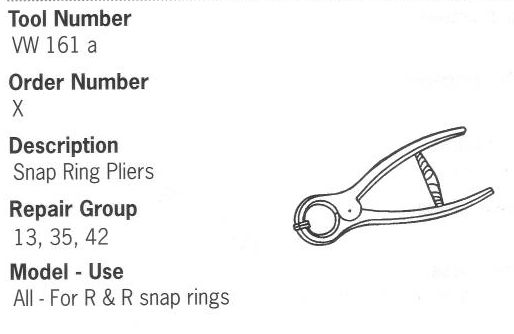

Engine |
VW 161a |
Snap ring pliers |
Installs and
removes snap rings |
|
|
|
|

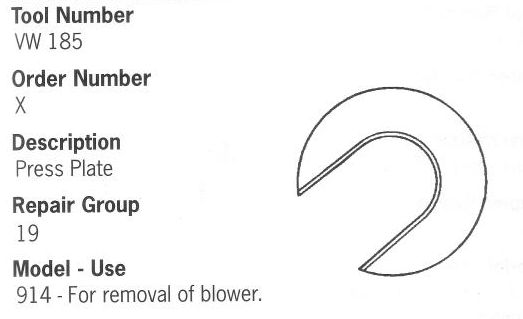

Engine |

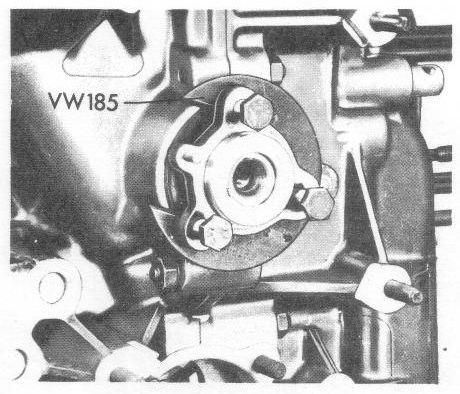

VW 185 |
Press plate |
Removes fan mount from crankshaft |
|
|
|
|

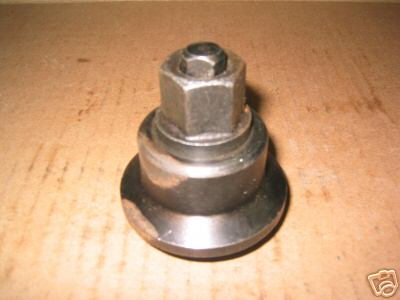

Engine |

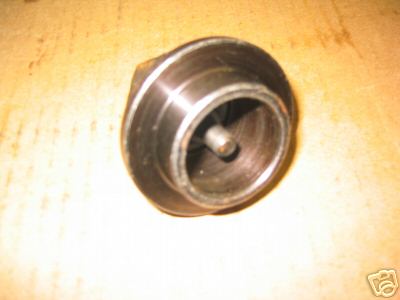

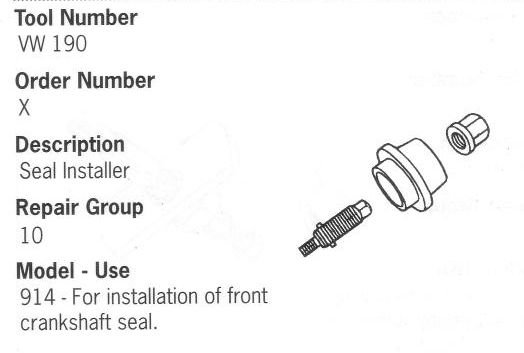

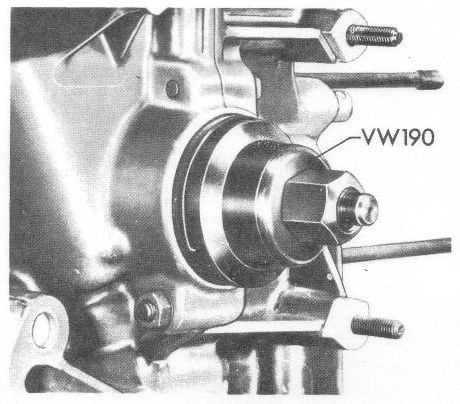

VW 190 |
Seal installer |
Installs front crankshaft
seal |
|
|
|
|
Engine |

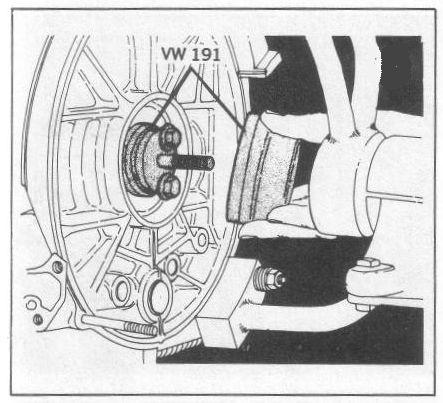

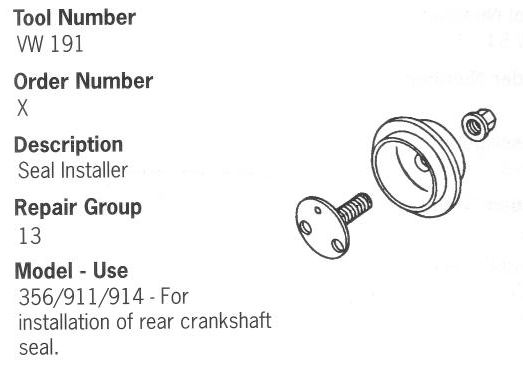

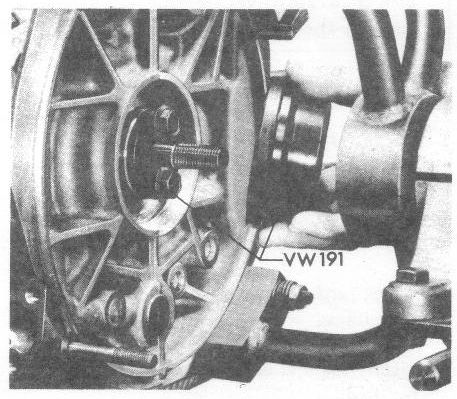

VW 191 |
Seal installer |
Installs rear
crankshaft seal (See also Tool P 215) |
|
|
|
|
Engine |

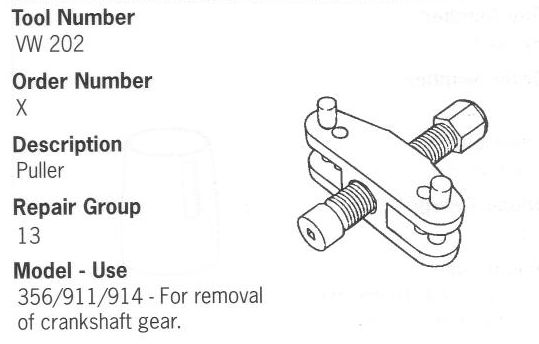

VW 202 |
Puller |
Removes bearings, use with
VW 202a |
|
|
|
|

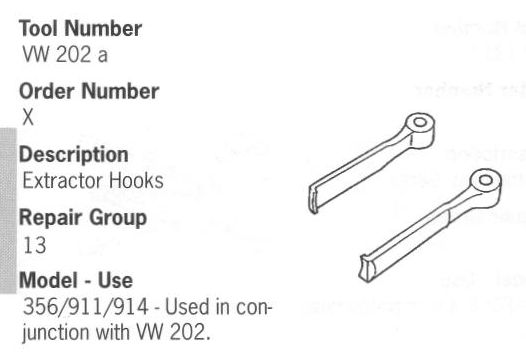

Engine |

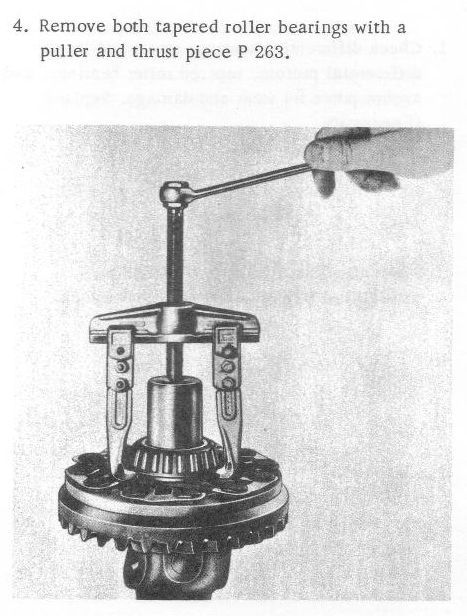

VW 202a |
Extractor hooks |
Removes bearings, use with
VW 202 |
|
|
|
|
Engine |

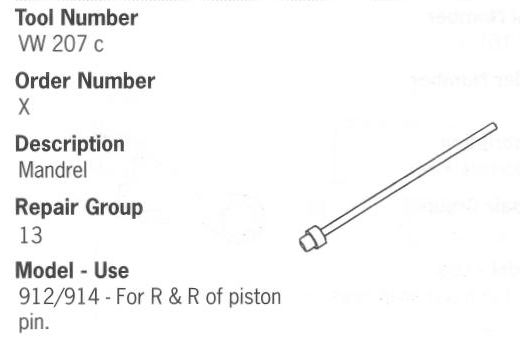

VW 207c |
Piston pin mandrel |
Removes and installs
piston wrist pins (See also Tool P2a) |
|
|
|
|

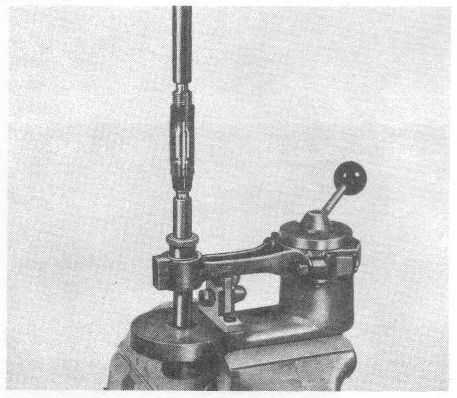

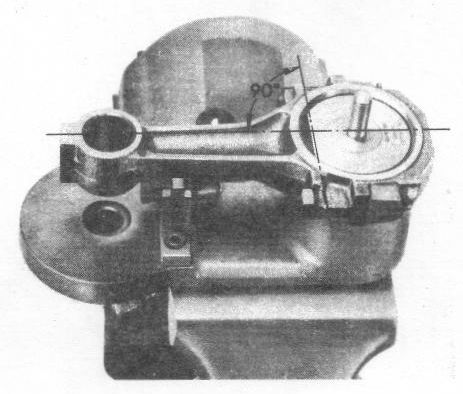

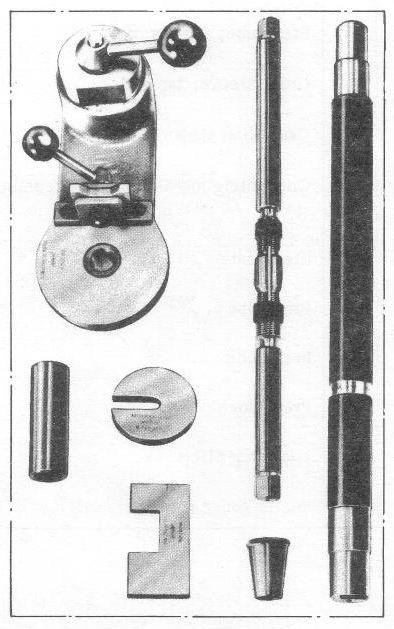

Engine |

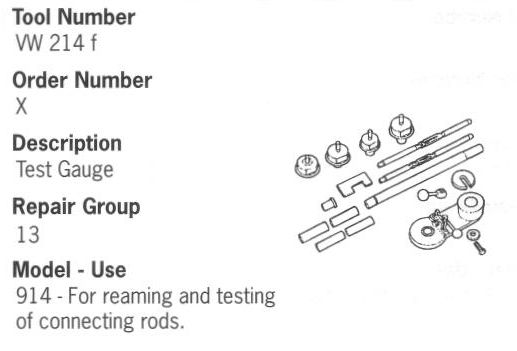

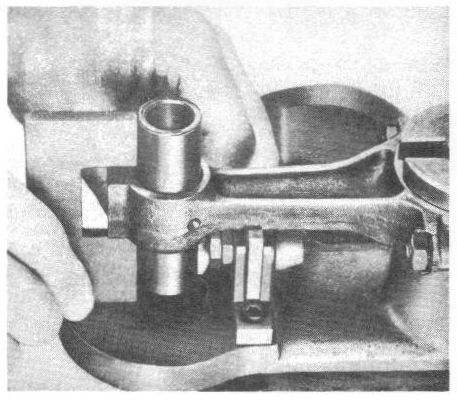

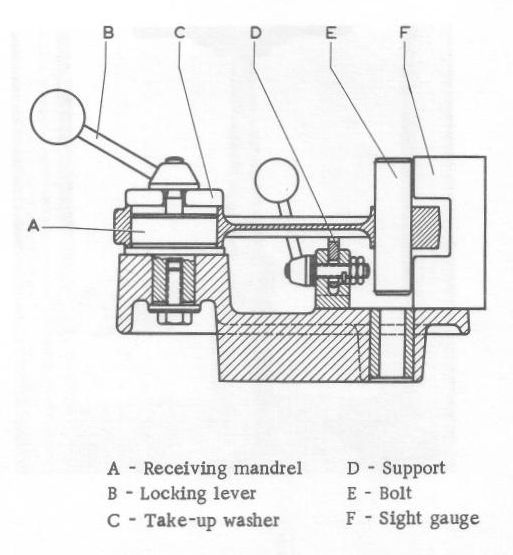

VW 214f or VW 214f/70 |
Test gauge |
Reams and tests connecting rod bushings |
|
|
|
|
Engine |

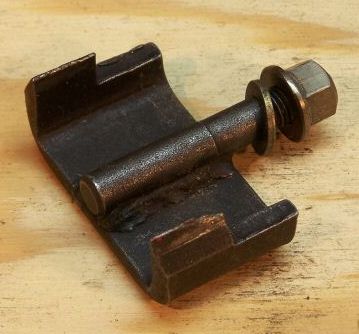

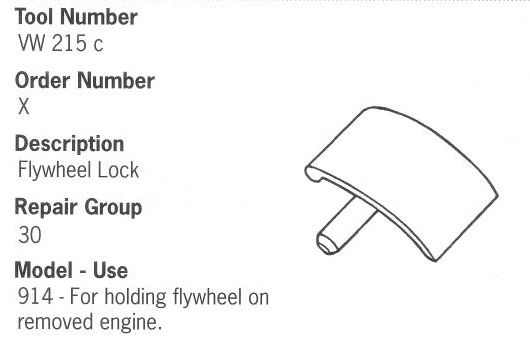

VW 215c |
Flywheel lock |
Holds flywheel and
crankshaft on removed engine |
|
|
|
|

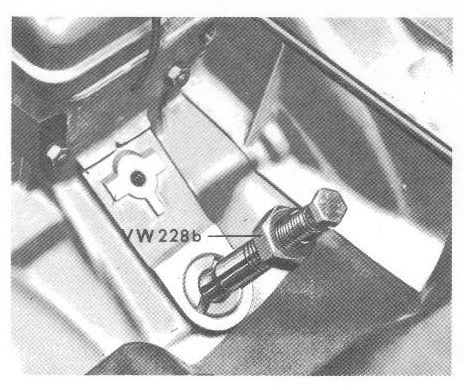

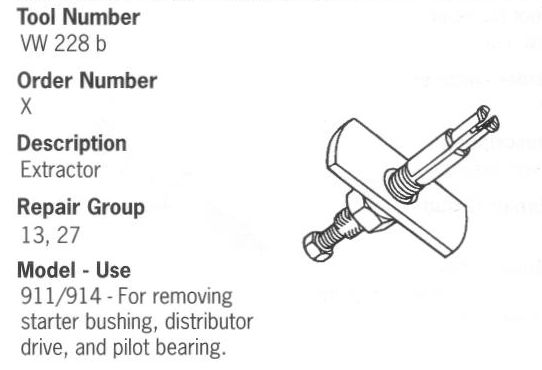

Engine |
VW 228b |
Extractor |
Removes starter bushing,
distributor drive and flywheel pilot bearing |
|
|
|
|

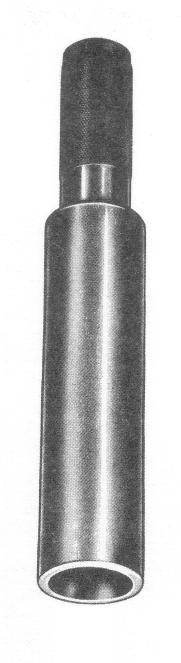

Transaxle |

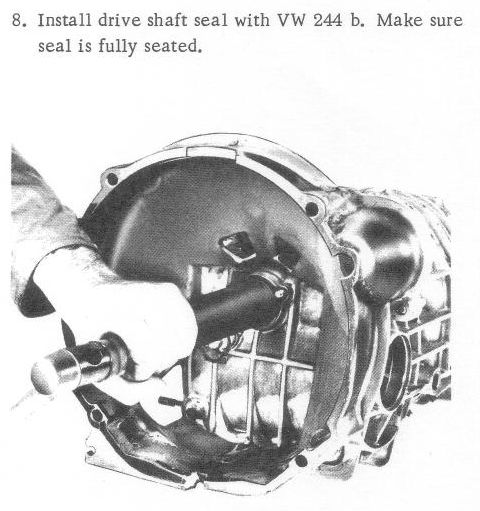

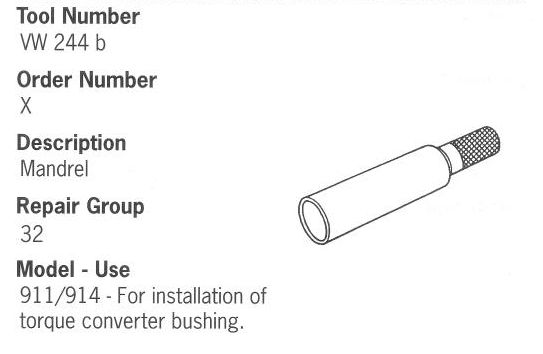

VW 244b |
Mandrel |
Installs driveshaft seal |
|
|
|
|

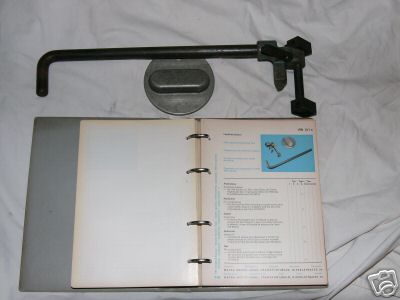

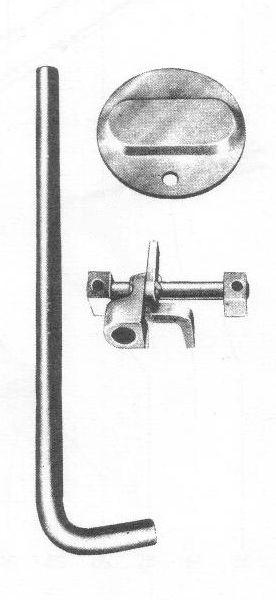

Engine |

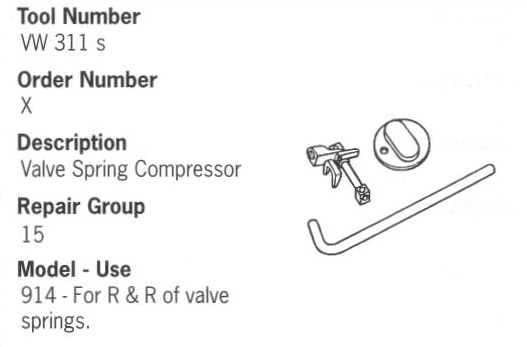

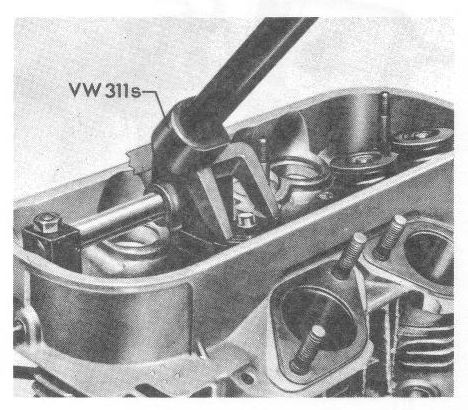

VW 311s |
Valve spring compressor |
Removes and installs valve
springs at cylinder heads |
|
|
|
|

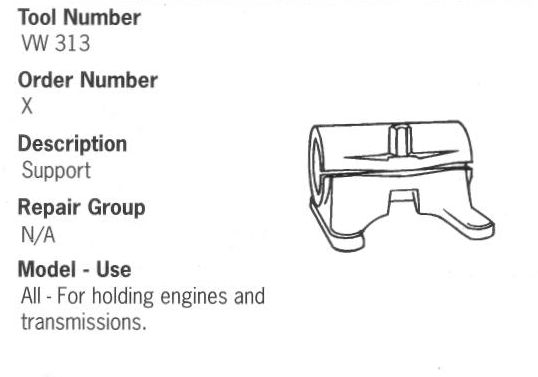

Engine |
VW 313 |
Support |
Use with P201 to support
engines and transaxles |
|
|
|
|

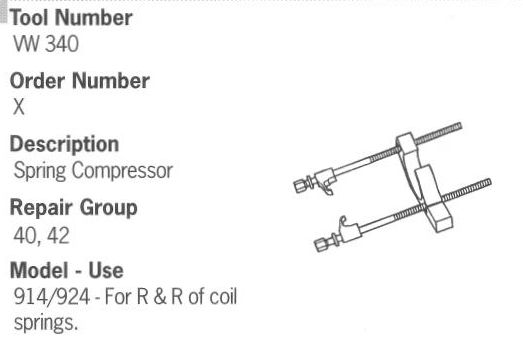

Suspension |

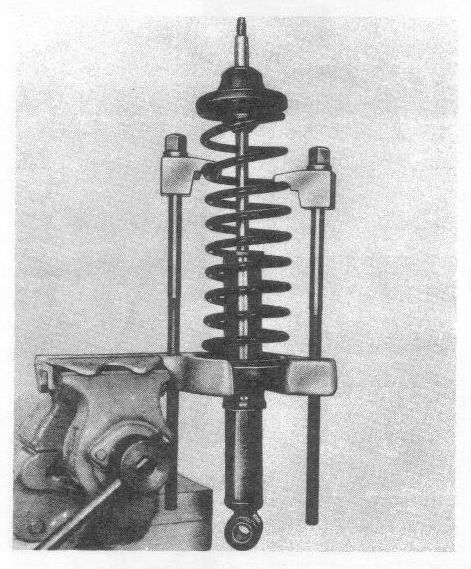

VW 340 |
Spring compressor |
Use with P303 to remove
and install rear suspension coil springs |
|
|
|
|

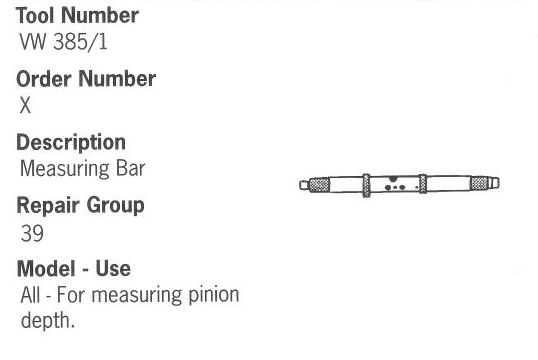

Transaxle |

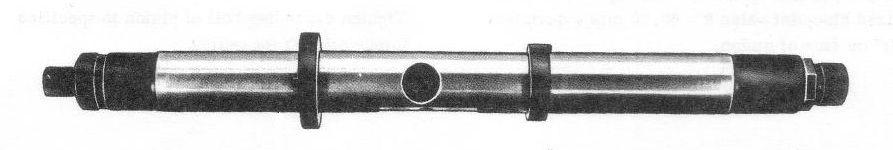

VW 385/1 |
Measuring bar |
Measures pinion
depth |
|
|
|
|

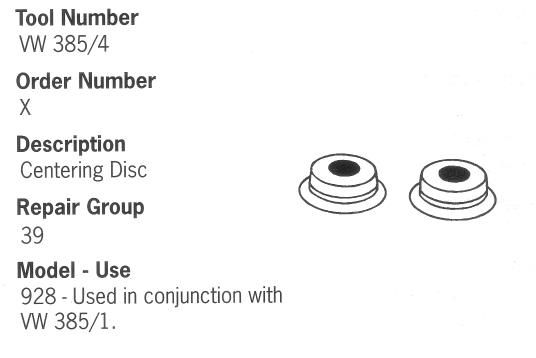

Transaxle |

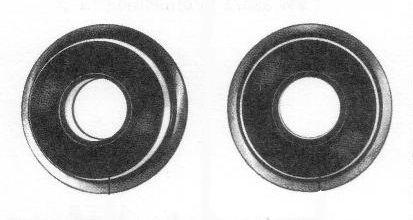

VW 385/4 |
Centering disc |
Use with VW 385/1 |
|
|
|
|
Transaxle |

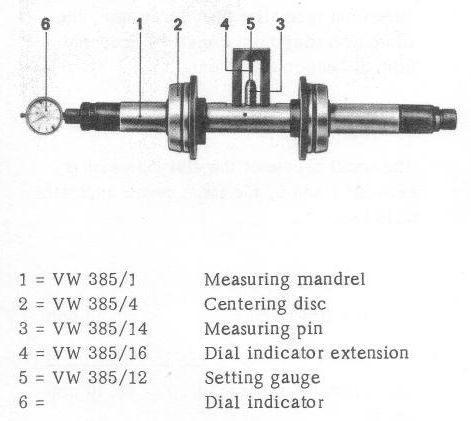

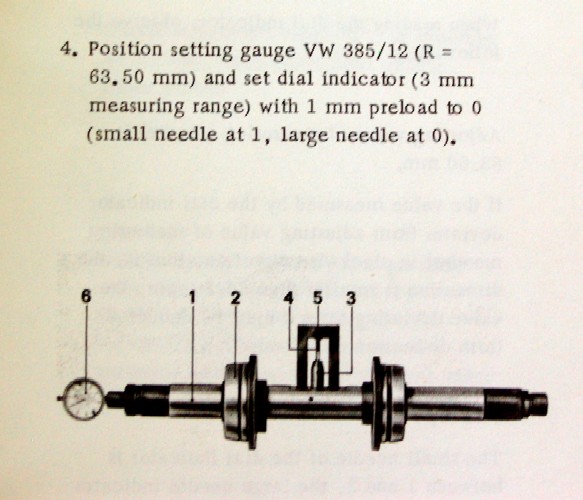

VW 385/12 |
Setting gauge |
Use with VW 385/1 |
|
NLA |
|
|
Transaxle |

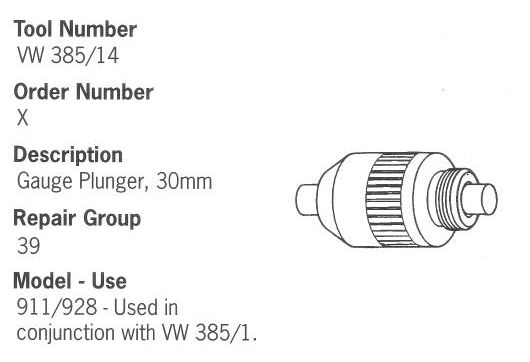

VW 385/14 |
Gauge plunger 30mm |
Use with VW 385/1 |
|
|
|
|
Transaxle |
VW 385/16 |
Setting gauge (R=63.50
mm) |
Use with VW 385/1 |
|
NLA |
|
|

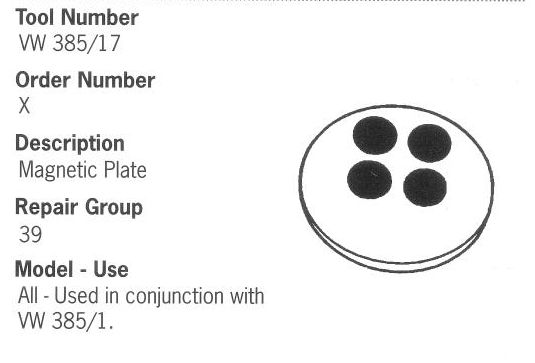

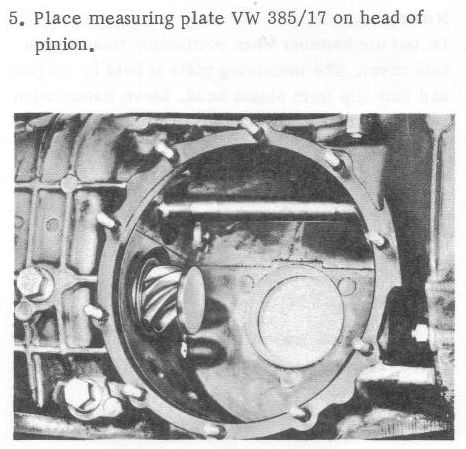

Transaxle |
VW 385/17 |
Magnetic plate |
Use with VW 385/1 |
|
|
|
|
General |

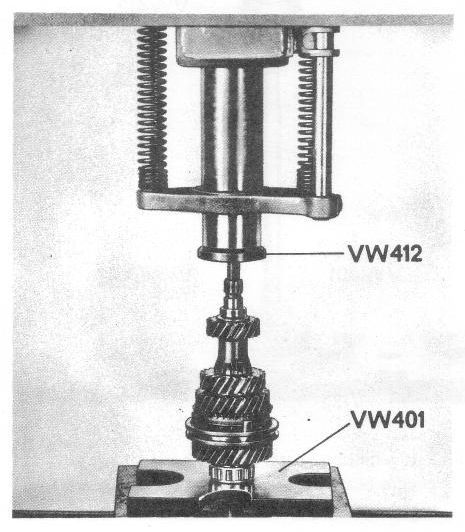

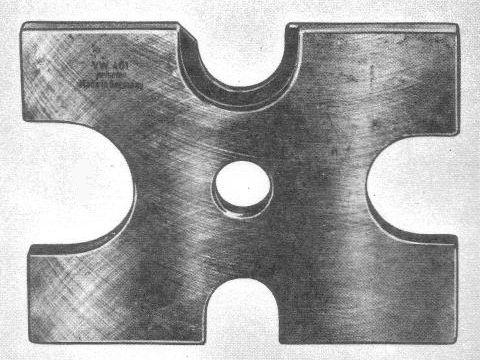

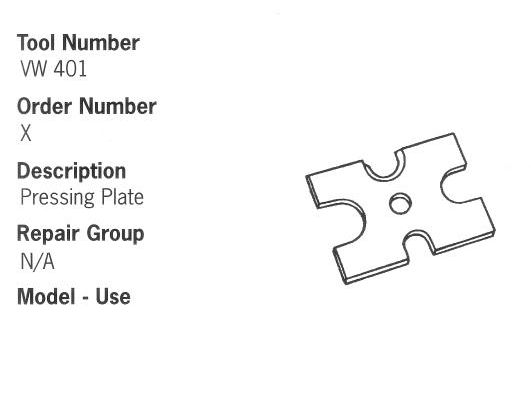

VW 401 |
Pressing plate |
Support plate with
several reveals to support various items while using a mechanical press |
|
|
|
|

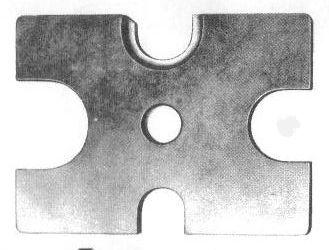

General |

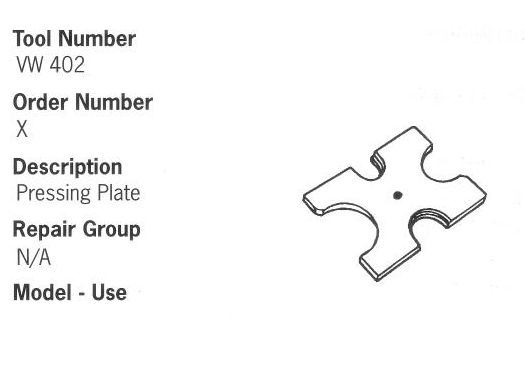

VW 402 |
Pressing plate |
Support plate with
several reveals to support various items while using a mechanical press |
|
|
|
|

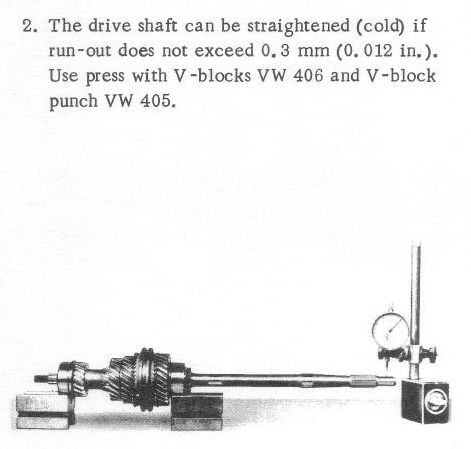

Transaxle |

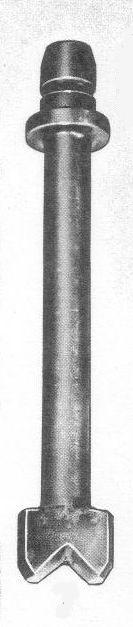

VW 405 |
V-Block punch |
Straightens drive shaft |
|
Baum Tools |
|
|
Transaxle |

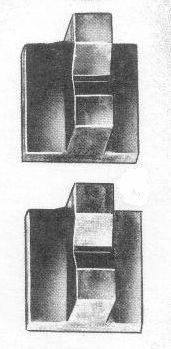

VW 406 |
V-Blocks |
Support blocks for
drive shaft, useful while performing operations on shafts |
|
Baum Tools |
|
|
General |

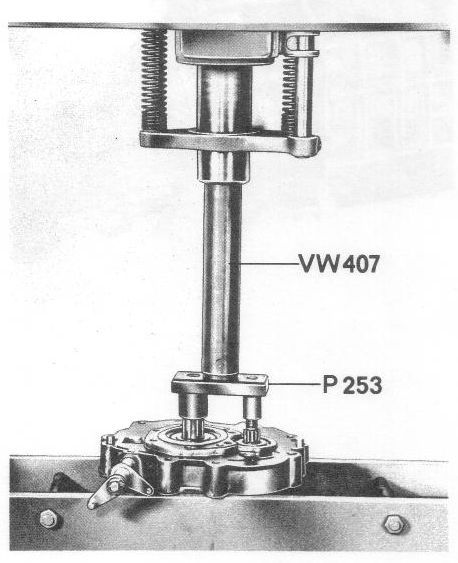

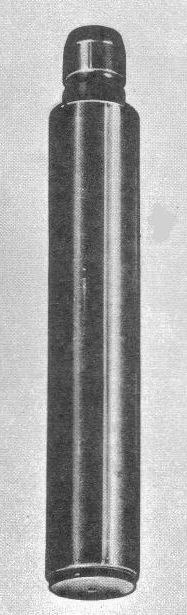

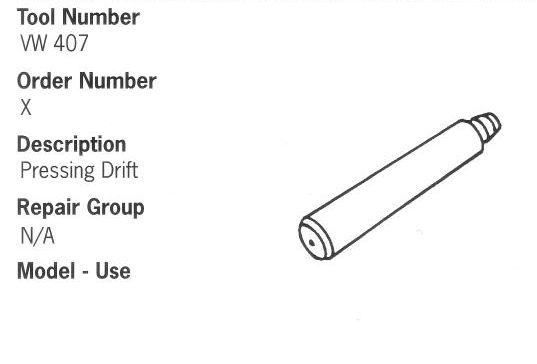

VW 407 |
Pressing drift |
Mechanical press tool |
|
|
|
|

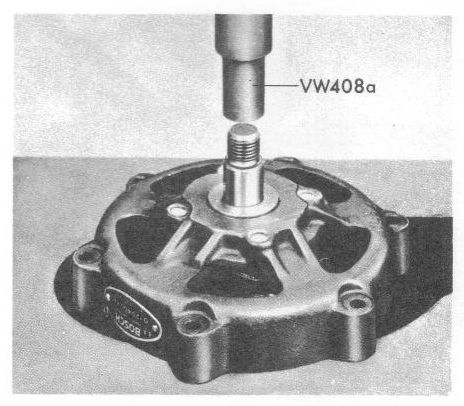

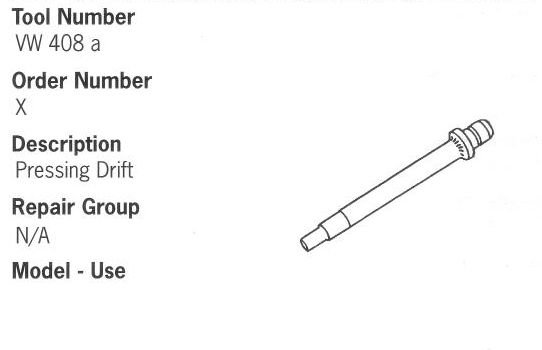

General |
VW 408a |
Pressing drift |
Mechanical press
tool |
|
|
|
|

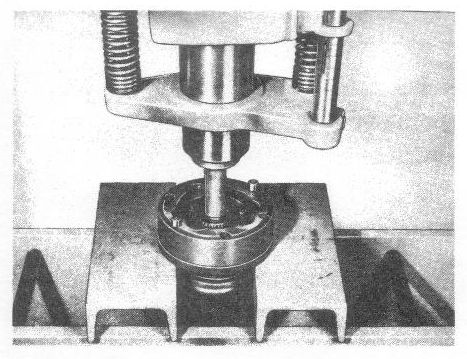

General |
VW 410 |
Pressing drift |
Mechanical press tool |
|
NLA |
|
|

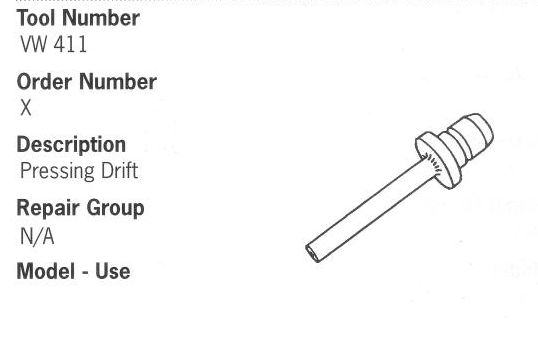

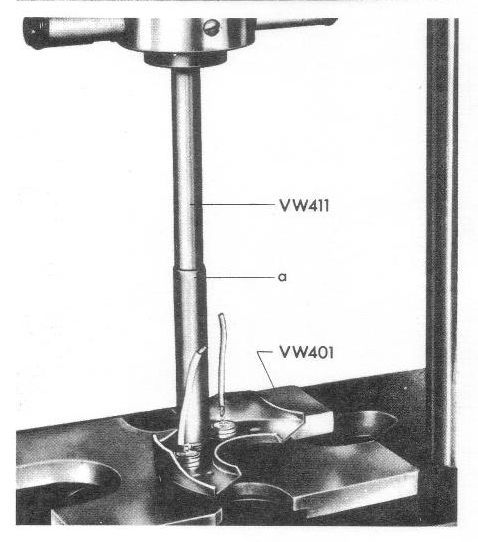

General |
VW 411 |
Pressing drift |
Mechanical press tool |
|
|
|
|

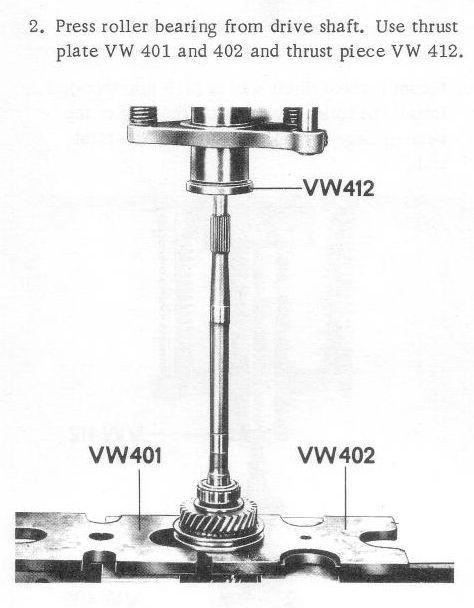

General |

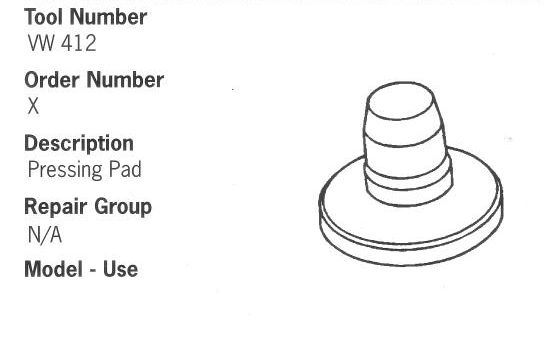

VW 412 |
Thrust piece |
Mechanical press tool |
|
|
|
|
General |

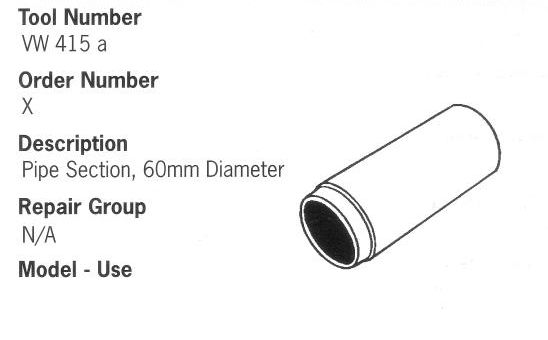

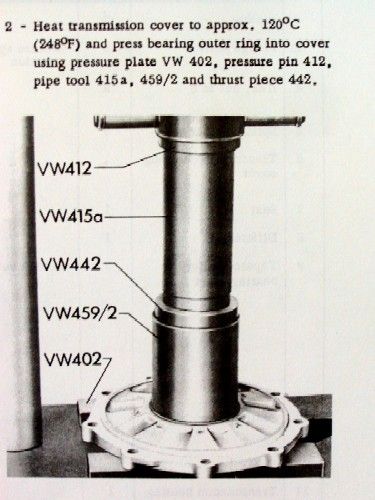

VW 415a |
Tube section, 60mm
diameter (2.4") |
Mechanical press tool |
|
|
|
|

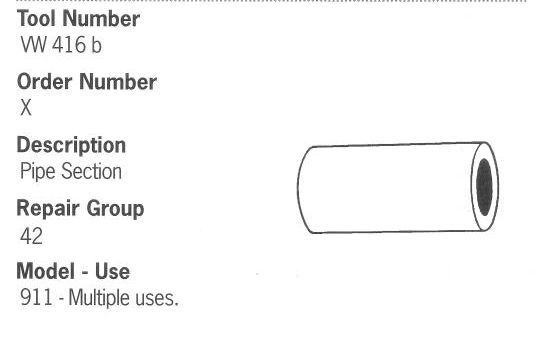

General |

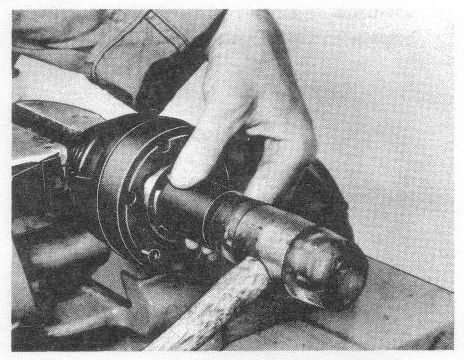

VW 416b |
Pipe section |
Mechanical press tool |
|
|
|
|

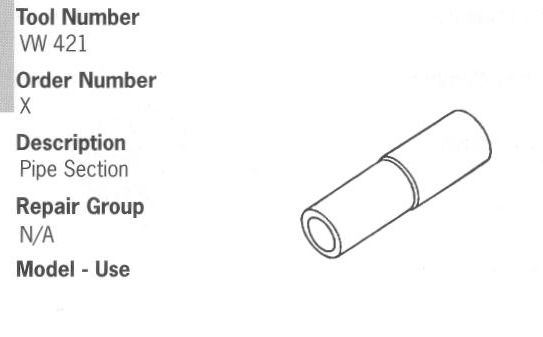

General |

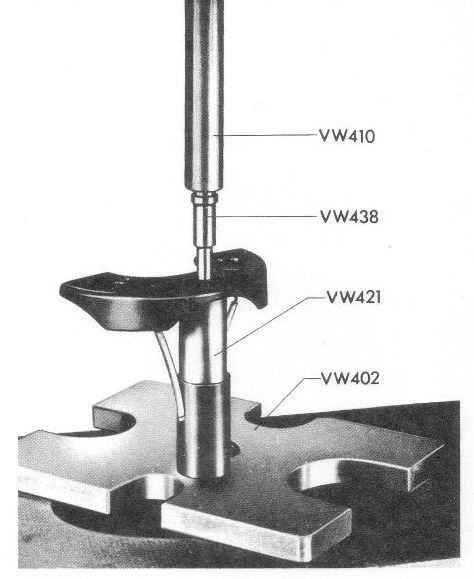

VW 421 |
Pipe section (28 mm
diameter) (1.1") |
Mechanical press tool |
|
|
|
|
General |

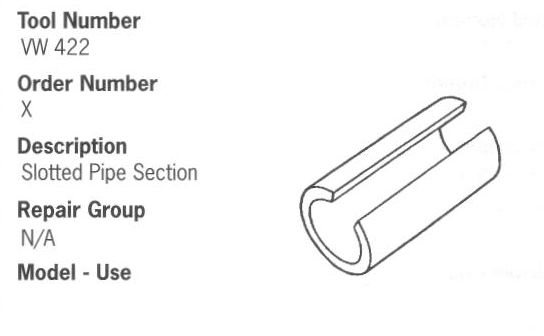

VW 422 |
Slotted pipe section |
Mechanical press
tool |
|
|
|
|

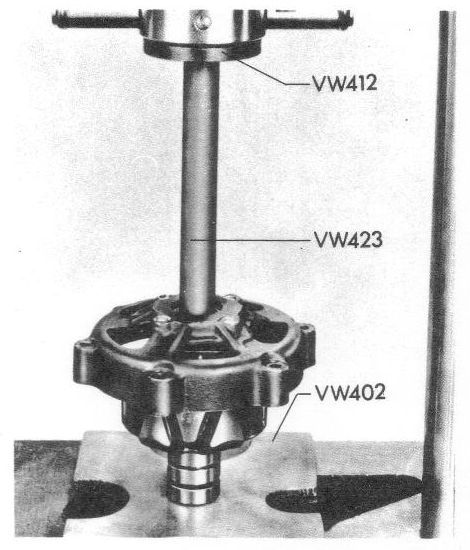

General |

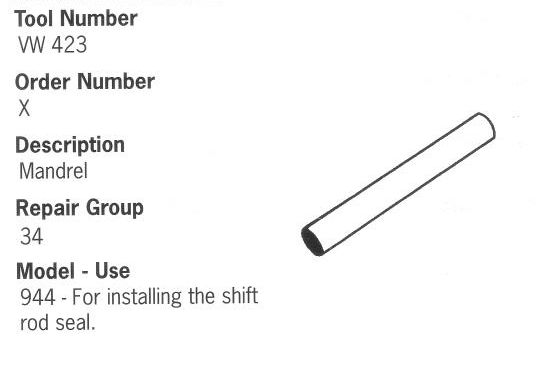

VW 423 |
Mandrel |
Mechanical press
tool |
|
|
|
|
Engine |

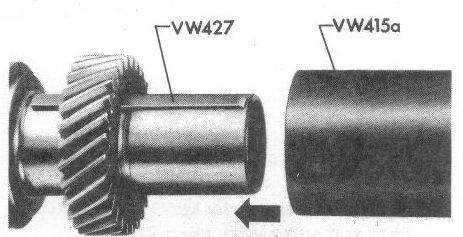

VW 427 |
Guide sleeve |
Mechanical press tool |
|
NLA |
|
|

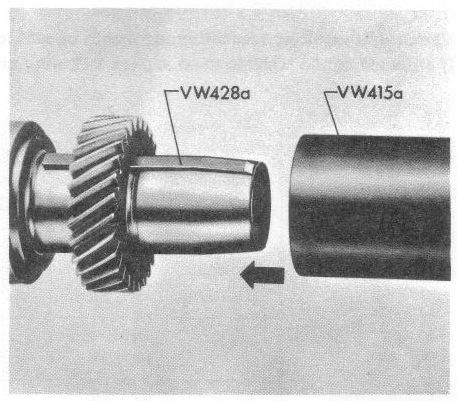

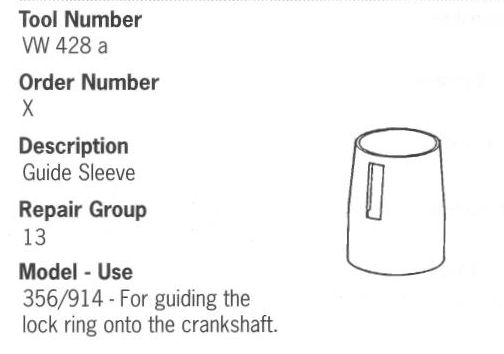

Engine |
VW 428a |
Guide sleeve, tapered |
Guides lock ring
onto crankshaft |
|
|
|
|

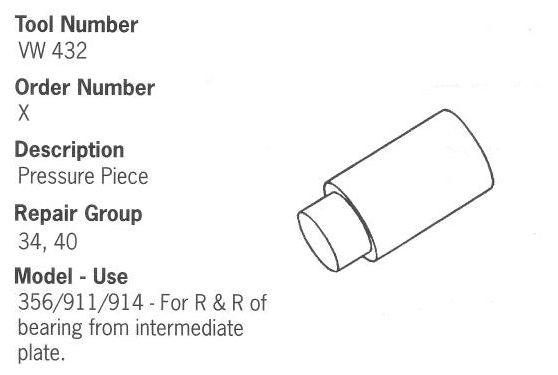

Transaxle |
VW 432 |
Pressure piece |
Installs and removes
bearings from intermediate plate |
|
|
|
|
General |

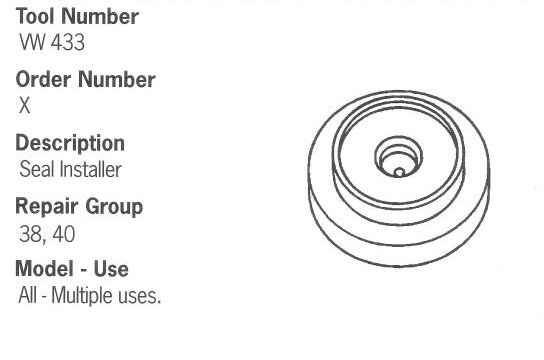

VW 433 |
Pressure piece |
Installs seals |
|
|
|
|
Electrical |
VW 438 |
Pressure piece |
Mechanical press tool |
|
NLA |
|
|
Transaxle |

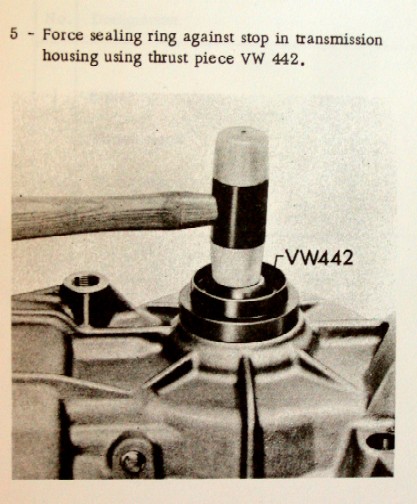

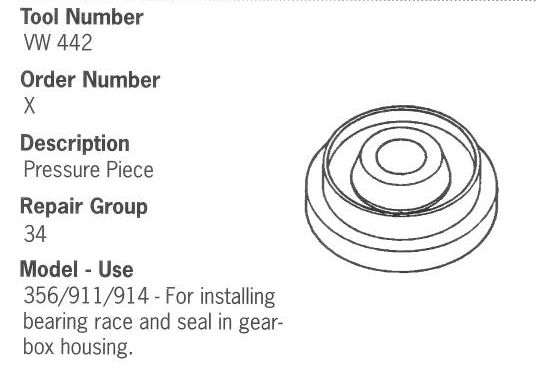

VW 442 |
Thrust piece |
Installs bearing race and
seal in transaxle housing |
|
|
|
|

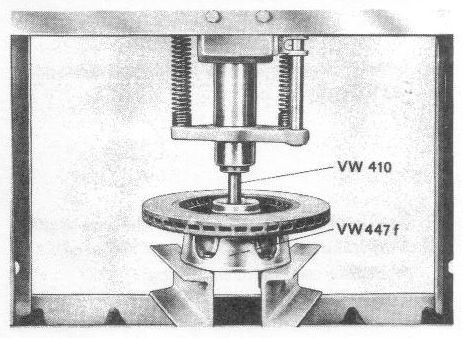

Brakes |
VW 447f |
Pressure plate |
Mechanical press tool (914/6-only tool?) |
|
NLA |
|
|
Brakes |

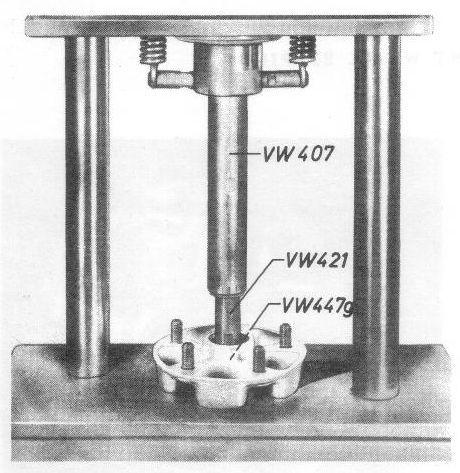

VW 447g |
Pressure plate |
Mechanical press tool (914/6-only tool?) |
|
NLA |
|
|

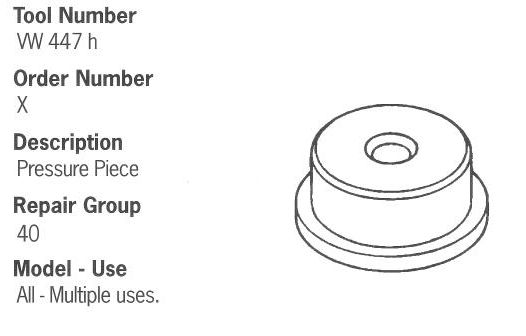

Brakes |

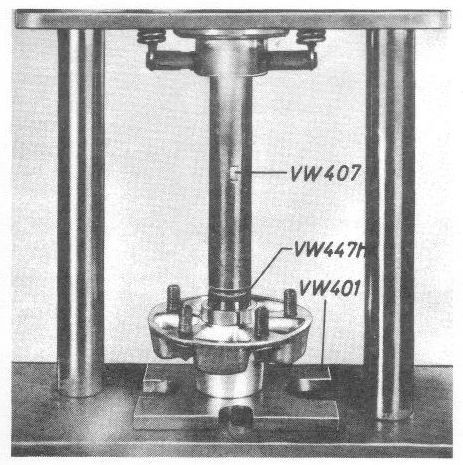

VW 447h |
Pressure piece |
Mechanical press tool (914/6-only tool?) |
|
|
|
|
Brakes |

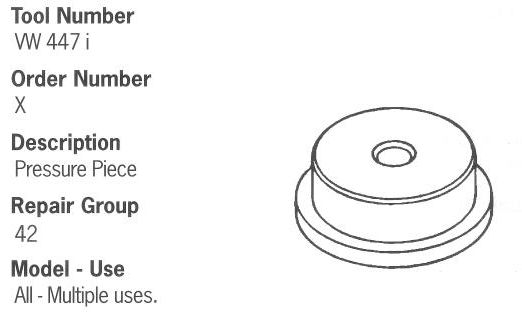

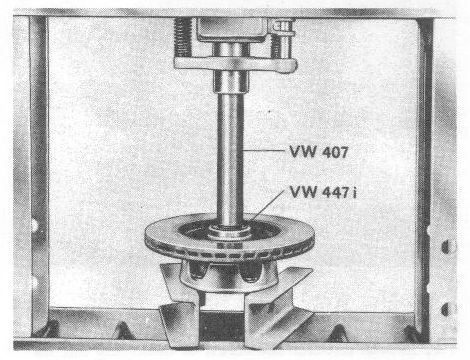

VW 447i |
Pressure plate |
Mechanical press tool (914/6-only tool?) |
|
|
|
|
Transaxle |

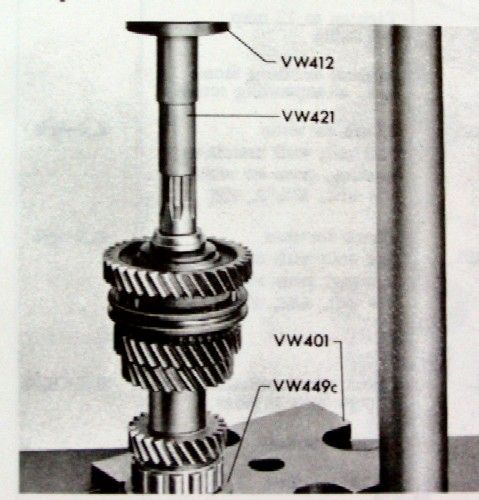

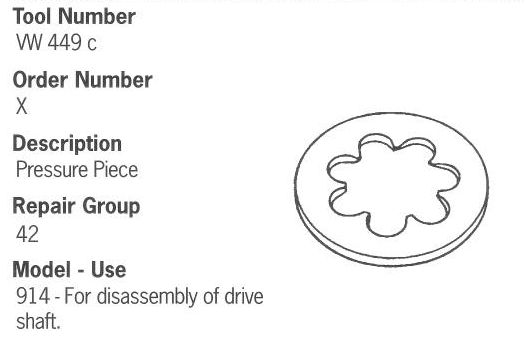

VW 449c |
Pressure piece |
Disassembles drive
shaft |
|
|
|
|

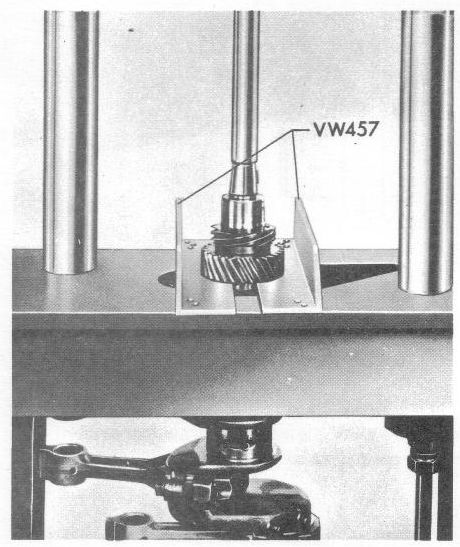

General |

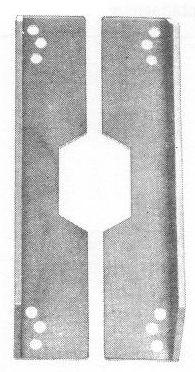

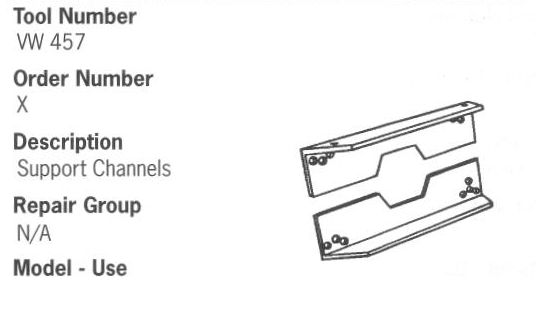

VW 457 |
Support channels |
Mechanical press
tool |
|
|
|
|

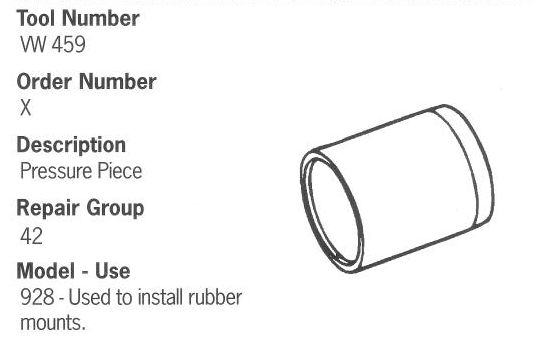

General |

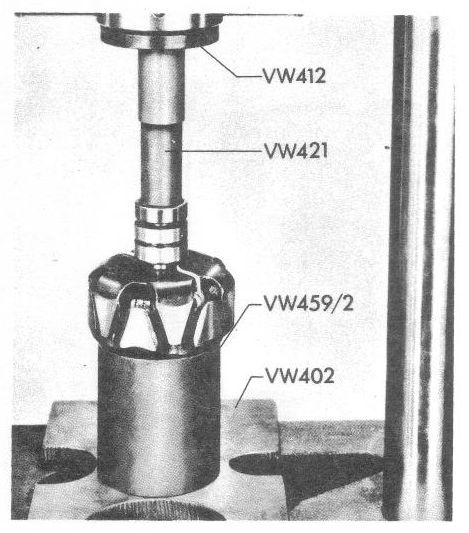

VW 459/2 |
Pressure piece |
Mechanical press
tool |
|
|
|
|
General |

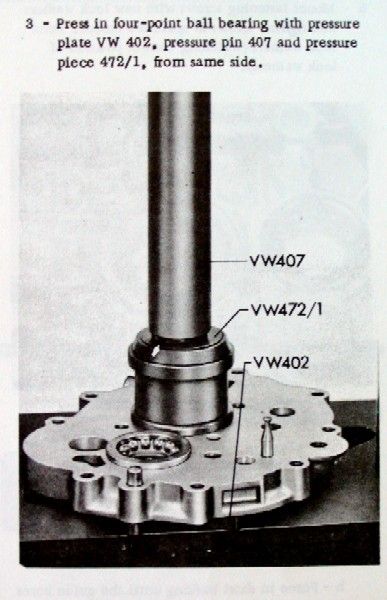

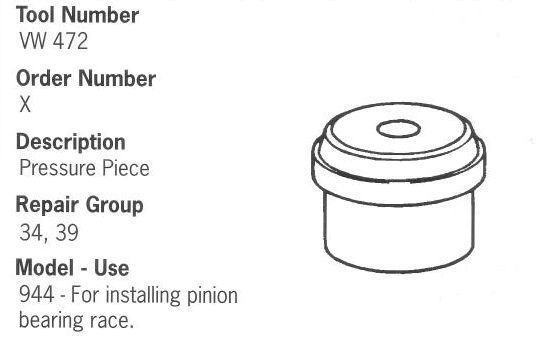

VW 472/1 |
Pressure piece |
Mechanical press
tool |
|
|
|
|
General |

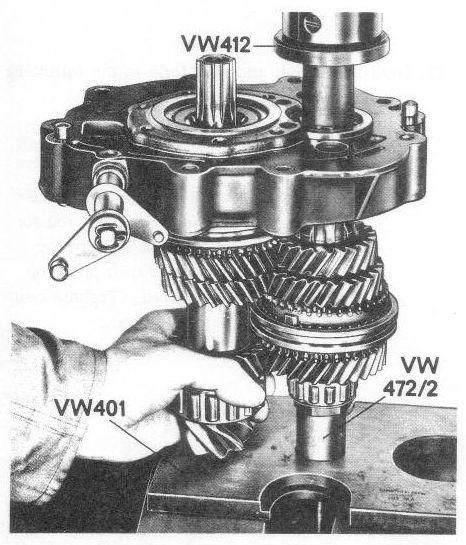

VW 472/2 |
Tubing piece |
Mechanical press
tool |
|
NLA |
|
|

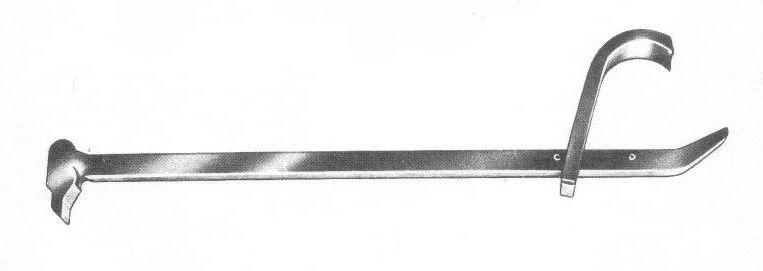

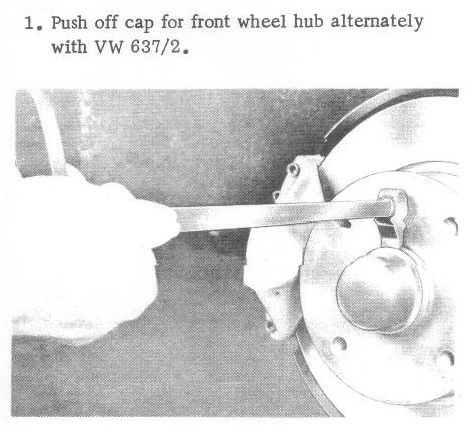

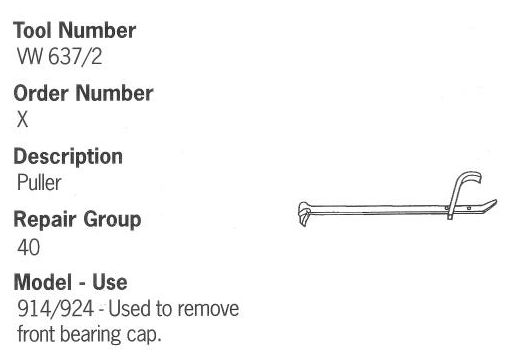

Wheels |
VW 637/2 |
Puller |
Removes front wheel
bearing cap |
|
|
|
|
Fuel system |
VW 647b |
Fuel line clamps |
Clamps fuel lines |
|
Baum Tools |
|
|

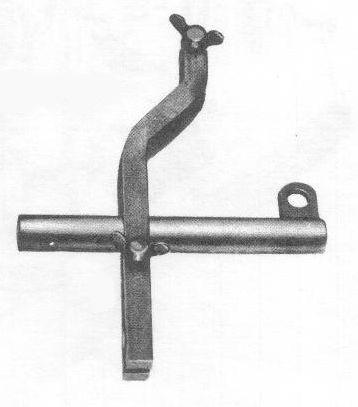

Engine |

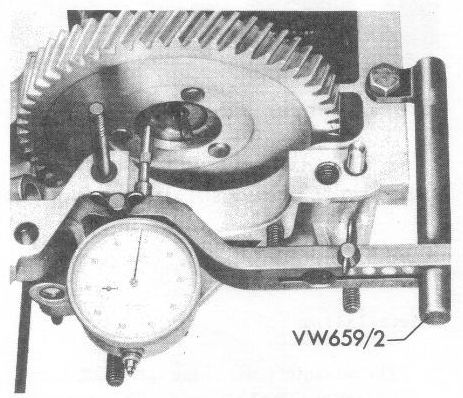

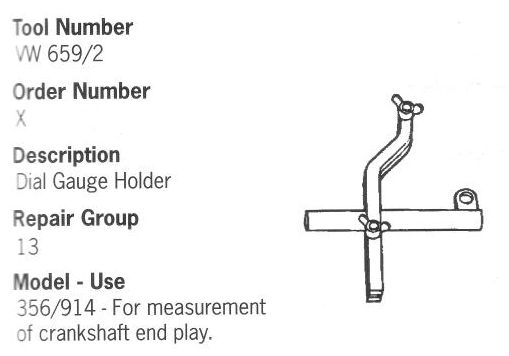

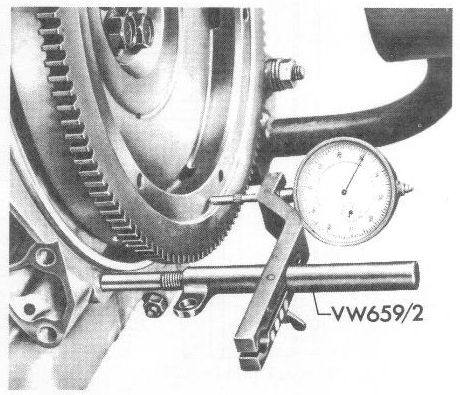

VW 659/2 |
Dial gauge holder |
Measures crankshaft end
play |
|
|
|
|
Engine |

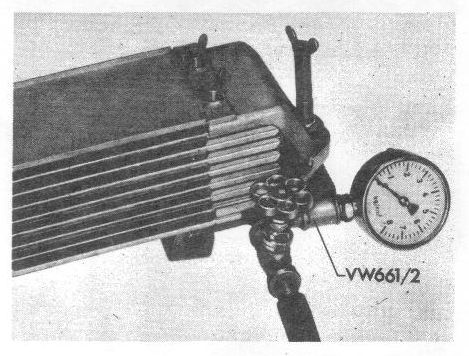

VW 661/2 |
Pressure tester for oil
cooler |
Pressure tests oil
cooler |
|
NLA |
|
|

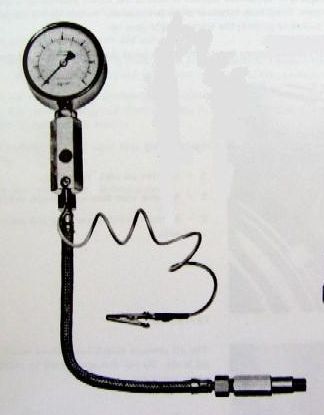

Engine |
VW 662/2 |
Pressure tester |
Compression tester? |
|
NLA |
|
|

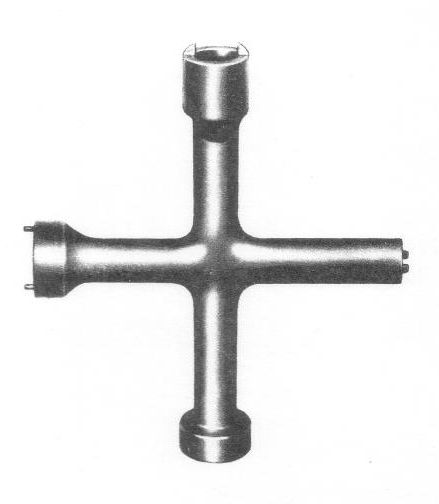

Electrical |
VW 674/1 |
Multiple cross wrench |
Installs and removes dash
switch bezels (See also Tool M1) |
|
NLA |
|
|
Engine |
VW 681 |
Oil seal remover |
Removes oil seals |
|
Baum Tools |
|
|

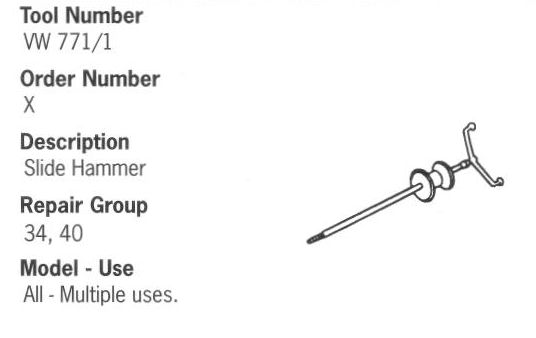

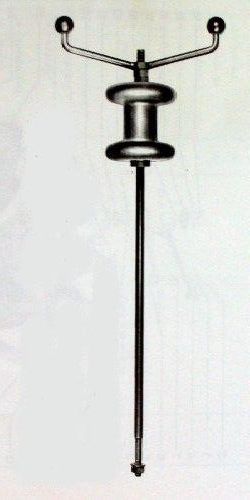

Chassis |

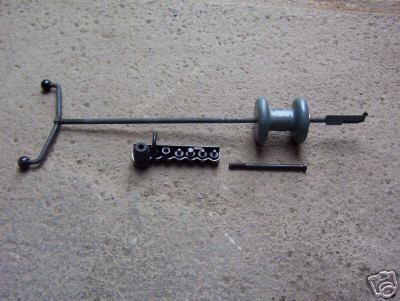

VW 771/1 |
Slide hammer |
Duplicates the
function of tool P290? |
|
|
|
|

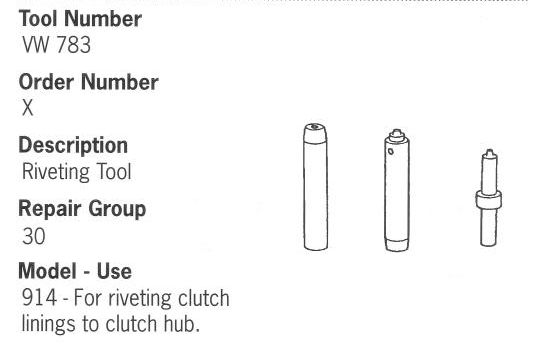

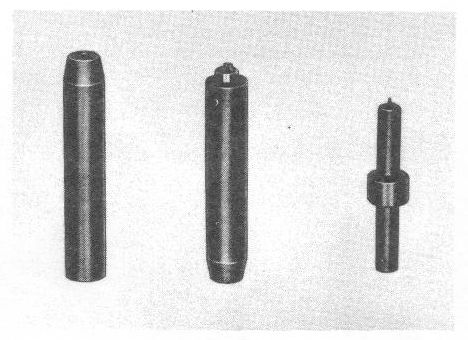

Clutch |

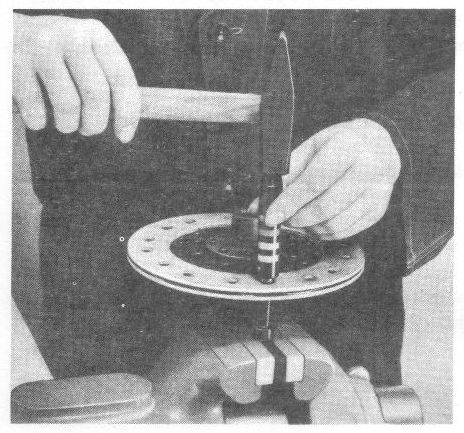

VW 783 |
Riveting tool |
The only factory approved
tool to install clutch linings |
|
|
|
|

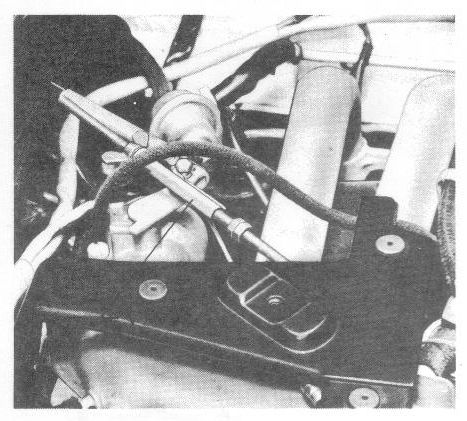

Engine |
VW 798/2 |
Actuating device for
throttle |
Throttle position holder |
|
NLA |
|
|
Engine |

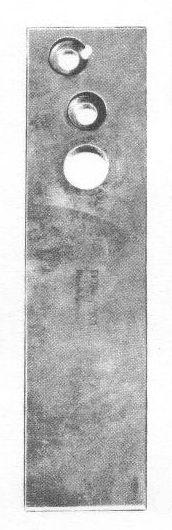

VW 801 |
Crankshaft support plate |
Vise mounted, supports
crankshaft |
|
NLA |
|
|

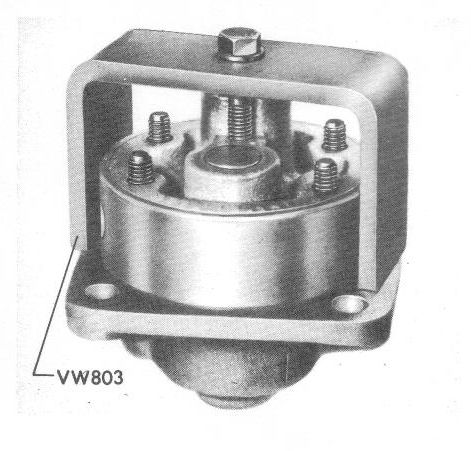

Engine |
VW 803 |
Puller for oil pump |
Removes oil pump from
engine case |
|
NLA |
|
|

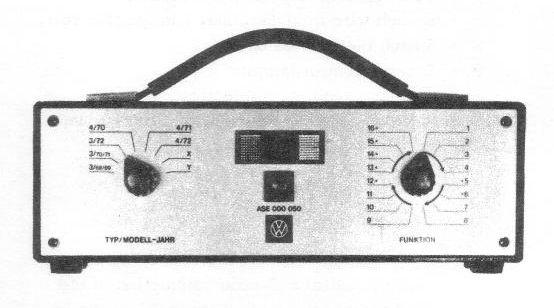

Fuel Injection |

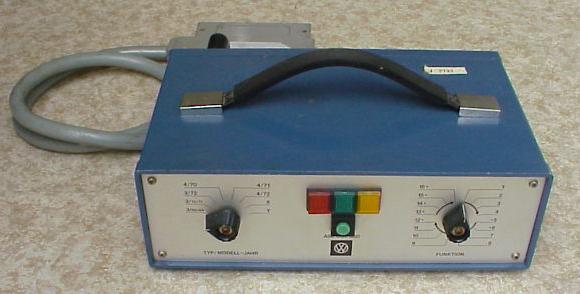

VW 1218 |
D-Jetronic
fuel injection system tester |
Tests D-Jet fuel
injection system functions |
|
NLA |
|
|

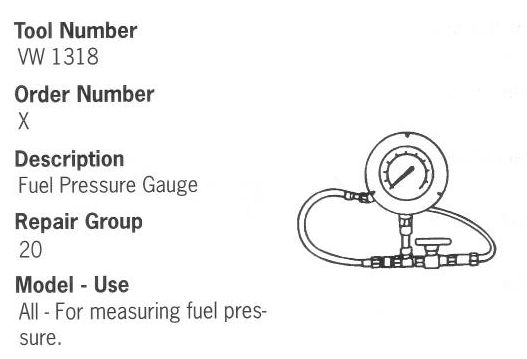

Fuel Injection |

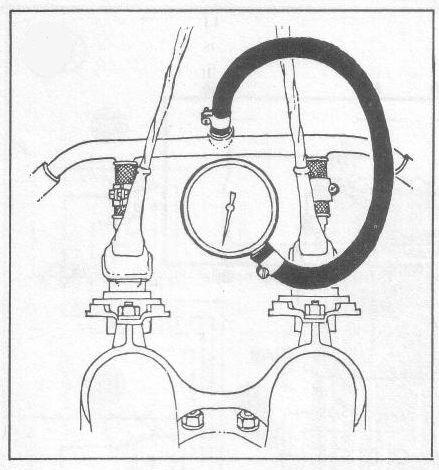

VW 1318 |
Fuel pressure gauge |
Measures fuel pressure |
|
|
|
|
65 Tools |
|
|
|
|
|
|
